PART TIME 4WD SYSTEM

DLN-67

< WIRING DIAGRAM >

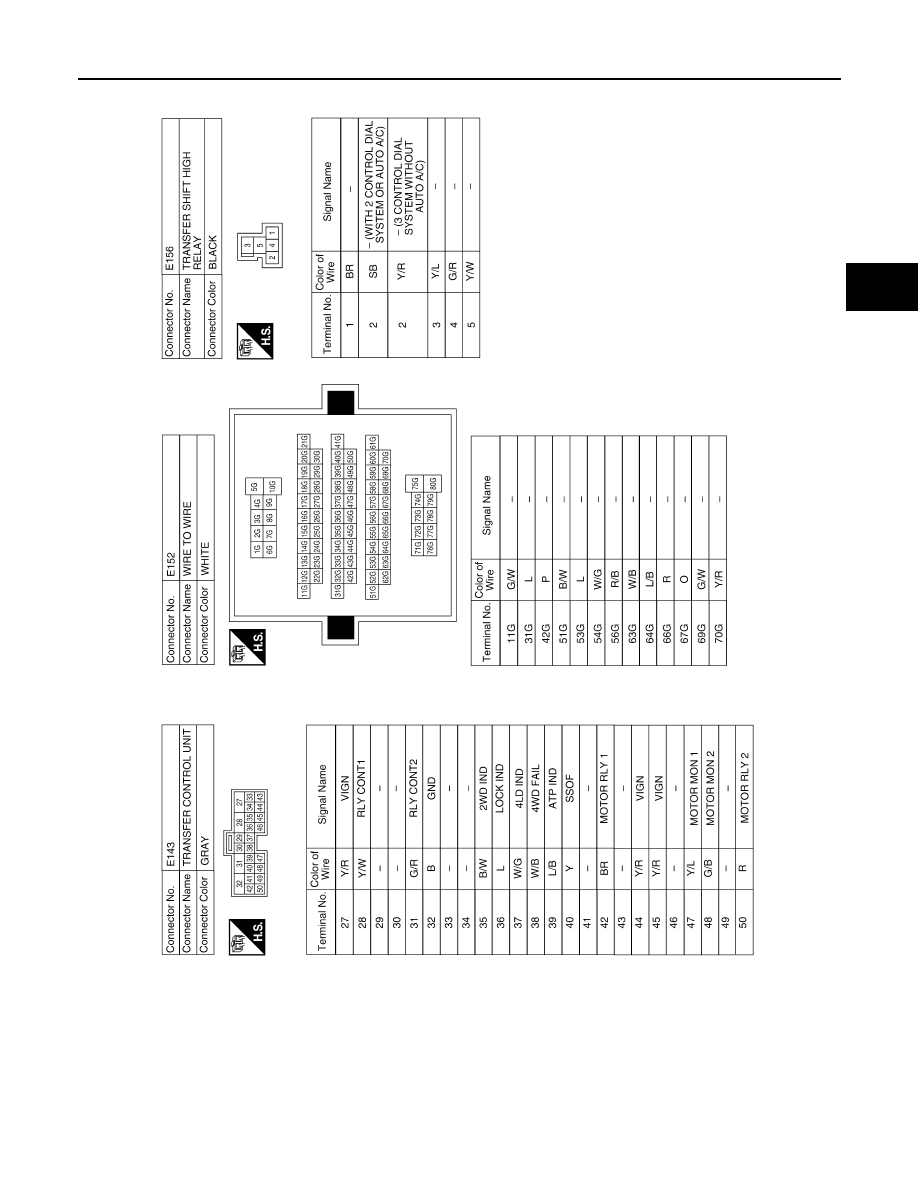

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ABDIA0689GB

DLN-68

< WIRING DIAGRAM >

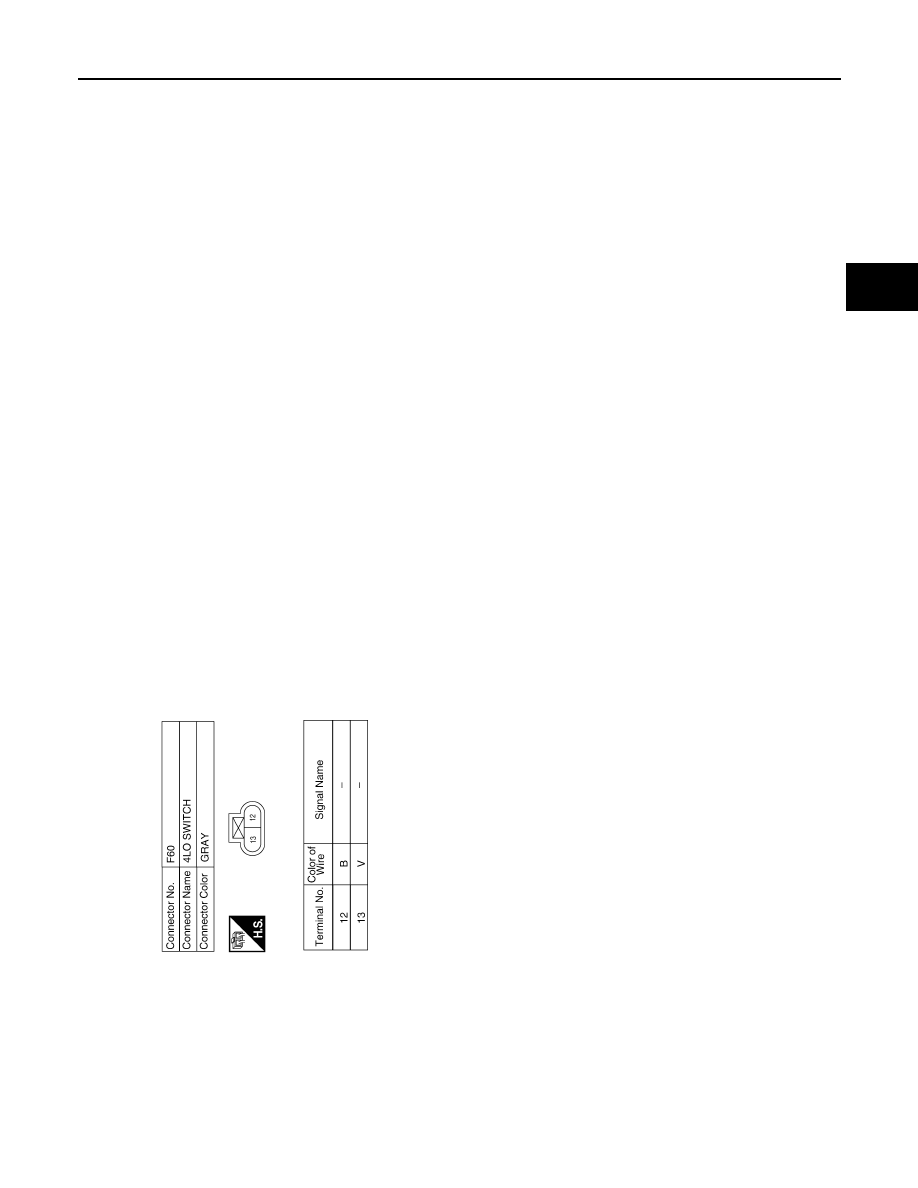

[TRANSFER: TX15B]

PART TIME 4WD SYSTEM

ABDIA0421GB

PART TIME 4WD SYSTEM

DLN-69

< WIRING DIAGRAM >

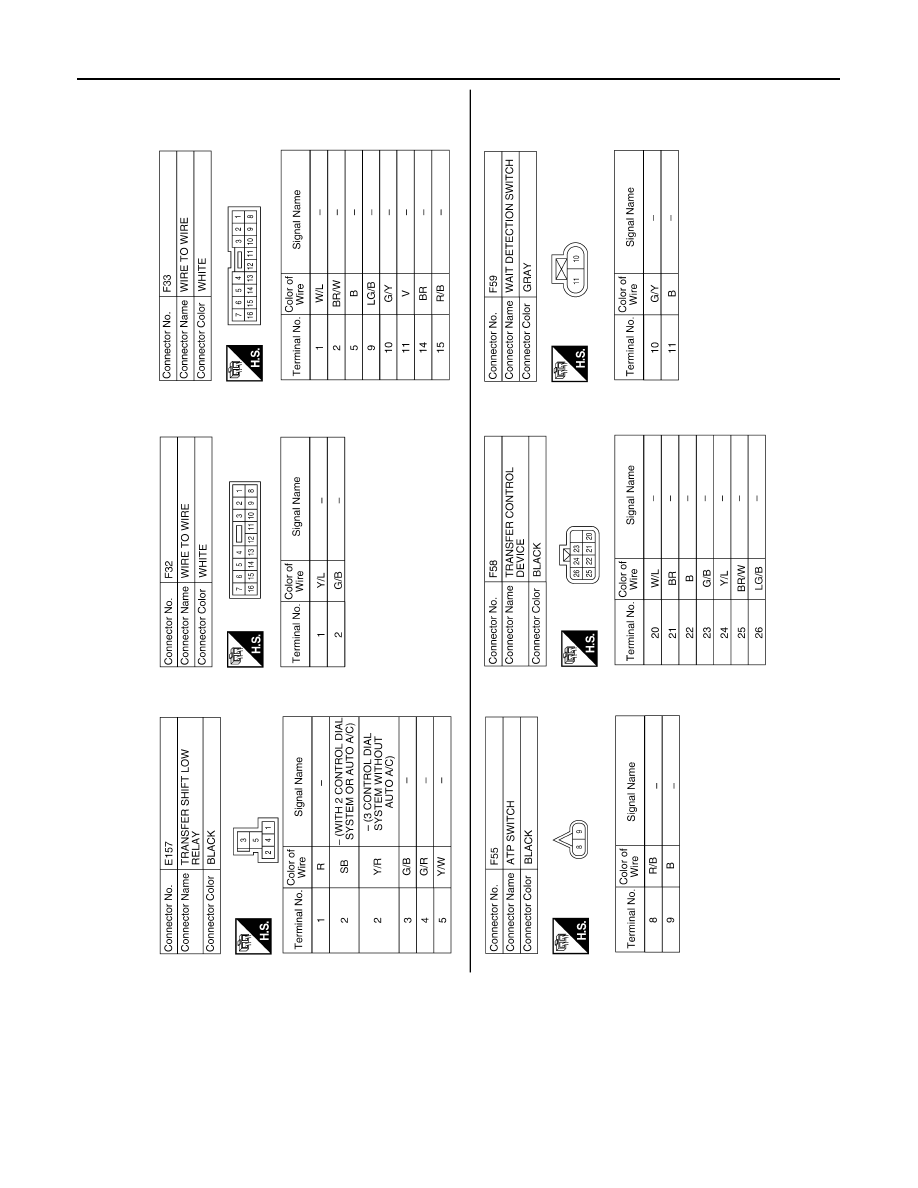

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ABDIA0028GB

DLN-70

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

4WD SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

4WD SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000006179478

Symptom

Condition

Reference page

4WD warning lamp does not turn ON (lamp check)

Ignition switch: ON

DLN-71

4WD shift indicator lamp and 4LO indicator lamp do not turn ON (lamp check)

DLN-73

4WD shift indicator lamp or 4LO indicator lamp does not change

Engine running

DLN-75

ATP warning lamp does not turn ON

DLN-77

4WD shift indicator lamp keeps flashing

While driving

DLN-79

4WD warning lamp flashes slowly (1 time/2 seconds)

DLN-80

ATP switch is malfunctioning

Engine running

DLN-81
