P1816 TRANSMISSION RANGE SWITCH

Description

INFOID:0000000006179459

The transmission range switch transmits the A/T position indicator signal (transmission range switch signal)

via CAN communication to the transfer control unit.  DTC P1816 will set when the transmission range switch

signal is malfunctioning or there is a communication error.

DTC Logic

INFOID:0000000006179460

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Perform self-diagnosis.
Is DTC P1816 displayed?

YES

>> Perform diagnosis procedure. Refer to

DLN-39, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000006179461

1.

CHECK DTC WITH TCM

Perform self-diagnosis with TCM. Refer to

TM-36, "CONSULT-III Function (TRANSMISSION)"

.

Is any malfunction detected by self-diagnosis?

YES

>> Check the malfunctioning system.

NO

>> GO TO 2.

2.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-55, "Reference Value"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

3.

CHECK DTC

Drive the vehicle and then perform self-diagnosis.
Is DTC P1816 displayed?

YES

>> Perform self-diagnosis with TCM again.

NO

>> Inspection End.

DTC

CONSULT-III

Diagnostic item is detected when...

Reference

[P1816]

PNP SW/CIRC

When transmission range switch signal
is malfunction or communication error
between the control units.

DLN-39

DLN-40

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: TX15B]

P1817 ACTUATOR MOTOR

P1817 ACTUATOR MOTOR

Description

INFOID:0000000006179462

The actuator motor receives signals from the transfer control unit and controls shift rods which shift the trans-

fer case.  DTC P1817 or flash code 11 will set when any of the following occur:

• Motor does not operate properly due to open or short circuit in actuator motor.

• Malfunction is detected in the actuator motor. (When 4WD shift switch is operated and actuator motor does

not operate)

• Malfunction is detected in transfer shift high relay or transfer shift low relay.

DTC Logic

INFOID:0000000006179463

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Perform self-diagnosis.
Is DTC P1817 or flash code 11 detected?

YES

>> Perform diagnosis procedure. Refer to

DLN-40, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000006179464

Regarding Wiring Diagram information, refer to

DLN-62, "Wiring Diagram"

.

1.

CHECK ACTUATOR MOTOR SIGNAL

With CONSULT-III

1. Start engine.

2. Select DATA MONITOR mode for ALL MODE AWD/4WD with CONSULT-III.

3. Read out the value of SHIFT ACT1, SHIFT AC MON1, SHIFT ACT2, SHIFT AC MON2.

DTC

CONSULT-III

Diagnostic item is detected when...

Reference

[P1817]

SHIFT ACTUATOR

• Motor does not operate properly due

to open or short circuit in actuator mo-
tor.

• Malfunction is detected in the actuator

motor. (When 4WD shift switch is op-
erated and actuator motor is not oper-
ated)

• Malfunction is detected in transfer shift

high relay or transfer shift low relay.

DLN-40, "Diagnosis Procedure"

P1817 ACTUATOR MOTOR

DLN-41

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Without CONSULT-III

1. Start engine.

2. Depress brake pedal and stop vehicle.

3. Set A/T selector lever to N position.

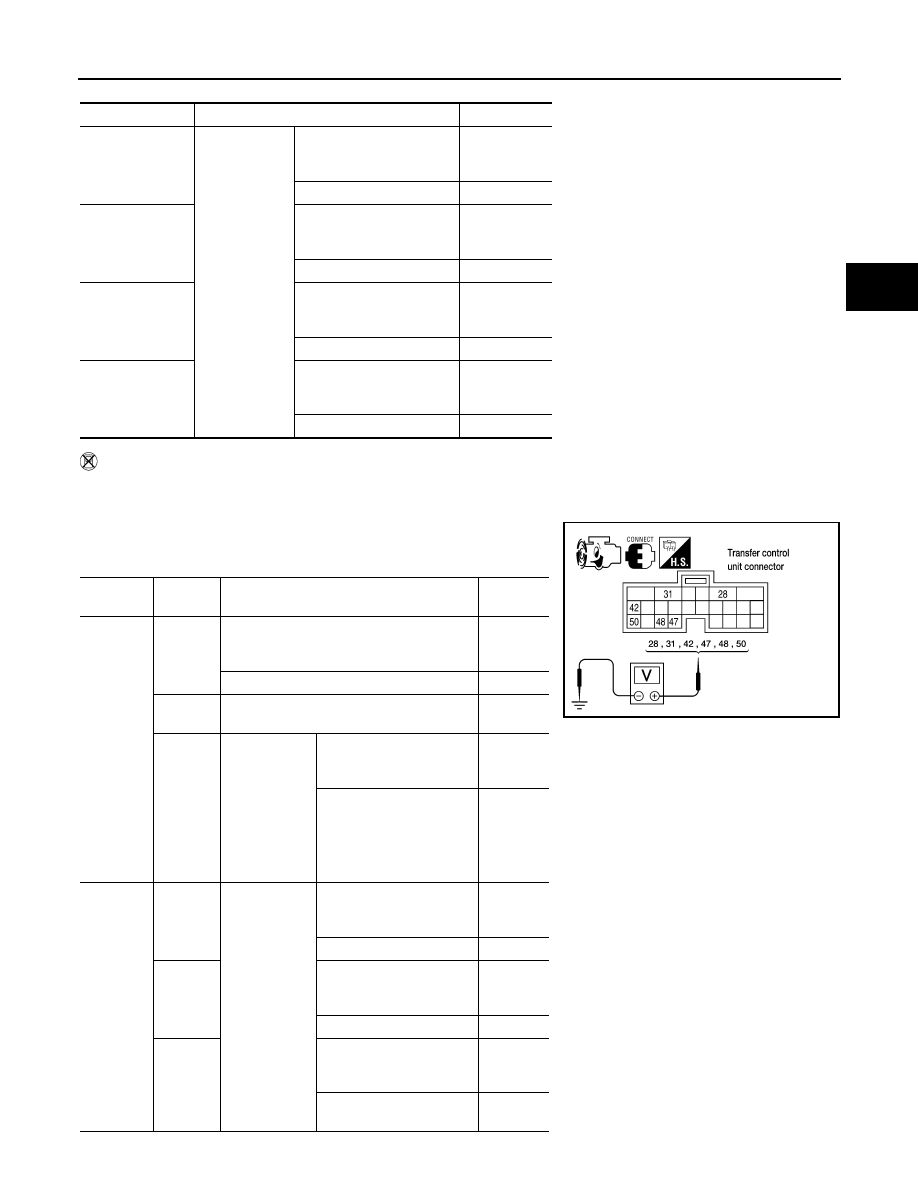

4. Check voltage between transfer control unit harness connector

terminal and ground.

Monitored item

Condition

Display value

SHIFT ACT1

• Vehicle

stopped

• Engine run-

ning

• A/T  selector

lever N posi-
tion

• Brake pedal

depressed

4WD shift switch: 2WD to
4H or 4H to 4LO or 2WD to
4LO

ON

Except the above

OFF

SHIFT AC MON1

4WD shift switch: 2WD to
4H or 4H to 4LO or 2WD to
4LO

ON

Except the above

OFF

SHIFT ACT2

4WD shift switch: 4LO to
4H or 4H to 2WD or 4LO to
2WD

ON

Except the above

OFF

SHIFT AC MON2

4WD shift switch: 4LO to
4H or 4H to 2WD or 4LO to
2WD

ON

Except the above

OFF

Connector

Terminal

Condition

Voltage

(Approx.)

E143

28 -

Ground

When 4WD shift switch is operated (While
actuator motor is operating.)

Battery
voltage

→

0V

When 4WD shift switch is not operated

0V

31 -

Ground

Always

0V

42 -

Ground

• Vehicle

stopped

• Engine run-

ning

• A/T selector

lever N posi-
tion

• Brake pedal

depressed

4WD shift switch: 2WD to
4H or 4H to 4LO or 2WD to
4LO

0V

Except the above

Battery
voltage

E143

 47 -

Ground

• Vehicle

stopped

• Engine run-

ning

• A/T selector

lever N posi-
tion

• Brake pedal

depressed

4WD shift switch: 2WD to
4H or 4H to 4LO or 2WD to
4LO

Battery
voltage

→

0V

Except the above

0V

 48 -

Ground

4WD shift switch: 4LO to
4H or 4H to 2WD or 4LO to
2WD

Battery
voltage

→

0V

Except the above

0V

 50 -

Ground

4WD shift switch: 4LO to
4H or 4H to 2WD or 4LO to
2WD

0V

Except the above

Battery
voltage

WDIA0144E

DLN-42

< DTC/CIRCUIT DIAGNOSIS >

[TRANSFER: TX15B]

P1817 ACTUATOR MOTOR

OK or NG

OK

>> GO TO 9.

NG

>> GO TO 2.

2.

CHECK ACTUATOR MOTOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.  (Stay for at least 5 seconds.)

2. Disconnect transfer control unit harness connector.

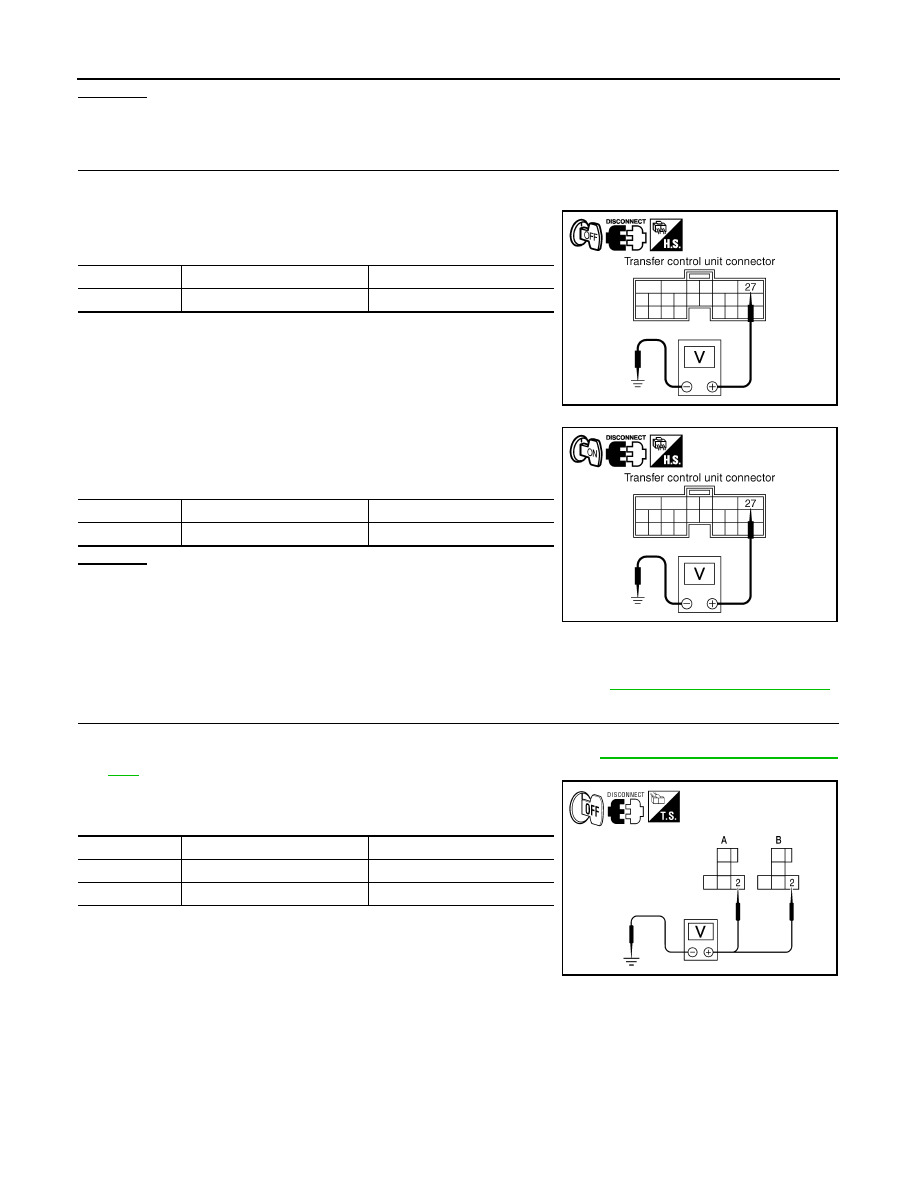

3. Check voltage between transfer control unit harness connector

terminal 27 and ground.

4. Turn ignition switch ON.

5. Check voltage between transfer control unit harness connector

terminal 27 and ground.

OK or NG

OK

>> GO TO 3.

NG

>> 1. Check harness for short or open between transfer

control unit harness connector E143  terminal  27

and transfer shut off relay 2 harness connector E47

terminal 3  and 10A fuse (No. 26, located in the fuse and fusible link box).  If any items are

damaged, repair or replace damaged parts.

2. Perform trouble diagnosis for power supply circuit.  Refer to

DLN-20, "Diagnosis Procedure"

.

3.

CHECK TRANSFER SHIFT RELAY POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.  (Stay for at least 5 seconds.)

2. Remove transfer shift high relay and transfer shift low relay. Refer to

DLN-12, "Component Parts Loca-

tion"

.

3. Check voltage between transfer shift high/low relay harness

connector terminals and ground.

Connector

Terminal

Voltage (Approx.)

E143

27 - Ground

0V

SDIA2808E

Connector

Terminal

Voltage (Approx.)

E143

27 - Ground

Battery voltage

SDIA2807E

Connector

Terminal

Voltage (Approx.)

A: E156

2 - Ground

0V

B: E157

2 - Ground

0V

WDIA0319E
