4WD SYSTEM
DLN-11
< SYSTEM DESCRIPTION >

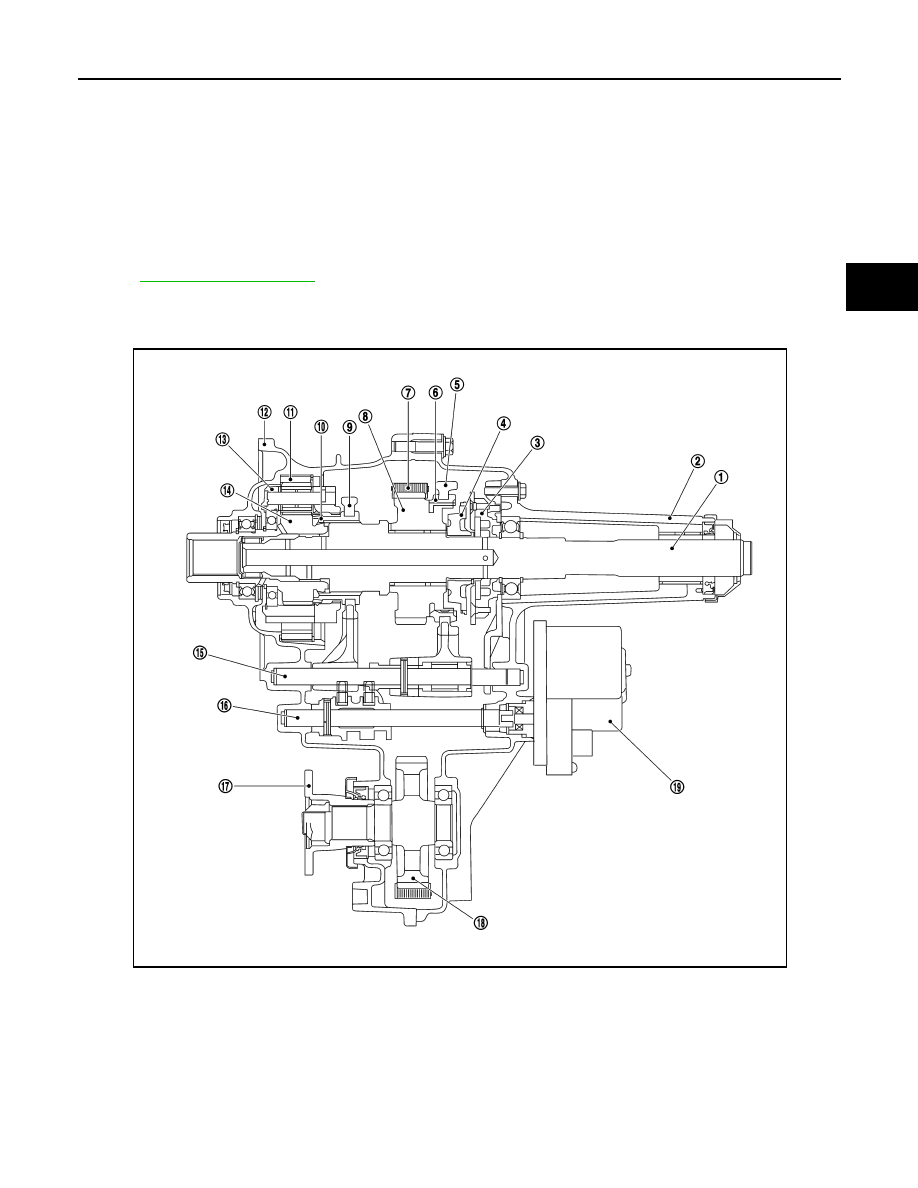

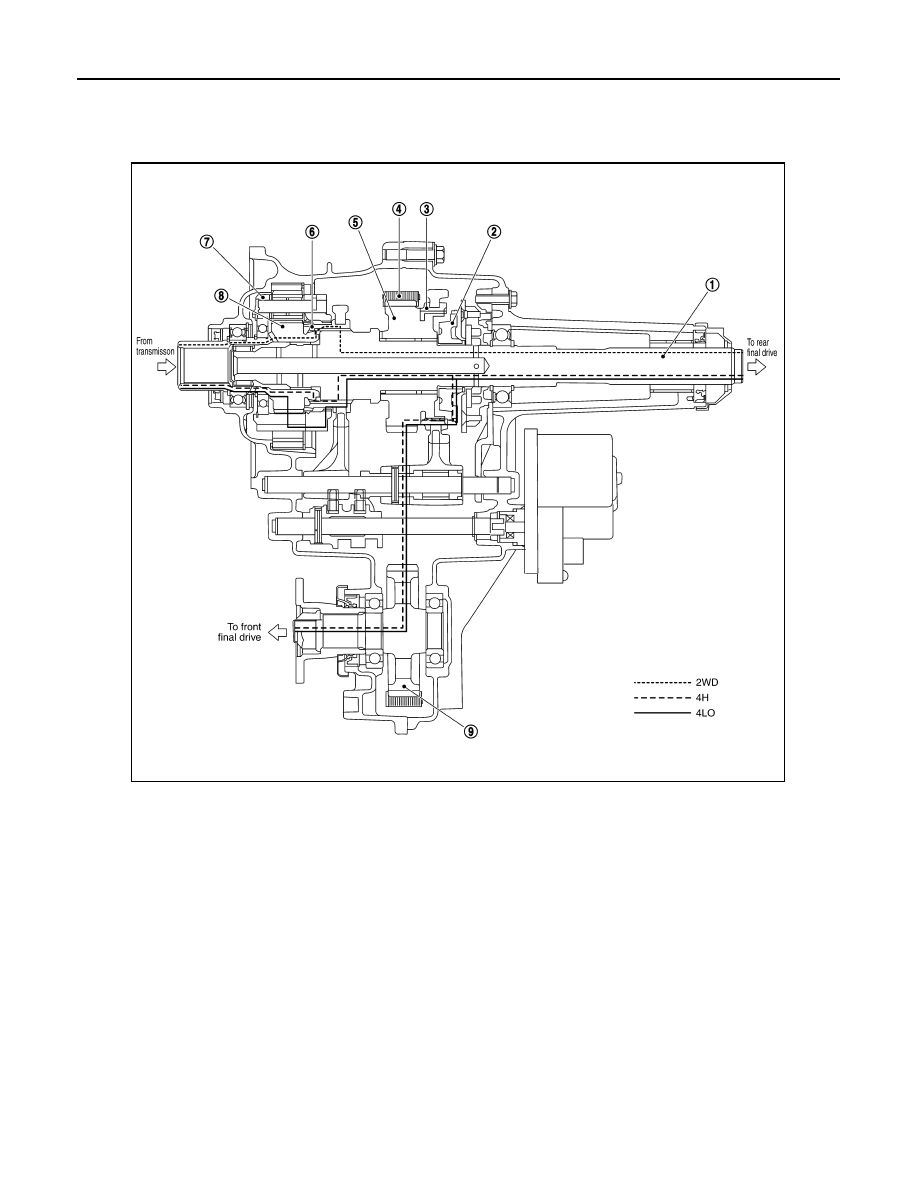

[TRANSFER: TX15B]
C
E
F
G
H
I
J
K
L
M
A
B
DLN
N
O
P

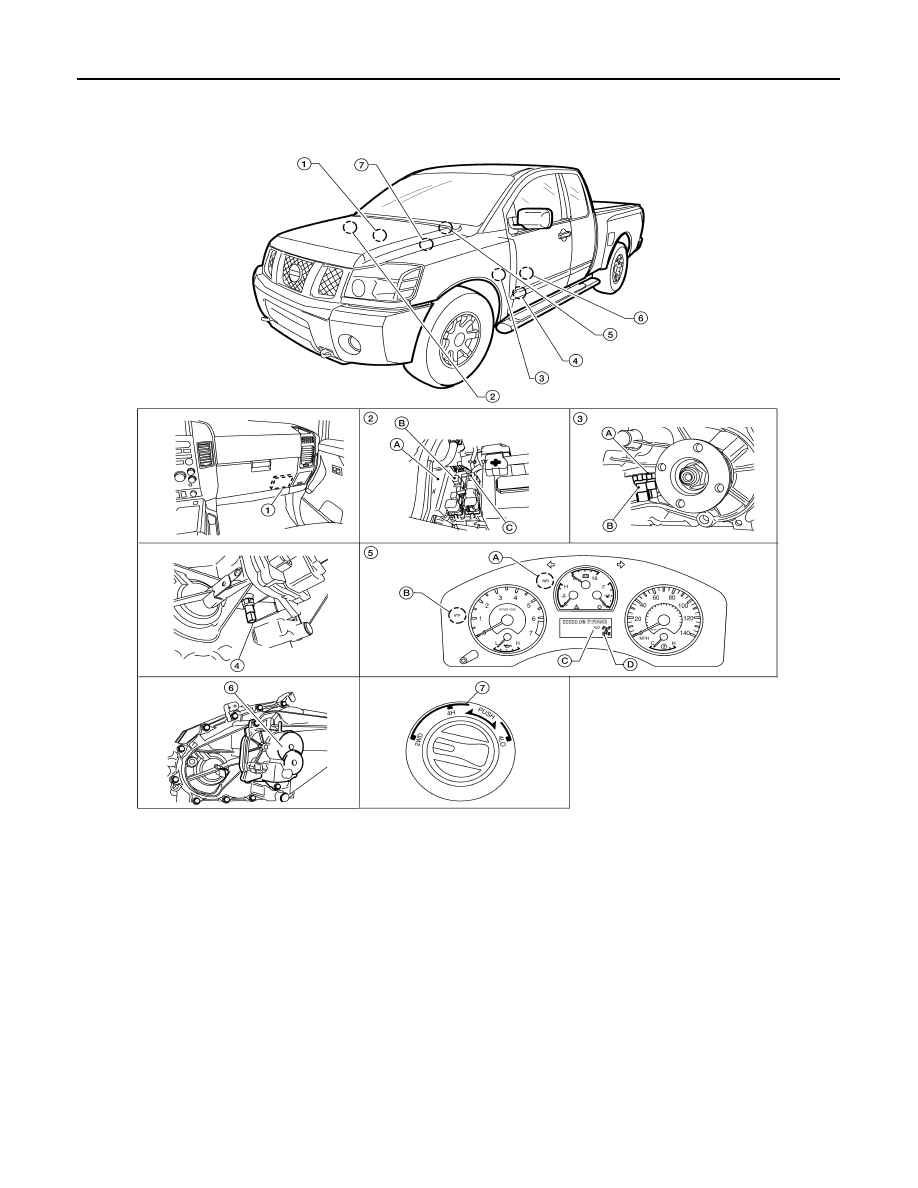

4LO Indicator Lamp
• Displays 4LO while engine is running. 4LO indicator lamp flashes if transfer gear does not shift completely
into 4H
⇔4LO. In this condition, the transfer case may be in neutral and the A/T parking mechanism may not
operate.
• Turns ON when ignition switch is turned ON, for purpose of lamp check. Turns OFF approximately for 1 sec-
ond after the engine starts if system is normal.
4WD WARNING LAMP
Turns on or flashes when there is a malfunction in 4WD system.
Also turns on when ignition switch is turned ON, for purpose of lamp check. Turns OFF approximately for 1
second after the engine starts if system is normal.
4WD Warning Lamp Indication
ATP WARNING LAMP
When the A/T selector lever is in P position, the vehicle may move if the transfer case is in neutral. ATP warn-
ing lamp is turned on to indicate this condition to the driver.
Condition
4WD warning lamp
System normal
OFF
Lamp check
Turns ON when ignition switch is turned ON.
Turns OFF after engine start.
4WD system malfunction
ON
During self-diagnosis
Flashes malfunction mode.
Large difference in diameter of front/
rear tires
Flashes slow (1 flash / 2 seconds)
(Continues to flash until the ignition switch is turned OFF)
