DLK-2

CREW CAB : Component Function Check  ...........

28

CREW CAB : Diagnosis Procedure ........................

29

DOOR LOCK AND UNLOCK SWITCH  .............

31

KING CAB  .................................................................

31

KING CAB : Description  .........................................

31

KING CAB : Component Function Check  .............

31

KING CAB : Diagnosis Procedure  ..........................

31

CREW CAB  ...............................................................

33

CREW CAB : Description  .......................................

33

CREW CAB : Component Function Check  ...........

33

CREW CAB : Diagnosis Procedure ........................

34

FRONT DOOR LOCK ASSEMBLY LH (KEY
CYLINDER SWITCH) .........................................

37

KING CAB  .................................................................

37

KING CAB : Description  .........................................

37

KING CAB : Component Function Check  ...............

37

KING CAB : Diagnosis Procedure  ..........................

37

CREW CAB  ...............................................................

39

CREW CAB : Description  .......................................

39

CREW CAB : Component Function Check .............

39

CREW CAB : Diagnosis Procedure ........................

39

KEY SWITCH (BCM INPUT)  .............................

42

COLUMN SHIFT ........................................................

42

COLUMN SHIFT : Diagnosis Procedure  ................

42

FLOOR SHIFT ...........................................................

43

FLOOR SHIFT : Diagnosis Procedure  ...................

43

DOOR LOCK ACTUATOR  ................................

45

FRONT LH .................................................................

45

FRONT LH : Description .........................................

45

FRONT LH : Component Function Check .............

45

FRONT LH : Diagnosis Procedure  .........................

45

FRONT RH  ................................................................

46

FRONT RH : Description  ........................................

46

FRONT RH : Component Function Check  ............

46

FRONT RH : Diagnosis Procedure .........................

46

REAR RH/LH .............................................................

47

REAR RH/LH : Description .....................................

47

REAR RH/LH : Component Function Check .........

47

REAR RH/LH : Diagnosis Procedure  .....................

47

REMOTE KEYLESS ENTRY RECEIVER ..........

49

Description ..............................................................

49

Component Function Check .................................

49

Diagnosis Procedure  ..............................................

49

KEYFOB BATTERY AND FUNCTION  ..............

51

Description ..............................................................

51

Component Function Check .................................

51

Diagnosis Procedure  ..............................................

51

Component Inspection ............................................

52

Special Repair Requirement  ...................................

52

HORN FUNCTION  .............................................

53

Description ..............................................................

53

Component Function Check ..................................

53

Diagnosis Procedure ..............................................

53

WARNING CHIME FUNCTION  .........................

55

Description ..............................................................

55

Component Function Check ..................................

55

Diagnosis Procedure ...............................................

55

HAZARD FUNCTION ........................................

56

Description ..............................................................

56

Component Function Check ..................................

56

Diagnosis Procedure ...............................................

56

HEADLAMP FUNCTION  ...................................

57

Diagnosis Procedure ...............................................

57

MAP LAMP AND IGNITION KEYHOLE ILLU-
MINATION FUNCTION ......................................

58

Diagnosis Procedure ...............................................

58

KEYFOB ID SET UP WITH CONSULT-III .........

59

ID Code Entry Procedure ........................................

59

KEYFOB ID SET UP WITHOUT CONSULT-III ...

60

ID Code Entry Procedure ........................................

60

HOMELINK UNIVERSAL TRANSCEIVER  .......

62

Description ..............................................................

62

Component Function Check ..................................

62

Diagnosis Procedure ...............................................

62

ECU DIAGNOSIS INFORMATION .............

64

BCM (BODY CONTROL MODULE) ..................

64

Reference Value  .....................................................

64

Terminal Layout  ......................................................

67

Physical Values .......................................................

67

Fail Safe .................................................................

72

DTC Inspection Priority Chart ...............................

72

DTC Index ..............................................................

73

WIRING DIAGRAM  ....................................

75

INTEGRATED HOMELINK TRANSMITTER .....

75

Wiring Diagram  .......................................................

75

POWER DOOR LOCK SYSTEM .......................

77

Wiring Diagram - King Cab  .....................................

77

Wiring Diagram - Crew Cab ....................................

84

REMOTE KEYLESS ENTRY SYSTEM  .............

94

Wiring Diagram  .......................................................

94

SYMPTOM DIAGNOSIS  ...........................

104

DOOR LOCK  ....................................................

104

Symptom Table .....................................................

104

REMOTE KEYLESS ENTRY SYSTEM  ............

105

DLK-3

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Symptom Table  .....................................................

105

HOMELINK UNIVERSAL TRANSCEIVER  ......

107

Symptom Table  .....................................................

107

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES .............................................................

108

Work Flow  .............................................................

108

Generic Squeak and Rattle Troubleshooting  ........

110

Diagnostic Worksheet  ...........................................

112

PRECAUTION ............................................

114

PRECAUTIONS ................................................

114

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................

114

Precaution for work  ...............................................

114

PREPARATION .........................................

115

PREPARATION ................................................

115

Special Service Tool  .............................................

115

Commercial Service Tool  ......................................

116

REMOVAL AND INSTALLATION .............

117

HOOD ..............................................................

117

Fitting Adjustment ..................................................

117

Removal and Installation of Hood Assembly  .........

118

Removal and Installation of Hood Lock Control  ....

119

Hood Lock Control Inspection  ...............................

120

Hood Stay Disposal  ...............................................

120

DOOR ..............................................................

122

Fitting Adjustment ..................................................

122

Removal and Installation  .......................................

124

FRONT DOOR LOCK  .....................................

127

Component Structure  ............................................

127

Removal and Installation  .......................................

127

Disassembly and Assembly ...................................

129

REAR DOOR LOCK ........................................

130

Component Structure  ............................................

130

Removal and Installation  .......................................

131

TAIL GATE ......................................................

134

Removal and Installation  .......................................

134

Tail Gate Gas Stay Disposal  .................................

135

DLK-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000006179163

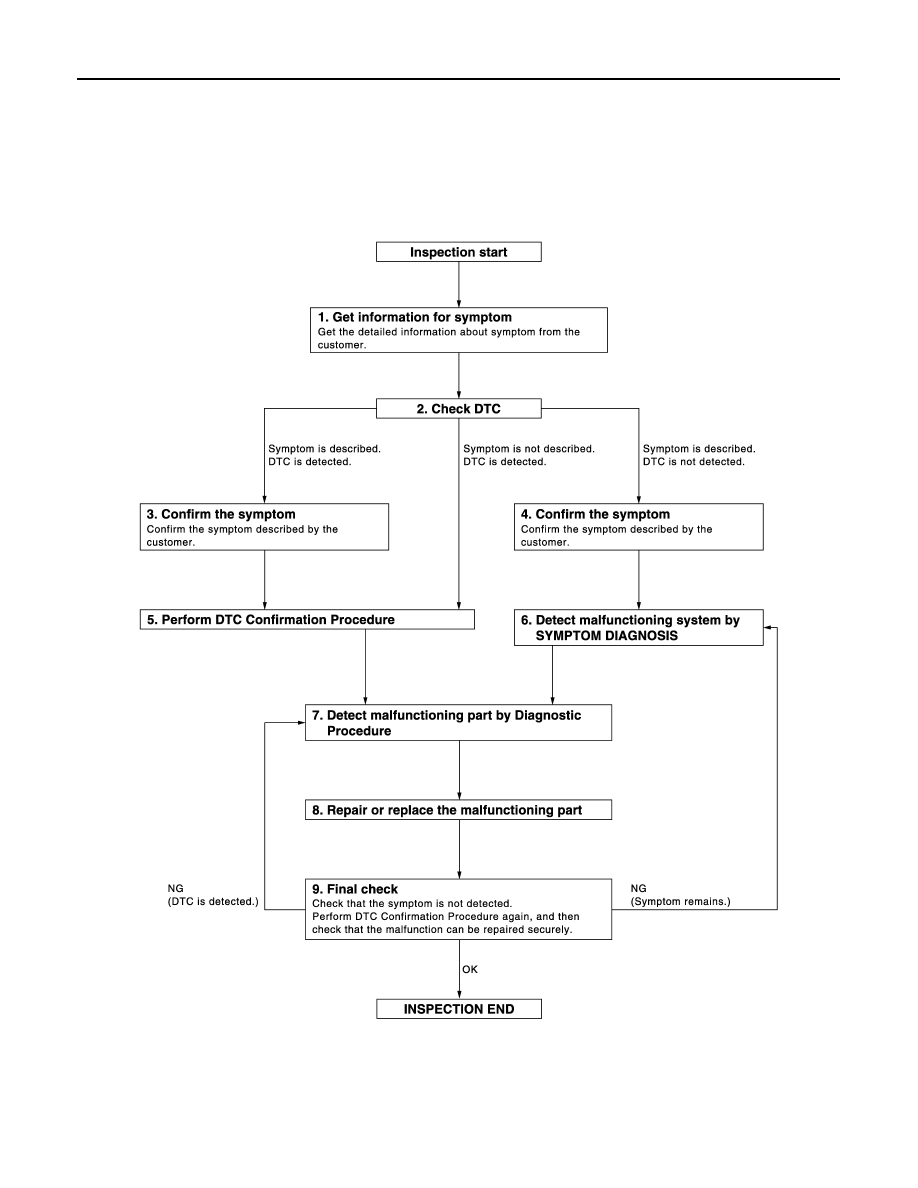

OVERALL SEQUENCE

DETAILED FLOW

JMKIA2270GB

DIAGNOSIS AND REPAIR WORKFLOW

DLK-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred).

>> GO TO 2.

2.

CHECK DTC

1. Check DTC.

2. Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data (Print them out with CONSULT-III.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3. Check related service bulletins for information.
Is any symptom described and any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3.

Symptom is described, DTC is not displayed>>GO TO 4.

Symptom is not described, DTC is displayed>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.

Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.

Connect CONSULT-III to the vehicle in “DATA MONITOR ” mode and check real time diagnosis results.

Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.

At this time, always connect CONSULT-III to the vehicle, and check diagnostic results in real time.

If two or more DTCs are detected, refer to

DLK-72, "DTC Inspection Priority Chart"

 and determine trouble

diagnosis order.

NOTE:

• Freeze frame data is useful if the DTC is not detected.

• Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This

simplified check procedure is an effective alternative though DTC cannot be detected during this check.

If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirma-

tion Procedure.

Is DTC detected?

Yes

>> GO TO 7.

No

>> Refer to

GI-39, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step

4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.

NOTE:
