WATER PUMP

INSTALLATION

Installation is in the reverse order of removal.

• After installation bleed the air from the cooling system. Refer to

CO-11, "Changing Engine Coolant"

.

INSPECTION AFTER INSTALLATION

• Check for engine coolant leaks. Refer to

CO-10, "Inspection"

.

• Start and warm up engine. Visually check for engine coolant leaks. Refer to

CO-10, "Inspection"

.

THERMOSTAT AND WATER PIPING

CO-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

THERMOSTAT AND WATER PIPING

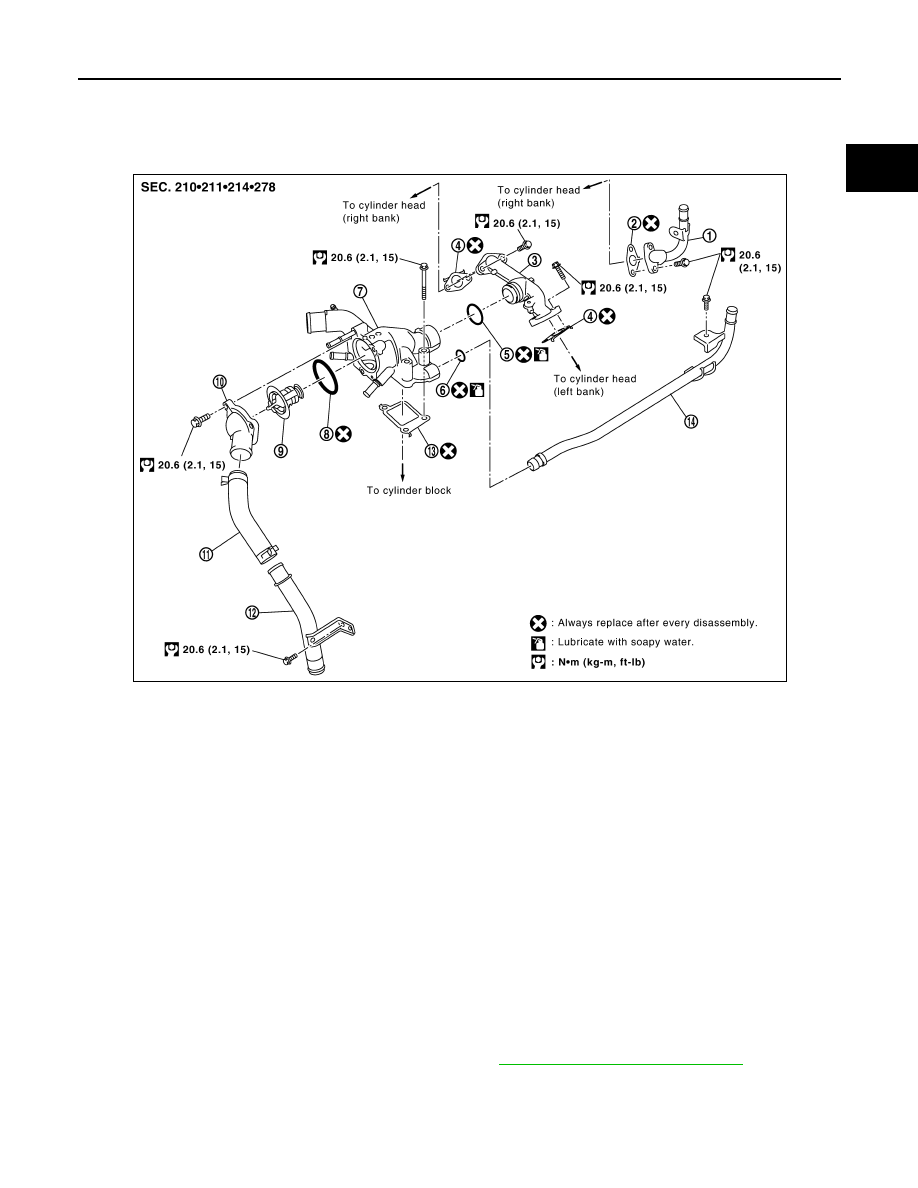

Exploded View

INFOID:0000000006179350

Removal and Installation

INFOID:0000000006179351

WARNING:

Never remove the radiator cap when the engine is hot. Serious burns could occur from high pressure

engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly turn it a quarter

of a turn to release built-up pressure. Carefully remove radiator cap by truning it all the way.

CAUTION:

• When removing water pump, be careful not to get engine coolant on drive belt.

• Water pump cannot be disassembled and should be replaced as a unit.

• After installing water pump, connect hoses and clamps securely, then check for leaks.

REMOVAL

Removal of Thermostat

1. Partially drain engine coolant from the radiator. Refer to

CO-11, "Changing Engine Coolant"

.

CAUTION:

Perform when engine is cold.

2. Disconnect the water suction hose from the water inlet.
3. Remove the water inlet and thermostat.

1.

Heater pipe

2.

Gasket

3.

Water outlet

4.

Gasket

5.

O-ring

6.

O-ring

7.

Thermostat housing

8.

Rubber ring

9.

Thermostat

10.

Water inlet

11.

Water suction hose

12. Water suction pipe

13.

Gasket

14. Heater pipe

KBIA2501E

CO-24

< REMOVAL AND INSTALLATION >

THERMOSTAT AND WATER PIPING

Removal of Thermostat Housing, Water Outlet and Heater Pipe

1. Remove the intake manifold. Refer to

EM-26, "Removal and Installation"

.

2. Remove the thermostat housing, water outlet and heater pipe.

Removal of Water Cut Valve

1. Partially drain engine coolant from the radiator. Refer to

CO-11, "Changing Engine Coolant"

.

CAUTION:

Perform when the engine is cold.

2. Disconnect the water cut valve connector.
3. Disconnect the water hoses from the water cut valve.
4. Remove the water cut valve.

INSPECTION AFTER REMOVAL

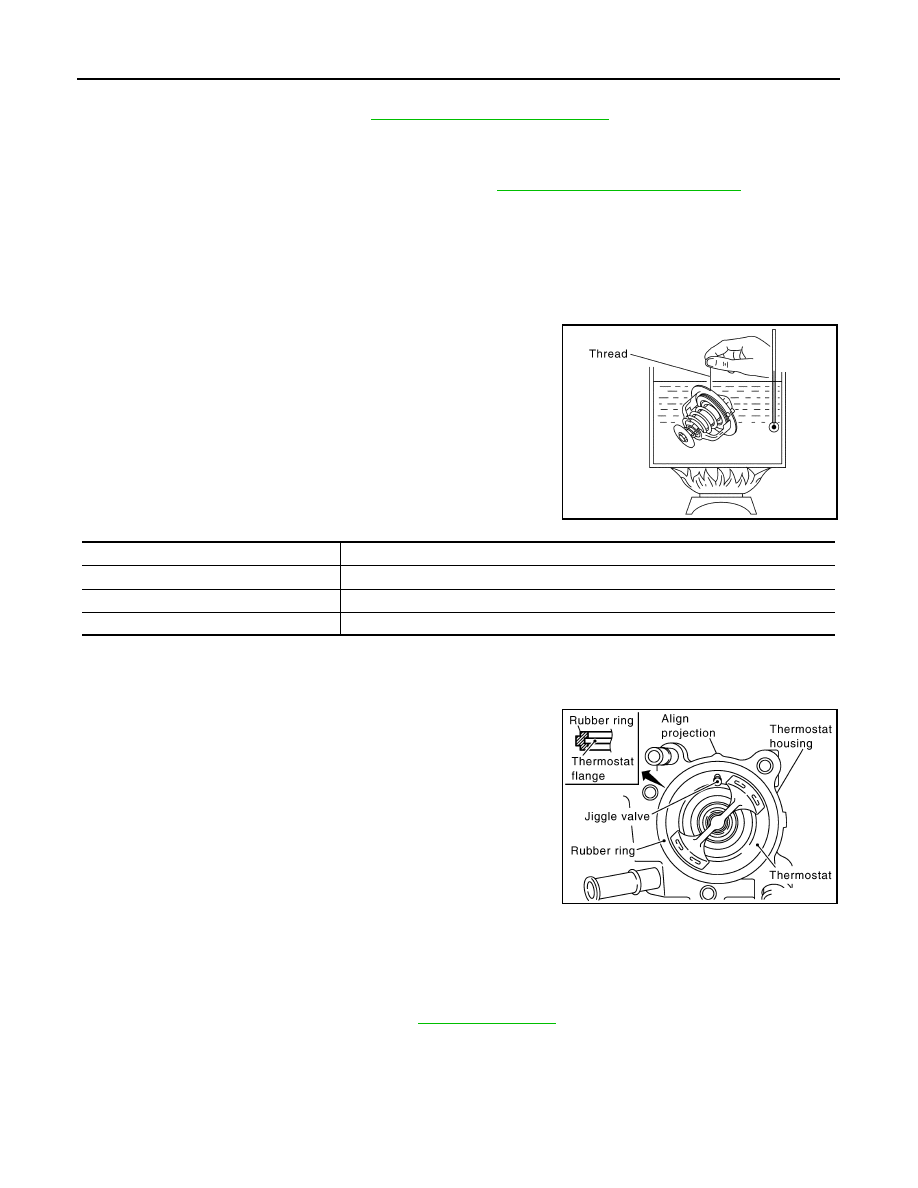

• Place a thread so that it is caught in the valve of the thermostat.

Immerse fully in a container filled with water. Heat while stirring.

• The valve opening temperature is the temperature at which the

valve opens and falls from the thread.

• Continue heating. Check the full-open lift amount.

• After checking the full-open lift amount, lower the water tempera-

ture and check the valve closing temperature.

Standard values:

INSTALLATION

Installation is in the reverse order of removal.

Installation of Thermostat

• Install the thermostat with the whole circumference of each flange

part fit securely inside the rubber ring as shown.

• Install the thermostat with the jiggle valve facing upwards.

Installation of Water Outlet Pipe and Heater Pipe

First apply a neutral detergent to the O-rings, then quickly insert the insertion parts of the water outlet pipe and

heater pipe into the installation holes.

INSPECTION AFTER INSTALLATION

• Check for leaks of the engine coolant. Refer to

CO-10, "Inspection"

.

• Start and warm up the engine. Visually check for leaks of the engine coolant.

SLC252B

                        Thermostat

Valve opening temperature

               80 - 84

°C (176 - 183° F)

Full-open lift amount

              More than 10 mm/ 95

°C (0.39 in/ 203°F)

Valve closing temperature

                77

°C (171°F) or higher

KBIA2502E

SERVICE DATA AND SPECIFICATIONS (SDS)

CO-25

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000006179352

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:   (US qt, Imp qt)

THERMOSTAT

RADIATOR

Unit: kPa (kg/cm

2

, psi)

Engine coolant capacity with reservoir ("MAX" level)

12.2 (12 7/8, 10 3/4)

Valve opening temperature

80 - 84

°C (176 - 183°F)

Full-open lift amount

More than 10 mm/95

°C (0.39 in/203°F)

Valve closing temperature

77

°C (171°F) or higher

Reservoir cap relief pressure

Standard

110 (1.12, 16)

Leakage test pressure

137 (1.4, 20)
