[BCM]

BCM (BODY CONTROL MODULE)

DTC Index

INFOID:0000000006161356

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

→ ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

→ 2 → 3...38 → 39 after returning to the normal condition whenever ignition switch OFF → ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch

OFF

→ ON after returning to the normal condition if the malfunction is detected again.

3

• C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL

Priority

DTC

CONSULT display

Fail-safe

Tire pressure

monitor warning

lamp ON

Reference page

No DTC is detected.
further testing
may be required.

—

—

—

U1000: CAN COMM CIRCUIT

—

—

BCS-27

B2190: NATS ANTTENA AMP

—

—

SEC-18

B2191: DIFFERENCE OF KEY

—

—

SEC-21

B2192: ID DISCORD BCM-ECM

—

—

SEC-22

B2193: CHAIN OF BCM-ECM

—

—

SEC-24

C1708: [NO DATA] FL

—

—

WT-14

C1709: [NO DATA] FR

—

—

WT-14

C1710: [NO DATA] RR

—

—

WT-14

C1711: [NO DATA] RL

—

—

WT-14

C1712: [CHECKSUM ERR] FL

—

—

WT-16

C1713: [CHECKSUM ERR] FR

—

—

WT-16

C1714: [CHECKSUM ERR] RR

—

—

WT-16

C1715: [CHECKSUM ERR] RL

—

—

WT-16

BCS

BCM (BODY CONTROL MODULE)

BCS-45

< ECU DIAGNOSIS INFORMATION >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

C1716: [PRESSDATA ERR] FL

—

—

WT-18

C1717: [PRESSDATA ERR] FR

—

—

WT-18

C1718: [PRESSDATA ERR] RR

—

—

WT-18

C1719: [PRESSDATA ERR] RL

—

—

WT-18

C1720: [CODE ERR] FL

—

—

WT-16

C1721: [CODE ERR] FR

—

—

WT-16

C1722: [CODE ERR] RR

—

—

WT-16

C1723: [CODE ERR] RL

—

—

WT-16

C1724: [BATT VOLT LOW] FL

—

—

WT-16

C1725: [BATT VOLT LOW] FR

—

—

WT-16

C1726: [BATT VOLT LOW] RR

—

—

WT-16

C1727: [BATT VOLT LOW] RL

—

—

WT-16

C1729: VHCL SPEED SIG ERR

—

—

WT-19

C1735: IGNITION SIGNAL

—

—

WT-20

CONSULT display

Fail-safe

Tire pressure

monitor warning

lamp ON

Reference page

BCS-46

< WIRING DIAGRAM >

[BCM]

BCM (BODY CONTROL MODULE)

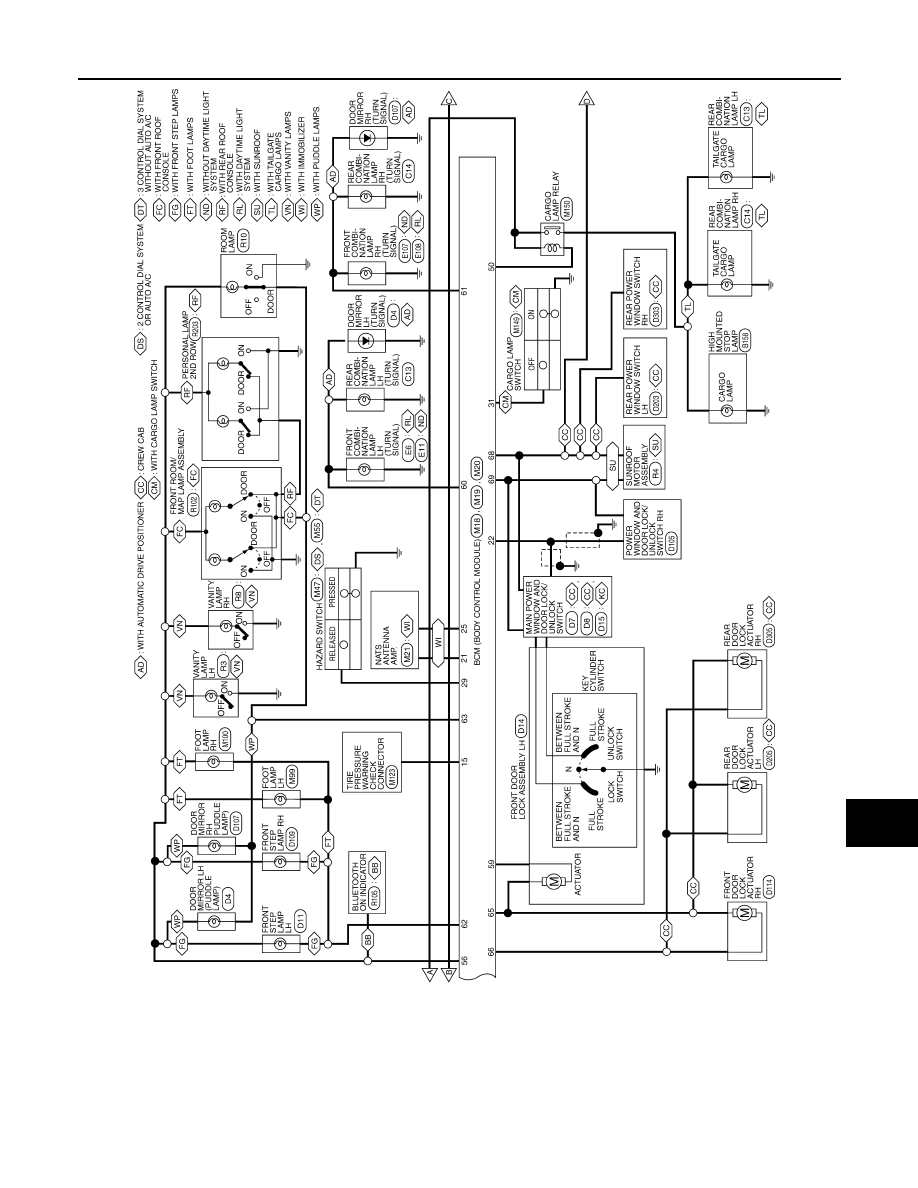

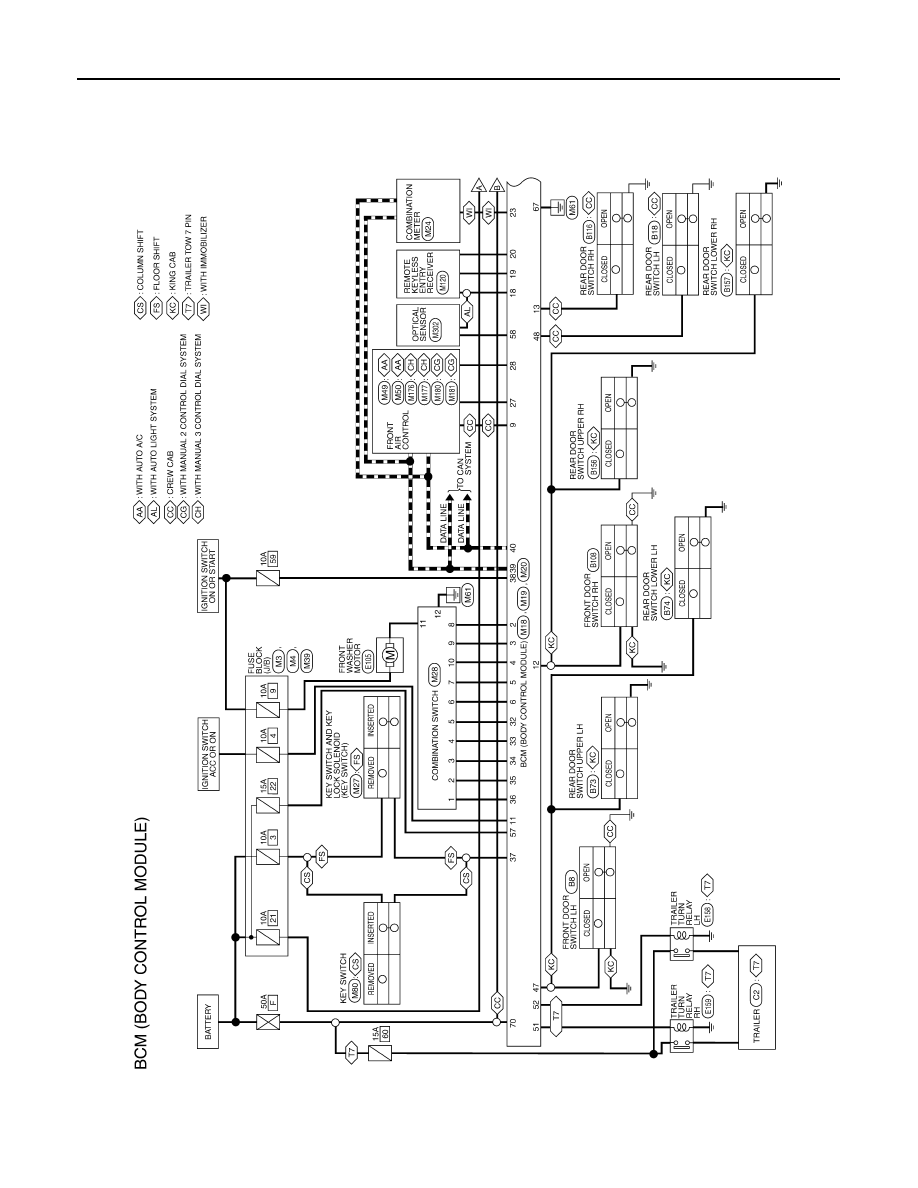

WIRING DIAGRAM
