BCM (BODY CONTROL MODULE)

WT-29

< ECU DIAGNOSIS INFORMATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

Self-Diagnosis (With CONSULT-III)

INFOID:0000000006179309

FUNCTION

Self-Diagnostic Results Mode

NOTE:
Before performing the self-diagnosis, be sure to register the ID or else the actual malfunction location may be different from that dis-
played on CONSULT-III.

Self-Diagnosis (Without CONSULT-III)

INFOID:0000000006179310

SELF DIAGNOSTIC PROCEDURE (WITHOUT CONSULT-III)

67

B

Ground

Input

ON

—

0V

68

W/L

Power window power
supply (RAP)

Output

—

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch OFF

Battery voltage

More than 45 seconds after ig-
nition switch OFF

0V

When front door LH or RH is
open or power window timer
operates

0V

69

W/R

Power window power
supply

Output

—

—

Battery voltage

70

W/B

Battery power supply

Input

OFF

—

Battery voltage

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

Diagnostic item

Diagnostic item is detected when ···

Reference

page

LOW - PRESSURE - FL [C1704]
LOW - PRESSURE - FR [C1705]
LOW - PRESSURE - RR [C1706]
LOW - PRESSURE - RL [C1707]

Tire pressures dropped below specified value.  Refer to

WT-8,

"System Description"

.

—

[NO-DATA] - FL [C1708]
[NO-DATA] - FR [C1709]
[NO-DATA] - RR [C1710]
[NO-DATA] - RL [C1711]

Data from FL transmitter cannot be received.
Data from FR transmitter cannot be received.
Data from RR transmitter cannot be received.
Data from RL transmitter cannot be received.

WT-14

[CHECKSUM- ERR] - FL [C1712]
[CHECKSUM- ERR] - FR [C1713]
[CHECKSUM- ERR] - RR [C1714]
[CHECKSUM- ERR] - RL [C1715]

Checksum data from FL transmitter is malfunctioning.
Checksum data from FR transmitter is malfunctioning.
Checksum data from RR transmitter is malfunctioning.
Checksum data from RL transmitter is malfunctioning.

WT-16

[PRESSDATA- ERR] - FL [C1716]
[PRESSDATA- ERR] - FR [C1717]
[PRESSDATA- ERR] - RR [C1718]
[PRESSDATA- ERR] - RL [C1719]

Air pressure data from FL transmitter is malfunctioning.
Air pressure data from FR transmitter is malfunctioning.
Air pressure data from RR transmitter is malfunctioning.
Air pressure data from RL transmitter is malfunctioning.

WT-18

[CODE- ERR] - FL [C1720]
[CODE- ERR] - FR [C1721]
[CODE- ERR] - RR [C1722]
[CODE- ERR] - RL [C1723]

Function code data from FL transmitter is malfunctioning.
Function code data from FR transmitter is malfunctioning.
Function code data from RR transmitter is malfunctioning.
Function code data from RL transmitter is malfunctioning.

WT-16

[BATT - VOLT - LOW] - FL [C1724]
[BATT - VOLT - LOW] - FR [C1725]
[BATT - VOLT - LOW] - RR [C1726]
[BATT - VOLT - LOW] - RL [C1727]

Battery voltage of FL transmitter drops.
Battery voltage of FR transmitter drops.
Battery voltage of RR transmitter drops.
Battery voltage of RL transmitter drops.

WT-16

VHCL_SPEED_SIG_ERR [C1729]

Vehicle speed signal is in error.

WT-19

IGN_CIRCUIT_OPEN [C1735]

Ignition signal is in error.

WT-20

WT-30

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

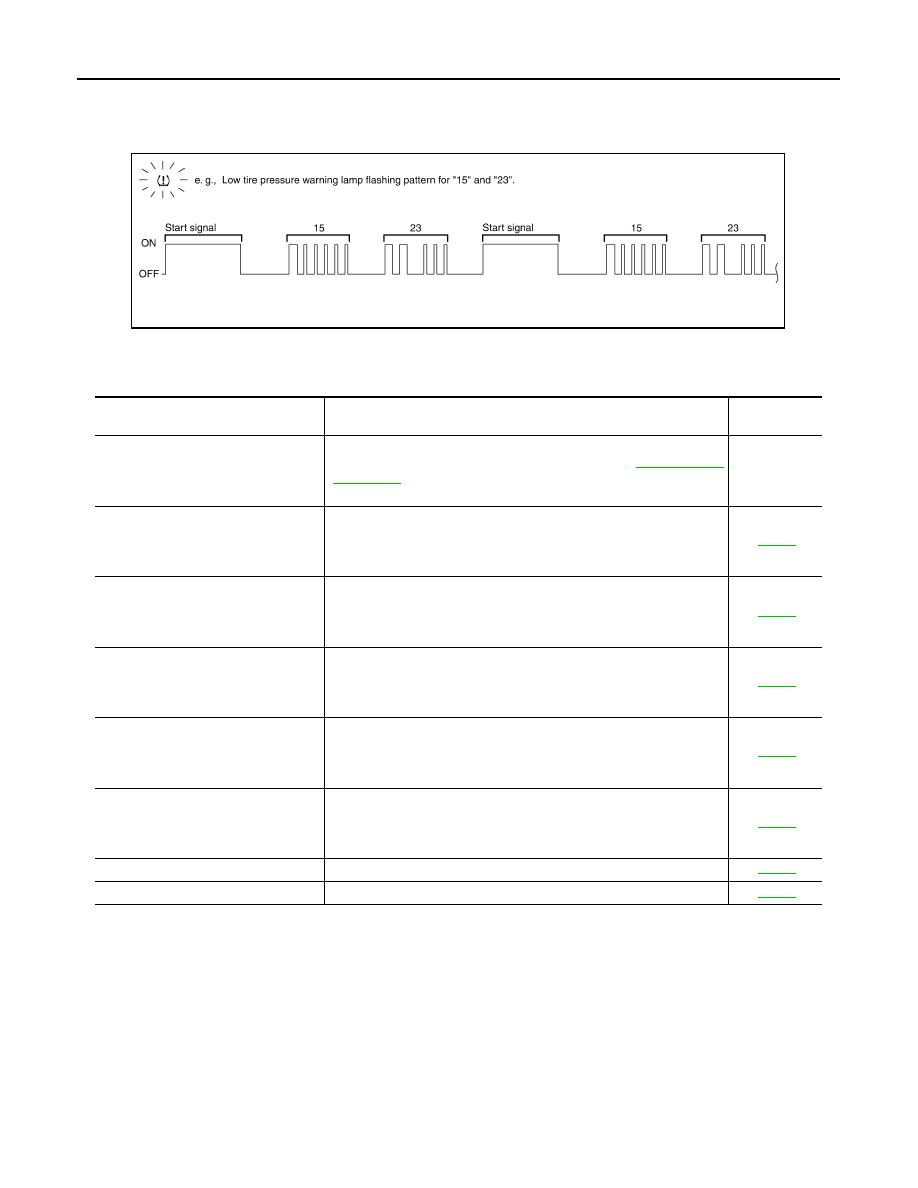

1. Turn ignition switch ON.

2. Ground the tire pressure warning check connector to initiate self diagnosis.

3. Compare the flashing pattern with the flash code chart below.

NOTE:

The system is normal when the low tire pressure warning lamp flashes 5 times and continues repeating. Self-

diagnosis results are erased automatically by turning the ignition switch “OFF”.

Flash Code

Malfunction part

Reference

page

15
16
17
18

Tire pressure dropped below specified value. Refer to

WT-8, "System

Description"

.

—

21
22
23
24

Transmitter no data (FL)
Transmitter no data (FR)
Transmitter no data (RR)
Transmitter no data (RL)

WT-14

31
32
33
34

Transmitter checksum error (FL)
Transmitter checksum error (FR)
Transmitter checksum error (RR)
Transmitter checksum error (RL)

WT-16

35
36
37
38

Transmitter pressure data error (FL)
Transmitter pressure data error (FR)
Transmitter pressure data error (RR)
Transmitter pressure data error (RL)

WT-18

41
42
43
44

Transmitter function code error (FL)
Transmitter function code error (FR)
Transmitter function code error (RR)
Transmitter function code error (RL)

WT-16

45
46
47
48

Transmitter battery voltage low (FL)
Transmitter battery voltage low (FR)
Transmitter battery voltage low (RR)
Transmitter battery voltage low (RL)

WT-16

52

Vehicle speed signal

WT-19

54

Vehicle ignition signal

WT-20

ALEIA0050GB

TIRE PRESSURE MONITORING SYSTEM

WT-31

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

WIRING DIAGRAM

TIRE PRESSURE MONITORING SYSTEM

Wiring Diagram

INFOID:0000000006460704

ABEWA0059GB

WT-32

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

ABEIA0107GB
