ECU DIAGNOSIS INFORMATION

AUDIO UNIT

Reference Value

INFOID:0000000006166448

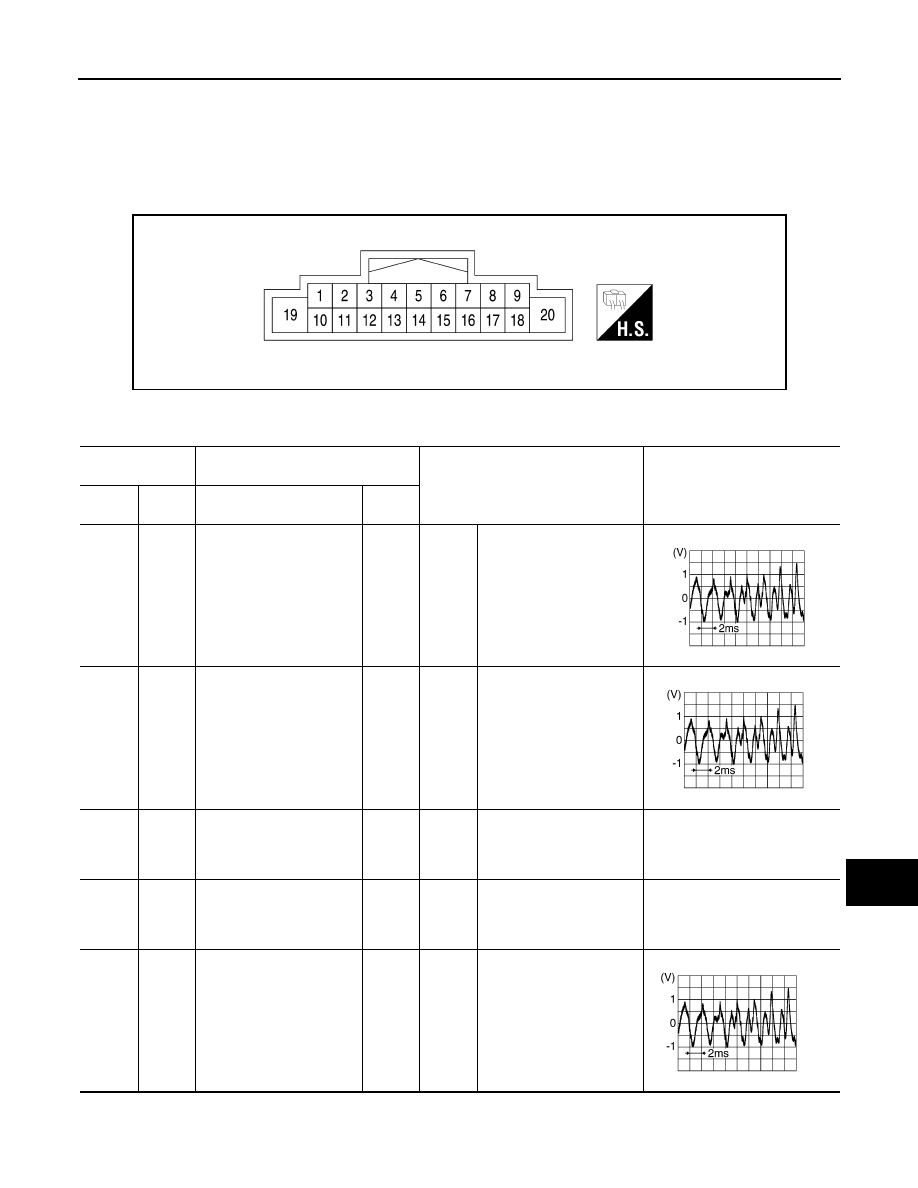

TERMINAL LAYOUT

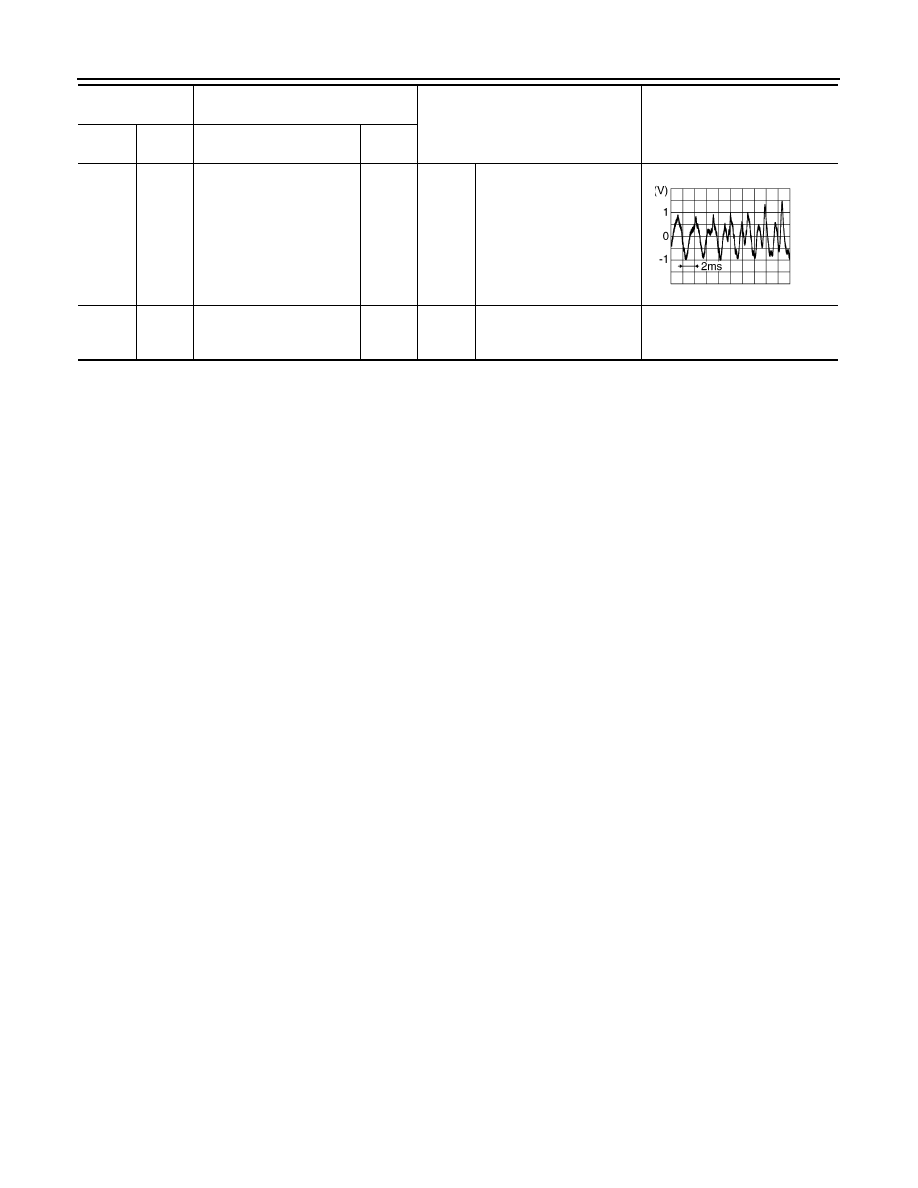

PHYSICAL VALUES

AWNIA1614ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

2

(L/W)

3

(L/R)

Sound signal front door
speaker and  front tweeter
LH (if equipped)

Output

Ignition

switch

ON

Audio output

4

(SB)

5

(B/Y)

Sound signal rear door
speaker and rear tweeter
LH (if equipped)

Output

Ignition

switch

ON

Audio output

7

(V)

Ground ACC power supply

Input

Ignition

switch

ACC or

ON

—

Battery voltage

9

(R/L)

8

(BR)

Illumination

Input

Ignition

switch

ACC or

ON

Exterior lights ON

Battery voltage

11

(W/B)

12

(L/B)

Sound signal front door
speaker and front tweeter
RH (if equipped)

Output

Ignition

switch

ON

Voice output

SKIB3609E

SKIB3609E

SKIB3609E

AV-22

< ECU DIAGNOSIS INFORMATION >

[BASE AUDIO]

AUDIO UNIT

13

(O/L)

14

(R/L)

Sound signal rear door
speaker and rear tweeter
RH (if equipped)

Output

Ignition

switch

ON

Voice output

19

(Y)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

AV

BASE AUDIO SYSTEM

AV-23

< WIRING DIAGRAM >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WIRING DIAGRAM

BASE AUDIO SYSTEM

Wiring Diagram

INFOID:0000000006467253

ABNWA1020GB

AV-24

< WIRING DIAGRAM >

[BASE AUDIO]

BASE AUDIO SYSTEM

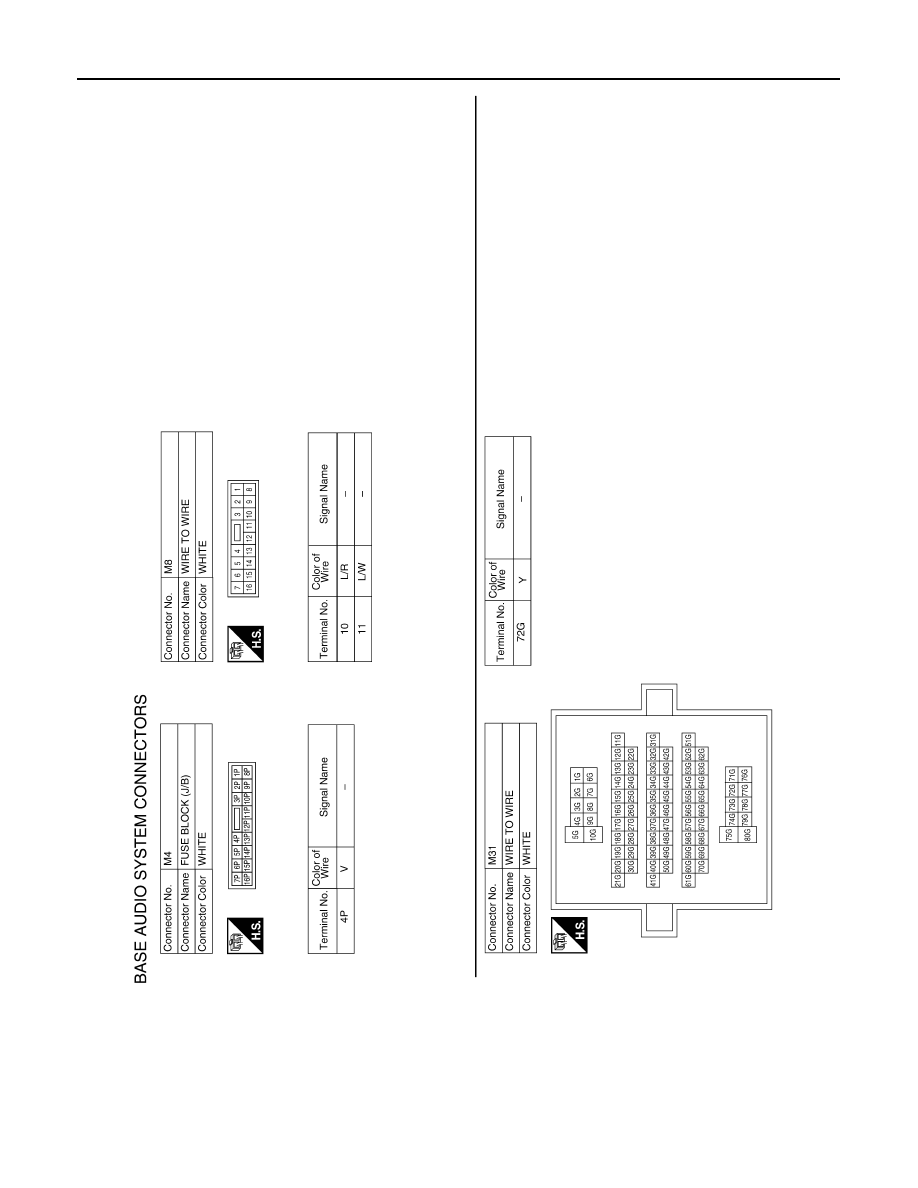

AANIA0016GB
