ADP-114

< ECU DIAGNOSIS INFORMATION >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Reference Value

INFOID:0000000006163580

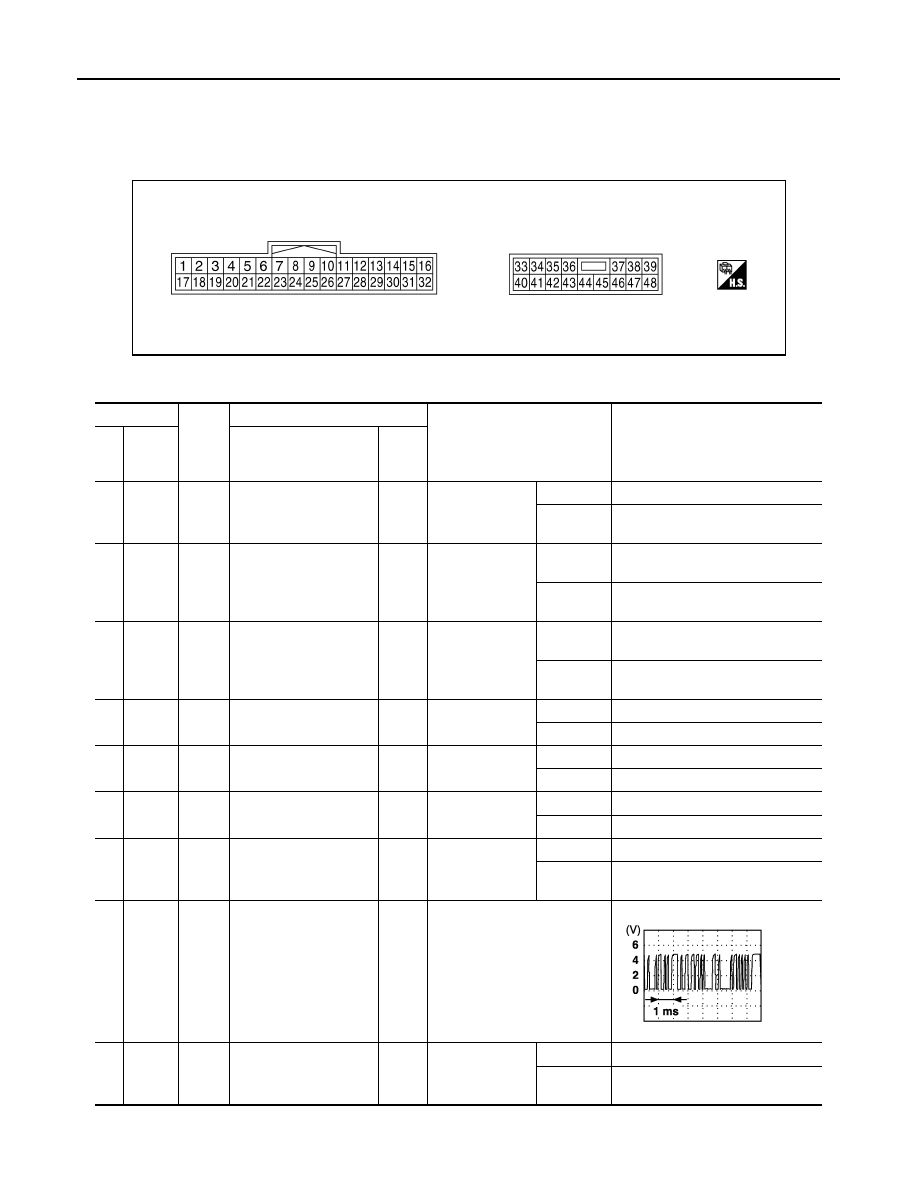

TERMINAL LAYOUT

PHYSICAL VALUES

JMJIA0199ZZ

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Out-

put

2

Ground

LG

Changeover switch RH
signal

Input

Changeover
switch position

RH

0

Neutral or
LH

5

3

Ground

Y/B

Mirror switch up signal

Input

Mirror switch

Operated
(up)

0

Other than
above

5

4

Ground

V/W

Mirror switch left signal

Input

Mirror switch

Operated
(left)

0

Other than
above

5

5

Ground

R/B

Door mirror sensor (RH)
up/down signal

Input

Door mirror RH
position

Peak

3.4

Valley

0.6

6

Ground

L/Y

Door mirror sensor (LH)
up/down signal

Input

Door mirror LH
position

Peak

3.4

Valley

0.6

8

Ground

BR/Y

Pedal sensor input sig-
nal

Input

Pedal sensor

Forward

0.5

Backward

4.5

9

Ground

LG/B

Memory switch 1 signal

Input

Memory switch 1

Push

0

Other than
above

5

10 Ground

L

UART LINE (TX)

Out-

put

Ignition switch ON

12 Ground

P

Memory indictor 1 signal

Out-

put

Memory indictor
1

Illuminate

0

Other than
above

Battery voltage

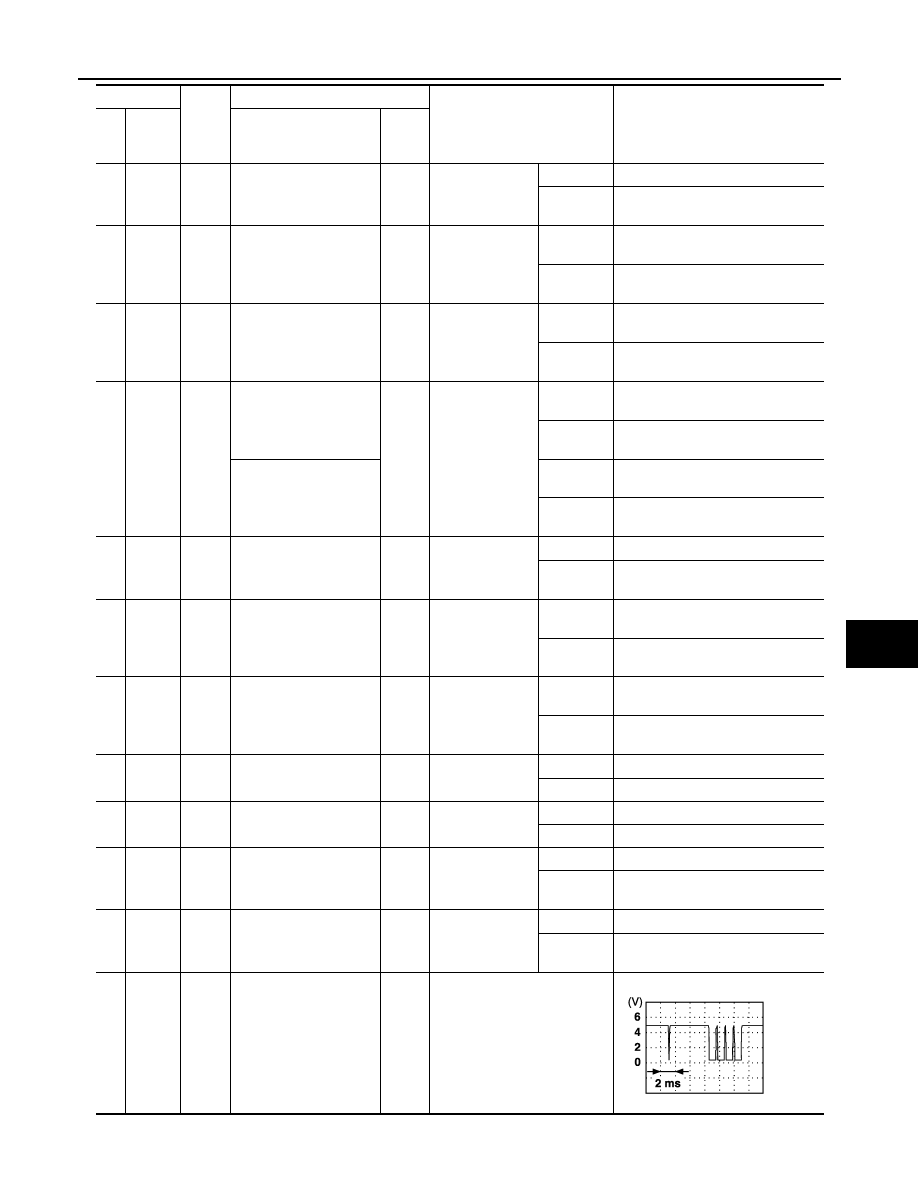

PIIA4813E

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

ADP-115

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

13 Ground

Y/G

Memory indictor 2 signal

Out-

put

Memory indictor
2

Illuminate

0

Other than
above

Battery voltage

14 Ground

GR/R

Door mirror motor (RH)
up output signal

Out-

put

Door mirror RH

Operate
(up)

1.5 - Battery voltage

Other than
above

0

15 Ground

V/R

Door mirror motor (RH)
left output signal

Out-

put

Door mirror RH

Operate
(left)

1.5 - Battery voltage

Other than
above

0

16 Ground

O

Door mirror motor (LH)
down output signal

Out-

put

Door mirror (LH)

Operate
(down)

1.5 - Battery voltage

Other than
above

0

Door mirror motor (LH)
right output signal

Operate
(right)

1.5 - Battery voltage

Other than
above

0

18 Ground

BR/W

Changeover switch LH
signal

Input

Changeover
switch position

LH

0

Neutral or
RH

5

19 Ground

SB

Mirror switch down sig-
nal

Input

Mirror switch

Operate
(down)

0

Other than
above

5

20 Ground

GR

Mirror switch right signal

Input

Mirror switch

Operate
(right)

0

Other than
above

5

21 Ground

L/W

Door mirror sensor (RH)
left/right signal

Input

Door mirror RH
position

Left edge

3.4

Right edge

0.6

22 Ground

G

Door mirror sensor (LH)
left/right signal

Input

Door mirror LH
position

Left edge

0.6

Right edge

3.4

24 Ground

G/O

Set switch signal

Input

Set switch

Push

0

Other than
above

5

25 Ground

P/L

Memory switch 2 signal

Input

Memory switch 2

Push

0

Other than
above

5

26 Ground

W

UART LINE (RX)

Input

Ignition switch ON

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Out-

put

PIIA4814E

ADP-116

< ECU DIAGNOSIS INFORMATION >

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

30 Ground

Y

Door mirror motor (RH)
down output signal

Out-

put

Door mirror (RH)

Operate
(down)

1.5 - Battery voltage

Other than
above

0

Door mirror motor (RH)
right output signal

Operate
(right)

1.5 - Battery voltage

Other than
above

0

31 Ground

R

Door mirror motor (LH)
up output signal

Out-

put

Door mirror (LH)

Operate
(up)

1.5 - Battery voltage

Other than
above

0

32 Ground

BR

Door mirror motor (LH)
left output signal

Out-

put

Door mirror (LH)

Operate
(left)

1.5 - Battery voltage

Other than
above

0

33 Ground

W/L

Sensor power supply

Input

34 Ground

Y/R

Battery power source

Input

Battery voltage

37 Ground

G

Pedal adjusting motor
forward output signal

Out-

put

Pedal adjusting
motor

Operate
(forward)

Battery voltage

Other than
above

0

39 Ground

L/B

Battery power source

Battery voltage

40 Ground

B/W

Ground

0

41 Ground

W/G

Sensor ground

0

45 Ground

R

Pedal adjusting motor
backward output signal

Out-

put

Pedal adjusting
motor

Operate
(back-
ward)

Battery voltage

Other than
above

0

48 Ground

B

Ground

0

Terminal No.

Wire

color

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Out-

put

BCM (BODY CONTROL MODULE)

ADP-117

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000006601979

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF or ON

Off

Ignition switch ACC

On

AIR COND SW

A/C switch OFF

Off

A/C switch ON

On

AIR PRESS FL

Front left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS FR

Front right tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RL

Rear left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RR

Rear right tire air pressure value

kPa, kg/cm

2

, psi

AUTO LIGHT SW

Lighting switch OFF

Off

Lighting switch AUTO

On

BRAKE SW

Brake pedal released

Off

Brake pedal applied

On

BUCKLE SW

Seat belt buckle unfastened

Off

Seat belt buckle fastened

On

BUZZER

Buzzer in combination meter OFF

Off

Buzzer in combination meter ON

On

CARGO LAMP SW

Cargo lamp switch OFF

Off

Cargo lamp switch ON

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the LOCK side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the UNLOCK side

On

DOOR SW-AS

Front door RH closed

Off

Front door RH opened

On

DOOR SW-DR

Front door LH closed

Off

Front door LH opened

On

DOOR SW-RL

Rear door LH closed

Off

Rear door LH opened

On

DOOR SW-RR

Rear door RH closed

Off

Rear door RH opened

On

FAN ON SIG

Blower motor fan switch OFF

Off

Blower motor fan switch ON

On

FR FOG SW

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WASHER SW

Front washer switch OFF

Off

Front washer switch ON

On

FR WIPER LOW

Front wiper switch OFF

Off

Front wiper switch LO

On
