ADP-102

< DTC/CIRCUIT DIAGNOSIS >

PEDAL ADJUSTING MOTOR

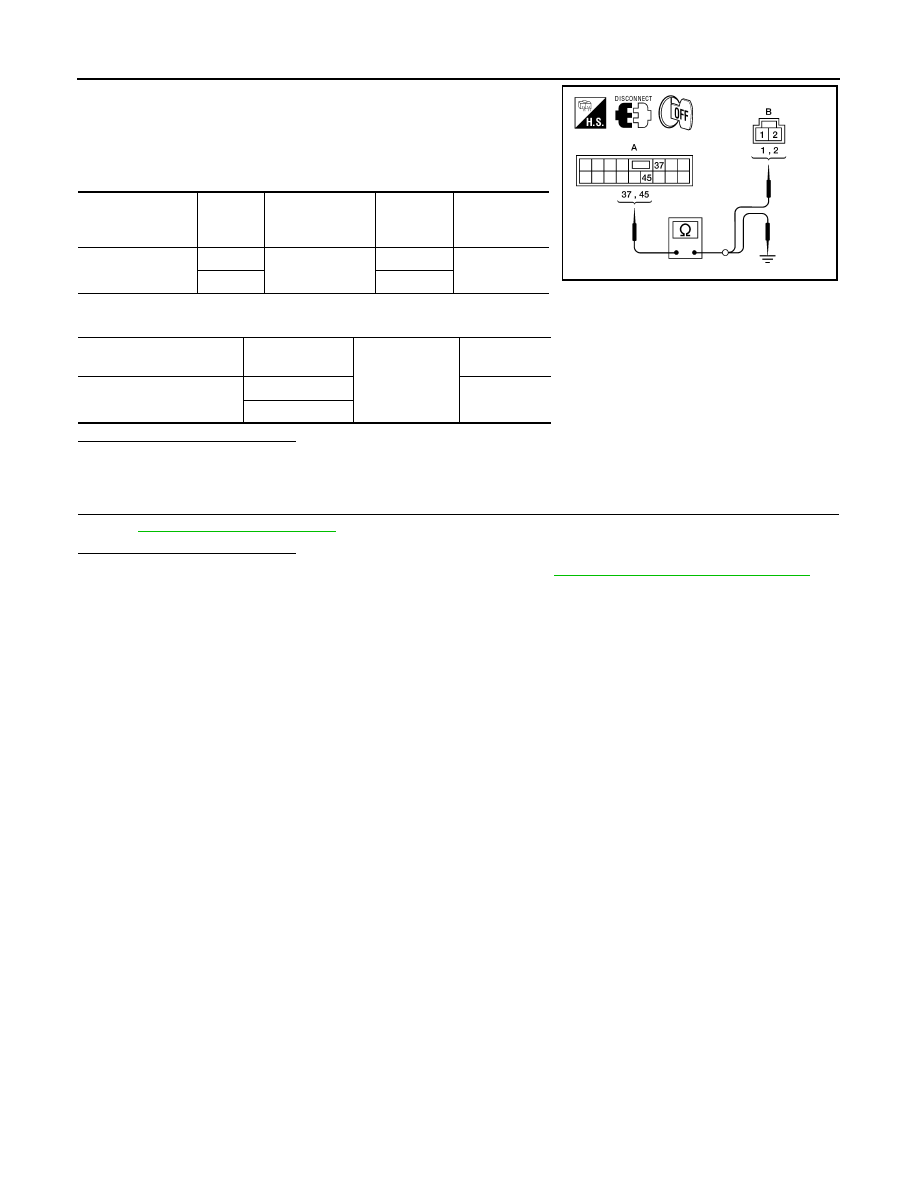

1. Disconnect automatic drive positioner control unit and pedal

adjusting motor assembly.

2. Check continuity between automatic drive positioner control unit

harness connector and pedal adjusting motor assembly harness

connector.

3. Check continuity between automatic drive positioner control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK INTERMITTENT INCIDENT

Refer to

GI-39, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-149, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning part.

Automatic drive

positioner control

unit connector

Terminal

Pedal adjusting

motor assembly

connector

Terminal

Continuity

M34 (A)

37

E109 (B)

1

Yes

45

2

Automatic drive positioner

 control unit connector

Terminal

Ground

Continuity

M34 (A)

37

No

45

ALJIA0195ZZ

DOOR MIRROR MOTOR

ADP-103

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

DOOR MIRROR MOTOR

Description

INFOID:0000000006163568

It makes mirror face operate from side to side and up and down with the electric power that automatic drive

positioner control unit supplies.

Component Function Check

INFOID:0000000006163569

1.

 CHECK DOOR MIRROR MOTOR FUNCTION

Check the operation with “MIRROR MOTOR RH” and “MIRROR MOTOR LH” in “ACTIVE TEST” mode with

CONSULT-III

Refer to

ADP-26, "CONSULT-III Function"

.

Is the inspection result normal?

YES

>> Door mirror motor function is OK.

NO

>> Refer to

ADP-103, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006163570

Regarding Wiring Diagram information, refer to

ADP-128, "Wiring Diagram"

.

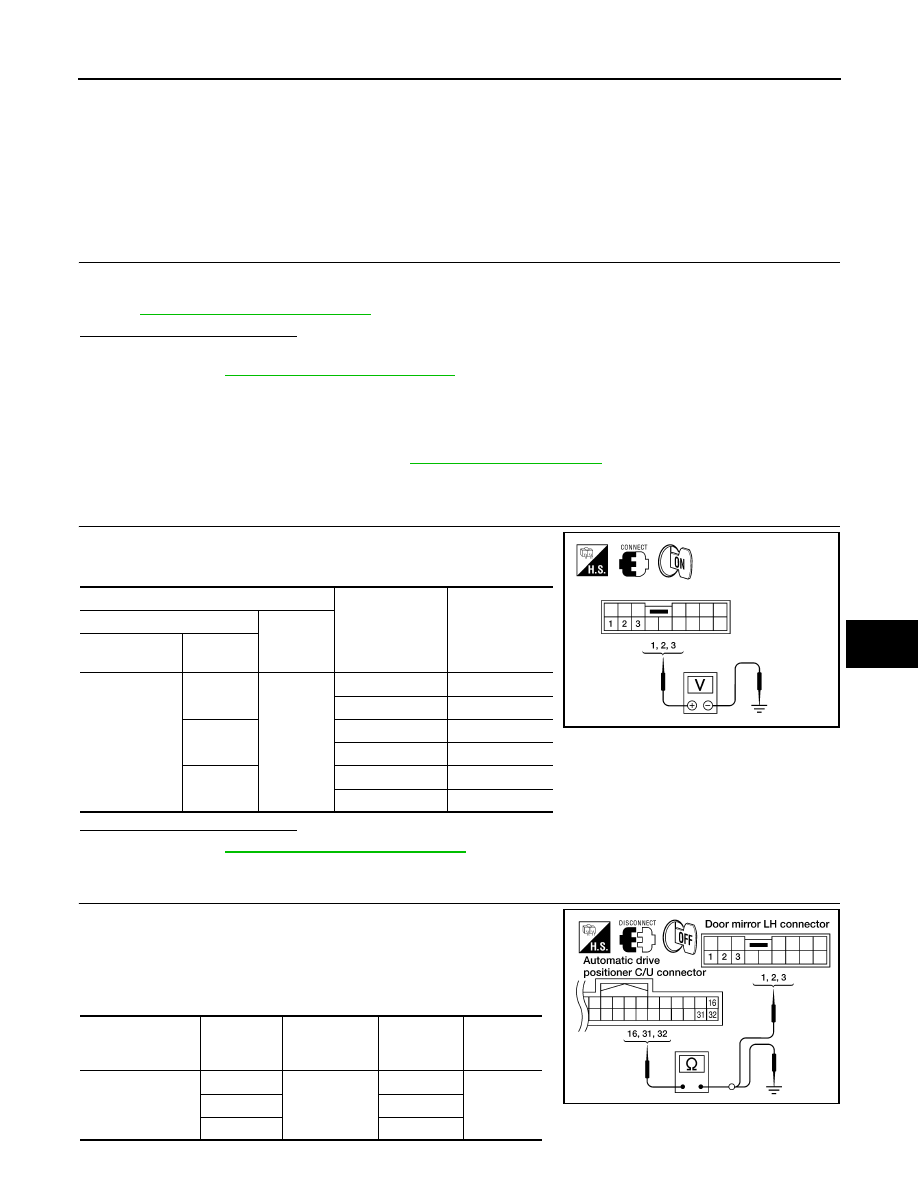

1.

 CHECK DOOR MIRROR MOTOR INPUT SIGNAL

1. Turn ignition switch ON.

2. Check voltage between door mirror connector and ground.

Is the inspection result normal?

YES

>> Refer to

ADP-105, "Component Inspection"

.

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect automatic drive positioner control unit and door mir-

ror.

3. Check continuity between automatic drive positioner control unit

connector and door mirror connector.

Door mirror LH

Terminals

Door mirror re-

mote control

switch condition

Voltage (V)

(Approx.)

(+)

(–)

Door mirror

connector

Terminal

D4 (LH)

D107 (RH)

1

Ground

UP

Battery voltage

Other than above

0

2

LEFT

Battery voltage

Other than above

0

3

DOWN / RIGHT

Battery voltage

Other than above

0

ALJIA0196ZZ

Automatic drive

positioner control

unit connector

Terminal

Door mirror LH

connector

Terminal

Continuity

M33

16

D4

3

Yes

31

1

32

2

LIIA1880E

ADP-104

< DTC/CIRCUIT DIAGNOSIS >

DOOR MIRROR MOTOR

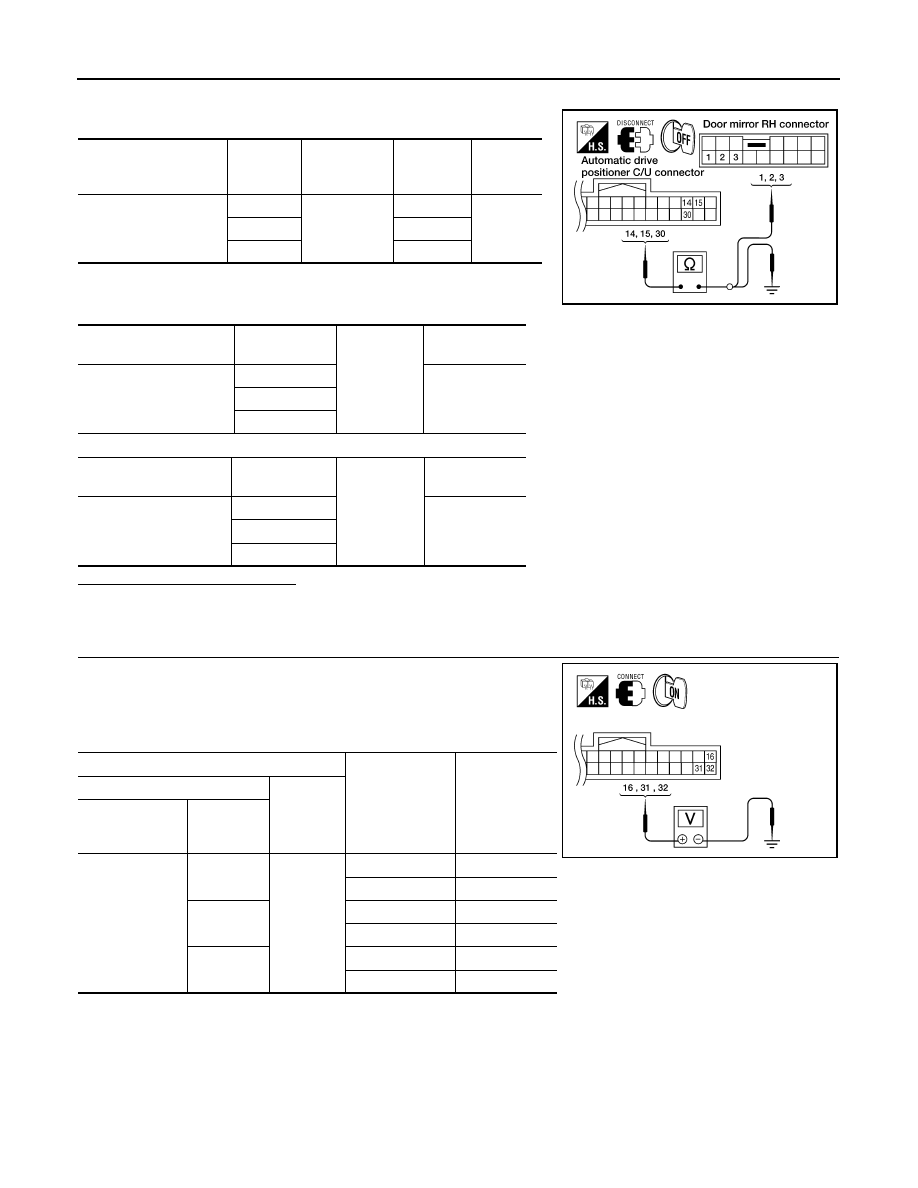

Door mirror RH

4. Check continuity between automatic drive positioner control unit

connector and ground.

Door mirror LH

Door mirror RH

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

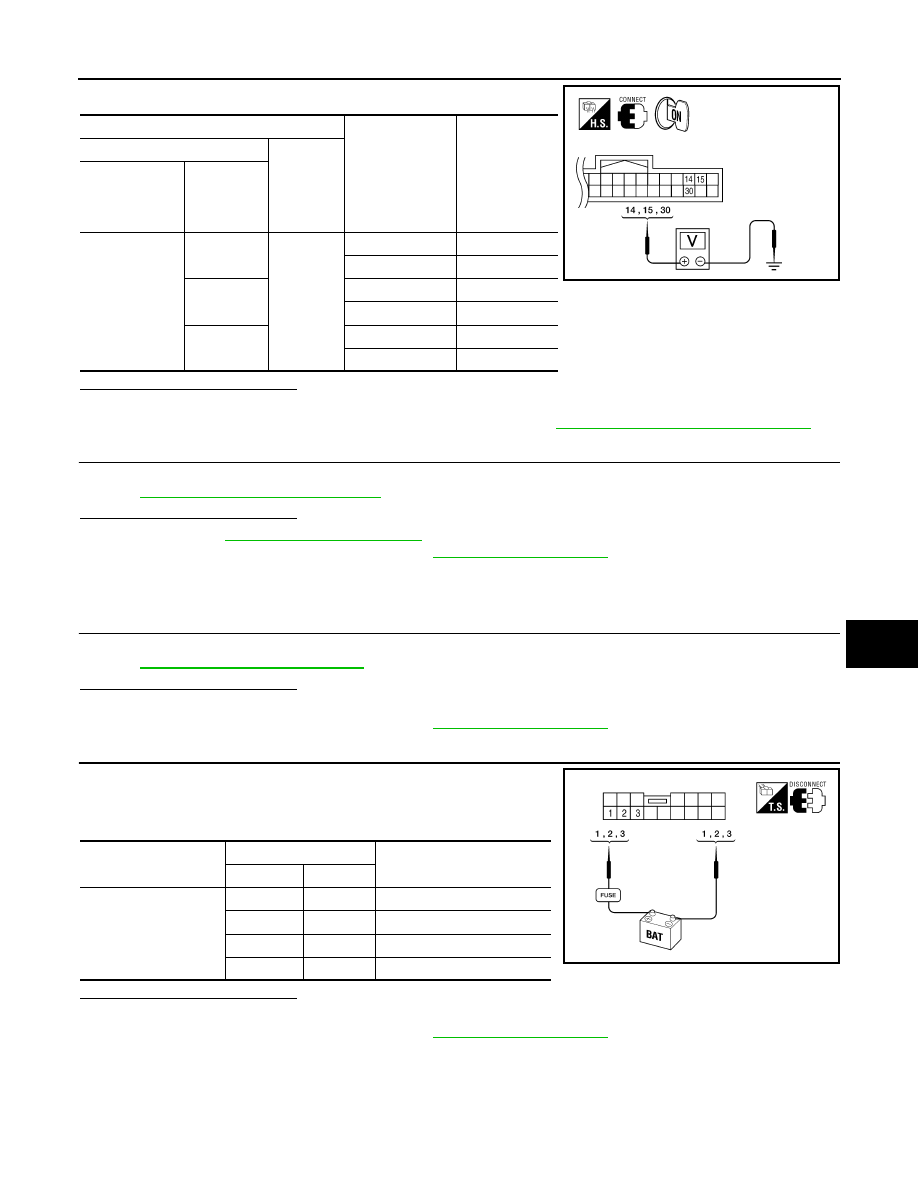

 CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL

1. Connect automatic drive positioner control unit.

2. Turn ignition switch ON.

3. Check voltage between automatic drive positioner control unit

connector and ground.

Door mirror LH

Automatic drive posi-

tioner control unit con-

nector

Terminal

Door mirror

RH connector

Terminal

Continuity

M33

14

D107

1

Yes

15

2

30

3

Automatic drive position-

er control unit connector

Terminal

Ground

Continuity

M33

16

No

31

32

Automatic drive position-

er control unit connector

Terminal

Ground

Continuity

M33

14

No

15

30

LIIA1888E

Terminals

Mirror switch

condition

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive

positioner control

unit connector

Terminal

M33

16

Ground

DOWN / RIGHT

Battery voltage

Other than above

0

31

UP

Battery voltage

Other than above

0

32

LEFT

Battery voltage

Other than above

0

ALJIA0197ZZ

DOOR MIRROR MOTOR

ADP-105

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

Door mirror RH

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace automatic drive positioner control unit. Refer to

ADP-149, "Removal and Installation"

.

4.

 CHECK DOOR MIRROR MOTOR

Check door mirror motor.

Refer to

ADP-105, "Component Inspection"

.

Is the inspection result normal?

YES

>> Refer to

GI-39, "Intermittent Incident"

.

NO

>> Replace door mirror actuator. Refer to

MIR-18, "Mirror Actuator"

.

Component Inspection

INFOID:0000000006163571

1.

 CHECK DOOR MIRROR MOTOR-I

Check that door mirror motor does not trap foreign objects and does not have any damage.

Refer to

MIR-15, "Door Mirror Assembly"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Replace door mirror actuator. Refer to

MIR-18, "Mirror Actuator"

.

2.

 CHECK DOOR MIRROR MOTOR-II

1. Turn ignition switch OFF.

2. Disconnect door mirror.

3. Apply 12V to each power supply terminal of door mirror motor.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace door mirror actuator. Refer to

MIR-18, "Mirror Actuator"

.

Terminals

Mirror switch con-

dition

Voltage (V)

(Approx.)

(+)

(-)

Automatic drive

positioner con-

trol unit connec-

tor

Terminal

M33

14

Ground

UP

Battery voltage

Other than above

0

15

LEFT

Battery voltage

Other than above

0

30

DOWN / RIGHT

Battery voltage

Other than above

0

ALJIA0198ZZ

Door mirror connector

Terminal

Operational direction

(+)

(–)

D4 (LH)

D107 (RH)

3

2

RIGHT

2

3

LEFT

1

3

UP

3

1

DOWN

ALJIA0199ZZ
