PWC-16

< ECU DIAGNOSIS INFORMATION >

[FRONT WINDOW ANTI-PINCH]

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000009653282

ECU

Reference

BCM

BCS-40, "Reference Value"

BCS-62, "Fail-safe"

BCS-62, "DTC Inspection Priority Chart"

BCS-63, "DTC Index"

POWER WINDOW MAIN SWITCH

PWC-17

< ECU DIAGNOSIS INFORMATION >

[FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

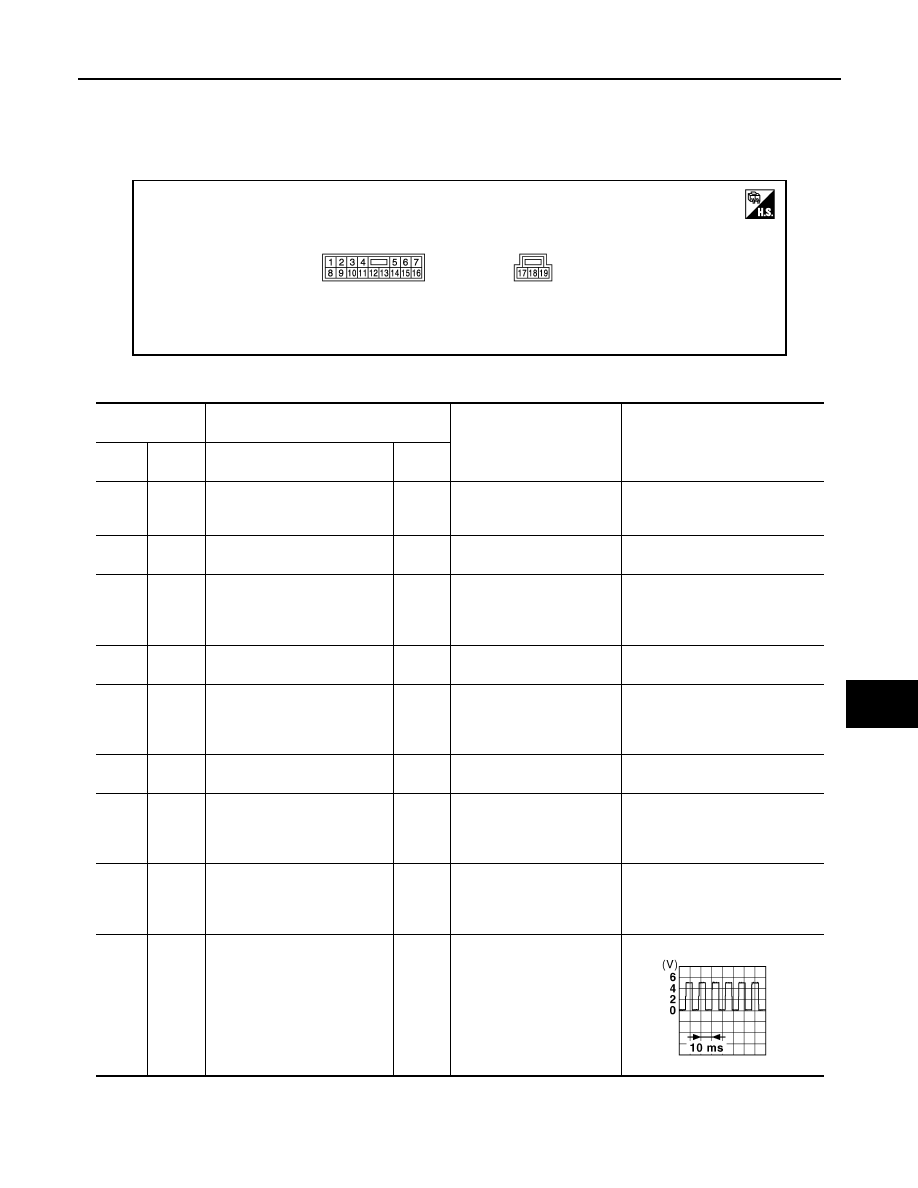

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000009653283

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA5358ZZ

Terminal No.

(wire color)

Description

Condition

Voltage (V)

+

-

Signal name

Input/

Output

1

(O)

Ground

Sliding door power window mo-
tor LH UP signal

Output

When sliding door LH switch
in power window main
switch is in UP operation.

  9 – 16

2

(W)

Ground

Encoder ground

—

—

0 – 1

3

(BR)

Ground

Sliding door power window mo-
tor LH DOWN signal

Output

When sliding door LH switch
in power window main
switch is in DOWN opera-
tion.

  9 – 16

4

(P)

Ground

Door key cylinder switch
LOCK signal

Input

Key position
(Neutral

→

 Locked)

4 – 6

→

0 – 1.5

5

(SB)

Ground

Sliding door power window mo-
tor RH DOWN signal

Output

When sliding door RH
switch in power window
main switch is in DOWN op-
eration.

  9 – 16

6

(GR)

Ground

Door key cylinder switch
UNLOCK signal

Input

Key position
(Neutral

→

 Unlocked)

4 – 6

→

0 – 1.5

7

(P)

Ground

Sliding door power window mo-
tor RH UP signal

Output

When sliding door RH
switch in power window
main switch is in UP opera-
tion.

  9 – 16

8

(L)

Ground

Front power window motor
(driver side) UP signal

Output

When front LH switch in
power window main switch
is
in UP operation.

  9 – 16

9

(SB)

Ground

Encoder pulse signal 2

Input

When power window motor
operates.

JMKIA0070GB

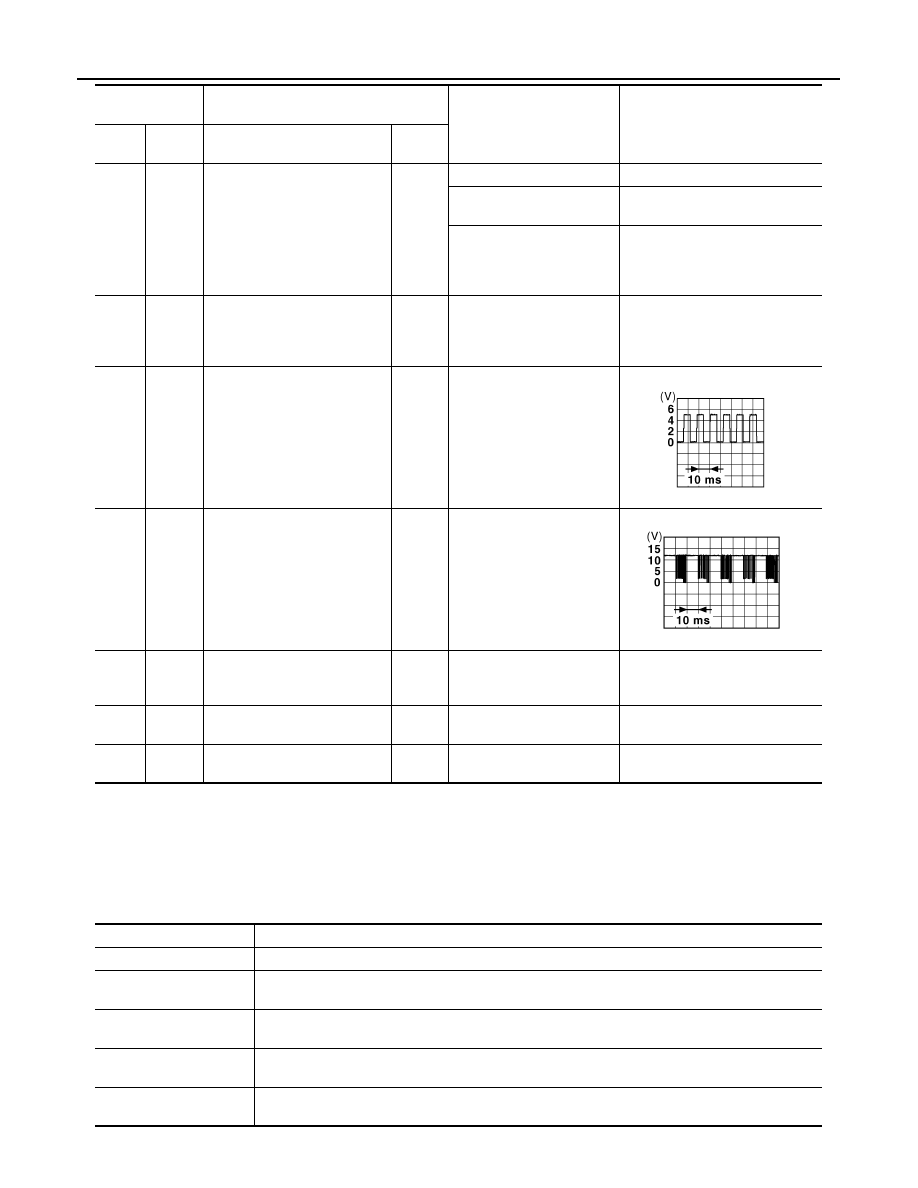

PWC-18

< ECU DIAGNOSIS INFORMATION >

[FRONT WINDOW ANTI-PINCH]

POWER WINDOW MAIN SWITCH

Fail-safe

INFOID:0000000009653284

FAIL-SAFE CONTROL

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe control when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.

10

(V)

Ground

Retained power signal

Input

Ignition switch ON

 9 – 16

Within 45 seconds after igni-
tion switch is turned to OFF.

  9 – 16

When driver side or passen-
ger side door is opened dur-
ing retained power
operation.

0 – 1

11

(LG)

Ground

Front power window motor
(driver side) DOWN signal

Output

When front LH switch in
power window main switch
is
in DOWN operation.

  9 – 16

13

(Y)

Ground

Encoder pulse signal 1

Input

When power window motor
operates.

14

(BR)

Ground

Power window serial link

Input/

Output

Ignition switch ON or power
window timer operating.

15

(R)

Ground

Encoder power supply

Output

When ignition switch ON or
power window timer oper-
ates.

  9 – 16

17

(B)

Ground

Ground

—

—

0 – 1

19

(LG)

Ground

Battery power supply

Input

—

 9 – 16

Terminal No.

(wire color)

Description

Condition

Voltage (V)

+

-

Signal name

Input/

Output

JMKIA0070GB

JPMIA0013GB

Error

Error condition

Pulse sensor malfunction

When only one side of pulse signal is being detected for more than the specified value.

Both pulse sensors mal-
function

When both pulse signals have not been detected for more than the specified value during glass
open/close operation.

Pulse direction malfunc-
tion

When the pulse signal that is detected during glass open/close operation detects the opposite con-
dition of power window motor operating direction.

Glass recognition position
malfunction 1

When it detects the error between glass fully closed position in power window switch memory and
actual fully closed position during glass open/close operation is more than the specified value.

Glass recognition position
malfunction 2

When it detects pulse count more than the value of glass full stroke during glass open/close opera-
tion.

POWER WINDOW MAIN SWITCH

PWC-19

< ECU DIAGNOSIS INFORMATION >

[FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

It changes to condition before initialization and the following functions do not operate when switched to fail-
safe control.
• Auto-up operation
• Anti-pinch function

Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe
control when malfunction is found in power window main switch or front power window switch (passenger
side) front power window motor (driver side/passenger side).
