Nissan Quest E52. Manual - part 973





PWC-4

Description ..............................................................

94

Work Procedure ......................................................

94

CHECK ANTI-PINCH FUNCTION  .....................

95

Description ..............................................................

95

Work Procedure ......................................................

95

DTC/CIRCUIT DIAGNOSIS .........................

96

POWER SUPPLY AND GROUND CIRCUIT  .....

96

POWER WINDOW MAIN SWITCH  ...........................

96

POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ..............................................................
.

96

FRONT POWER WINDOW SWITCH (PASSEN-
GER SIDE)  ...............................................................
.

96

FRONT POWER WINDOW SWITCH (PASSEN-
GER SIDE) : Diagnosis Procedure  ........................
.

97

SLIDING DOOR POWER WINDOW SWITCH ..........

97

SLIDING DOOR POWER WINDOW SWITCH :
Diagnosis Procedure  .............................................
.

97

FRONT POWER WINDOW SWITCH (PAS-
SENGER SIDE) ..................................................

99

Component Function Check  ...................................

99

Diagnosis Procedure  ..............................................

99

Component Inspection ...........................................

100

SLIDING DOOR POWER WINDOW SWITCH .

101

Component Function Check  ..................................

101

Diagnosis Procedure  .............................................

101

Component Inspection ...........................................

102

POWER WINDOW MOTOR .............................

103

DRIVER SIDE ...........................................................

103

DRIVER SIDE : Component Function Check  ........

103

DRIVER SIDE : Diagnosis Procedure  ...................

103

PASSENGER SIDE ..................................................

103

PASSENGER SIDE : Component Function Check

..

104

PASSENGER SIDE : Diagnosis Procedure  ..........

104

SLIDING DOOR LH ..................................................

104

SLIDING DOOR LH : Component Function Check ..

105

SLIDING DOOR LH : Diagnosis Procedure ...........

105

SLIDING DOOR RH  .................................................

105

SLIDING DOOR RH : Component Function Check

..

105

SLIDING DOOR RH : Diagnosis Procedure  ..........

106

ENCODER CIRCUIT ........................................

107

Component Function Check  ..................................

107

Diagnosis Procedure  .............................................

107

SYMPTOM DIAGNOSIS  ............................

110

NONE OF THE POWER WINDOWS CAN BE
OPERATED USING ANY SWITCH  .................

110

Diagnosis Procedure .............................................

110

DRIVER SIDE POWER WINDOW DOES NOT
OPERATE .........................................................

111

Diagnosis Procedure .............................................

111

FRONT PASSENGER SIDE POWER WIN-
DOW DOES NOT OPERATE  ...........................

112

WHEN BOTH POWER WINDOW MAIN SWITCH
AND FRONT POWER WINDOW SWITCH ARE
OPERATED .............................................................

112

WHEN BOTH POWER WINDOW MAIN SWITCH
AND FRONT POWER WINDOW SWITCH ARE
OPERATED : Diagnosis Procedure ......................

112

WHEN FRONT POWER WINDOW SWITCH (PAS-
SENGER SIDE) IS OPERATED  ..............................

112

WHEN FRONT POWER WINDOW SWITCH
(PASSENGER SIDE) IS OPERATED : Diagnosis
Procedure .............................................................

112

WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED ..................................................................

112

WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED : Diagnosis Procedure  ...........................

113

SLIDING DOOR LH POWER WINDOW DOES
NOT OPERATE  ................................................

114

WHEN POWER WINDOW MAIN AND SLIDING
DOOR LH POWER WINDOW SWITCHES ARE
OPERATED .............................................................

114

WHEN POWER WINDOW MAIN AND SLIDING
DOOR LH POWER WINDOW SWITCHES ARE
OPERATED : Diagnosis Procedure ......................

114

WHEN SLIDING DOOR LH POWER WINDOW
SWITCH IS OPERATED  .........................................

114

WHEN SLIDING DOOR LH POWER WINDOW
SWITCH IS OPERATED : Diagnosis Procedure  ..

114

WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED ..................................................................

114

WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED : Diagnosis Procedure  ...........................

115

SLIDING DOOR RH POWER WINDOW DOES
NOT OPERATE  ................................................

116

WHEN POWER WINDOW MAIN AND SLIDING
DOOR RH POWER WINDOW SWITCHES ARE
OPERATED .............................................................

116

WHEN POWER WINDOW MAIN AND SLIDING
DOOR RH POWER WINDOW SWITCHES ARE
OPERATED : Diagnosis Procedure ......................

116

WHEN SLIDING DOOR RH POWER WINDOW
SWITCH IS OPERATED  .........................................

116

WHEN SLIDING DOOR RH POWER WINDOW
SWITCH IS OPERATED : Diagnosis Procedure  ..

116

PWC-5

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED ..................................................................

116

WHEN POWER WINDOW MAIN SWITCH IS OP-
ERATED : Diagnosis Procedure  ...........................

117

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATE NORMALLY
(DRIVER SIDE) .................................................

118

Diagnosis Procedure .............................................

118

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (DRIVER SIDE)  ...........................

119

Diagnosis Procedure .............................................

119

POWER WINDOW RETAINED POWER OP-
ERATION DOES NOT OPERATE PROPERLY

..

120

Diagnosis Procedure .............................................

120

POWER WINDOW LOCK SWITCH DOES
NOT FUNCTION ...............................................

121

Diagnosis Procedure .............................................

121

POWER WINDOW SWITCH ILLUMINATION
DOES NOT ILLUMINATE  ...............................

122

DRIVER SIDE ...........................................................

122

DRIVER SIDE : Diagnosis Procedure  ...................

122

PASSENGER SIDE ..................................................

122

PASSENGER SIDE : Diagnosis Procedure  ..........

122

SLIDING DOOR LH  .................................................

122

SLIDING DOOR LH : Diagnosis Procedure  ..........

122

SLIDING DOOR RH  .................................................

122

SLIDING DOOR RH : Diagnosis Procedure ..........

122

REMOVAL AND INSTALLATION  .............

123

POWER WINDOW MAIN SWITCH  .................

123

Removal and Installation  .......................................

123

SLIDING DOOR POWER WINDOW SWITCH .

124

Removal and Installation  .......................................

124

PWC-6

< PRECAUTION >

[FRONT WINDOW ANTI-PINCH]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009653271

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000009962075

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H

COMPONENT PARTS

PWC-7

< SYSTEM DESCRIPTION >

[FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

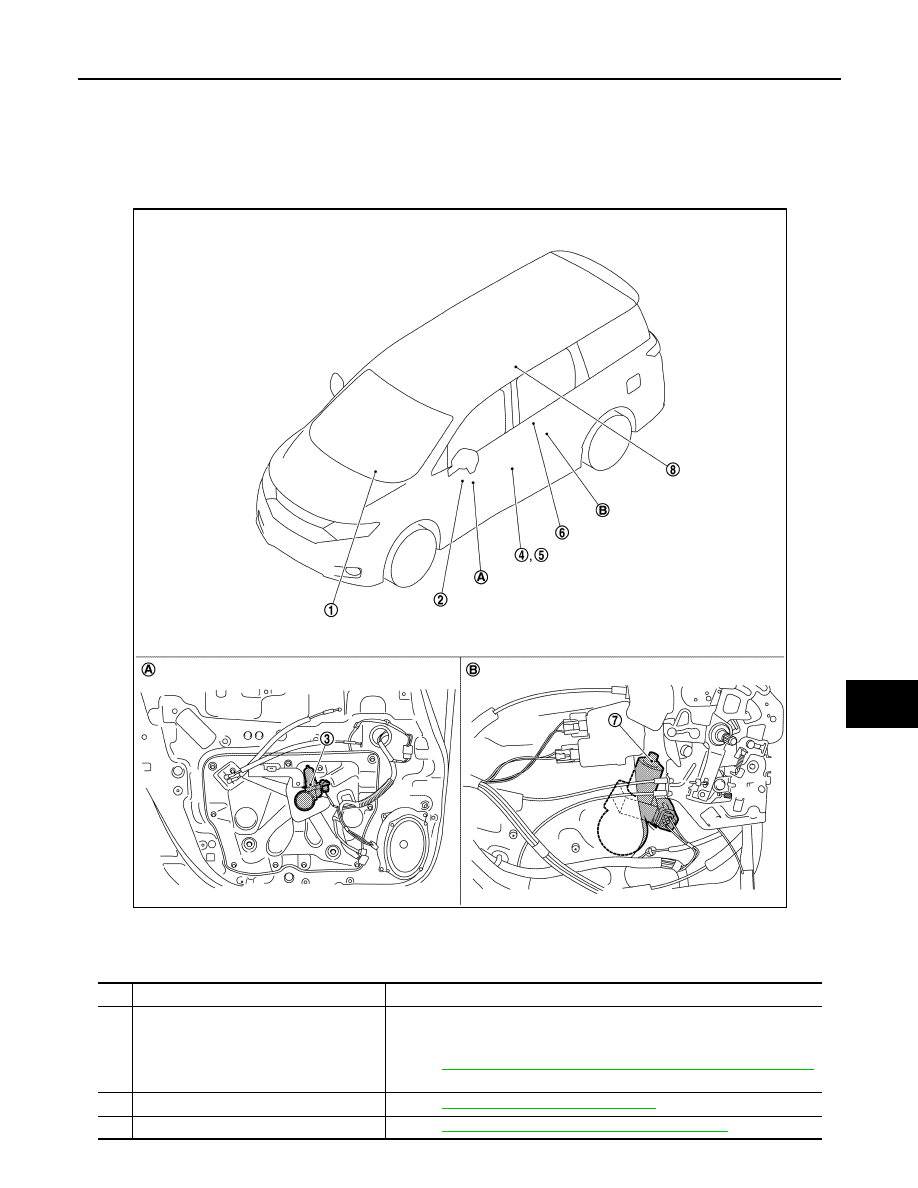

Component Parts Location

INFOID:0000000009653272

A.

View with front door finisher removed B.

View with sliding door finisher re-
moved

No.

Component

Function

1.

BCM

• Supplies power supply to power window switch.
• Controls retained power.
• Receives key ID signal from remote keyless entry receiver.
Refer to

BCS-4, "BODY CONTROL SYSTEM : Component Parts Location"



for detailed installation location.

2.

Power window main switch

Refer to

PWC-8, "Power Window Main Switch"

.

3.

Front power window motor (driver side)

Refer to

PWC-8, "Front Power Window Motor (Driver Side)"

.

JMKIA8162GB
