PG-40

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

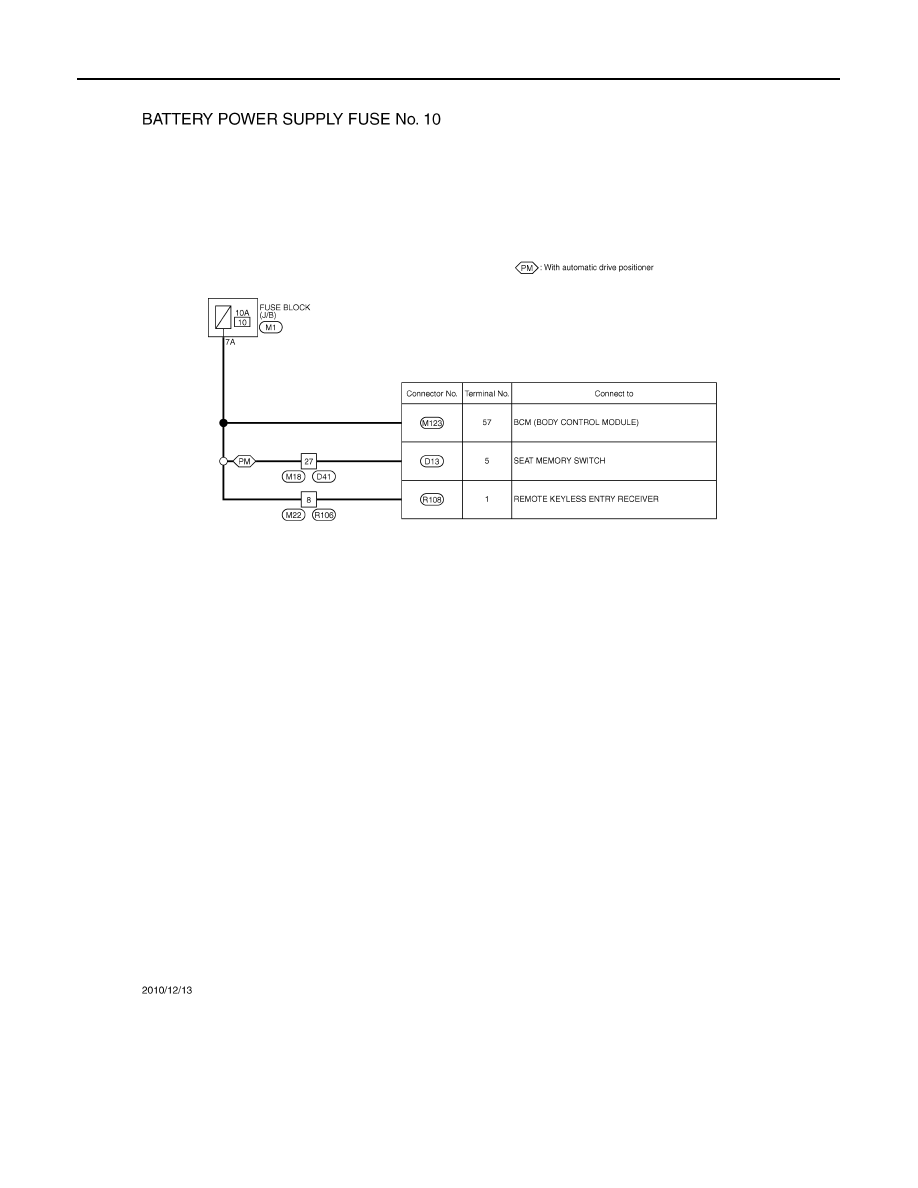

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 10 -

INFOID:0000000009651751

JCMWA7713GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-41

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

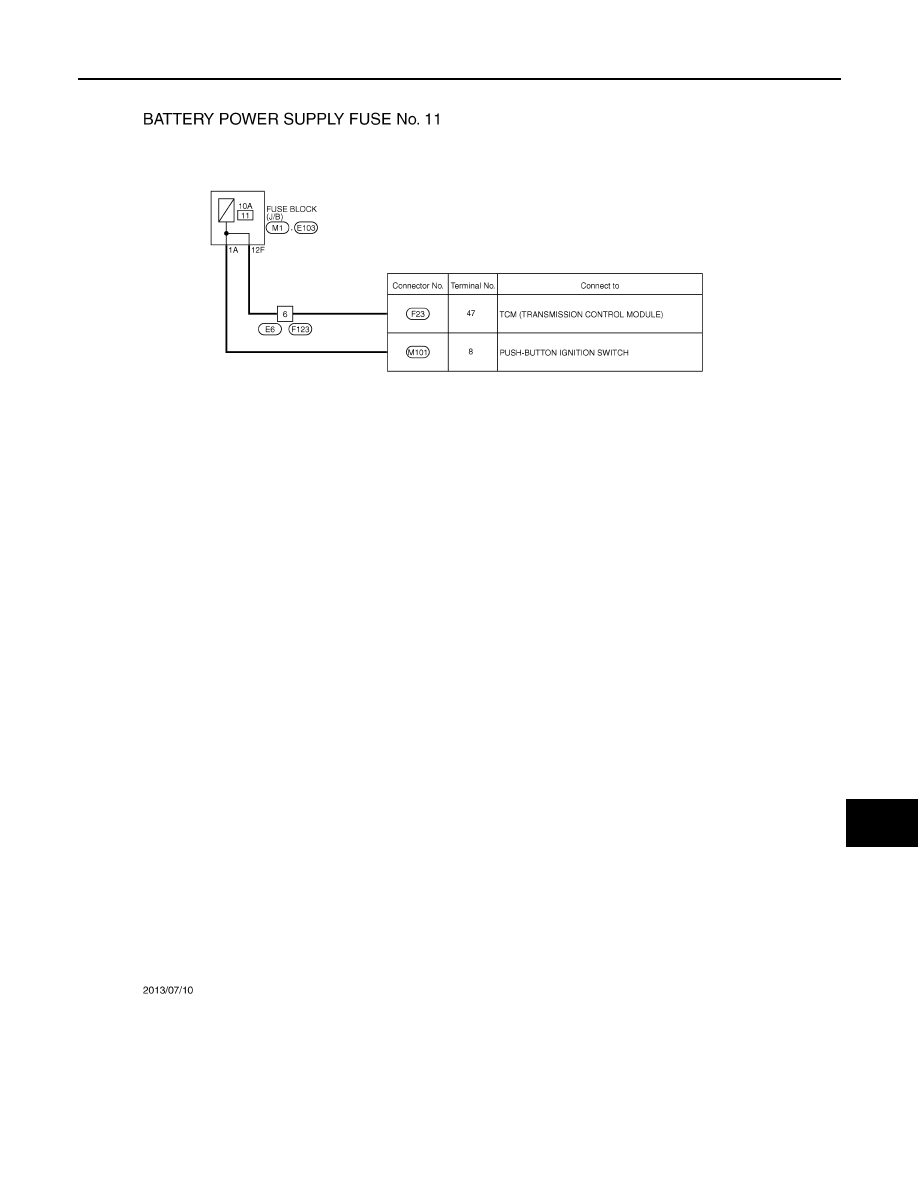

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 11 -

INFOID:0000000009651752

JRMWE3376GB

PG-42

< WIRING DIAGRAM >

POWER SUPPLY ROUTING CIRCUIT

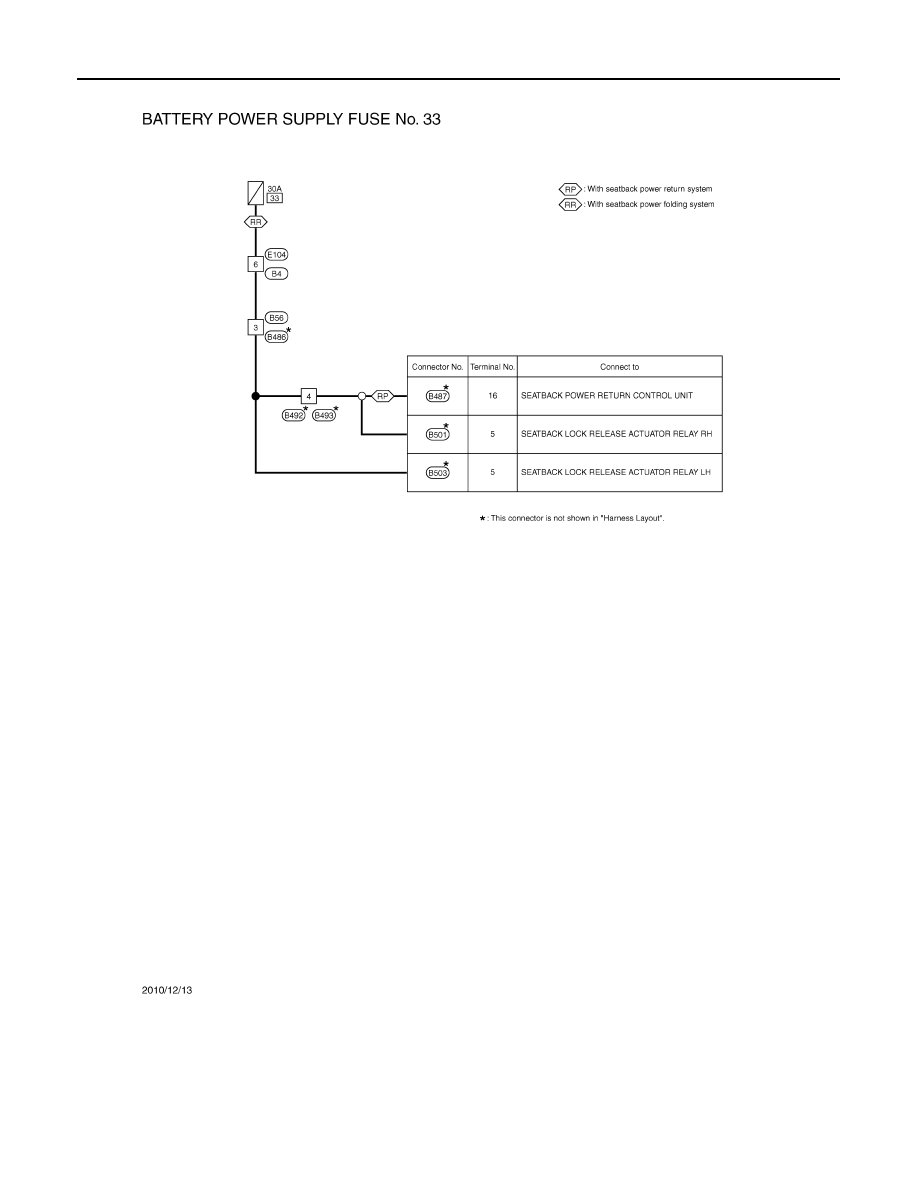

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 33 -

INFOID:0000000009651753

JCMWA7719GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-43

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

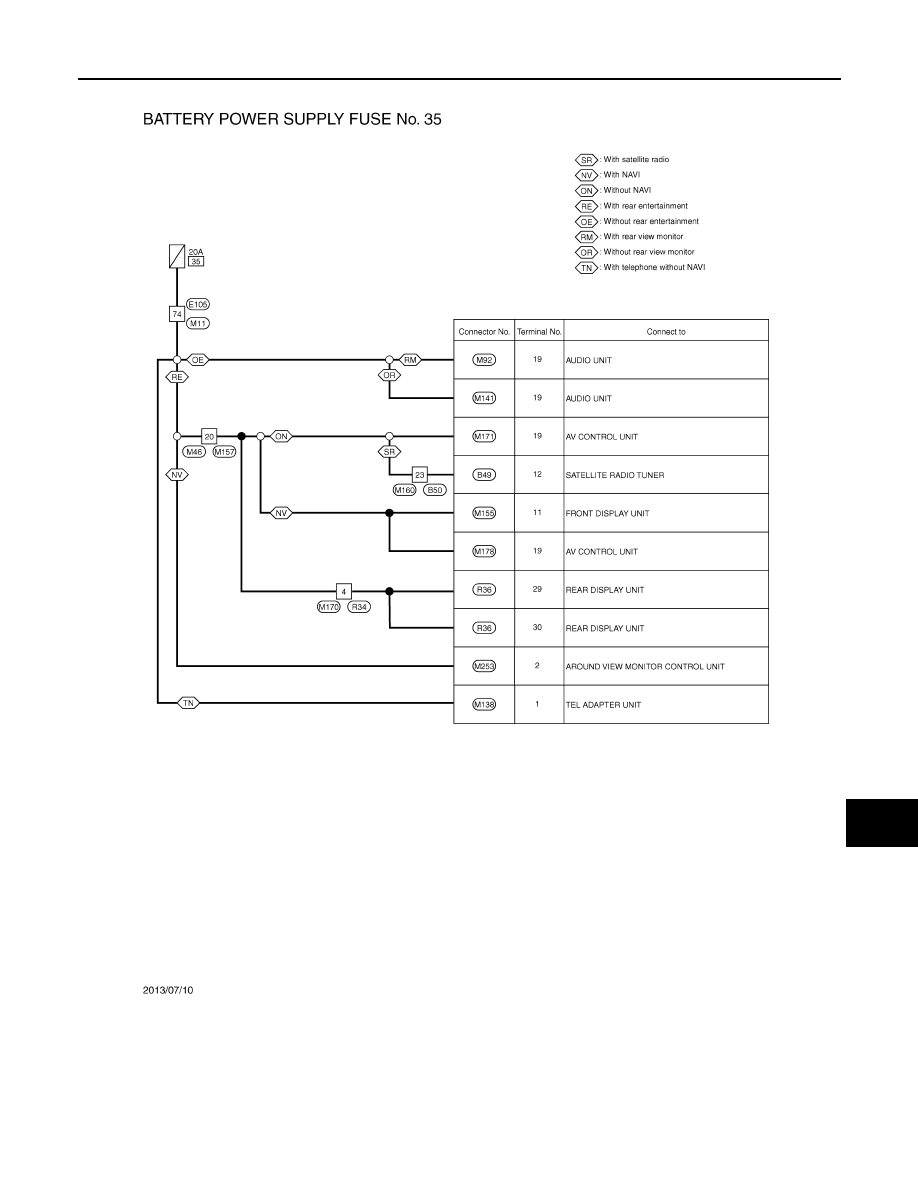

Wiring Diagram - BATTERY POWER SUPPLY FUSE No. 35 -

INFOID:0000000009651754

JRMWE3377GB
