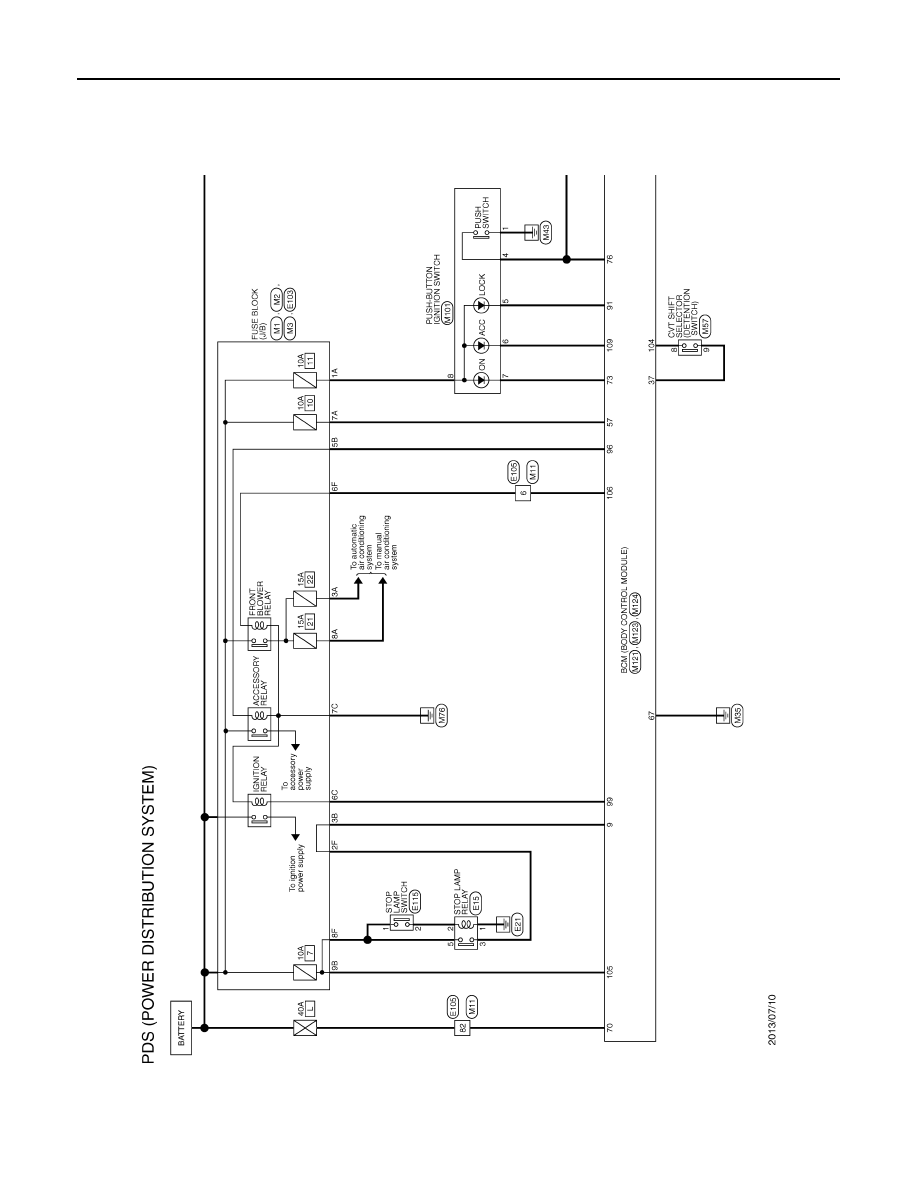

*: OFF is displayed when brake pedal is depressed while brake switch power supply is OFF.
ACTIVE TEST
DOOR STAT-AS
Indicates [LOCK/READY/UNLK] condition of passenger side door status
ID OK FLAG
Indicates [Set/Reset] condition of key ID
PRMT ENG STRT
Indicates [Set/Reset] condition of engine start possibility
PRMT RKE STRT
NOTE:
This item is displayed, but cannot be monitored
TRNK/HAT MNTR
NOTE:
This item is displayed, but cannot be monitored
RKE-LOCK
Indicates [On/Off] condition of LOCK signal from Intelligent Key
RKE-UNLOCK
Indicates [On/Off] condition of UNLOCK signal from Intelligent Key
RKE-TR/BD
NOTE:
This item is displayed, but cannot be monitored
RKE-PANIC
Indicates [On/Off] condition of PANIC button of Intelligent Key
RKE-MODE CHG
Indicates [On/Off] condition of MODE CHANGE signal from Intelligent Key
RKE OPE COUN1
When remote keyless entry receiver receives the signal transmitted while operating on Intelli-
gent Key, the numerical value start changing
RKE OPE COUN2
NOTE:
This item is displayed, but cannot be monitored
Monitor Item
Condition
Test item
Description
BATTERY SAVER
This test is able to check interior room lamp operation
• On: Operate
• Off: Non-operation
OUTSIDE BUZZER
This test is able to check Intelligent Key warning buzzer operation
• On: Operate
• Off: Non-operation
INSIDE BUZZER
This test is able to check warning chime in combination meter operation
• Take Out: Take away warning chime sounds when CONSULT screen is touched
• Key: Key warning chime sounds when CONSULT screen is touched
• Knob: OFF position warning chime sounds when CONSULT screen is touched
• Off: Non-operation
INDICATOR
This test is able to check warning lamp operation
• KEY ON: “KEY” Warning lamp illuminates when CONSULT screen is touched
• KEY IND: “KEY” Warning lamp blinks when CONSULT screen is touched
• Off: Non-operation
INT LAMP
This test is able to check interior room lamp operation
• On: Operate
• Off: Non-operation
LCD
This test is able to check meter display information
• Engine start information displays when “BP N” on CONSULT screen is touched
• Engine start information displays when “BP I” on CONSULT screen is touched
• Key ID warning displays when “ID NG” on CONSULT screen is touched
• ROTAT: This item is displayed, but cannot be used.
• P position warning displays when “SFT P” on CONSULT screen is touched
• INSRT: This item is displayed, but cannot be monitored
• BATT: This item is displayed, but cannot be monitored
• Take away through window warning displays when “NO KY” on CONSULT screen is
touched
• Take away warning display when “OUTKEY” on CONSULT screen is touched
• OFF position warning display when “LK WN” on CONSULT screen is touched
FLASHER
This test is able to check hazard warning lamp operation
• LH: LH side hazard warning lamps operate
• RH: RH side hazard warning lamps operate
• Off: Non-operation
