B2099 IGNITION RELAY OFF STUCK

Description

INFOID:0000000009652864

• IPDM E/R operates the ignition relay when it receives an ignition switch ON signal from BCM via CAN com-

munication.

• Turn the ignition relay OFF by pressing the push-button ignition switch once when the vehicle speed is 4 km/

h (2.5 MPH) or less.

• Turn the ignition relay OFF with the following operation when the vehicle speed is more than 4 km/h (2.5

MPH) or when an abnormal condition occurs in CAN communication from the unified meter and A/C
amp.(Emergency OFF)

- Press and hold the push-button ignition switch for 2 seconds or more.
- Press the push-button ignition switch 3 times within 1.5 seconds.
NOTE:
The ignition relay does not turn ON for 3 seconds after emergency OFF even if the push-button ignition switch
is pressed.

DTC Logic

INFOID:0000000009652865

DTC DETECTION LOGIC

NOTE:

When IPDM E/R power supply voltage is low (Approx. 7 - 8 V for about 1 second), the “DTC: B2099” may be detected.

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Turn ignition switch OFF and wait 1 second or more.

3.

Check DTC in “Self Diagnostic Result” mode of “IPDM E/R” using CONSULT.

Is DTC detected?

YES

>> Refer to

PCS-33, "Diagnosis Procedure"

.

NO

>> INSPECTION END.

Diagnosis Procedure

INFOID:0000000009652866

1.

CHECK FUSE

Check that all of the fuses installed on the downstream of the contact point side circuit of the ignition relay in
IPDM E/R are not blown.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after replacing the affected circuit if a fuse is blown.

2.

CHECK IGNITION RELAY CONTROL CIRCUIT VOLTAGE

1.

Turn ignition switch ON

2.

Check voltage between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-36, "Removal and Installation"

.

NO

>> GO TO 3.

DTC

CONSULT display

description

DTC Detection Condition

Possible causes

B2099

IGN RELAY OFF
CIRC

The ignition relay OFF is detected for 1 second at ignition switch ON
(CPU monitors the status at the contact and excitation coil circuits of
the ignition relay inside it)

• Fuse
• IPDM E/R
• Battery

(+)

(–)

Voltage

(Approx)

IPDM E/R

Connector

Terminal

E10

27

Ground

0 V

PCS-34

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R]

B2099 IGNITION RELAY OFF STUCK

3.

CHECK BATTERY VOLTAGE

Check battery voltage.
Which is the measurement result?

More than 12.4 V>>GO TO 4.
Less than 12.4 V>>Perform battery inspection. Refer to

PG-97, "How to Handle Battery"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

PCS

POWER SUPPLY AND GROUND CIRCUIT

PCS-35

< DTC/CIRCUIT DIAGNOSIS >

[IPDM E/R]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000009652867

1.

CHECK FUSES AND FUSIBLE LINK

Check that the following IPDM E/R fuses or fusible links are not blown.

Is the fuse fusing?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is

blown.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check voltage between IPDM E/R harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Repair the harness or connector.

3.

CHECK GROUND CIRCUIT

Check continuity between IPDM E/R harness connectors and the ground.

Does continuity exist?

YES

>> INSPECTION END

NO

>> Repair the harness or connector.

Signal name

Fuses and fusible link No.

Battery power supply

E (80 A)

C (60 A)

H (40 A)

50 (15 A)

51 (15 A)

(+)

(

)

Voltage

IPDM E/R

Connector

Terminal

E9

1

Ground

6 – 16 V

2

E10

36

IPDM E/R

Ground

Continuity

Connector

Terminal

E10

12

Existed

E11

41

PCS-36

< REMOVAL AND INSTALLATION >

[IPDM E/R]

IPDM E/R

REMOVAL AND INSTALLATION

IPDM E/R

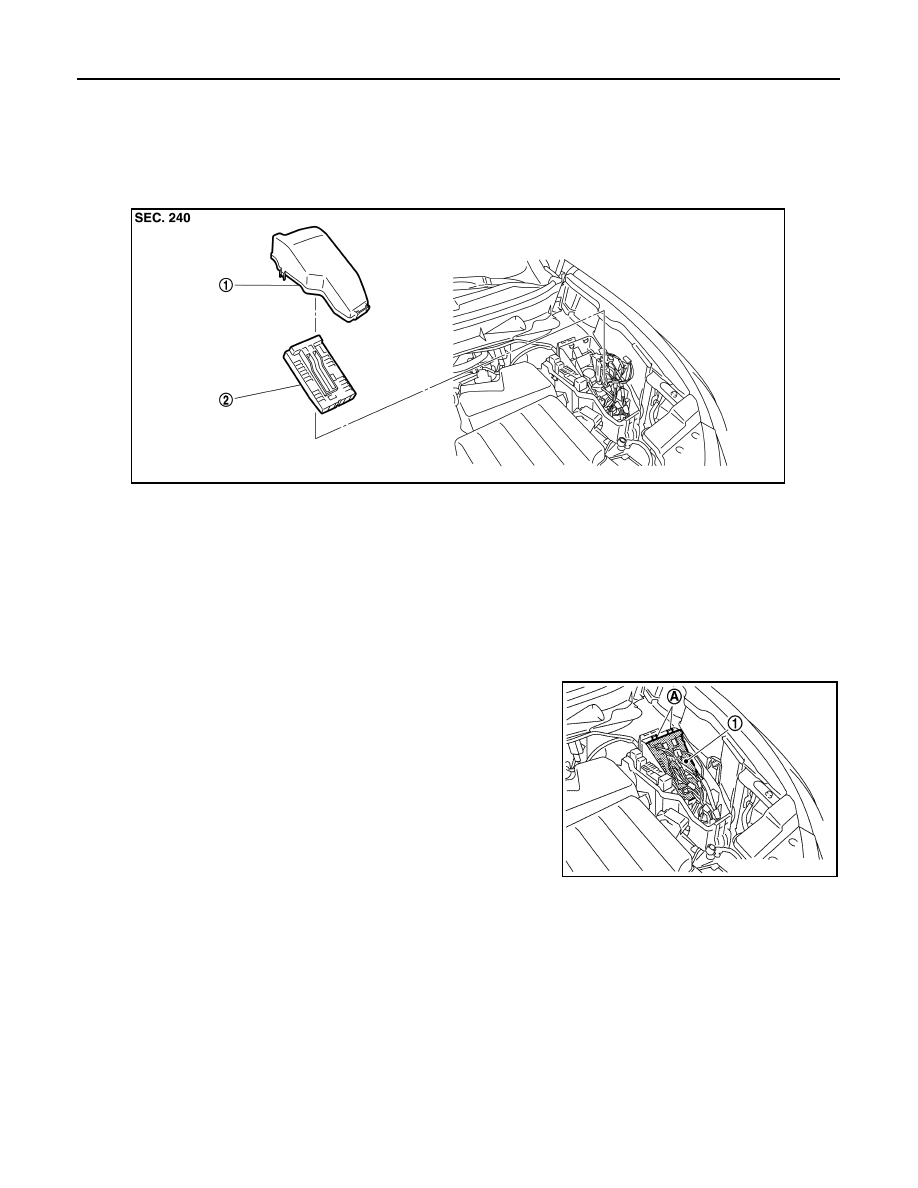

Exploded View

INFOID:0000000009652868

Removal and Installation

INFOID:0000000009652869

CAUTION:

IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit.

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove the relay box cover.

3.

Disconnect the harness connector form the IPDM E/R (1).

4.

Press the pawl (A) and remove the IPDM E/R from relay box.

INSTALLATION

Install in the reverse order of removal.

1.

Relay box cover

2.

IPDM E/R

JPMIA0868ZZ

JPMIA0869ZZ
