Nissan Quest E52. Manual - part 922





MWI

COMBINATION METER

MWI-93

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

COMBINATION METER

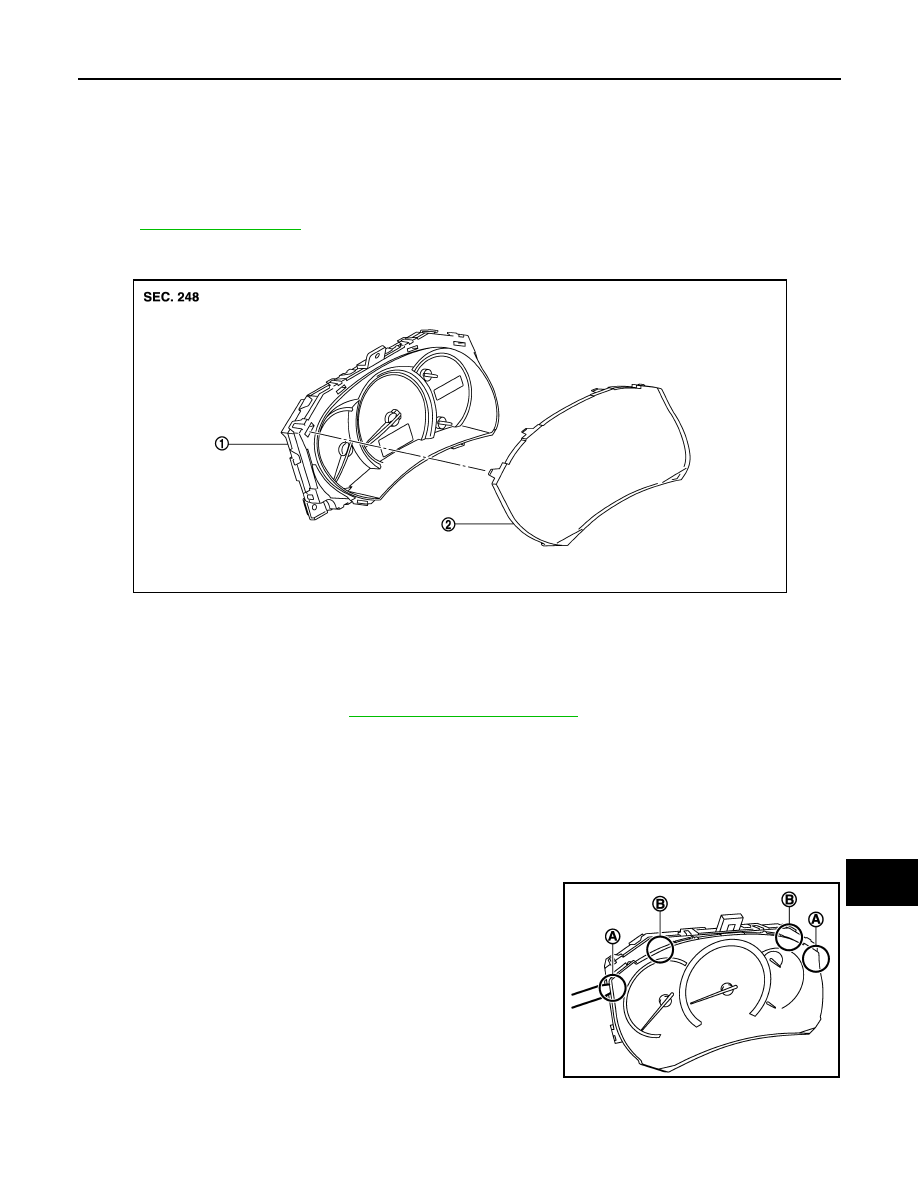

Exploded View

INFOID:0000000009651542

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009651543

REMOVAL

1.

Remove the cluster lid A. Refer to

IP-14, "Removal and Installation"

.

2.

Remove screws and connector, and then remove combination meter.

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000009651544

DISASSEMBLY

1.

Disengage the pawls (4 on the lower part) of the combination meter.

2.

Insert the removal tool into the clearance (in the order of A, B)
between the front cover and the meter control unit. Remove 4
pawls on the lower side of the front cover by turning the tool
while increasing the clearance.

CAUTION:

Wrap the removal tools with protective tape to prevent
scratches.

3.

Pull the front cover straight to remove it from the unified meter control unit.

CAUTION:

1.

Unified meter control unit

2.

Front cover

JSNIA3340ZZ

JSNIA3427ZZ

MWI-94

< REMOVAL AND INSTALLATION >

COMBINATION METER

• Never touch the display, pointer, the inside of front cover and the printed area of the dial during

the work.

• Keep away from magnetic sources.
• Never damage the front cover.

ASSEMBLY

Install the front cover straight to the unified meter control unit and engage all the pawl.

CAUTION:

• Never touch the display, pointer, the inside of front cover and the printed area of the dial during the

work.

• Keep away from magnetic sources.
• Never damage the front cover.

MWI

METER CONTROL SWITCH

MWI-95

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER CONTROL SWITCH

Exploded View

INFOID:0000000009651545

REMOVAL

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000009651546

REMOVAL

1.

Remove cluster lid A. Refer to

IP-14, "Removal and Installation"

.

2.

Disengage the tabs and remove meter control switch.

INSTALLATION

Install in the reverse order of removal.

MWI-96

< REMOVAL AND INSTALLATION >

ILLUMINATION CONTROL SWITCH

ILLUMINATION CONTROL SWITCH

Exploded View

INFOID:0000000009651547

REMOVAL

Refer to

IP-12, "Exploded View"

.

Removal and Installation

INFOID:0000000009651548

REMOVAL

1.

Remove cluster lid A. Refer to

IP-14, "Removal and Installation"

.

2.

Disengage the tabs and remove illumination control switch.

INSTALLATION

Install in the reverse order of removal.
