MIR-28

< SYMPTOM DIAGNOSIS >

[WITH ADP]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

PIIB8742E

INSIDE MIRROR

MIR-29

< REMOVAL AND INSTALLATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

REMOVAL AND INSTALLATION

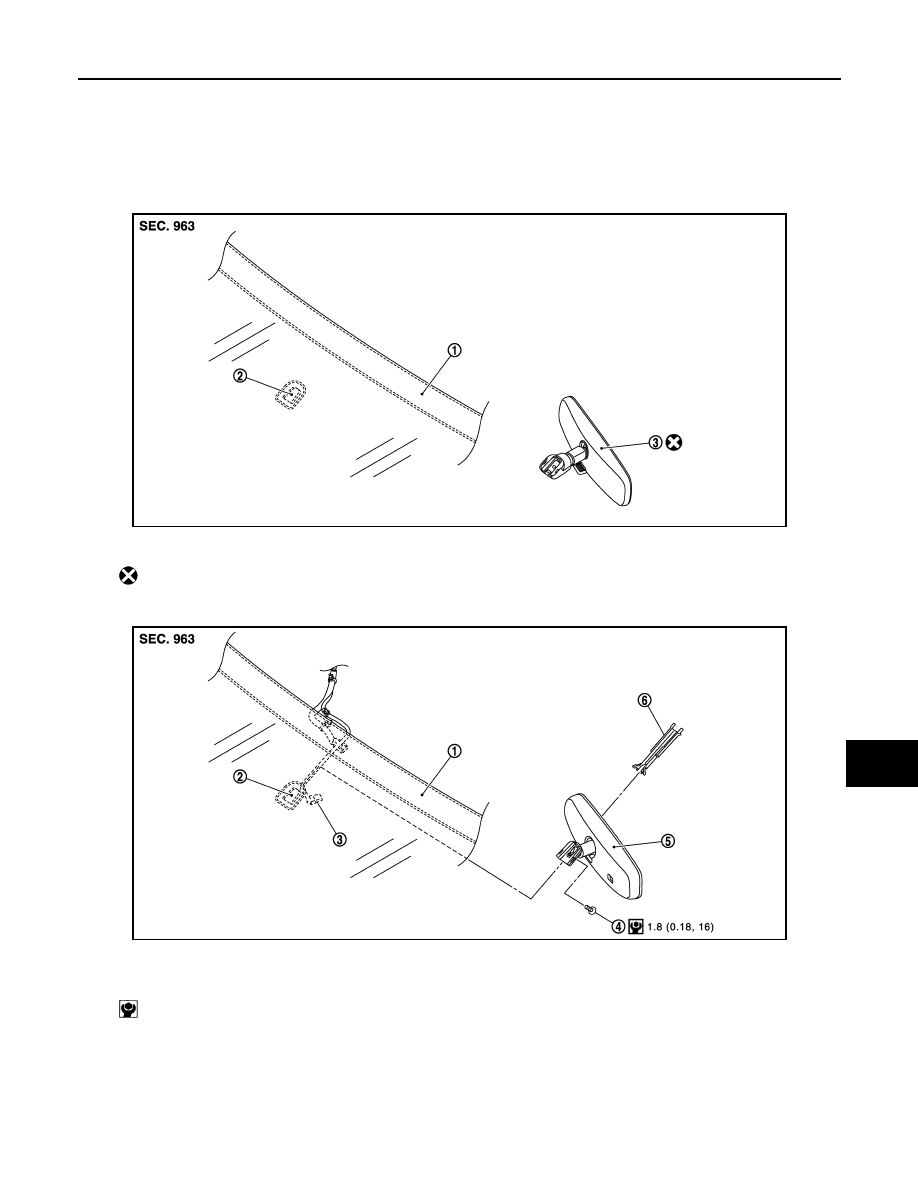

INSIDE MIRROR

Exploded View

INFOID:0000000009652715

Manual anti-dazzling type

Auto anti-dazzling type

Removal and Installation

INFOID:0000000009652716

REMOVAL

Manual anti-dazzling type

JMLIA0400ZZ

1.

Windshield glass

2.

Inside mirror base

3.

Inside mirror assembly

: Always replace after every disassembly.

JMLIA0177GB

1.

Windshield glass

2.

Inside mirror base

3.

Harness connector

4.

TORX bolt

5.

Inside mirror assembly

6.

Inside mirror cover

: N·m (kg·m, in-lb)

MIR-30

< REMOVAL AND INSTALLATION >

[WITH ADP]

INSIDE MIRROR

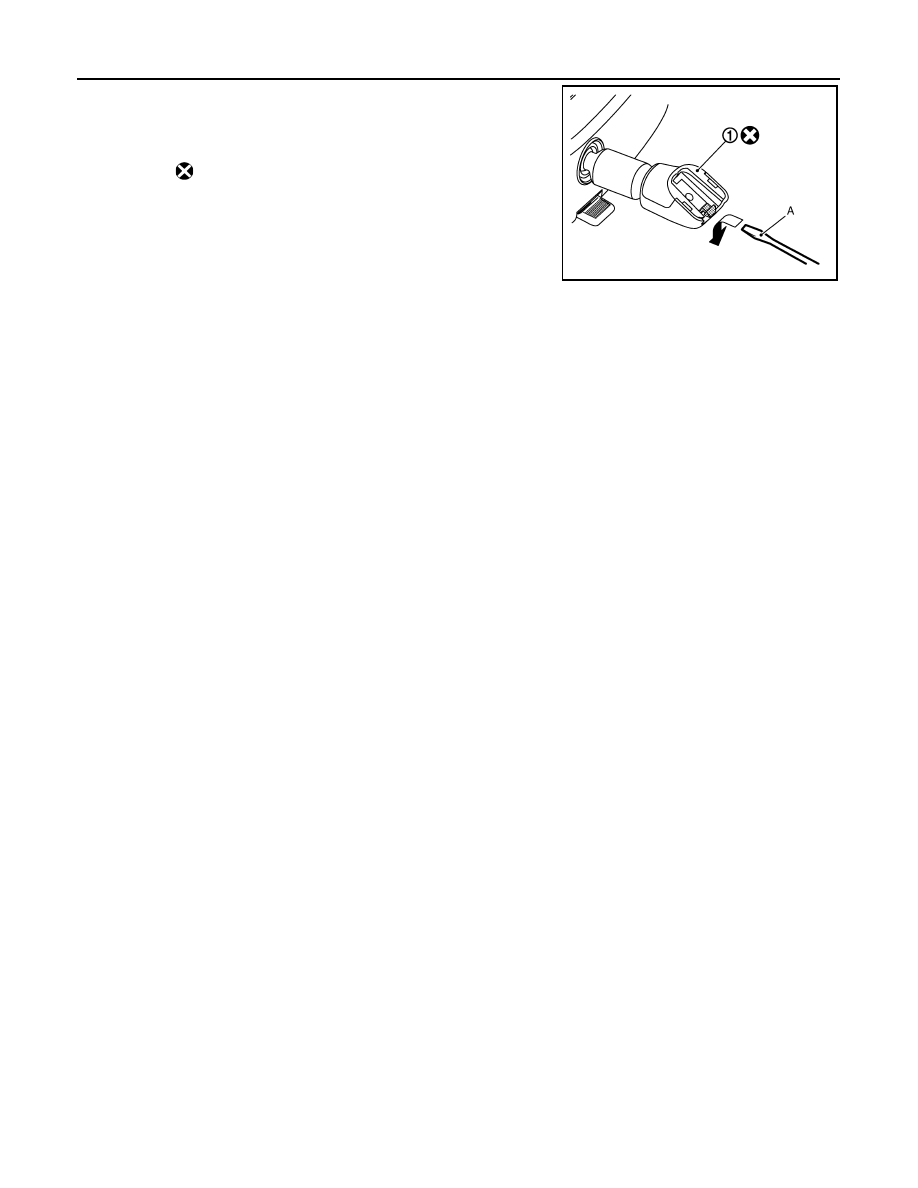

1.

Insert a flat-bladed screwdriver (A) under the inside mirror (1).

2.

Slide the inside mirror to the upper side while pushing the pawl
downward.

CAUTION:

• Never reuse the inside mirror disassembled from inside mir-

ror base.

• Never use excessive force to remove the inside mirror

because it is inserted tightly into the mirror base.

• Wrap the flat-bladed screwdriver with a shop cloth to avoid

damage on the windshield glass.

Auto anti-dazzling type

1.

Remove inside mirror cover.

2.

Disconnect harness connector from inside mirror.

3.

Loosen TORX bolt and slide inside mirror upward to remove.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When inserting the inside mirror into the mirror base, be sure to push the pawl until it get connected to
the mirror base (manual anti-dazzling type only).

:  Always replace after every disassembly

JMLIA0055ZZ

DOOR MIRROR

MIR-31

< REMOVAL AND INSTALLATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

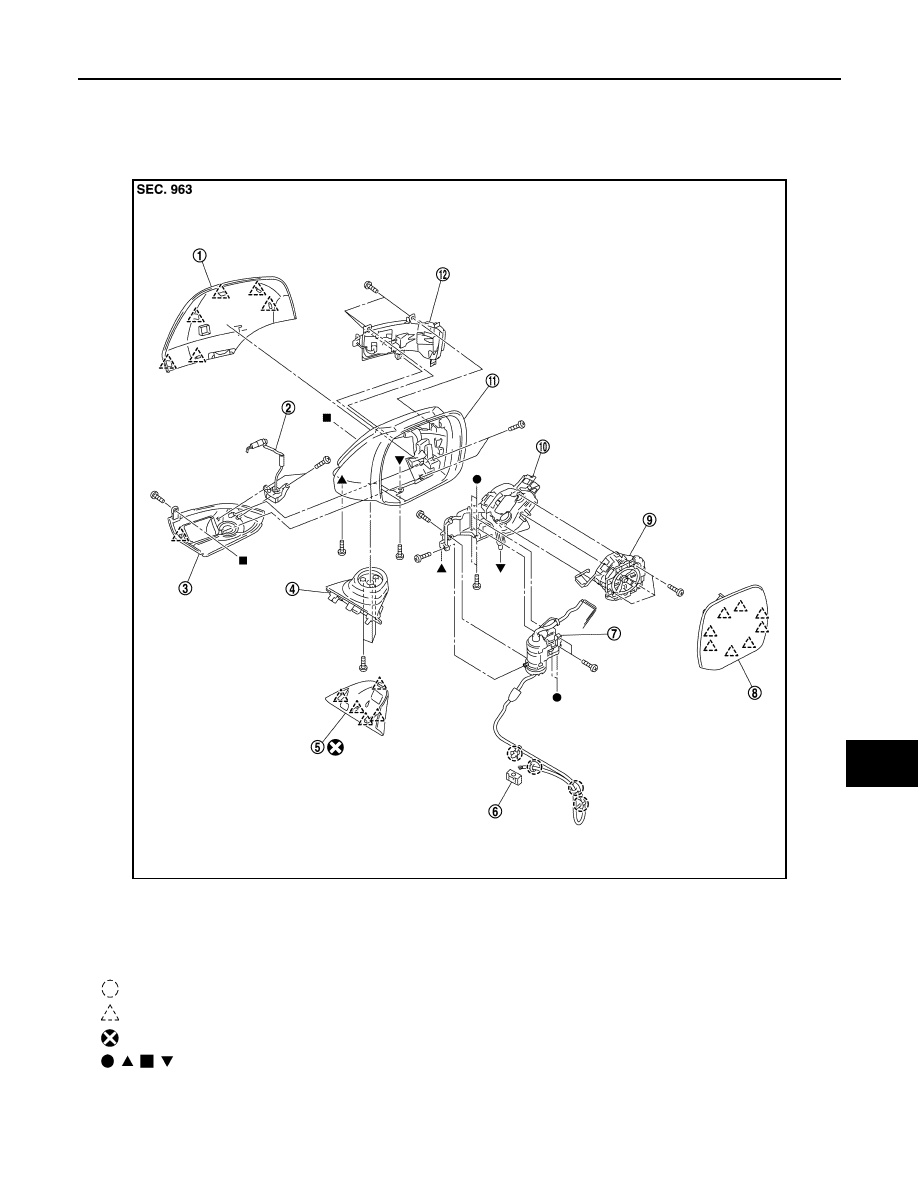

DOOR MIRROR

Exploded View

INFOID:0000000009652717

Models with around view camera

JMLIA1435ZZ

1.

Door mirror cover

2.

Around view camera

3.

Around view camera finisher

4.

Door mirror base

5.

Door mirror corner cover

6.

Connector

7.

Power fold unit

8.

Glass mirror

9.

Actuator

10. Actuator bracket

11.

Door mirror housing

12. Side turn signal lamp

: Clip

: Pawl

: Always replace after every disassembly.

,

,

,

: Indicates that the part is connected at points with same symbol in actual vehicle.
