INSTRUMENT PANEL ASSEMBLY

IP-13

< REMOVAL AND INSTALLATION >

INSTRUMENT FINISHER

Instrument upper garnish

Sunload sensor

Optical sensor

Speaker grille LH

Front squawker LH

Instrument side finisher LH

Combination meter

Cluster lid A

Socket and bulb

10. Foot well lamp LH

11.

Instrument lower panel LH

12. Fuse block lid

13. Steering column upper cover

14. Steering column lower cover

15. Instrument lower cover LH

16. Socket inner case

17. Socket knob

18. Instrument lower cover center

(With NAVI)

19. Instrument lower cover center

(Without NAVI)

20. Instrument lower cover RH

21. Glove box assembly

22. Instrument lower panel RH

23. Glove box lamp

24. Socket and bulb

25. Socket and bulb

26. Foot well lamp RH

27. Glove box damper

28. Instrument side finisher RH

29. Instrument panel assembly

30. Front squawker RH

31. Speaker grille RH

32. Instrument bracket

33. Center speaker grille

34. Center squawker

35. Front display unit (With NAVI)

36. Cluster lid D (With NAVI)

37. Cluster lid C (With NAVI)

38. Cluster lid D (Without NAVI)

39. Cluster lid C (Without NAVI)

40. Instrument lower panel center

41. Cup holder assembly

42. Disc eject switch (With NAVI)

43. AV C/U (With NAVI)

44. Steering member lower bracket

45. Instrument stay LH

46. Instrument stay RH

47. Front passenger air bag module

: Clip

: Pawl

: Metal clip

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMJIA6130ZZ

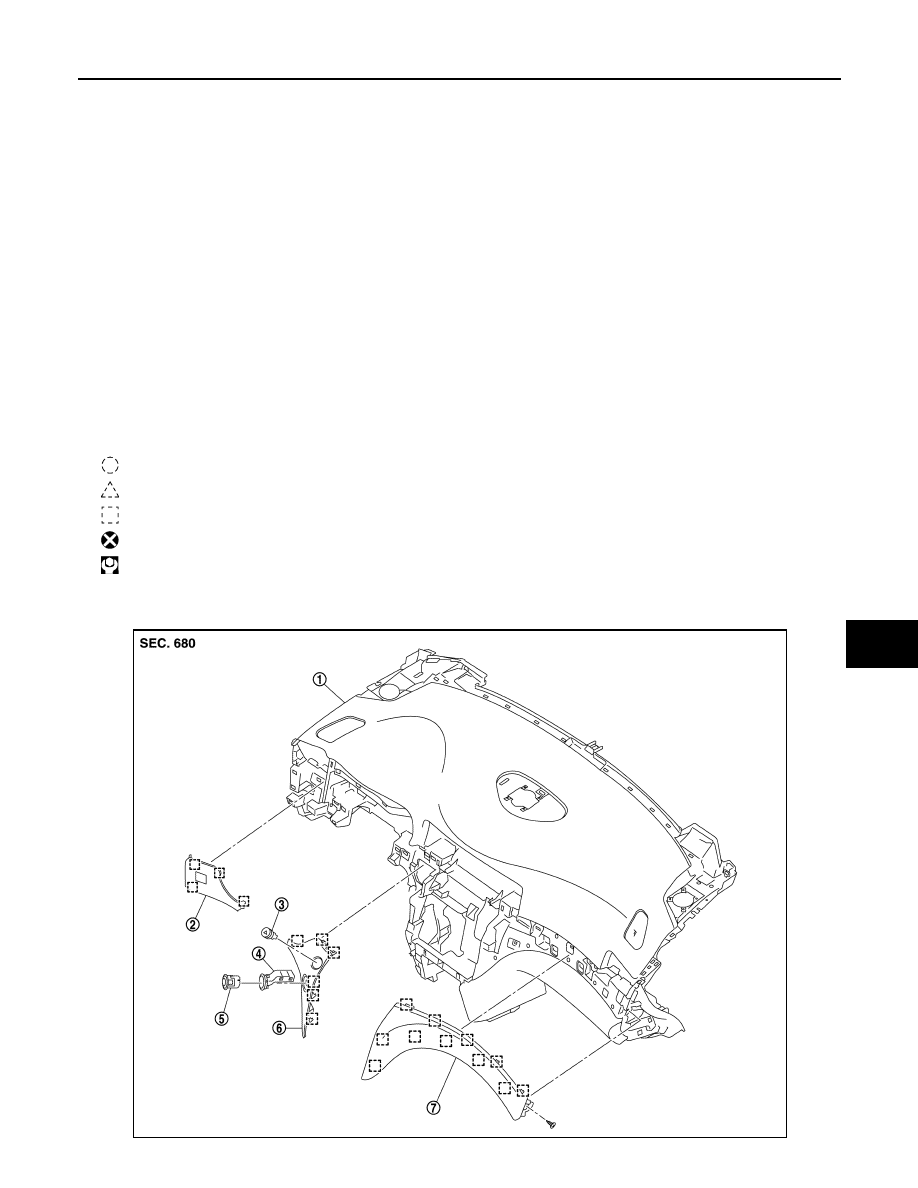

IP-14

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

Removal and Installation

INFOID:0000000009650900

WORK STEP

Instrument panel assembly

Instrument finisher B

Hazard switch

NATS antenna amp.

Ignition switch

Instrument finisher A

Instrument finisher C

: Metal clip

PARTS

INSTRU-

MENT

PANEL

ASSEM-

BLY

COMBI-

NATION

METER

AV C/U

FRONT

DISPLAY

INSTRU-
MENT
FINISH-
ER A

INSTRU-
MENT
FINISH-
ER B

INSTRU-
MENT
FINISH-
ER C

Front body side welt LH

[1]

Instrument side finisher LH

[2]

Front pillar garnish LH

[3]

Front pillar lower garnish LH

[4]

Speaker grille LH

[5]

Front squawker LH

[6]

Instrument lower cover LH

[7]

[3]

[1]

[3]

Instrument lower cover RH

[8]

[4]

[2]

[4]

Instrument lower cover center

[9]

[5]

[3]

[5]

Instrument lower panel LH

[10]

[6]

Instrument finisher A

[11]

[6]

[7]

Instrument finisher B

[12]

[7]

Driver air bag module

[13]

Steering wheel

[14]

Steering column covers

[15]

Spiral cable

[16]

Combination switch

[17]

Cluster lid A

[18]

[8]

Combination meter

[19]

[9]

BCM

[20]

Optical sensor

[21]

Sunload sensor

[22]

Front body side welt RH

[23]

Instrument side finisher RH

[24]

[1]

Front pillar garnish RH

[25]

Front pillar lower garnish RH

[26]

Speaker grille RH

[27]

Front Squawker RH

[28]

Disk eject switch

[29]

[4]

Instrument lower panel center

[30]

[8]

AV C/U

[31]

[5]

Instrument finisher C

[32]

[9]

[2]

Selector lever

[33]

[10]

Cluster lid C

[34]

[11]

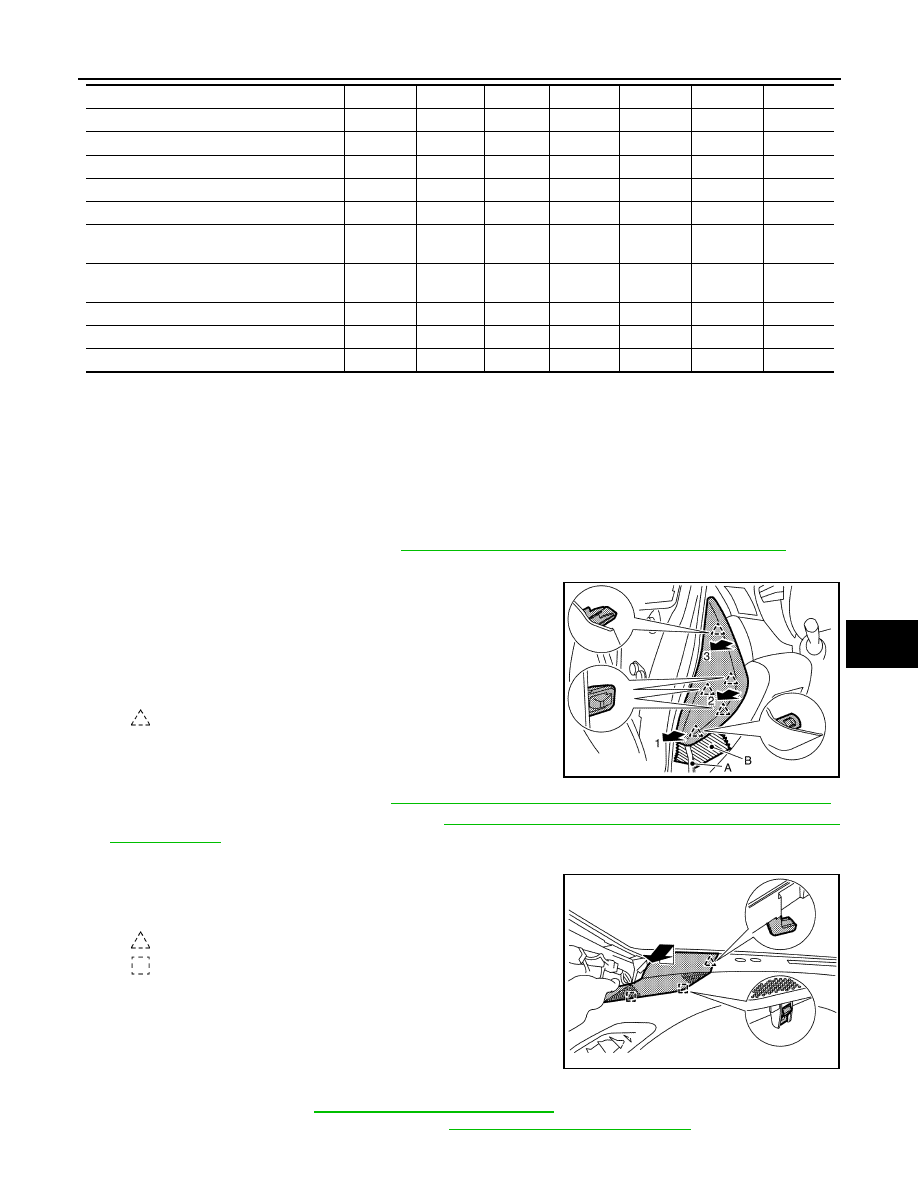

INSTRUMENT PANEL ASSEMBLY

IP-15

< REMOVAL AND INSTALLATION >

[ ]: Number indicates step in removal procedure.

WARNING:

Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes or
more.

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

Remove front body side welt LH. Refer to

INT-23, "BODY SIDE WELT : Removal and Installation"

Remove instrument side finisher LH.

Insert a remover tool (A) into lower space.

Pull the instrument side finisher LH crosswise, and then disen-
gage the pawls

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

Remove front pillar garnish LH. Refer to

INT-21, "FRONT PILLAR GARNISH : Removal and Installation"

Remove front pillar lower garnish LH. Refer to

INT-22, "FRONT PILLAR LOWER GARNISH : Removal

and Installation"

Remove speaker grille LH.

Pull up speaker grille LH, and then disengage pawl.

Pull back speaker grille LH, and then disengage metal clips.

Remove front squawker LH. Refer to the following.
• For Display audio: Refer to

AV-114, "Removal and Installation"

• For Base audio with separate display: Refer to

AV-254, "Removal and Installation"

Cluster lid D

[35]

[12]

Front display unit

[36]

[13]

Center speaker grille

[37]

Center squawker

[38]

Glove box lid

[39]

Instrument lower panel RH

[40]

Passenger air bag module connecting har-
ness connector

[41]

Passenger air bag module mounting bolts
and screws

[42]

Cup holder assembly

[43]

Instrument panel assembly

[44]

Instrument upper garnish

[45]

: Pawl

JMJIA6131ZZ

: Pawl

: Metal clip

JMJIA6132ZZ

IP-16

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

• For Bose audio without navigation: Refer to

AV-409, "Removal and Installation"

• For Bose audio with navigation: Refer to

AV-615, "Removal and Installation"

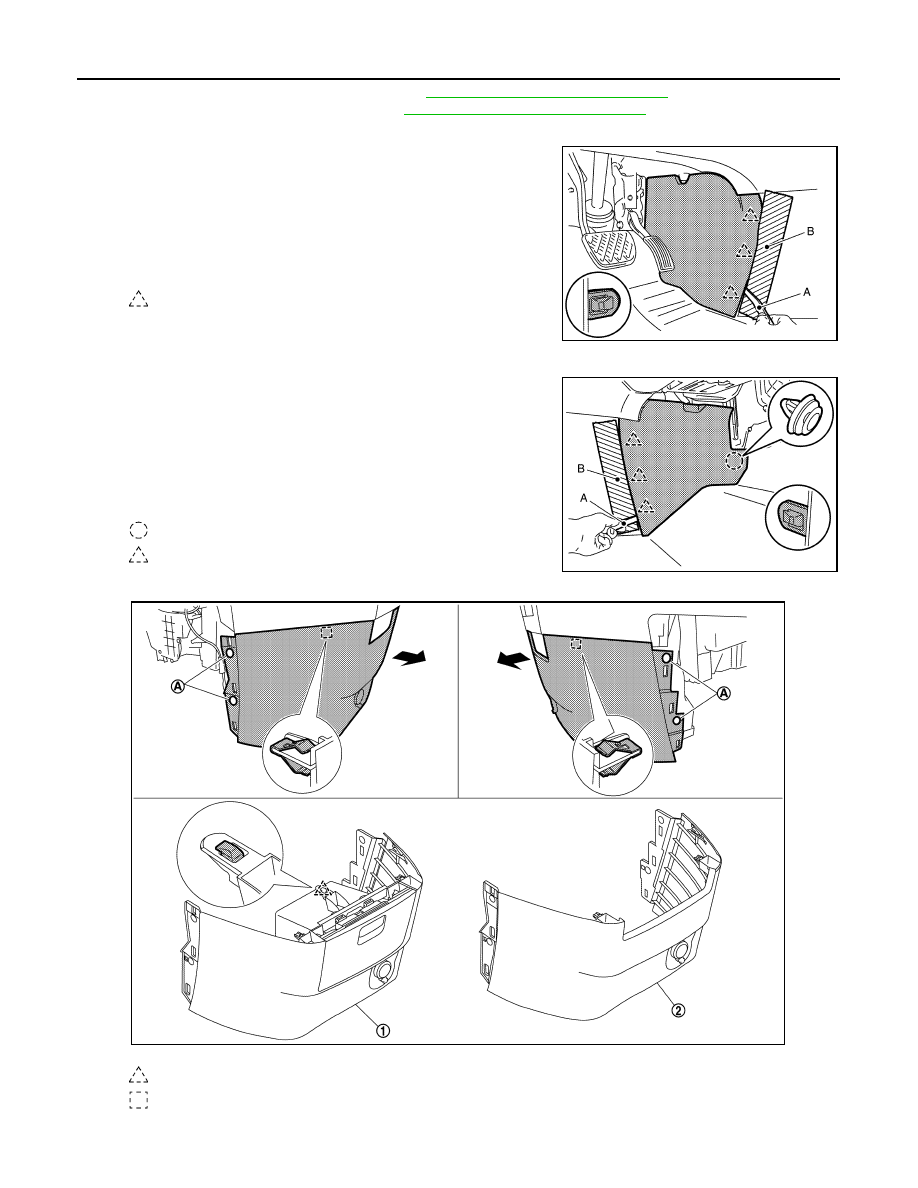

Remove instrument lower cover LH.

Insert a remover tool (A) between instrument lower cover LH,
and instrument lower cover center to disengage pawls as shown
in the figure.

Pull back instrument lower cover LH.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

Remove instrument lower cover RH.

Insert remover tool (A) between instrument lower cover RH, and
instrument lower cover center to disengage the pawls as shown
in the figure.

Pull back instrument lower cover RH, and then disengage clip.

CAUTION:

Apply protective tape (B) on the part to protect it from dam-
age.

Remove instrument lower cover center.

Without NAVI

: Pawl

JMJIA6133ZZ

: Clip

: Pawl

JMJIA6134ZZ

: Pawl

: Metal clip

JMJIA6135ZZ
