HAC-150

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000009652601

Refer to

HA-43, "Exploded View"

.

Removal and Installation

INFOID:0000000009652602

REMOVAL

Refer to

HA-45, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

DOOR MOTOR

HAC-151

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

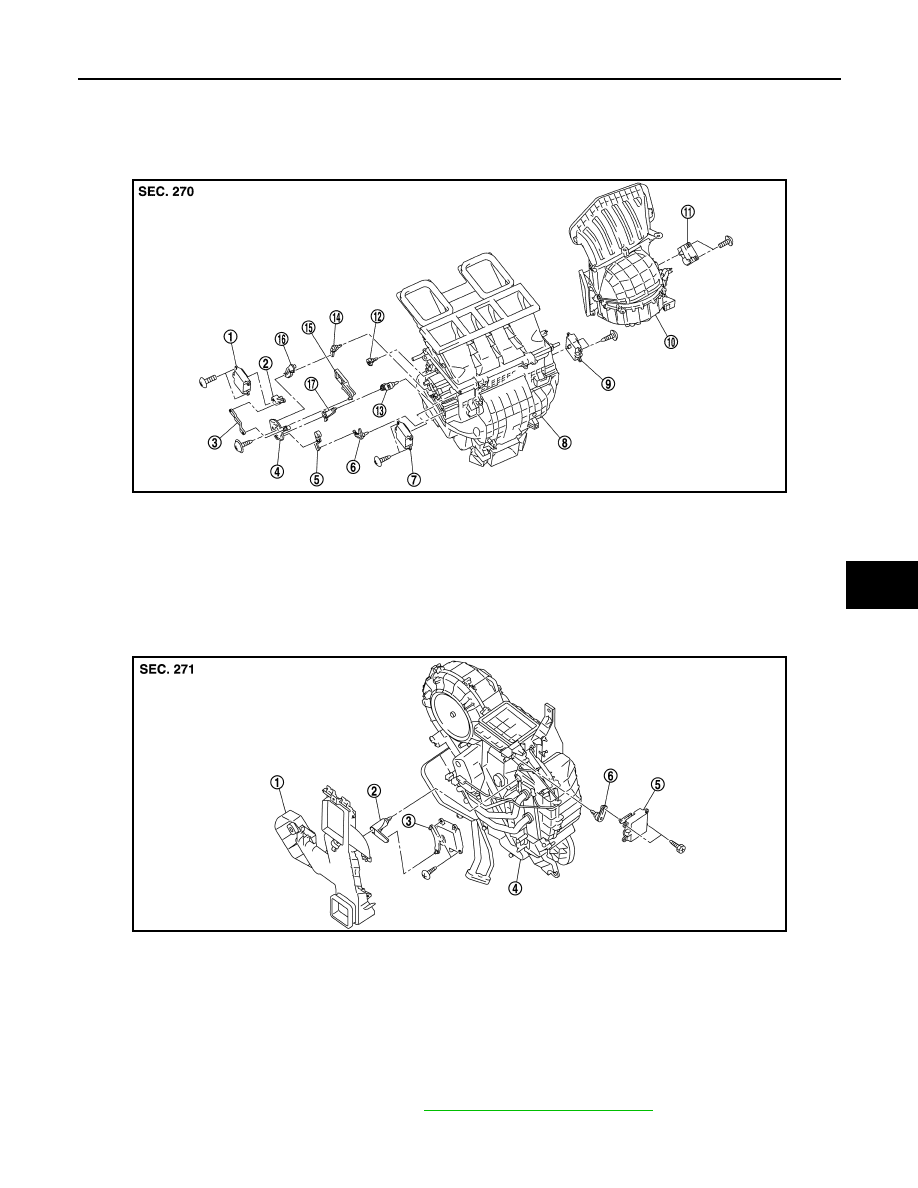

DOOR MOTOR

Exploded View

INFOID:0000000009652603

Front A/C unit

Rear A/C unit

FRONT MODE DOOR MOTOR

FRONT MODE DOOR MOTOR : Removal and Installation

INFOID:0000000009652604

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-14, "Removal and Installation"

.

JMIIA1855ZZ

1.

Front mode door motor

2.

Front mode door lever

3.

Link rod

4.

Main link

5.

Foot link

6.

Foot lever

7.

Front air mix door motor (Driver side) 8.

Heater & cooling unit assembly

9.

Front air mix door motor (Passenger side)

10. Blower unit assembly

11.

Intake door motor

12. Defroster lever

13. Ventilator lever

14.

Max. cool lever

15. Defroster link

16. Max. cool link

17.

Ventilator link

JMIIA1121ZZ

1.

Rear foot duct 2

2.

Rear air mix door lever

3.

Rear air mix door motor

4.

Rear A/C unit assembly

5.

Rear mode door motor

6.

Rear mode door lever

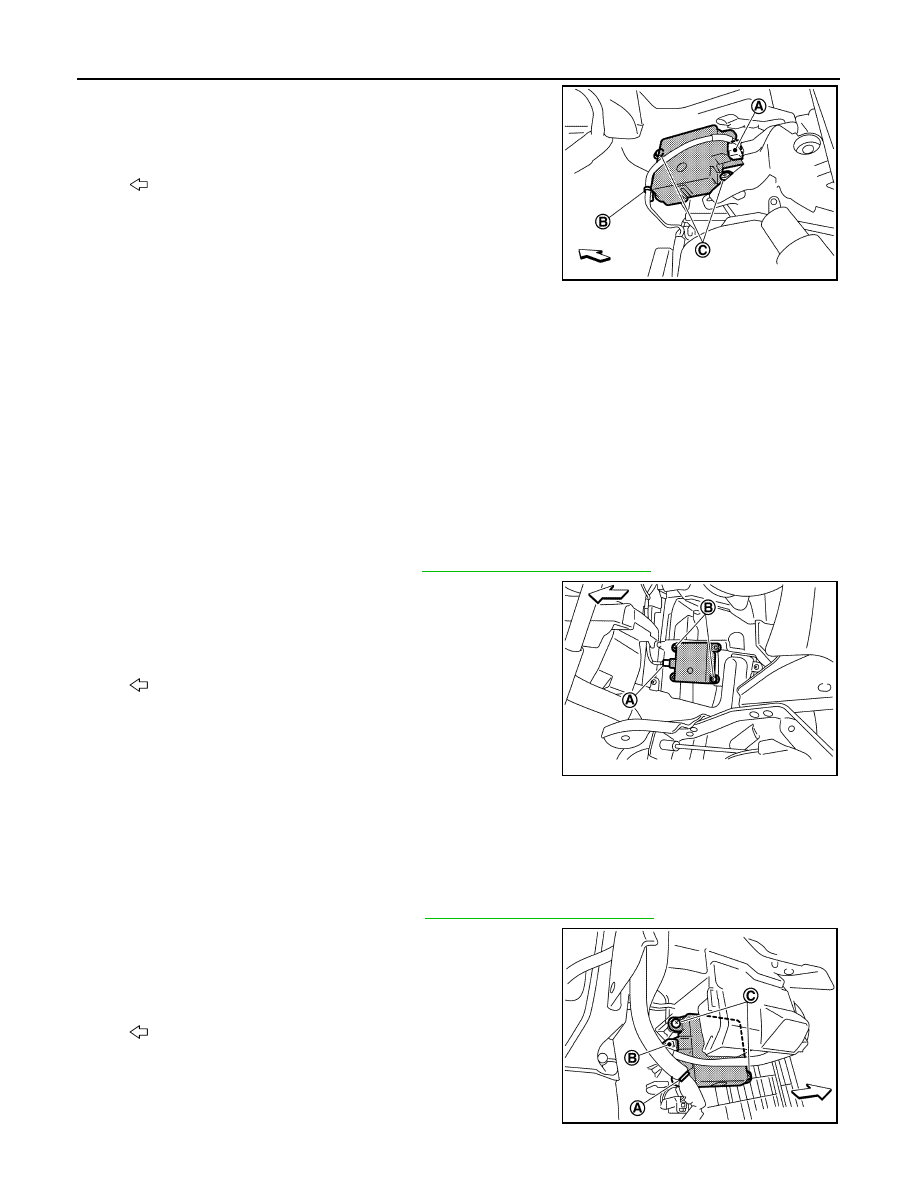

HAC-152

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

DOOR MOTOR

2.

Disconnect harness connector (A), and then remove harness
fixing clip (B).

3.

Remove fixing screws (C), and then remove front mode door
motor from heater & cooling unit assembly.

INSTALLATION

Install in the reverse order of removal.

FRONT AIR MIX DOOR MOTOR

FRONT AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000009652605

REMOVAL

Driver Side

1.

Set the temperature at 18

°

C (64

°

F).

CAUTION:

The angle may be out, when installing the air mix door motor to the air mix door, unless the above
procedure is performed.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove instrument lower cover LH. Refer to

IP-14, "Removal and Installation"

.

4.

Disconnect harness connector (A), and then remove fixing
screws (B).

5.

Remove front air mix door motor from heater & cooling unit
assembly.

Passenger Side

1.

Set the temperature at 18

°

C (64

°

F).

CAUTION:

The angle may be out, when installing the air mix door motor to the air mix door, unless the above
procedure is performed.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove instrument lower cover RH. Refer to

IP-14, "Removal and Installation"

.

4.

Remove harness fixing clip (A), and then disconnect harness
connector (B).

5.

Remove fixing screws (C), and then remove front air mix door
motor from heater & cooling unit assembly.

: Vehicle front

JMIIA1849ZZ

: Vehicle front

JMIIA1850ZZ

: Vehicle front

JMIIA1851ZZ

DOOR MOTOR

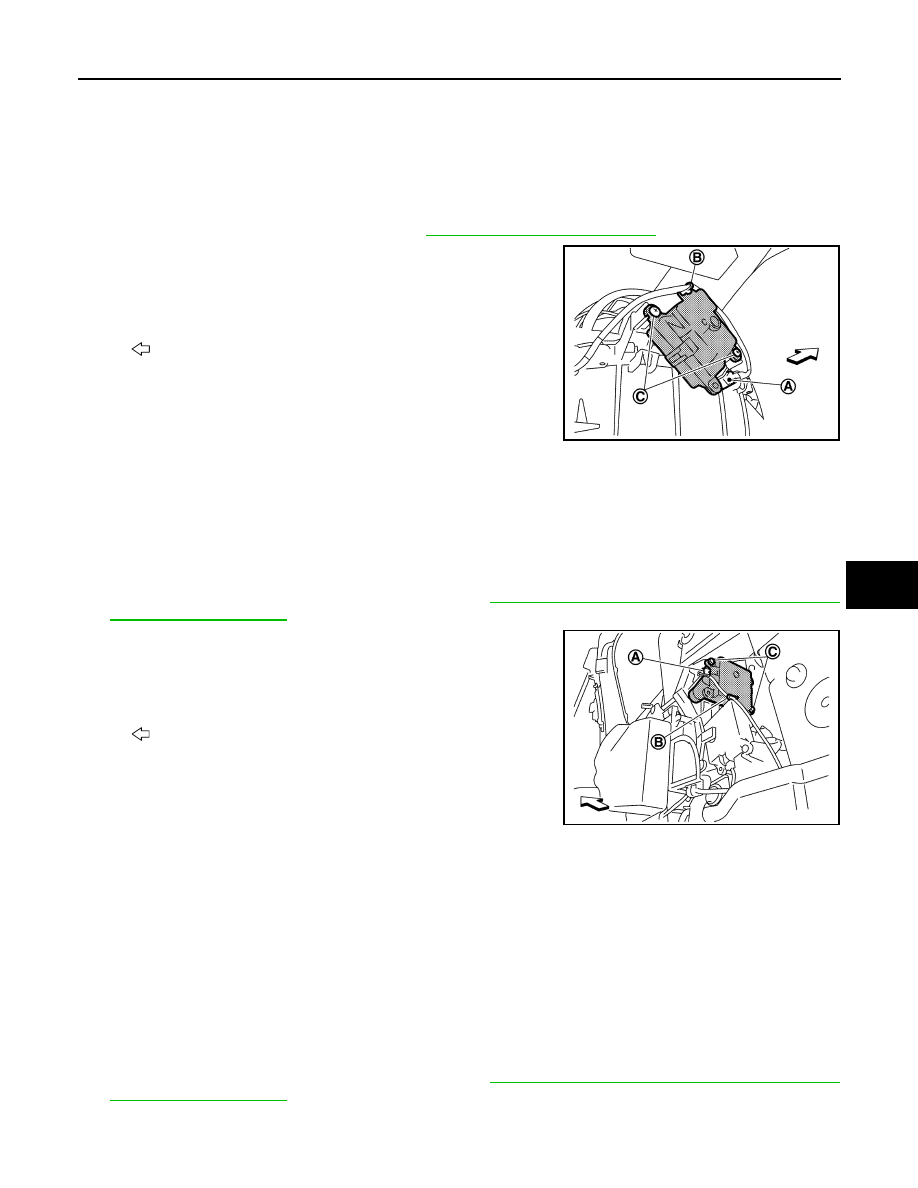

HAC-153

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INSTALLATION

Install in the reverse order of removal.

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000009652606

REMOVAL

1.

Remove instrument lower panel RH. Refer to

IP-14, "Removal and Installation"

.

2.

Disconnect harness connector (A), and then remove harness
fixing clip (B).

3.

Remove fixing screws (C), and then remove intake door motor
from blower unit assembly.

INSTALLATION

Install in the reverse order of removal.

REAR MODE DOOR MOTOR

REAR MODE DOOR MOTOR : Removal and Installation

INFOID:0000000009652607

REMOVAL

1.

Remove luggage side lower finisher RH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2.

Disconnect harness connector (A), and then remove harness
fixing clip (B).

3.

Remove fixing screws (C), and then remove rear mode door
motor from rear A/C unit assembly.

INSTALLATION

Install in the reverse order of removal.

REAR AIR MIX DOOR MOTOR

REAR AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000009652608

REMOVAL

1.

Set the temperature at 18

°

C (64

°

F).

CAUTION:

The angle may be out, when installing the air mix door motor to the air mix door, unless the above
procedure is performed.

2.

Disconnect the battery cable from the negative terminal.

3.

Remove luggage side lower finisher RH. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

: Vehicle front

JMIIA1848ZZ

: Vehicle front

JMIIA1852ZZ
