The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010022912

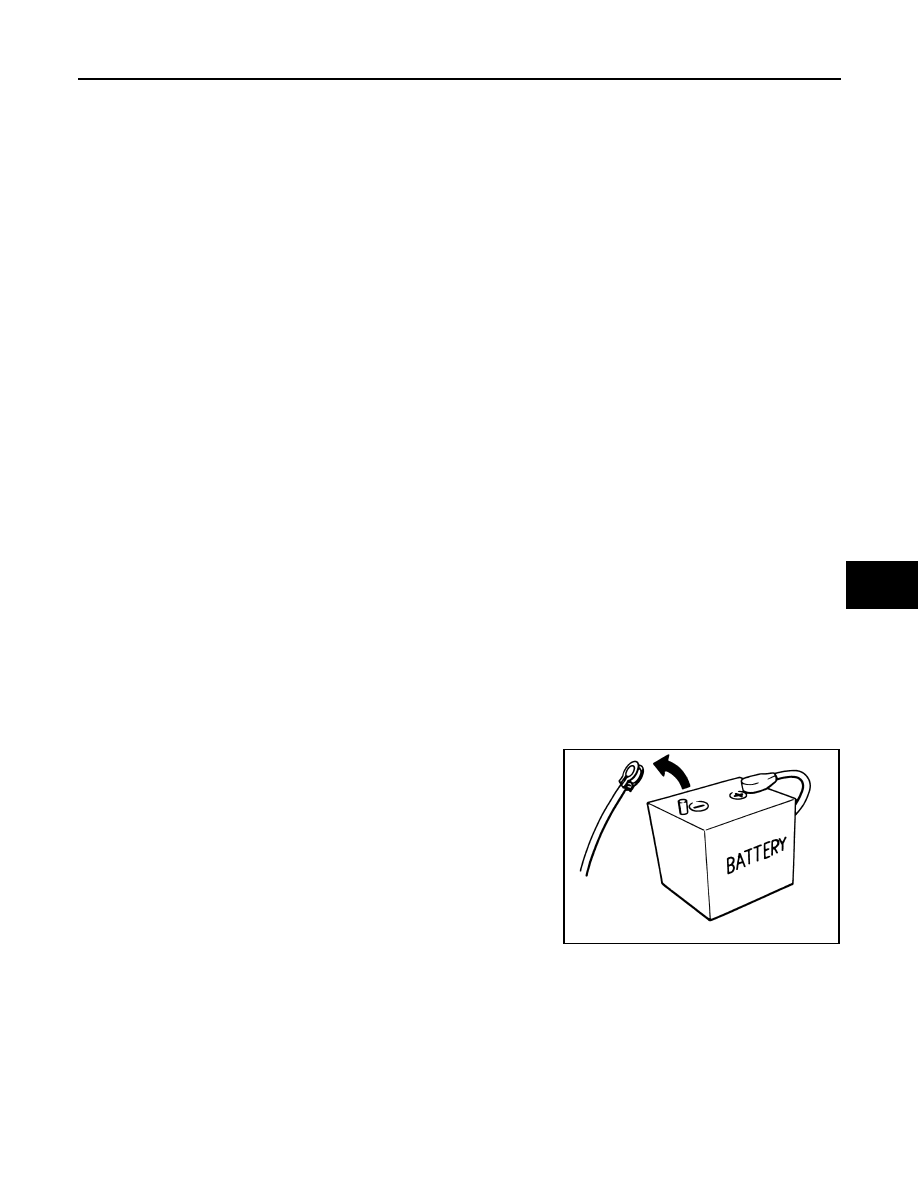

• When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H

HAC-8

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

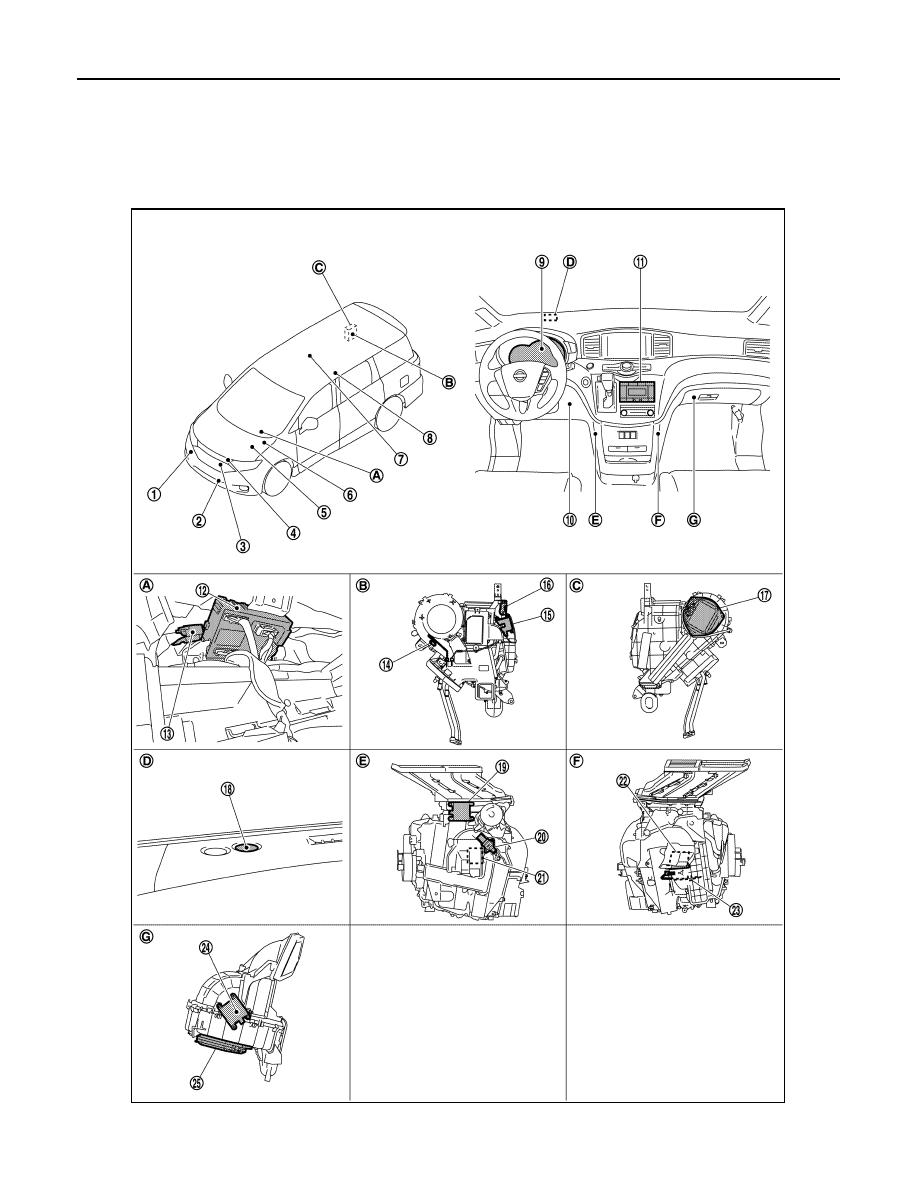

Component Parts Location

INFOID:0000000009652489

JMIIA1760ZZ

COMPONENT PARTS

HAC-9

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

HAC

BLOWER UNIT ASSEMBLY

Combination meter is removed

Left side of rear A/C unit assembly

Right side of rear A/C unit assembly

Left side of instrument upper garnish E.

Left side of heater & cooling unit as-
sembly

Right side of heater & cooling unit
assembly

Right side of blower unit assembly

No.

Component

Function

Magnet clutch

HAC-14, "Magnet Clutch"

Ambient sensor

HAC-13, "Ambient Sensor"

Exhaust gas/outside odor detecting sensor
[with ACCS (Advanced Climate Control Sys-
tem)]

HAC-14, "Exhaust Gas/Outside Odor Detecting Sensor"

Refrigerant pressure sensor

HAC-13, "Refrigerant Pressure Sensor"

ECM

ECM, when receiving A/C ON signal and blower fan ON signal from BCM, trans-
mits A/C compressor request signal to IPDM E/R via CAN communication ac-
cording to status of the engine and refrigerant pressure.
ECM transmits engine coolant temperature signal to combination meter via
CAN communication line.
Refer to

EC-15, "ENGINE CONTROL SYSTEM : Component Parts Location"

for detailed installation location.

IPDM E/R

A/C relay is integrated in IPDM E/R. IPDM E/R operates A/C relay when receiv-
ing A/C compressor request signal from ECM via CAN communication line.
Refer to

PCS-4, "IPDM E/R : Component Parts Location"

for detailed installation

location.

Rear A/C control
(with rear entertainment)

HAC-12, "Rear A/C Control"

Rear A/C control
(without rear entertainment)

Combination meter

Combination meter transmits engine coolant temperature signal and vehicle
speed signal to A/C auto amp.

10.

Front in-vehicle sensor

HAC-13, "Front In-vehicle Sensor"

11.
