(J-39183)

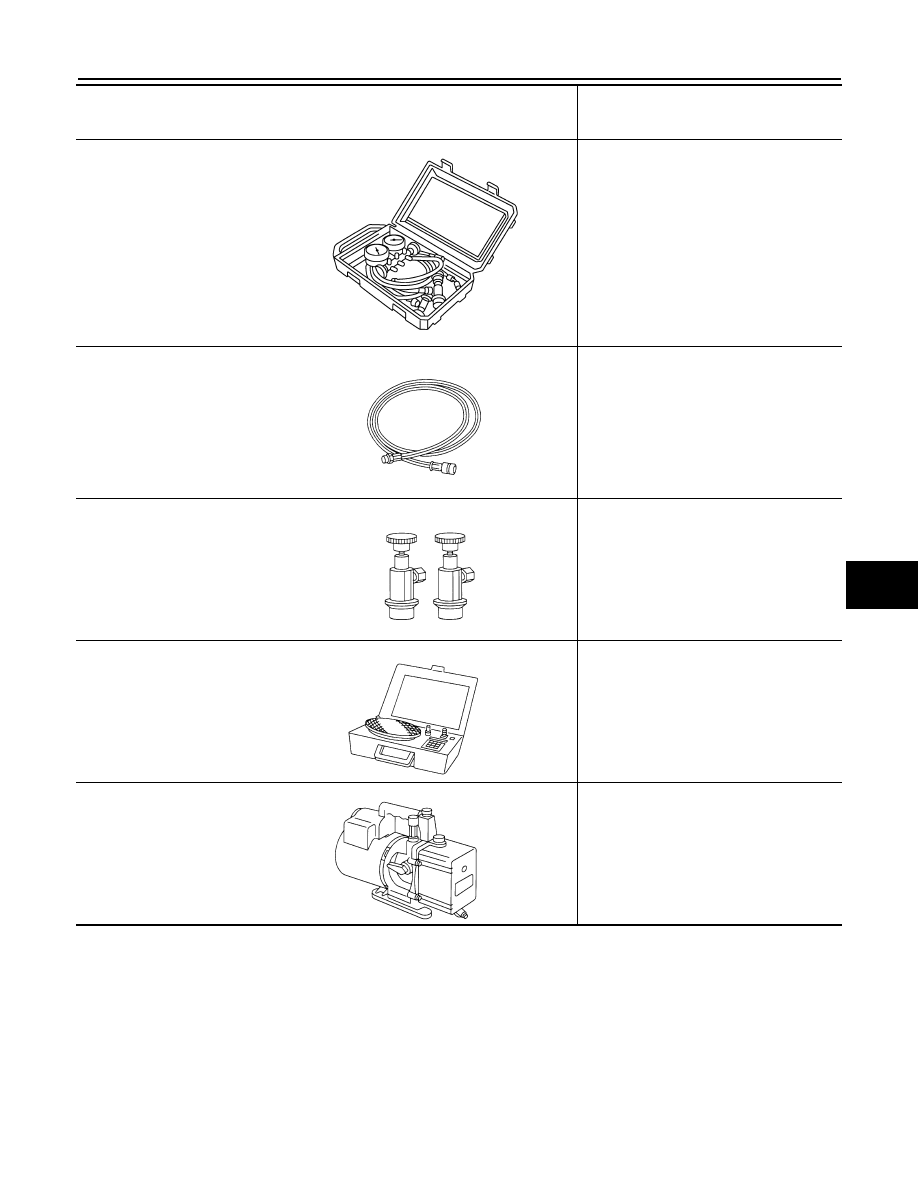

Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates HFC-134a (R-

134a).

Fitting size: Thread size

• 1/2

″

-16 ACME

Service hoses
• High-pressure side hose

(J-39501-72)

• Low-pressure side hose

(J-39502-72)

• Utility hose

(J-39476-72)

Hose color:
• Low-pressure side hose: Blue with black

stripe

• High-pressure side hose: Red with black

stripe

• Utility hose: Yellow with black stripe or

green with black stripe

Hose fitting to gauge:

• 1/2

″

-16 ACME

Service couplers
• High-pressure side coupler

(J-39500-20)

• Low-pressure side coupler

(J-39500-24)

Hose fitting to service hose:
M14 x 1.5 fitting is optional or permanently
attached.

(J-39650)
Refrigerant weight scale

For measuring of refrigerant
Fitting size: Thread size

1/2

″

-16 ACME

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz)
Fitting size: Thread size

• 1/2

″

-16 ACME

Tool number

(Kent-Moore No.)

Tool name

Description

RJIA0196E

S-NT201

S-NT202

S-NT200

S-NT203

HA-12

< PREPARATION >

PREPARATION

Commercial Service Tool

INFOID:0000000009651556

Sealant or/and Lubricant

INFOID:0000000009651557

HFC-134a (R-134a) Service Tool and Equipment

• Never mix HFC-134a (R-134a) refrigerant and/or its specified lubricant with CFC-12 (R-12) refrigerant and/

or its lubricant.

• Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/

lubricant.

• Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles

refrigerant and/or lubricant) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid
mixed use of the refrigerants/lubricant.

• Never use adapters that convert one size fitting to another: refrigerant/lubricant contamination occurs and

compressor malfunction may result.

Tool name

Description

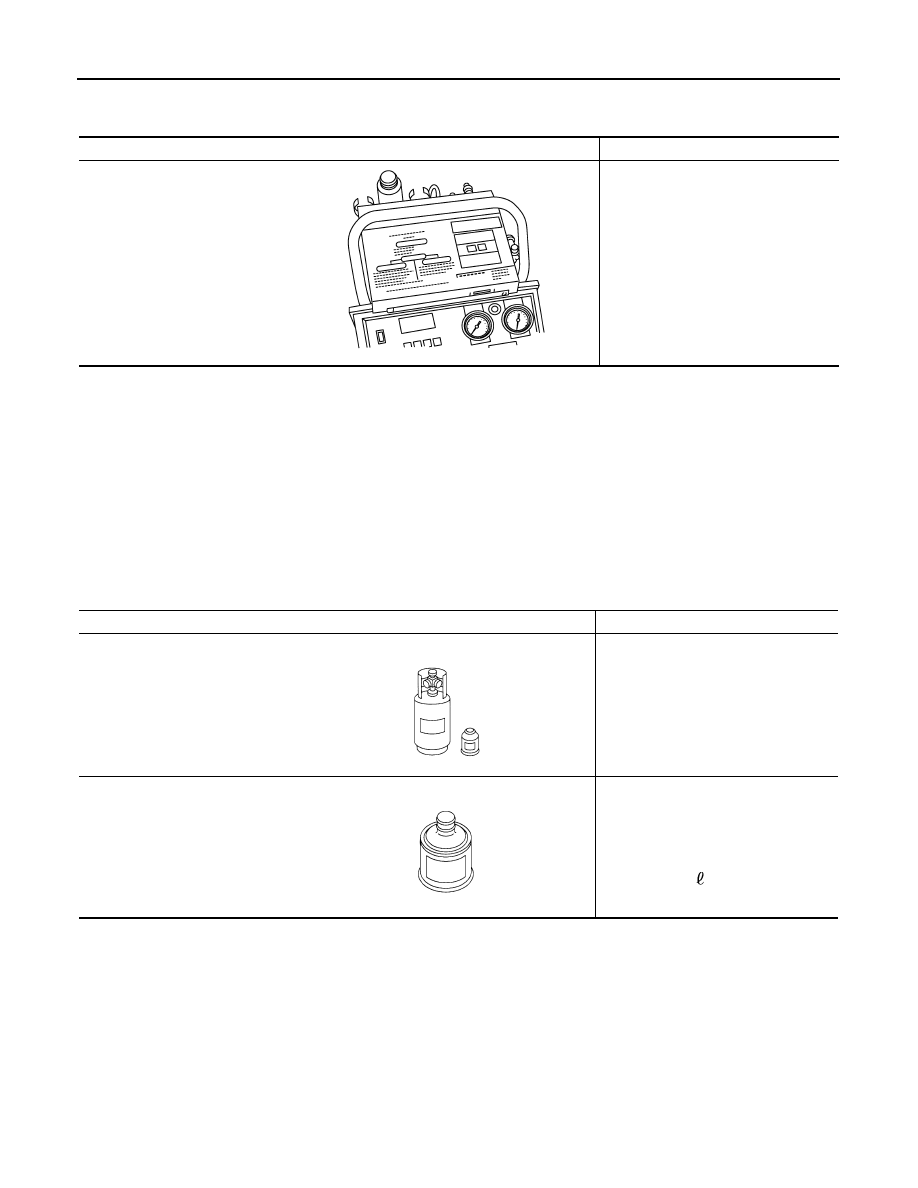

Refrigerant identifier equipment

Checking for refrigerant purity and
system contamination

RJIA0197E

Tool name

Description

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

• Large container 1/2

″

-16 ACME

A/C System Oil Type S (DH-PS)

Type: Polyalkylene glycol oil (PAG),
type S (DH-PS)
Application:
HFC-134a (R-134a) swash plate com-
pressors

Capacity: 40 m

 (1.4 US fl oz, 1.4 Imp

fl oz)

S-NT196

JMIIA1759ZZ

COMPONENT PARTS

HA-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000009651558

Component Description

INFOID:0000000009651559

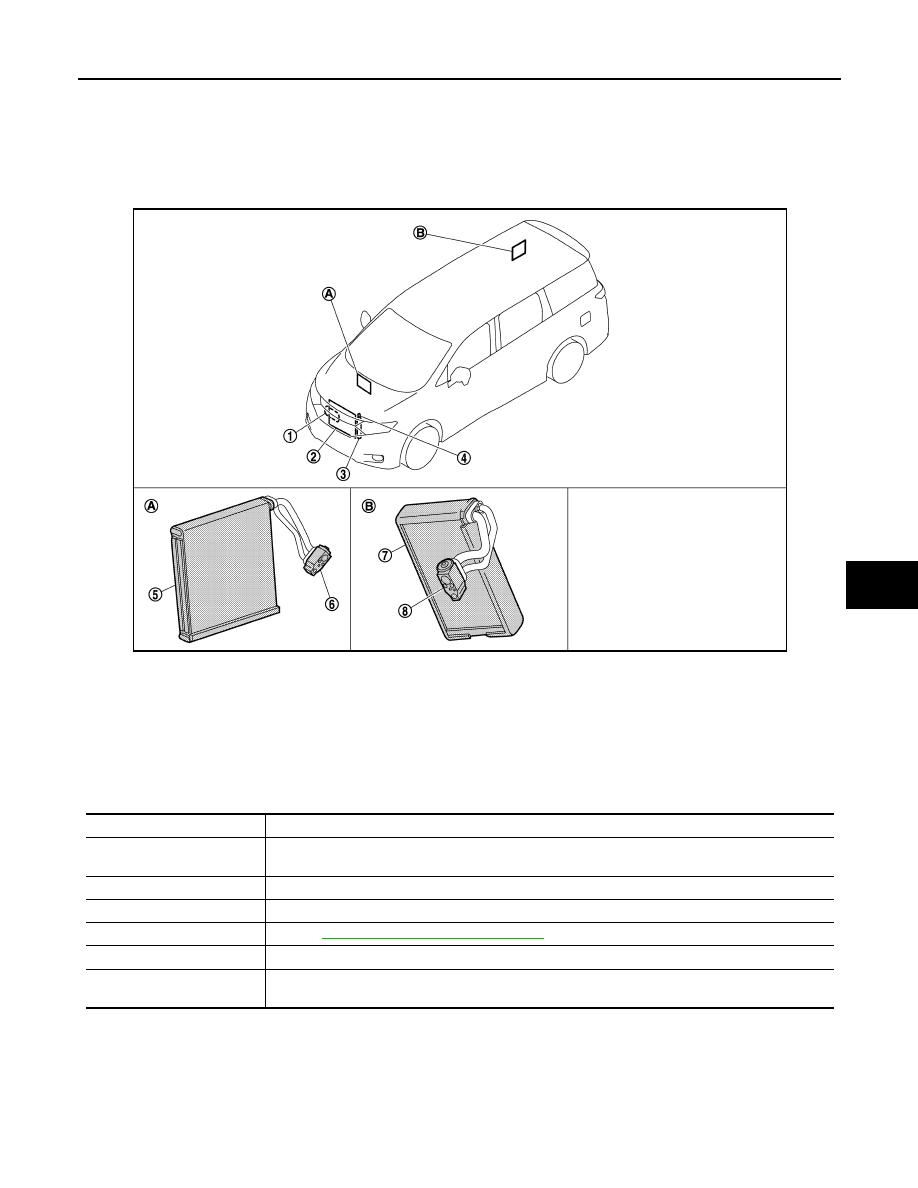

1.

Compressor

2.

Condenser

3.

Liquid tank

4.

Refrigerant pressure sensor

5.

Evaporator

6.

Expansion valve

7.

Evaporator

8.

Expansion valve

A.

Built-in heater & cooling unit assembly B.

Built-in rear A/C unit assembly

JMIIA1811ZZ

Component

Description

Evaporator

The mist form liquid refrigerant transforms to gas by evaporation by the air conveyed from blower
motor. The air is cooled by the heat by evaporation.

Condenser

Cools refrigerant discharged from compressor, and transforms it to liquid refrigerant.

Compressor

Intakes, compresses, and discharges refrigerant, to circulate refrigerant inside the refrigerant cycle.

Refrigerant pressure sensor

Refer to

HAC-13, "Refrigerant Pressure Sensor"

.

Liquid tank

Eliminates foreign matter in refrigerant, and stores temporarily liquid refrigerant.

Expansion valve

Transforms high-pressure liquid refrigerant to mist form low-pressure liquid refrigerant by drawing
function.

HA-14

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Diagram

INFOID:0000000009651560

System Description

INFOID:0000000009651561

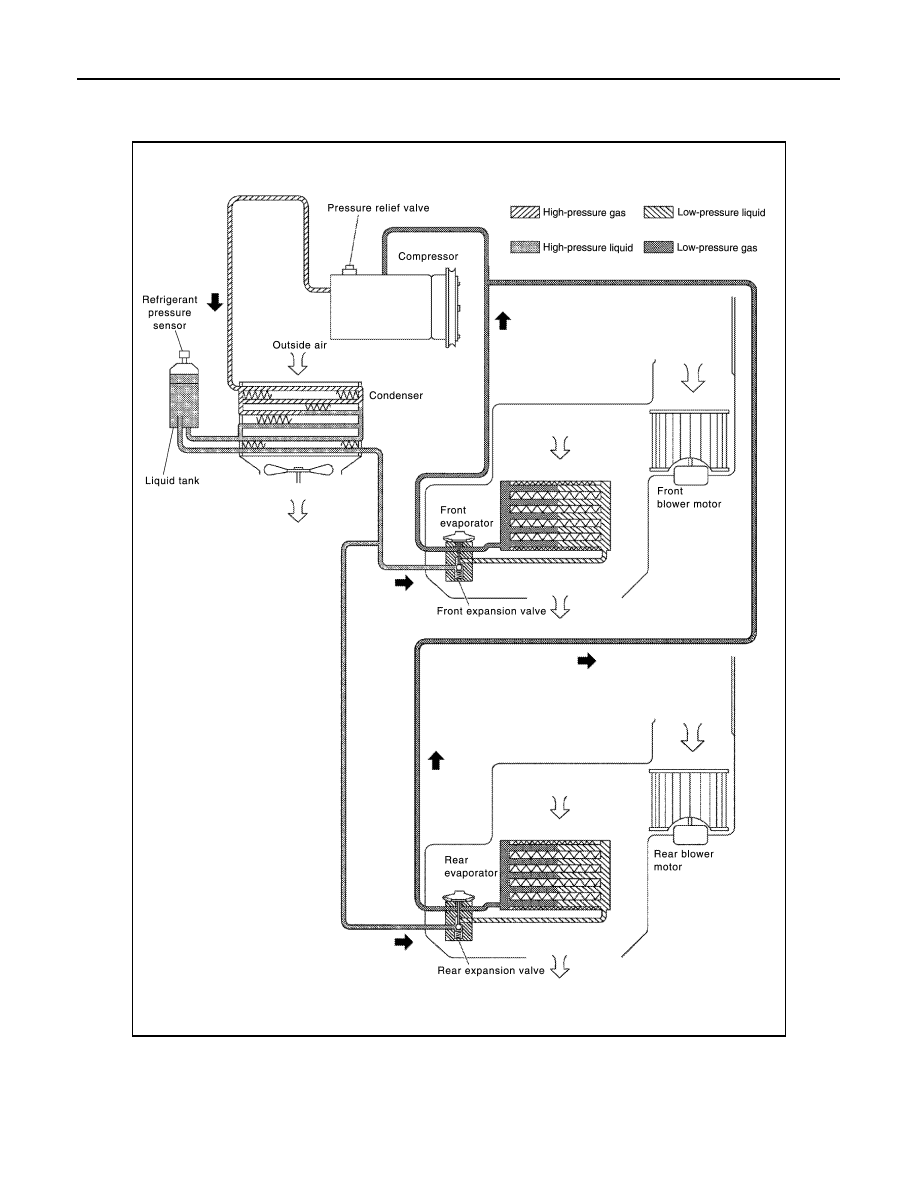

REFRIGERANT CYCLE

Refrigerant Flow

JMIIA1812GB
