Nissan Quest E52. Manual - part 613

EXL-56

< WIRING DIAGRAM >

[XENON TYPE]

EXTERIOR LIGHTING SYSTEM

JRLWC7446GB

EXTERIOR LIGHTING SYSTEM

EXL-57

< WIRING DIAGRAM >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JRLWC7447GB

EXL-58

< WIRING DIAGRAM >

[XENON TYPE]

EXTERIOR LIGHTING SYSTEM

JRLWC7448GB

DIAGNOSIS AND REPAIR WORK FLOW

EXL-59

< BASIC INSPECTION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

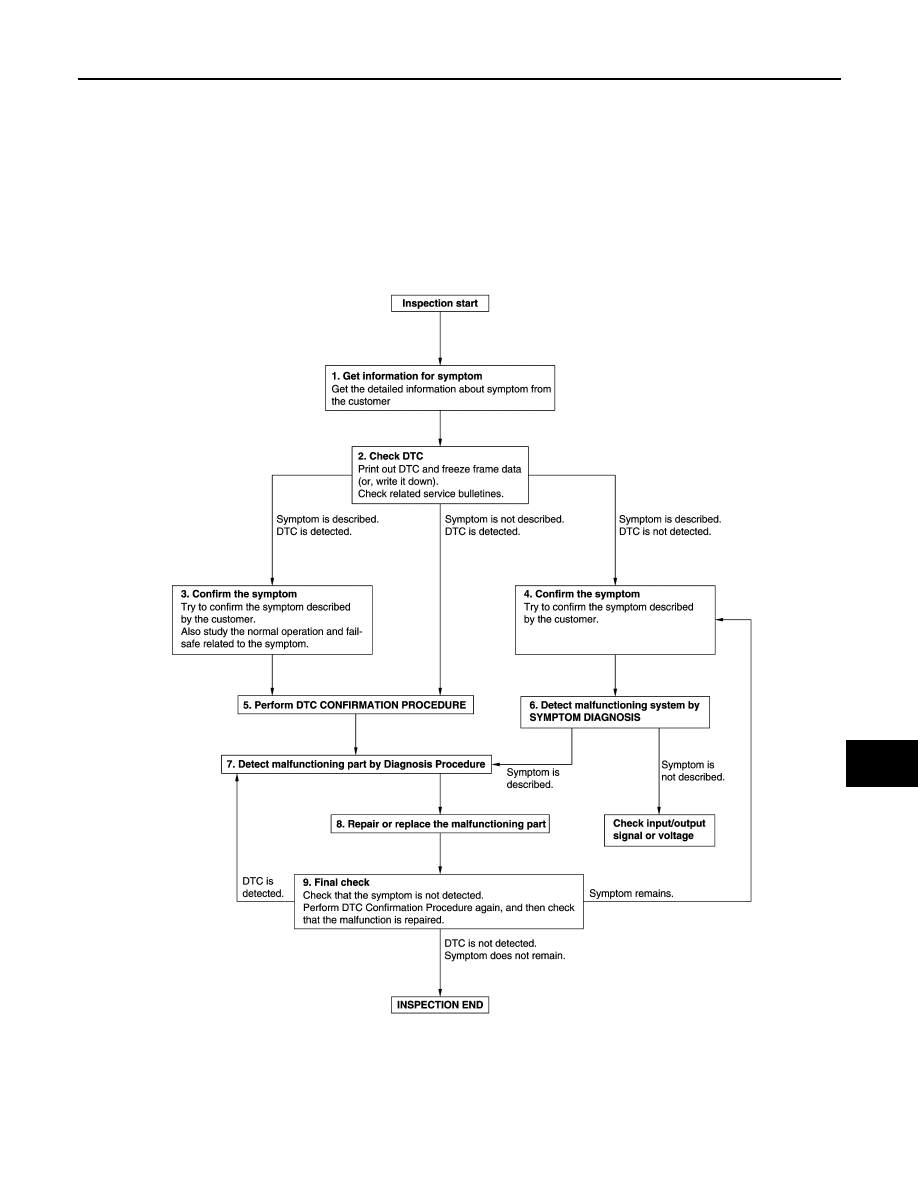

Work Flow

INFOID:0000000009653041

OVERALL SEQUENCE

DETAILED FLOW

JMKIA8652GB
