EXL-40

< SYSTEM DESCRIPTION >

[XENON TYPE]

DIAGNOSIS SYSTEM (IPDM E/R)

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay and the daytime running light relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 sec-
ond intervals.

Fog

Operates the front fog lamp relay.

Test item

Operation

Description

BCM, IPDM E/R

EXL-41

< ECU DIAGNOSIS INFORMATION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ECU DIAGNOSIS INFORMATION

BCM, IPDM E/R

List of ECU Reference

INFOID:0000000009653039

ECU

Reference

BCM

BCS-40, "Reference Value"

BCS-62, "Fail-safe"

BCS-62, "DTC Inspection Priority Chart"

BCS-63, "DTC Index"

IPDM E/R

PCS-16, "Reference Value"

PCS-23, "Fail-safe"

PCS-24, "DTC Index"

EXL-42

< WIRING DIAGRAM >

[XENON TYPE]

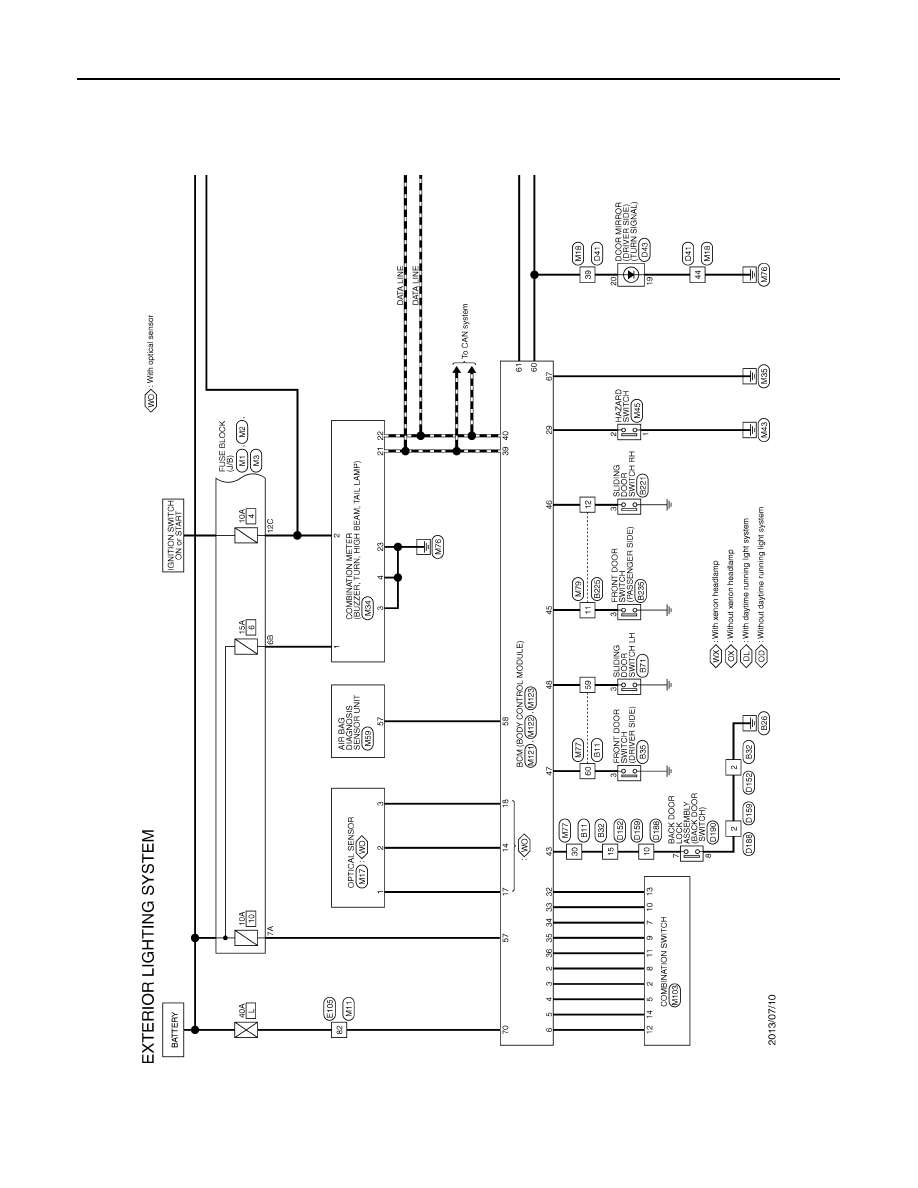

EXTERIOR LIGHTING SYSTEM

WIRING DIAGRAM

EXTERIOR LIGHTING SYSTEM

Wiring Diagram

INFOID:0000000009653040

JRLWC7432GB

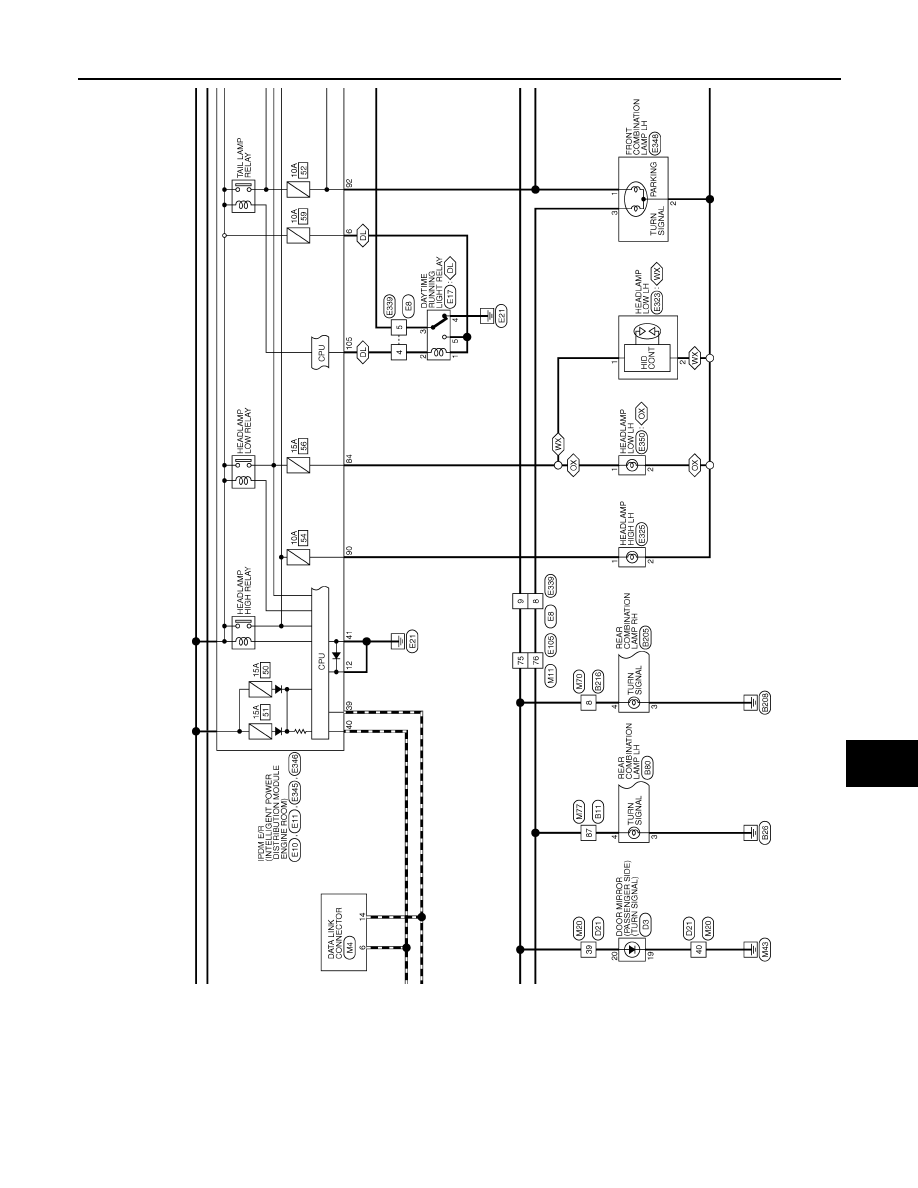

EXTERIOR LIGHTING SYSTEM

EXL-43

< WIRING DIAGRAM >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JRLWC7433GB
