SERVICE DATA AND SPECIFICATIONS (SDS)
EM-137
< SERVICE DATA AND SPECIFICATIONS (SDS)
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
M
A
EM
N
P
O
Unit: mm (in)
UNDERSIZE
Unit: mm (in)

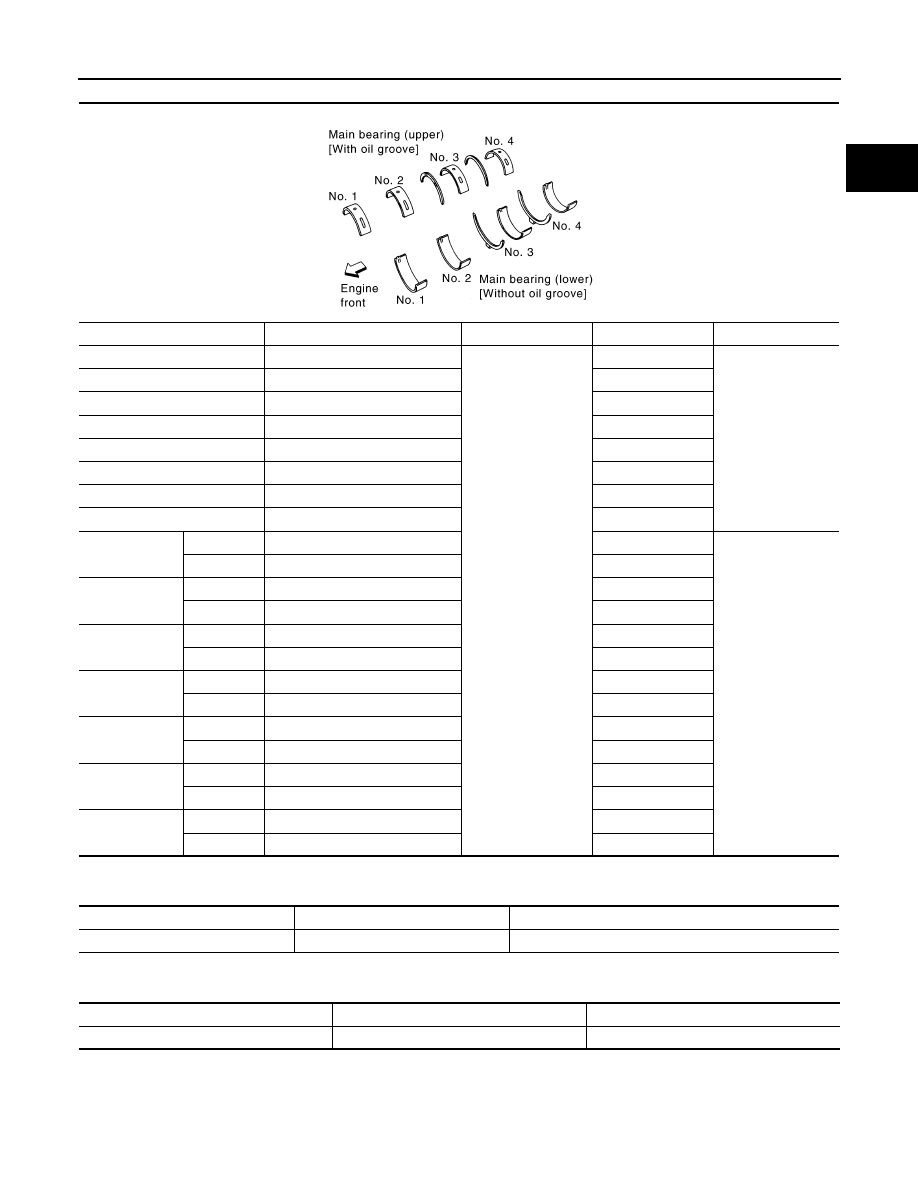

MAIN BEARING OIL CLEARANCE
Unit: mm (in)
*: Actual clearance
Connecting Rod Bearing
INFOID:0000000009652814
CONNECTING ROD BEARING
Grade number
Thickness
Width
Identification color
Remarks
0
2.000 - 2.003 (0.0787 - 0.0789)
19.9 - 20.1
(0.783 - 0.791)
Black
Grade is the same
for upper and lower
bearings.
1
2.003 - 2.006 (0.0789 - 0.0790)
Brown
2
2.006 - 2.009 (0.0790 - 0.0791)
Green
3
2.009 - 2.012 (0.0791 - 0.0792)
Yellow
4
2.012 - 2.015 (0.0792 - 0.0793)
Blue
5
2.015 - 2.018 (0.0793 - 0.0794)
Pink
6
2.018 - 2.021 (0.0794 - 0.0796)
Purple
7
2.021 - 2.024 (0.0796 - 0.0797)
White
01
UPR
2.003 - 2.006 (0.0789 - 0.0790)
Brown
Grade and color are
different for upper
and lower bearings.
LWR
2.000 - 2.003 (0.0787 - 0.0789)
Black
12
UPR
2.006 - 2.009 (0.0790 - 0.0791)
Green
LWR
2.003 - 2.006 (0.0789 - 0.0790)
Brown
23
UPR
2.009 - 2.012 (0.0791 - 0.0792)
Yellow
LWR
2.006 - 2.009 (0.0790 - 0.0791)
Green
34
UPR
2.012 - 2.015 (0.0792 - 0.0793)
Blue
LWR
2.009 - 2.012 (0.0791 - 0.0792)
Yellow
45
UPR
2.015 - 2.018 (0.0793 - 0.0794)
Pink
LWR
2.012 - 2.015 (0.0792 - 0.0793)
Blue
56
UPR
2.018 - 2.021 (0.0794 - 0.0796)
Purple
LWR
2.015 - 2.018 (0.0793 - 0.0794)
Pink
67
UPR
2.021 - 2.024 (0.0796 - 0.0797)
White
LWR
2.018 - 2.021 (0.0794 - 0.0796)
Purple
PBIC2619E
Items
Thickness
Main journal diameter
0.25 (0.0098)
2.132 - 2.140 (0.0839 - 0.0843)
Grind so that bearing clearance is the specified value.
Items
Standard
Limit
Main bearing oil clearance
0.035 - 0.045 (0.0014 - 0.0018)*
0.065 (0.0026)
