Nissan Quest E52. Manual - part 566





DRIVE BELT

EM-13

< PERIODIC MAINTENANCE >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

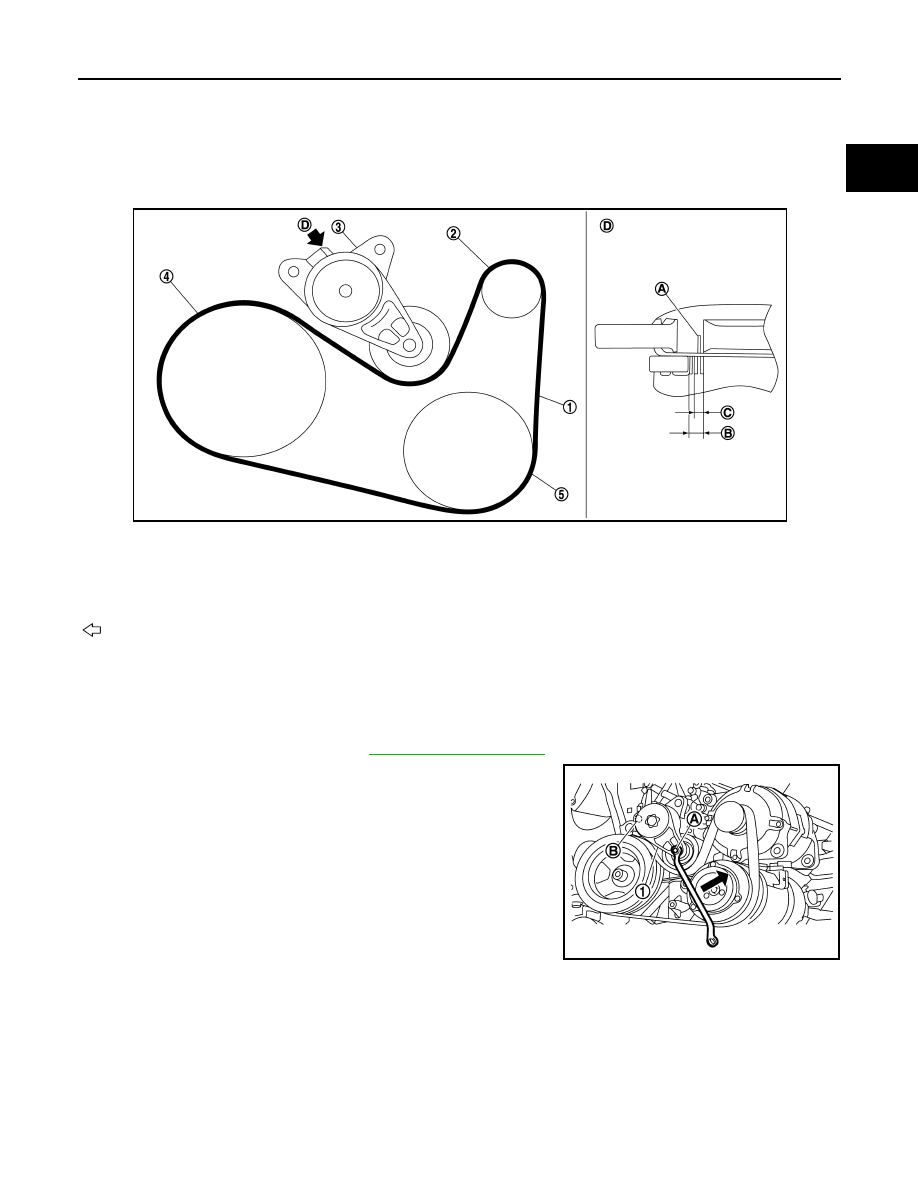

PERIODIC MAINTENANCE

DRIVE BELT

Exploded View

INFOID:0000000009652746

Removal and Installation

INFOID:0000000009652747

REMOVAL

1.

Remove front wheel and tire (RH).

2.

Remove splash guard (RH). Refer to

EXT-23, "Exploded View"

.

3.

While securely holding the square part (A) in pulley center of
drive belt auto-tensioner (1), move in the direction of arrow
(loosening direction of drive belt auto–tensioner) using suitable
tool.

CAUTION:

• Avoid placing hand in a location where pinching may

occur if the holding tool accidentally comes off.

4.

Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole (B) of the retaining boss to
fix drive belt auto-tensioner pulley.

5.

Loosen drive belt in sequence, and remove it.

INSTALLATION

1.

Drive belt

2.

Alternator

3.

Drive belt auto-tensioner

4.

Crankshaft pulley

5.

A/C compressor

A.

Indicator

B.

Possible use range

C.

Range when new drive belt is installed

D.

View D

: Engine front

JSBIA2875ZZ

EM-14

< PERIODIC MAINTENANCE >

[VQ35DE]

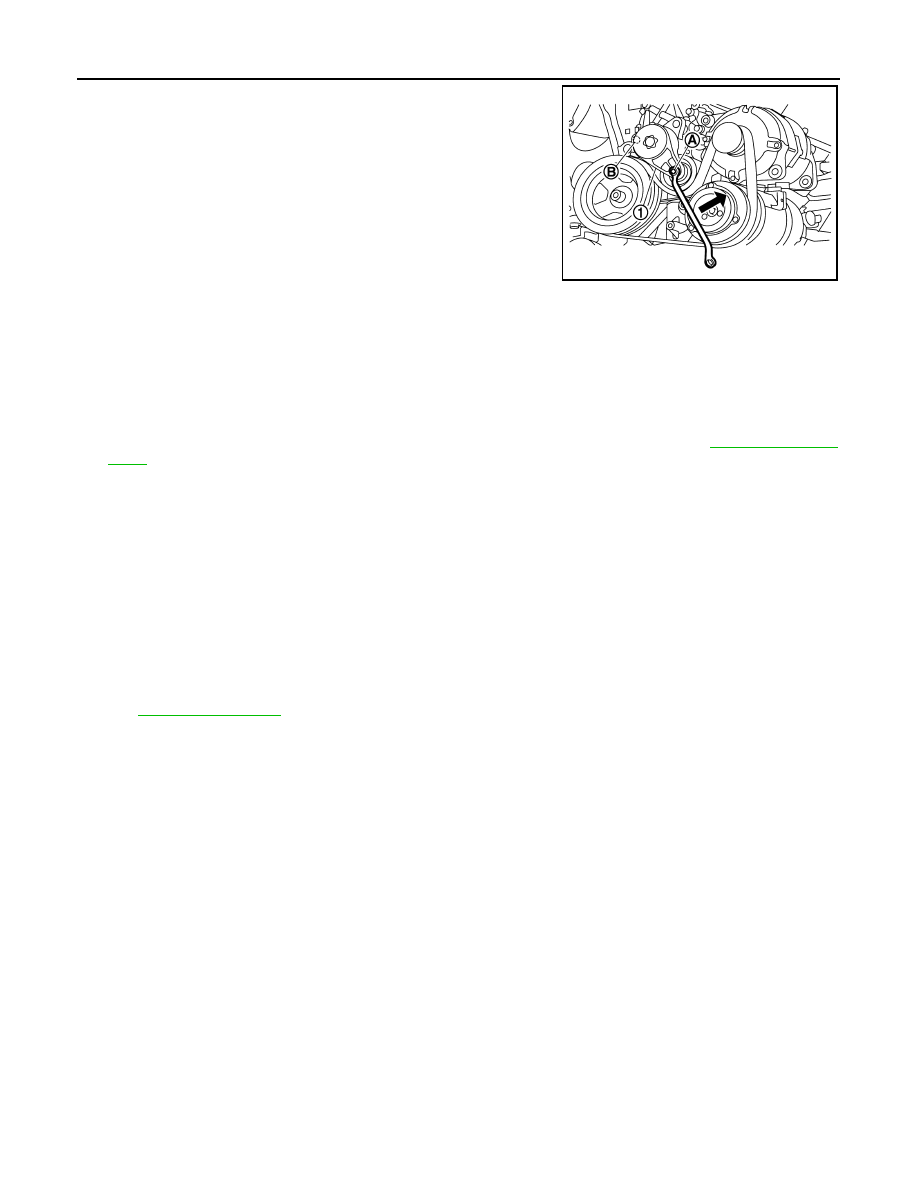

DRIVE BELT

1.

While securely holding the square part (A) in pulley center of
drive belt auto-tensioner (1), move in the direction of arrow
(loosening direction of drive belt auto–tensioner) using suitable
tool.

CAUTION:

• Avoid placing hand in a location where pinching may

occur if the holding tool accidentally comes off.

2.

Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole (A) of retaining boss to fix
drive belt auto-tensioner pulley.

3.

Hook drive belt onto all pulleys except for drive belt auto-ten-
sioner pulley, and then onto drive belt auto-tensioner pulley
finally.

CAUTION:

• Confirm drive belt is completely set to pulleys.
• Check for engine oil, working fluid and engine coolant are not adhered to drive belt and each

pulley groove.

4.

Release drive belt auto-tensioner, and apply tension to drive belt.

5.

Turn crankshaft pulley clockwise several times to equalize tension between each pulley.

6.

Confirm tension of drive belt at indicator is within the possible use range. Refer to

EM-13, "Exploded

View"

.

Checking

INFOID:0000000009652748

WARNING:

Be sure to perform the this step when engine is stopped.
• Check that the indicator (A) of drive belt auto-tensioner is within the possible use range (B).

NOTE:
• Check the drive belt auto-tensioner indication when the engine is cold.
• When new drive belt is installed, the indicator should be within the range (C) in the figure.

• Visually check entire drive belt for wear, damage or cracks.
• If the indicator is out of the possible use range or belt is damaged, replace drive belt.

Tension Adjustment

INFOID:0000000009652749

Refer to

EM-128, "Drive Belt"

.

JSBIA2875ZZ

AIR CLEANER FILTER

EM-15

< PERIODIC MAINTENANCE >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

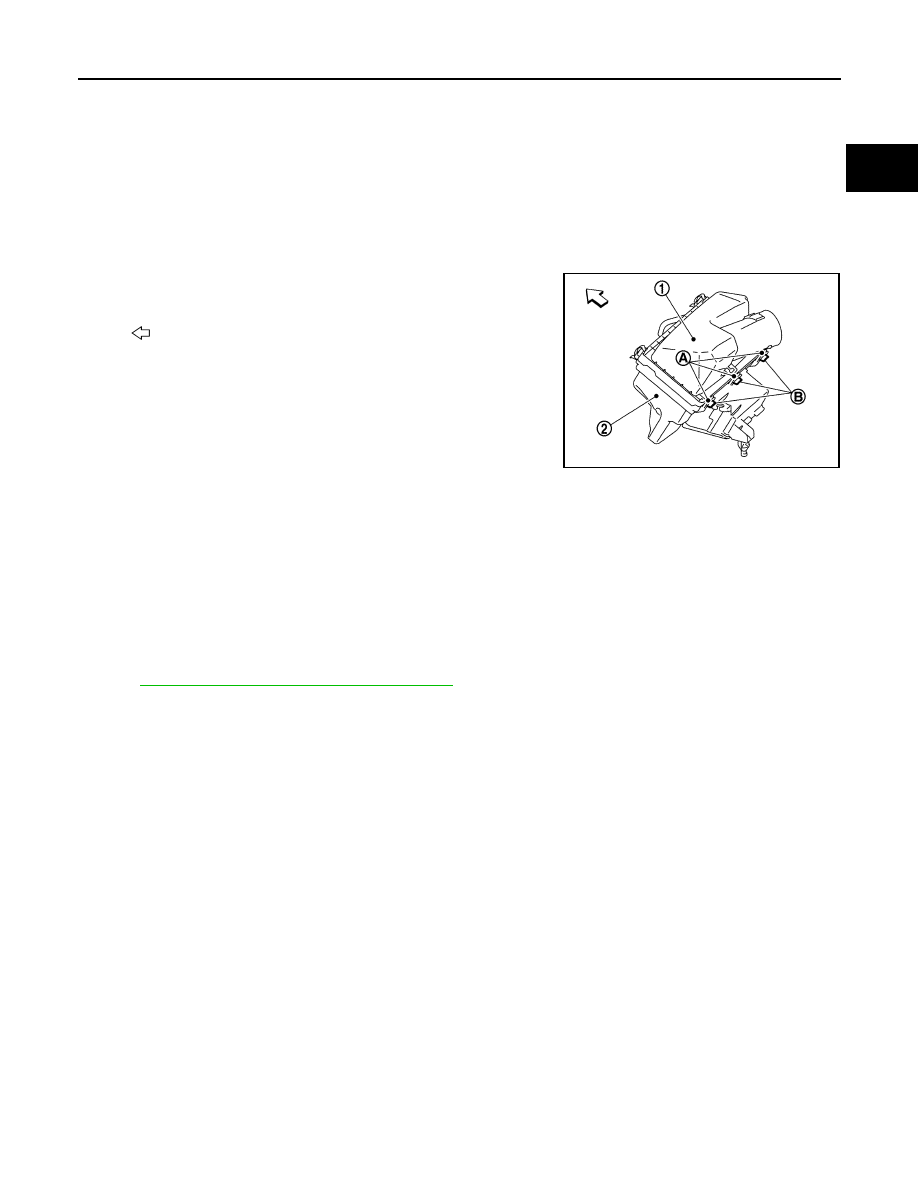

AIR CLEANER FILTER

Removal and Installation

INFOID:0000000009652750

REMOVAL

1.

Unhook air cleaner case (lower) side clips and lift up air cleaner case (upper).

2.

Remove air cleaner filter and holder assembly from air cleaner case (lower).

INSTALLATION

Note the following, and install in the reverse order of removal.
• Insert pawls (B) of air cleaner case (upper) (1) into 3 notches (A) of

air cleaner case (lower) (2) and fix with clips.

• Check that the air cleaner case (upper) is securely installed with no

backlash.

Inspection (Viscous Paper Type)

INFOID:0000000009963625

INSPECTION AFTER REMOVAL

Examine with eyes that there is no stain, clogging, or damage on air cleaner element.
• Remove dusts (such as dead leafs) on air cleaner element surface and inside cleaner case.
• If clogging or damage is observed, replace the air cleaner element.

CAUTION:

Never clean the viscous paper type air cleaner element by blowing as there is a risk of deterioration of
its performance

MAINTENANCE INTERVAL

Refer to

MA-6, "Introduction of Periodic Maintenance"

.

:Vehicle front

JPBIA4858ZZ

EM-16

< PERIODIC MAINTENANCE >

[VQ35DE]

SPARK PLUG

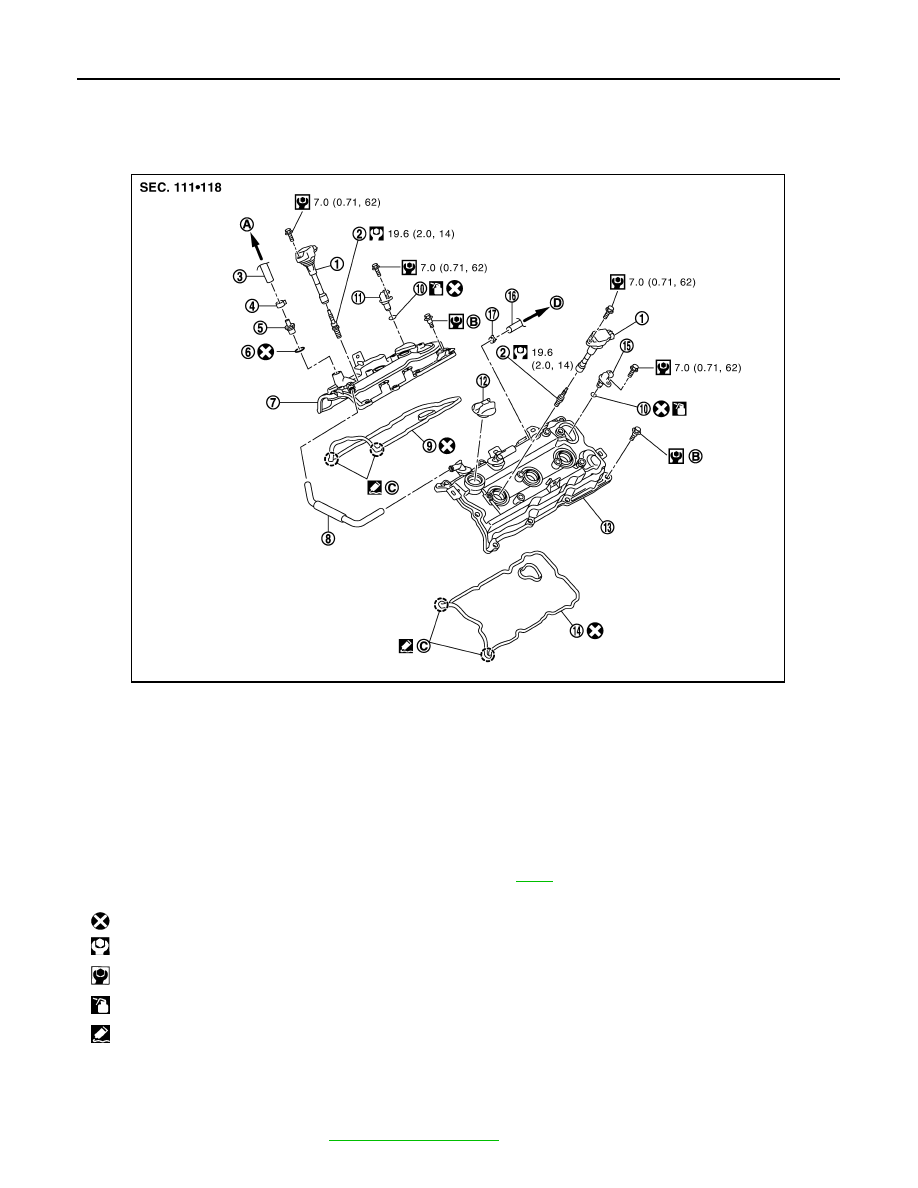

SPARK PLUG

Exploded View

INFOID:0000000009652751

Removal and Installation

INFOID:0000000009652752

REMOVAL

1.

Remove engine cover. Refer to

EM-24, "Exploded View"

.

1.

Ignition coil

2.

Spark plug

3.

PCV hose

4.

Clamp

5.

PCV valve

6.

O-ring

7.

Rocker cover (bank 1)

8.

PCV hose

9.

Rocker cover gasket (bank 1)

10.

O-ring

11.

Camshaft position sensor (PHASE)
(bank 1)

12. Oil filler cap

13.

Rocker cover (bank 2)

14.

Rocker cover gasket (bank 2)

15.

Camshaft position sensor (PHASE)
(bank 2)

16.

PCV hose

17.

Clamp

A.

To intake manifold collector

B.

Comply with the assembly procedure
when tightening. Refer to

EM-52

C.

Camshaft bracket side

D.

To air duct

 : Always replace after every disassembly.

 : N·m (kg-m, ft-lb)

 : N·m (kg-m, in-lb)

 : Should be lubricated with oil.

 : Sealing point

JPBIA1637GB
