EC-146

< BASIC INSPECTION >

[VQ35DE]

HOW TO SET SRT CODE

*: Normal conditions

- Sea level
- Flat road
- Ambient air temperature: 20 – 30

°

C (68 – 86

°

F)

NOTE:
Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,
diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30

°

C (68 – 86

°

F)]

Work Procedure

INFOID:0000000009651008

1.

CHECK DTC

Check DTC.
Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK SRT STATUS

With CONSULT

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.

Without CONSULT

Perform “SRT status” mode with

EC-66, "On Board Diagnosis Function"

.

With GST

Select Service $01 with GST.

Is SRT code(s) set?

YES

>> GO TO 12.

NO-1

>> With CONSULT: GO TO 3.

NO-2

>> Without CONSULT: GO TO 4.

3.

DTC CONFIRMATION PROCEDURE

1.

Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT.

2.

For SRT(s) that is not set, perform the corresponding “DTC CONFIRMATION PROCEDURE” according to
the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-143, "Description"

.

3.

Check DTC.

Is any DTC detected?

YES

>> Repair malfunction(s) and erase DTC. Refer to

EC-96, "DTC Index"

.

NO

>> GO TO 11.

4.

PERFORM ROAD TEST

• Check the “Performance Priority” in the “SRT ITEM” table. Refer to

EC-143, "Description"

.

• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to

EC-144, "SRT Set Driv-

ing Pattern"

.

In order to set all SRTs, the SRT set driving pattern must be performed at least once.

>> GO TO 5.

5.

PATTERN 1

1.

Check the vehicle condition;

-

Engine coolant temperature is

−

10 to 35

°

C (14 to 95

°

F).

-

Fuel tank temperature is more than 0

°

C (32

°

F).

2.

Start the engine.

3.

Keep engine idling until the engine coolant temperature is greater than 70

°

C (158

°

F)

NOTE:
ECM terminal voltage is follows;
• Engine coolant temperature
-

−

10 to 35

°

C (14 to 95

°

F): 3.0 – 4.3 V

- 70

°

(158

°

F): Less than 4.1 V

• Fuel tank temperature: Less than 1.4 V
Refer to

EC-79, "Reference Value"

.

HOW TO SET SRT CODE

EC-147

< BASIC INSPECTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

>> GO TO 6.

6.

PATTERN 2

1.

Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then
release the accelerator pedal and keep it released for more than 10 seconds.

2.

Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again

NOTE:
• Checking the vehicle speed with GST is advised.
• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

>> GO TO 7.

7.

PATTERN 3

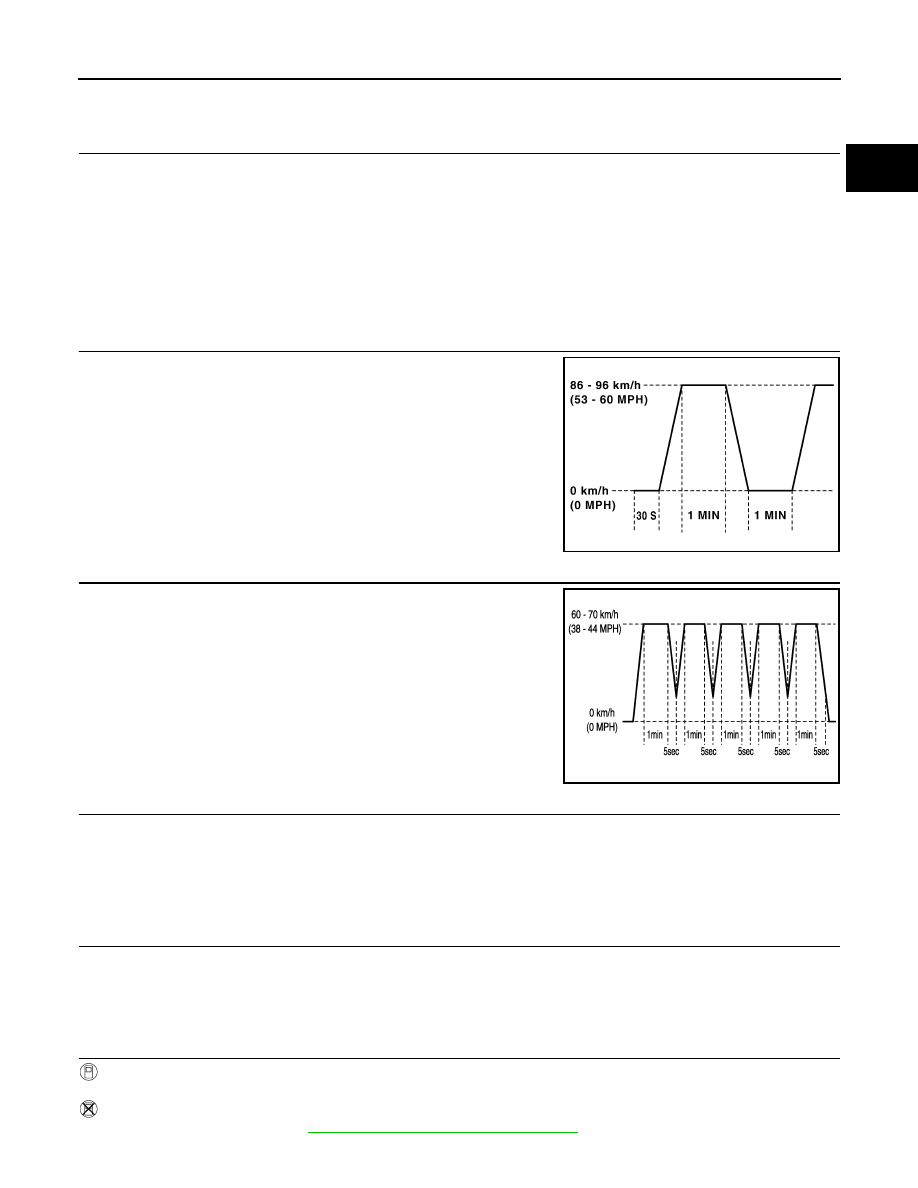

• Operate vehicle following the driving pattern shown in the figure.
• Release the accelerator pedal during deceleration of vehicle speed

from 90 km/h (56 MPH) to 0 km/h (0 MPH).

>> GO TO 8.

8.

PATTERN 4

• Operate vehicle, following the driving pattern shown in the figure.
- Drive the vehicle in a proper gear at 60 km/h (38 MPH) and main-

tain the speed.

- Release the accelerator pedal fully at least 5 seconds.
- Repeat the above two steps at least 5 times.

>> GO TO 9.

9.

PATTERN 5

• The accelerator pedal must be held very steady during steady-state driving.
• If the accelerator pedal is moved, the test must be conducted again.

>> GO TO 10.

10.

PATTERN 6

1.

Start the engine and wait at least 2 hours.

2.

Turn ignition OFF and wait at least 90 minutes.

>> GO TO 11.

11.

CHECK SRT STATUS

With CONSULT

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.

Without CONSULT

Perform “SRT status” mode with

EC-66, "On Board Diagnosis Function"

.

PBIB2244E

JSBIA0160GB

EC-148

< BASIC INSPECTION >

[VQ35DE]

HOW TO SET SRT CODE

With GST

Select Service $01 with GST.

Is SRT(s) set?

YES

>> GO TO 12.

NO

>> Call TECH LINE or take appropriate action.

12.

CHECK PERMANENT DTC

NOTE:
Permanent DTC cannot be checked with a tool other than CONSULT or GST.

With CONSULT

Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.

With GST

Select Service $0A with GST.
Is permanent DTC(s) detected?

YES

>> Proceed to

EC-149, "Description"

.

NO

>> END

HOW TO ERASE PERMANENT DTC

EC-149

< BASIC INSPECTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

HOW TO ERASE PERMANENT DTC

Description

INFOID:0000000009651009

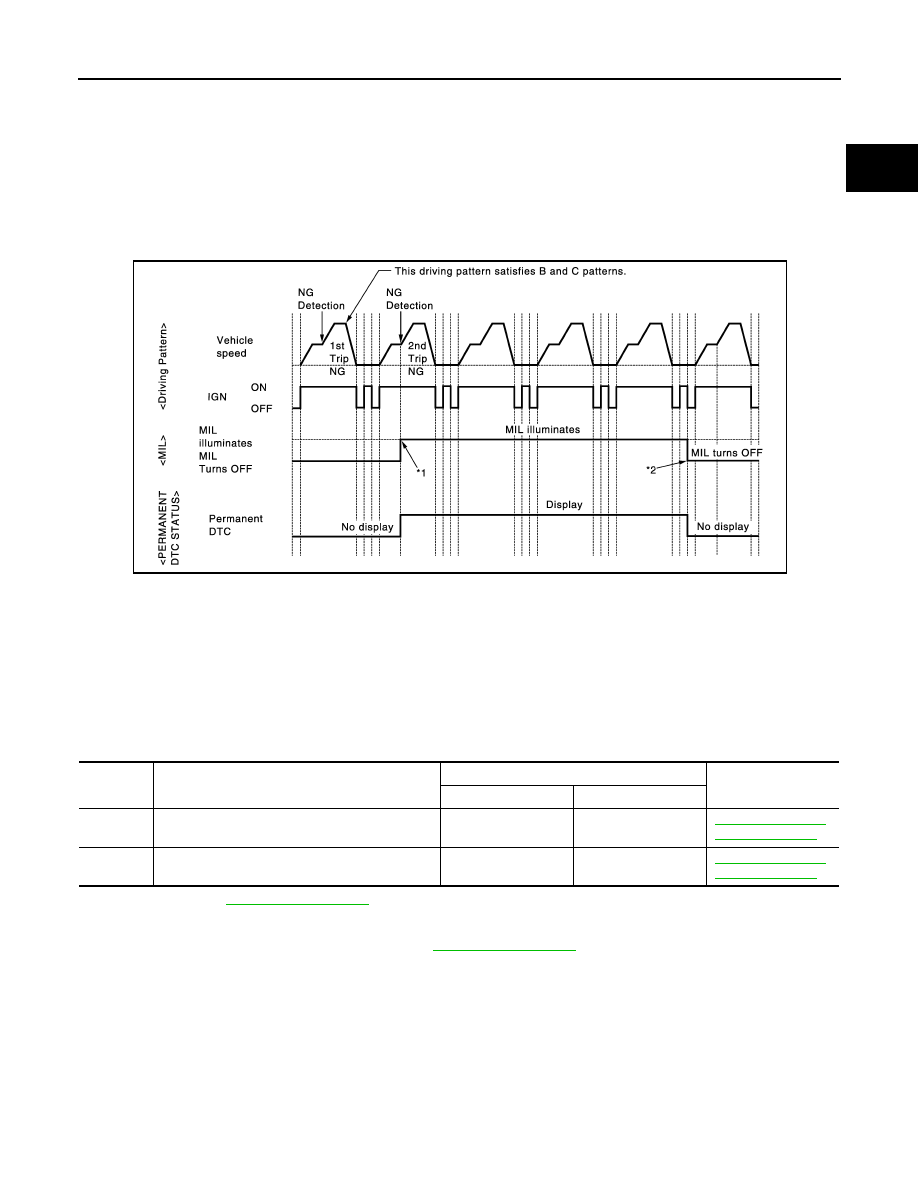

OUTLINE

When a DTC is stored in ECM

When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same mal-
function is not detected after performing the driving pattern for MIL shutoff three times in a raw.

When a DTC is not stored in ECM

The erasing method depends on a permanent DTC stored in ECM. Refer to the following table.
NOTE:
If the applicable permanent DTC includes multiple groups, perform the procedure of Group B first. If the per-
manent DTC is not erased, perform the procedure of Group A.

×

: Applicable —: Not applicable

*: For group, refer to

EC-96, "DTC Index"

.

PERMANENT DTC ITEM

For permanent DTC items, MIL turns ON. Refer to

EC-96, "DTC Index"

.

*1:

When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate.

*2:

MIL will turn off after vehicle is driven
3 times (driving pattern B) without
any malfunctions.

JSBIA0063GB

Group

*

Perform “DTC CONFIRMATION PROCEDURE”

for applicable DTCs.

Driving pattern

Reference

B

D

A

×

—

—

EC-150, "Work Pro-
cedure (Group A)"

B

—

×

×

EC-152, "Work Pro-
cedure (Group B)"
