Fail-safe (Side Radar)

INFOID:0000000009940669

FAIL-SAFE CONTROL BY DTC

If a malfunction occurs in the side radar, BSW control module cancels the control. Then the BSW warning
lamp in the combination meter illuminates.

TEMPORARY DISABLED STATUS AT BLOCKAGE

When the side radar is blocked, the operation is temporarily cancelled. Then BSW warning lamp in combina-
tion meter blinks. Also, under the following conditions, the operation may be temporarily cancelled.
• The side radar may be blocked by temporary ambient conditions such as splashing water, mist or fog.
• The blocked condition may also be caused by objects such as ice, frost or dirt obstructing the side radar.

DAS

OPERATION

DAS-15

< SYSTEM DESCRIPTION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

OPERATION

Switch Name and Function

INFOID:0000000009940670

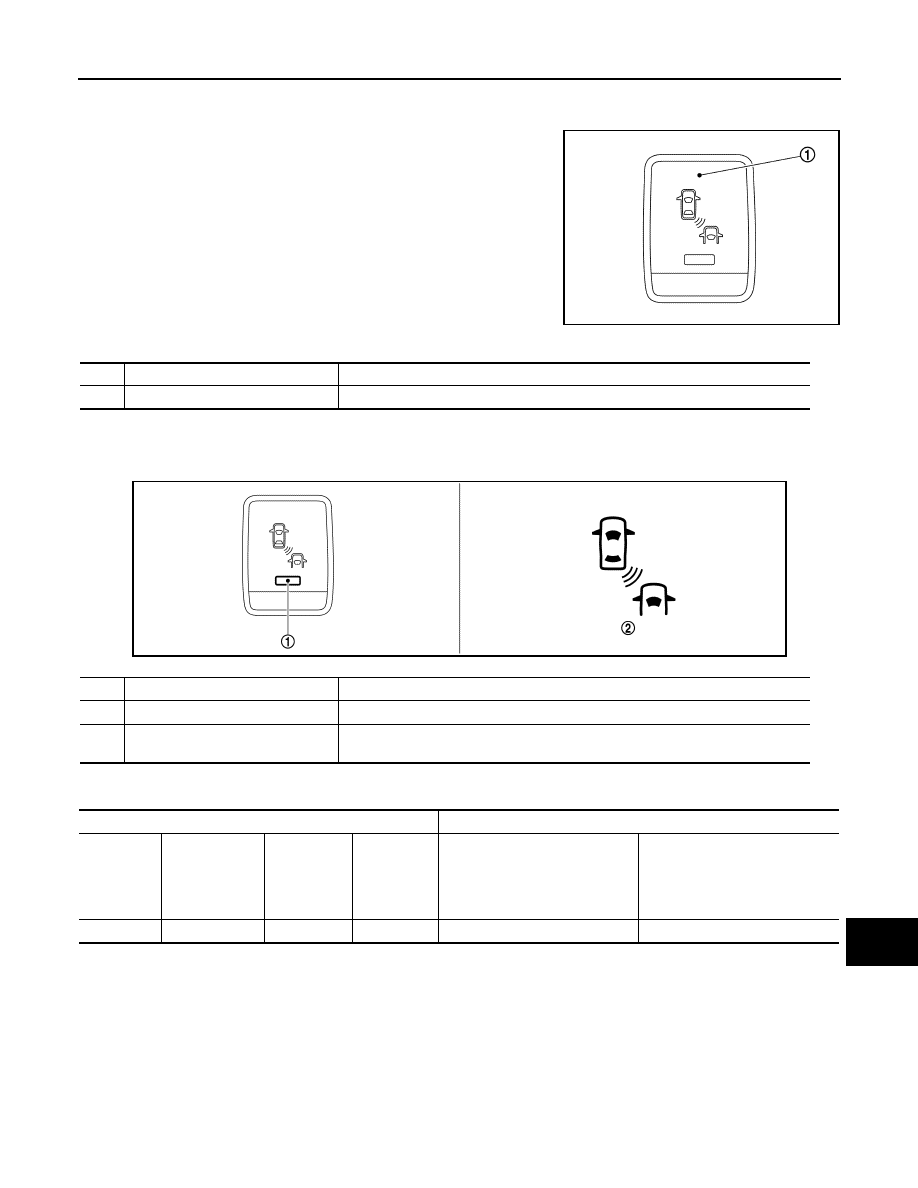

System Display and Warning

INFOID:0000000009940671

INDICATOR AND WARNING LAMP

DISPLAY AND WARNING OPERATION

JSOIA0507ZZ

No.

Name

Function

1

BSW switch

Turns BSW system ON/OFF

JSOIA0508ZZ

No.

Name

Description

1

BSW ON indicator

Turns ON while BSW system is ON

2

BSW warning lamp
(In the combination meter)

• Turns ON when BSW system is malfunctioning
• Blinks when radar blockage is detected

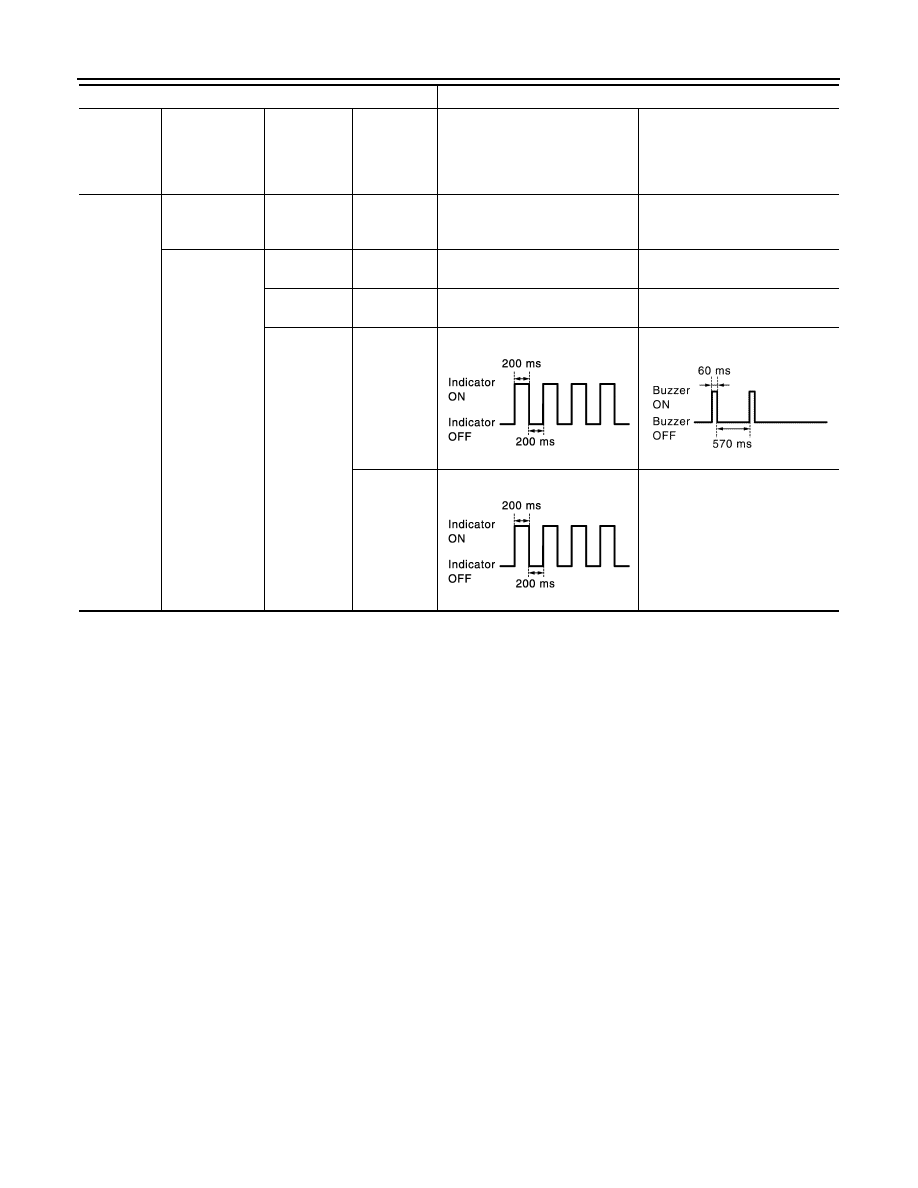

Vehicle condition/ Driver's operation

Action

BSW ON

indicator

Vehicle speed

(Approx.)

[km/h (MPH)]

Turn signal

condition

Status of ve-

hicle detec-

tion within

detection

area

Indication on the

BSW indicator

Buzzer

OFF

—

—

—

OFF

OFF

DAS-16

< SYSTEM DESCRIPTION >

[BSW]

OPERATION

NOTE:
• If vehicle speed exceeds approximately 32 km/h (20MPH), BSW function operates until the vehicle speed

becomes lower than approximately 29km/h (18MPH).

• Time shown in the figure is approximate time.

ON

Less than ap-

prox.

29 (18)

—

—

OFF

OFF

Approx.

32 (20)

 or more

—

Vehicle is

absent

OFF

OFF

OFF

Vehicle is

detected

ON

OFF

ON

(Vehicle de-

tected direc-

tion)

Before turn

signal oper-

ates

Vehicle is

detected

Blink

Short continuous beep

Vehicle is

detected af-

ter turn sig-

nal operates

Blink

OFF

Vehicle condition/ Driver's operation

Action

BSW ON

indicator

Vehicle speed

(Approx.)

[km/h (MPH)]

Turn signal

condition

Status of ve-

hicle detec-

tion within

detection

area

Indication on the

BSW indicator

Buzzer

JSOIA0251GB

JSOIA0452GB

JSOIA0251GB

DAS

HANDLING PRECAUTION

DAS-17

< SYSTEM DESCRIPTION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

HANDLING PRECAUTION

Precautions for Blind Spot Warning

INFOID:0000000009940672

SIDE RADAR HANDLING

• Side radar for BSW system is located inside the rear bumper.
• Always keep the rear bumper near the side radar clean.
• Do not attach a sticker (including transparent material), install an accessory or paintwork near the side radar.
• Do not strike or damage the areas around the side radar.
• Do not strike, damage, and scratch the side radar, especially the vent seal (gray circular) area, under repair.

PRECAUTIONS FOR BLIND SPOT WARNING

• The BSW system is not a replacement for proper driving procedure and are not designed to prevent contact

with vehicles or objects. When changing lanes, always use the side and rear mirrors and turn and look in the
direction driver will move to ensure it is safe to change lanes. Never rely solely on the BSW system.

• The BSW system may not provide a warning for vehicles that pass through the detection zone quickly.
• Do not use the BSW system when towing a trailer because the system may not function properly.
• Excessive noise (e.g. audio system volume, open vehicle window) will interfere with the chime sound, and it

may not be heard.

• The side radar may not be able to detect and activate BSW when certain objects are present such as:
- Pedestrians, bicycles, animals.
- Several types of vehicles such as motorcycles.
- Oncoming vehicles.
- Vehicles remaining in the detection zone when driver accelerate from a stop.
- A vehicle merging into an adjacent lane at a speed approximately the same as vehicle.
- A vehicle approaching rapidly from behind.
- A vehicle which vehicle overtakes rapidly.
• Severe weather or road spray conditions may reduce the ability of the side radar to detect other vehicles.
• The side radar detection zone is designed based on a standard lane width. When driving in a wider lane, the

side radar may not detect vehicles in an adjacent lane. When driving in a narrow lane, the side radar may
detect vehicles driving two lanes away.

• The side radar are designed to ignore most stationary objects, however objects such as guardrails, walls,

foliage and parked vehicles may occasionally be detected. This is a normal operating condition.
