CHG

COMPONENT PARTS

CHG-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

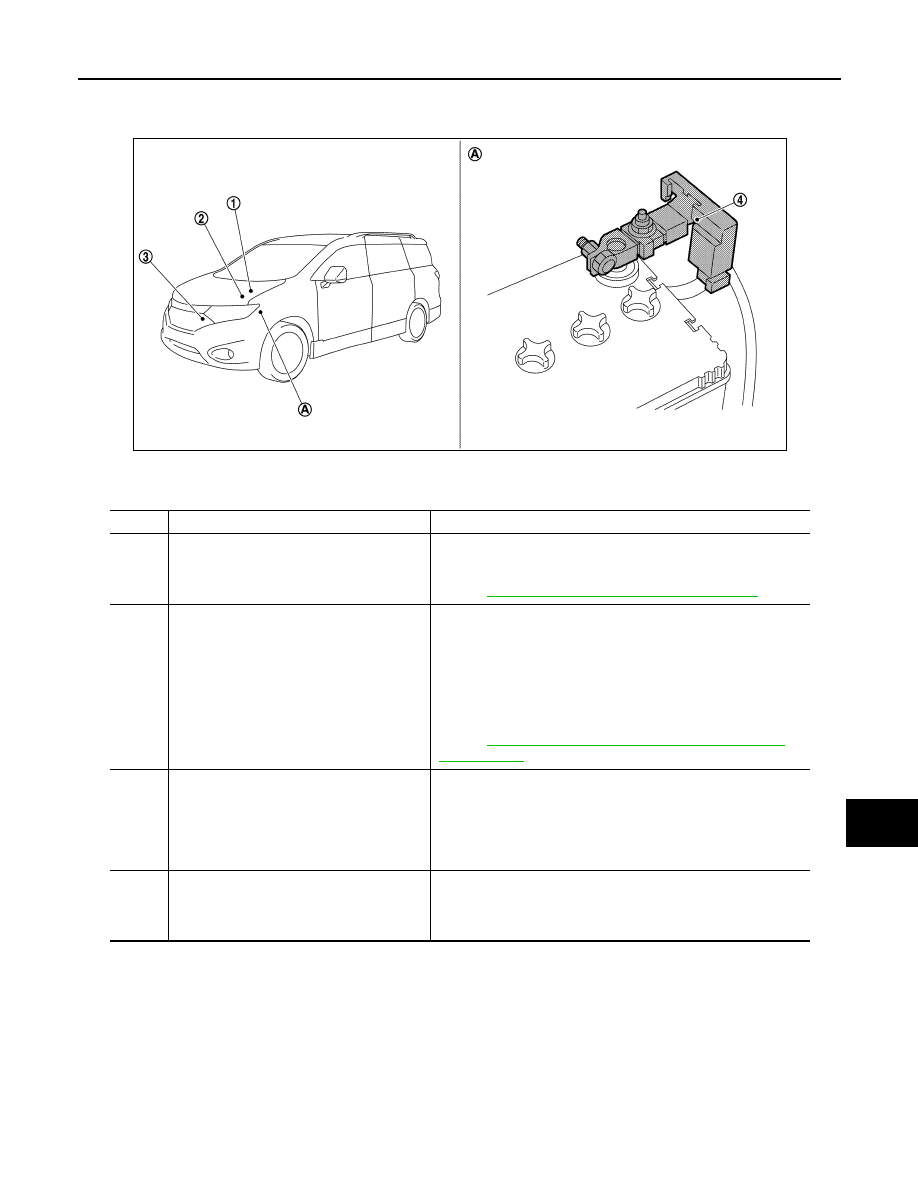

Parts Location

INFOID:0000000009650418

A.

Battery

No.

Component part

Description

1.

IPDM E/R

IPDM E/R converts the received power generation command val-
ue into the power generation command signal (PWM signal) and
sends it to the IC voltage regulator.
Refer to

PCS-4, "IPDM E/R : Component Parts Location"

.

2.

ECM

Battery current sensor detects the charging/discharging current of
the battery. ECM judges the battery condition based on this signal.
ECM judges whether to perform the power generation voltage
variable control according to the battery condition.
When performing the power generation voltage variable control,
ECM calculates the target power generation voltage according to
the battery condition and sends the calculated value as the power
generation command value signal to IPDM E/R.
Refer to

EC-15, "ENGINE CONTROL SYSTEM : Component

Parts Location"

.

3.

Alternator (IC voltage regulator)

IC voltage regulator controls the power generation voltage by the
target power generation voltage based on the received power gen-
eration command signal.
When there is no power generation command signal, the alterna-
tor performs the normal power generation according to the char-
acteristic of the IC voltage regulator.

4.

Battery current sensor
(with battery temperature sensor)

Battery current sensor is installed to the battery cable at the neg-
ative terminal, and it detects the charging/discharging current of
the battery and sends the voltage signal to ECM according to the
current value.

JMMIA0855ZZ

CHG-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

CHARGING SYSTEM

CHARGING SYSTEM : System Description

INFOID:0000000009650419

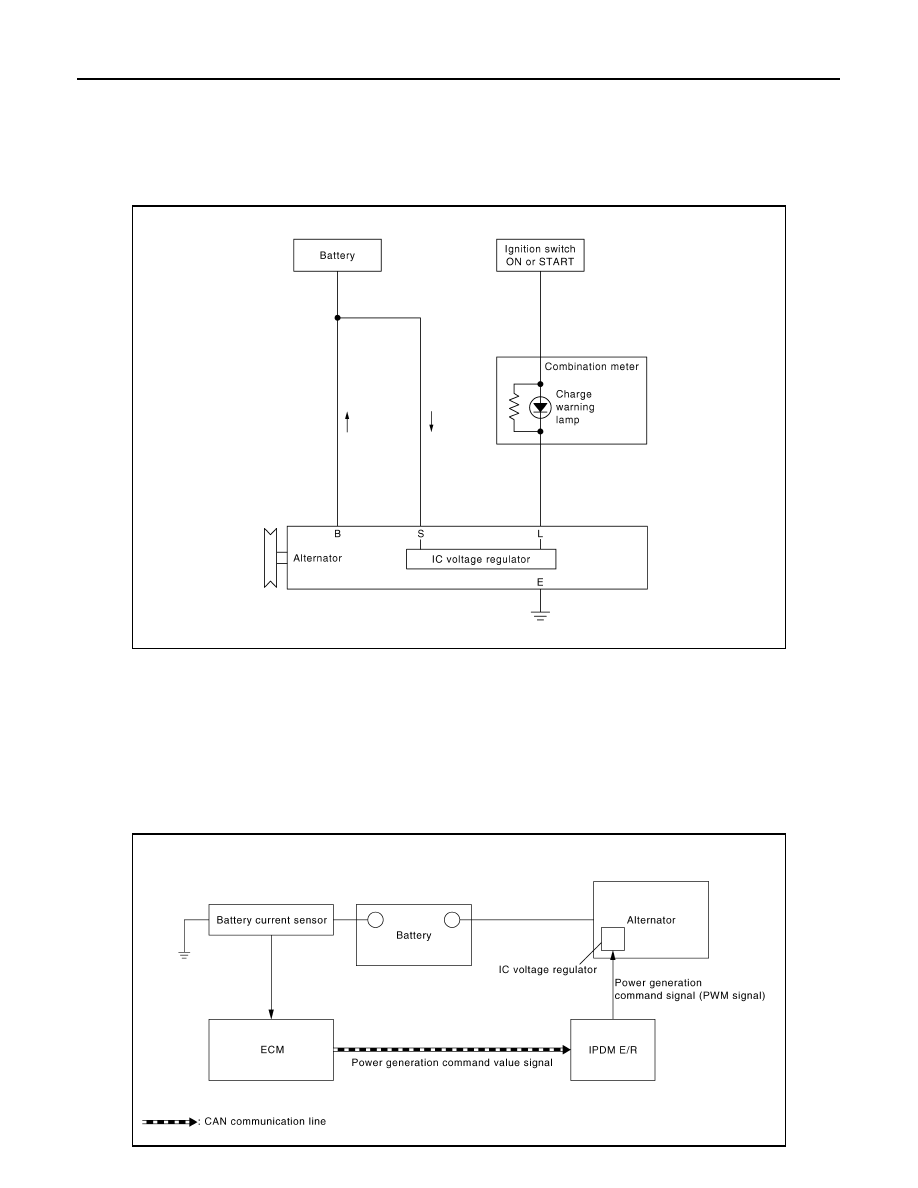

SYSTEM DIAGRAM

OUTLINE

The alternator provides DC voltage to operate the vehicle's electrical system and to keep the battery charged.
The voltage output is controlled by the IC voltage regulator.

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM : System De-
scription

INFOID:0000000009650420

SYSTEM DIAGRAM

JPMIA0426GB

JMMIA1072GB

CHG

SYSTEM

CHG-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

OUTLINE

By performing the power generation voltage variable control, the engine load due to the power generation of
the alternator is reduced and fuel consumption is decreased.
NOTE:
When any malfunction is detected in the power generation voltage variable control system, the power genera-
tion is performed according to the characteristic of the IC voltage regulator of the alternator.

CHG-10

< WIRING DIAGRAM >

CHARGING SYSTEM

WIRING DIAGRAM

CHARGING SYSTEM

Wiring Diagram

INFOID:0000000009650421

JCMWA7679GB
