ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-37

< ECU DIAGNOSIS INFORMATION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

*1: Confirm tire pressure is standard value.
*2: Refer to “valve operation” in

BRC-13, "System Description"

 for valve operation of each valve.

*3: Refer to

BRC-13, "System Description"

 for ON/OFF conditions of each warning lamp and indicator lamp.

Fail-safe

INFOID:0000000009651367

VDC FUNCTION, TCS FUNCTION AND BRAKE LIMITED SLIP DIFFERENTIAL (BLSD) FUNCTION

VDC warning lamp in combination meter turn ON when a malfunction occurs in system [ABS actuator and
electric unit (control unit)]. The control is suspended for VDC function, TCS function and brake limited slip dif-
ferential (BLSD) function. The vehicle status becomes the same as models without VDC function, TCS func-
tion and brake limited slip differential (BLSD) function. However, ABS function and EBD function are operated
normally.

ABS FUNCTION

ABS warning lamp and VDC warning lamp in combination meter turn ON when a malfunction occurs in system
[ABS actuator and electric unit (control unit)]. The control is suspended for VDC function, TCS function, ABS
function and brake limited slip differential (BLSD) function. The vehicle status becomes the same as models
without VDC function, TCS function, ABS function and brake limited slip differential (BLSD) function. However,
EBD function is operated normally.
NOTE:
ABS self-diagnosis sound may be heard the same as in the normal condition, because self-diagnosis is per-
formed when ignition switch turns ON and when vehicle initially starts.

EBD FUNCTION

ABS warning lamp, brake warning lamp and VDC warning lamp in combination meter turn ON when a mal-
function occurs in system [ABS actuator and electric unit (control unit)]. The control is suspended for VDC
function, TCS function, ABS function, EBD function and brake limited slip differential (BLSD) function. The
vehicle status becomes the same as models without VDC function, TCS function, ABS function, EBD function
and brake limited slip differential (BLSD) function.

DTC Inspection Priority Chart

INFOID:0000000009651368

When multiple DTCs are displayed simultaneously, check one by one depending on the following priority list.

ABS SIGNAL

ABS is activated

On

ABS is not activated

Off

TCS SIGNAL

TCS is activated

On

TCS is not activated

Off

VDC SIGNAL

VDC is activated

On

VDC is not activated

Off

EBD FAIL SIG

In EBD fail-safe

On

EBD is normal

Off

ABS FAIL SIG

In ABS fail-safe

On

ABS is normal

Off

TCS FAIL SIG

In TCS fail-safe

On

TCS is normal

Off

VDC FAIL SIG

In VDC fail-safe

On

VDC is normal

Off

CRANKING SIG

At cranking

On

Other than at cranking

Off

FLUID LEV SW

When brake fluid level switch is ON (brake fluid level
is less than the specified level)

On

When brake fluid level switch is OFF

Off

Monitor item

Condition

Reference values in normal operation

BRC-38

< ECU DIAGNOSIS INFORMATION >

[WITH VDC]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

DTC Index

INFOID:0000000009651369

Priority

Detected item (DTC)

1

• U1000 CAN COMM CIRCUIT
• U1002 SYSTEM COMM(CAN)

2

• C1110 CONTROLLER FAILURE

3

• C1130 ENGINE SIGNAL 1

4

• C1109 BATTERY VOLTAGE [ABNORMAL]
• C1111 PUMP MOTOR
• C1140  ACTUATOR  RLY

5

• C1101 RR RH SENSOR-1
• C1102 RR LH SENSOR-1
• C1103 FR RH SENSOR-1
• C1104 FR LH SENSOR-1
• C1105 RR RH SENSOR-2
• C1106 RR LH SENSOR-2
• C1107 FR RH SENSOR-2
• C1108 FR LH SENSOR-2
• C1115 ABS SENSOR [ABNORMAL SIGNAL]
• C1116 STOP LAMP SW
• C1120 FR LH IN ABS SOL
• C1121 FR LH OUT ABS SOL
• C1122 FR RH IN ABS SOL
• C1123 FR RH OUT ABS SOL
• C1124 RR LH IN ABS SOL
• C1125 RR LH OUT ABS SOL
• C1126 RR RH IN ABS SOL
• C1127 RR RH OUT ABS SOL
• C1142 PRESS SEN CIRCUIT
• C1143 ST ANG SEN CIRCUIT
• C1144 ST ANG SEN SIGNAL
• C1145 YAW RATE SENSOR
• C1146 SIDE G SEN CIRCUIT
• C1161 SIDE G SEN SET
• C1162 PRESS SEN SET
• C1164  CV  1
• C1165  CV  2
• C1166  SV  1
• C1167  SV  2

6

• C1155 BR FLUID LEVEL LOW

DTC

Display Item

Refer to

C1101

RR RH SENSOR-1

BRC-51, "DTC Logic"

C1102

RR LH SENSOR-1

C1103

FR RH SENSOR-1

C1104

FR LH SENSOR-1

C1105

RR RH SENSOR-2

BRC-54, "DTC Logic"

C1106

RR LH SENSOR-2

C1107

FR RH SENSOR-2

C1108

FR LH SENSOR-2

C1109

BATTERY VOLTAGE [ABNORMAL]

BRC-59, "DTC Logic"

C1110

CONTROLLER FAILURE

BRC-61, "DTC Logic"

C1111

PUMP MOTOR

BRC-62, "DTC Logic"

C1115

ABS SENSOR [ABNORMAL SIGNAL]

BRC-64, "DTC Logic"

C1116

STOP LAMP SW

BRC-70, "DTC Logic"

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-39

< ECU DIAGNOSIS INFORMATION >

[WITH VDC]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1120

FR LH IN ABS SOL

BRC-73, "DTC Logic"

C1121

FR LH OUT ABS SOL

BRC-75, "DTC Logic"

C1122

FR RH IN ABS SOL

BRC-73, "DTC Logic"

C1123

FR RH OUT ABS SOL

BRC-75, "DTC Logic"

C1124

RR LH IN ABS SOL

BRC-73, "DTC Logic"

C1125

RR LH OUT ABS SOL

BRC-75, "DTC Logic"

C1126

RR RH IN ABS SOL

BRC-73, "DTC Logic"

C1127

RR RH OUT ABS SOL

BRC-75, "DTC Logic"

C1130

ENGINE SIGNAL 1

BRC-77, "DTC Logic"

C1140

ACTUATOR RLY

BRC-78, "DTC Logic"

C1142

PRESS SEN CIRCUIT

BRC-80, "DTC Logic"

C1143

ST ANG SEN CIRCUIT

BRC-82, "DTC Logic"

C1144

ST ANG SEN SIGNAL

BRC-85, "DTC Logic"

C1145

YAW RATE SENSOR

BRC-86, "DTC Logic"

C1146

SIDE G SEN CIRCUIT

C1155

BR FLUID LEVEL LOW

BRC-89, "DTC Logic"

C1161

SIDE G SEN SET

BRC-92, "DTC Logic"

C1162

PRESS SEN SET

BRC-93, "DTC Logic"

C1164

CV 1

BRC-94, "DTC Logic"

C1165

CV 2

C1166

SV 1

BRC-96, "DTC Logic"

C1167

SV 2

U1000

CAN COMM CIRCUIT

BRC-98, "DTC Logic"

U1002

SYSTEM COMM(CAN)

BRC-99, "DTC Logic"

DTC

Display Item

Refer to

BRC-40

< WIRING DIAGRAM >

[WITH VDC]

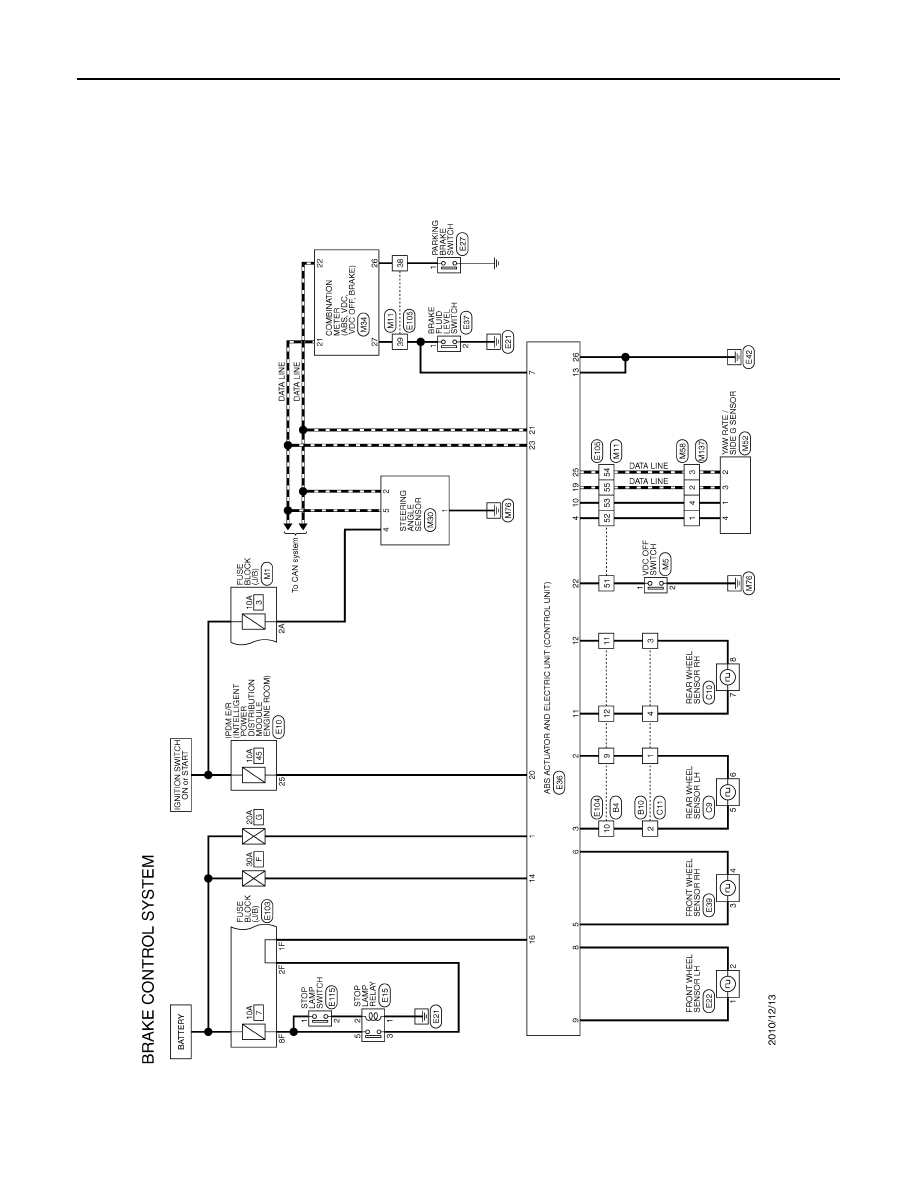

BRAKE CONTROL SYSTEM

WIRING DIAGRAM

BRAKE CONTROL SYSTEM

Wiring Diagram

INFOID:0000000009651370

JCFWA0458GB
