Nissan Quest E52. Manual - part 158

AV

BOSE AUDIO WITH NAVIGATION

AV-511

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

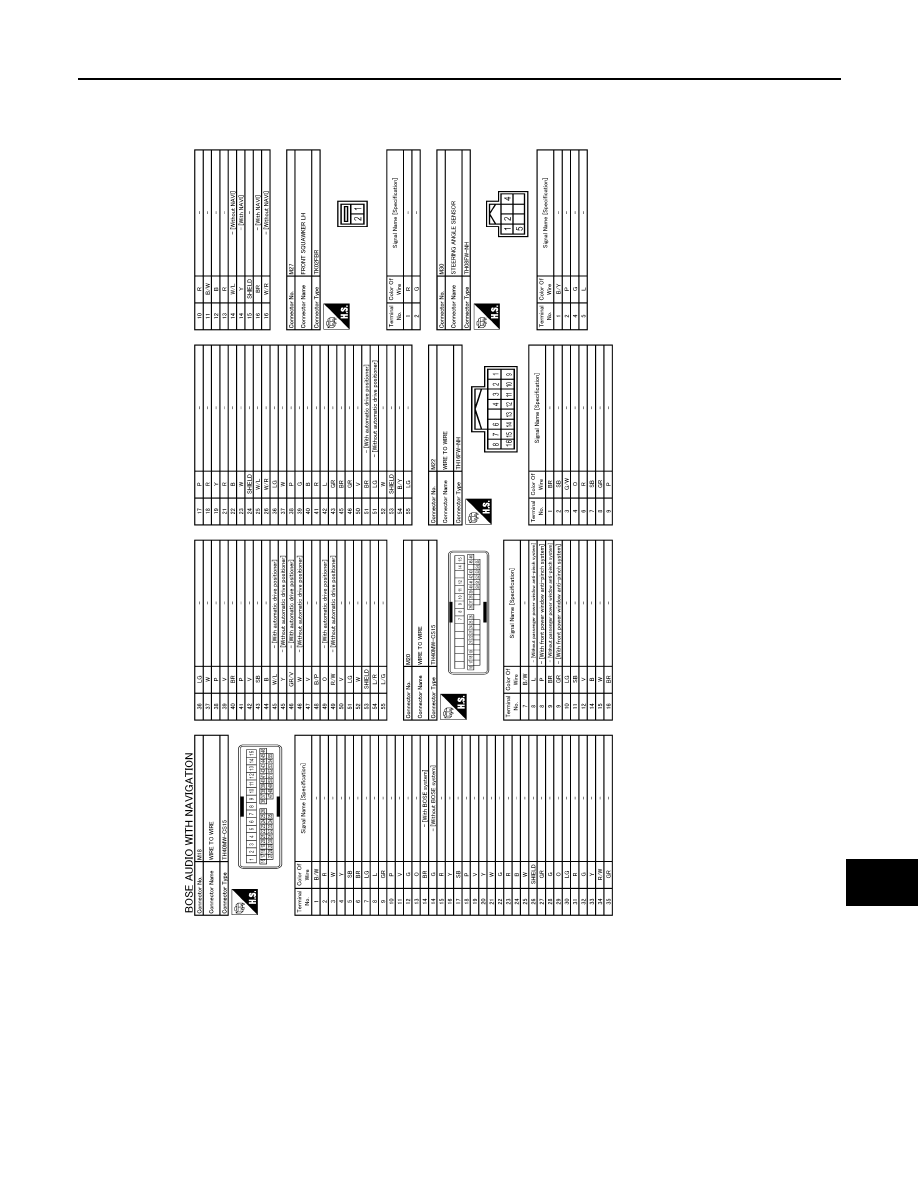

JRNWC6795GB

AV-512

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

BOSE AUDIO WITH NAVIGATION

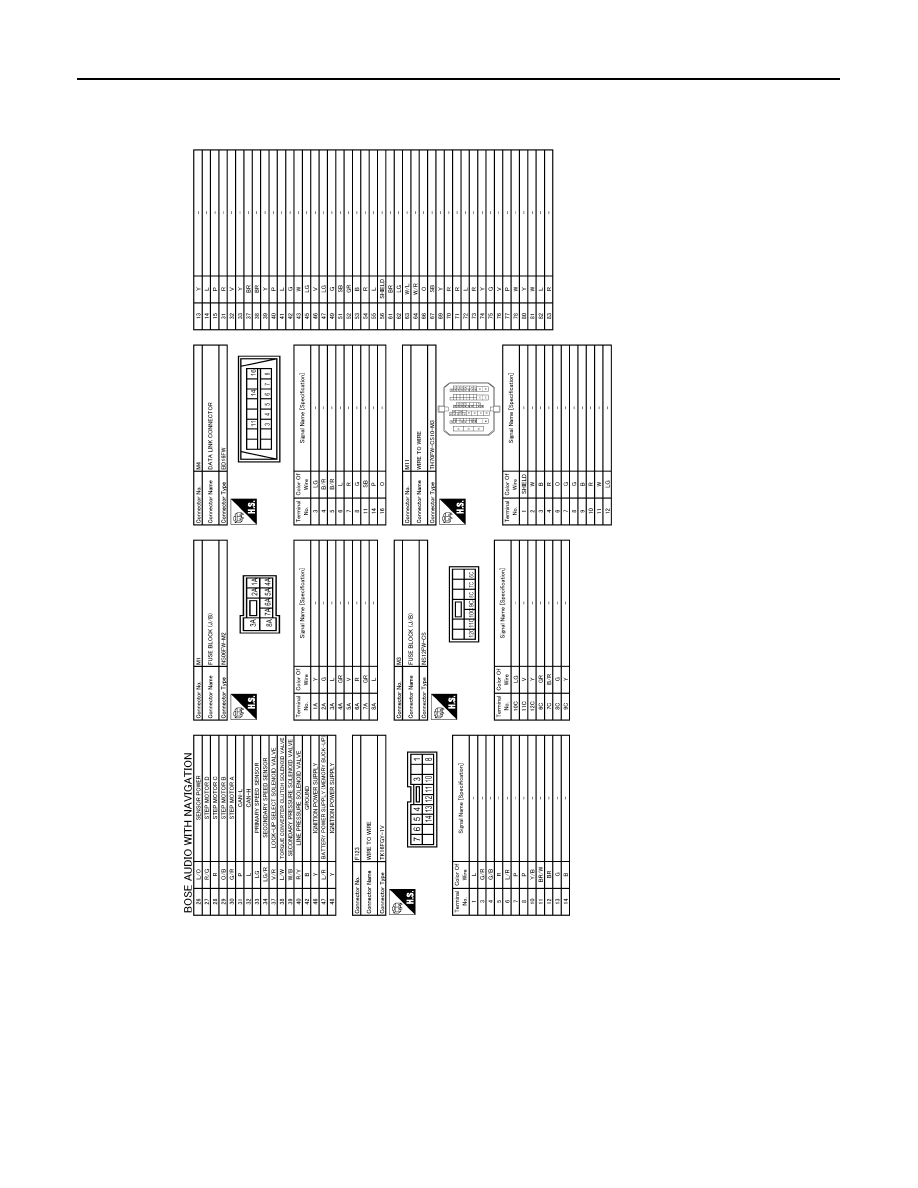

JRNWC6796GB

AV

BOSE AUDIO WITH NAVIGATION

AV-513

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

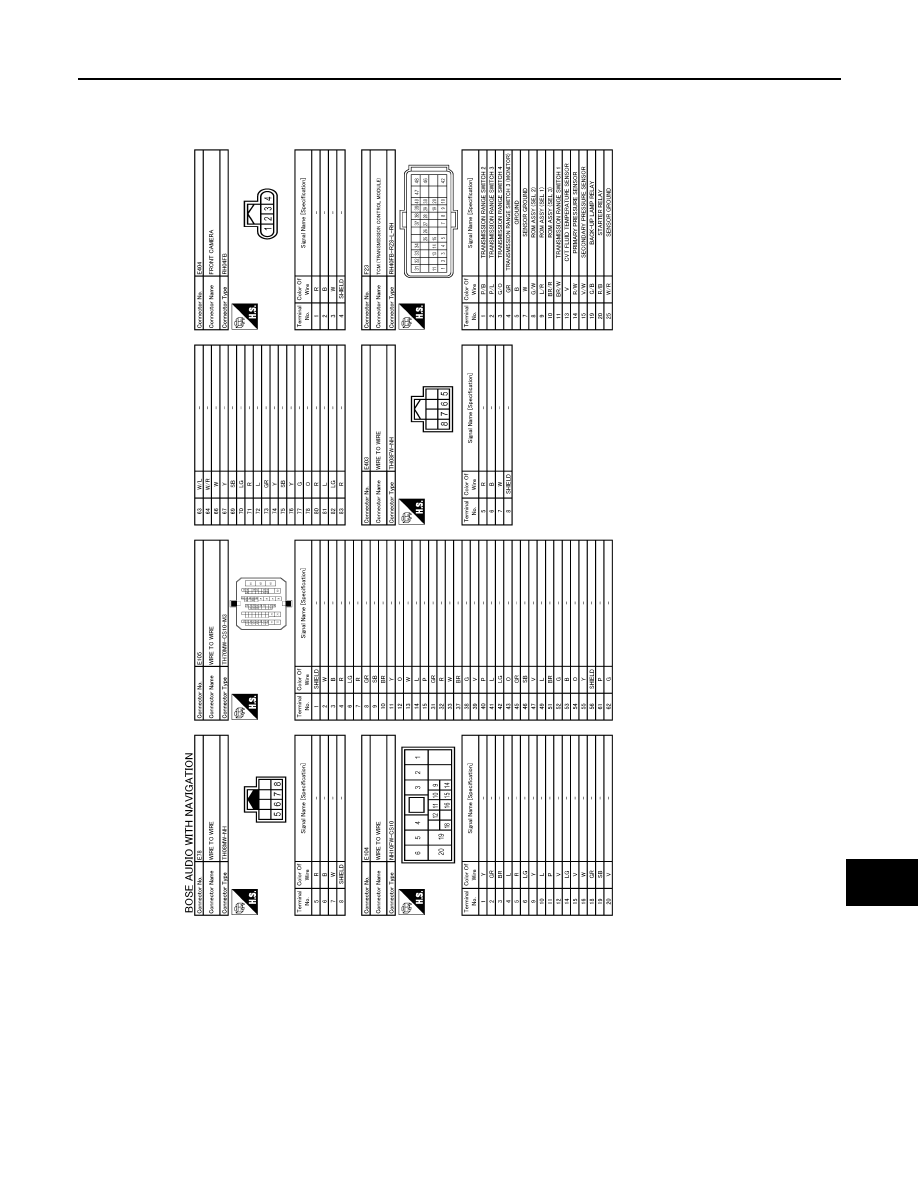

JRNWC6797GB

AV-514

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

BOSE AUDIO WITH NAVIGATION

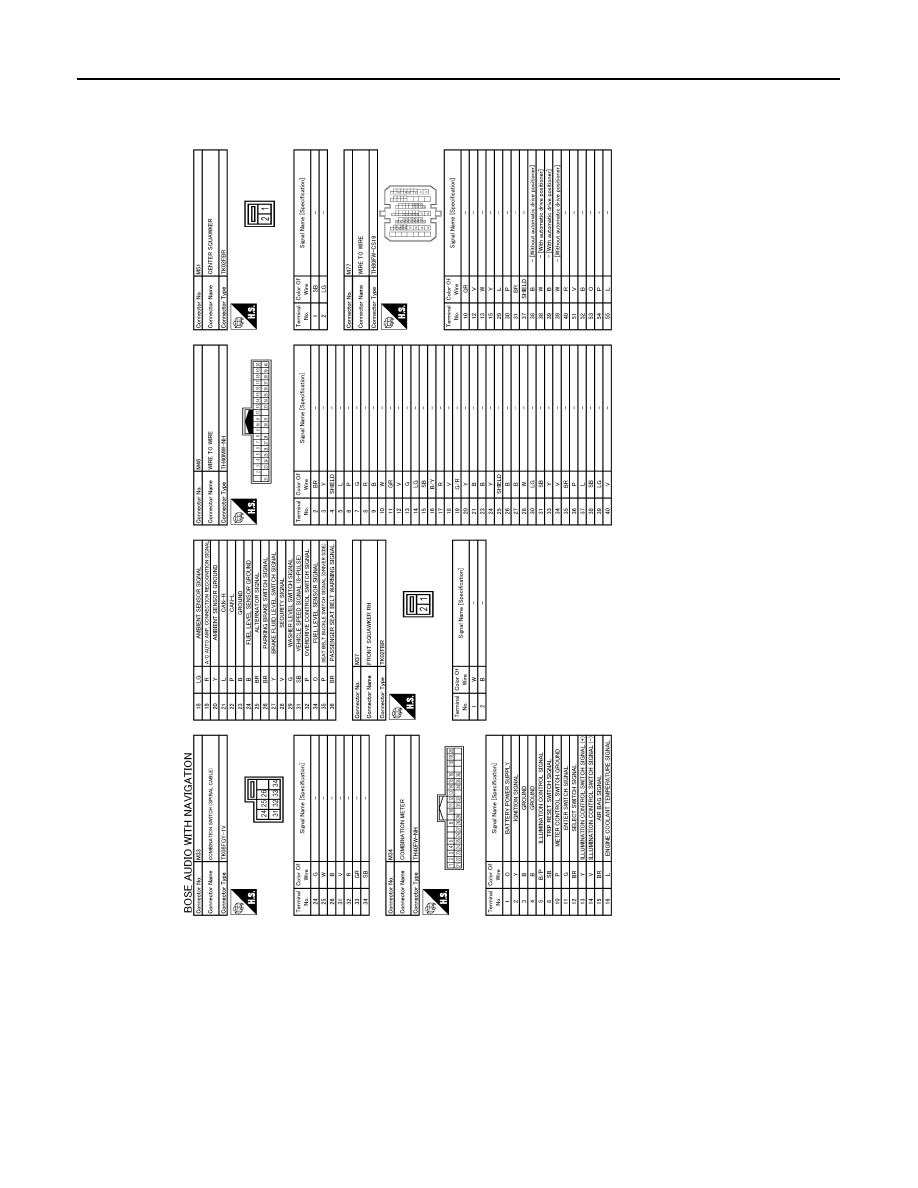

JRNWC6798GB
