Nissan Quest E52. Manual - part 155

AV

BOSE AUDIO WITH NAVIGATION

AV-499

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

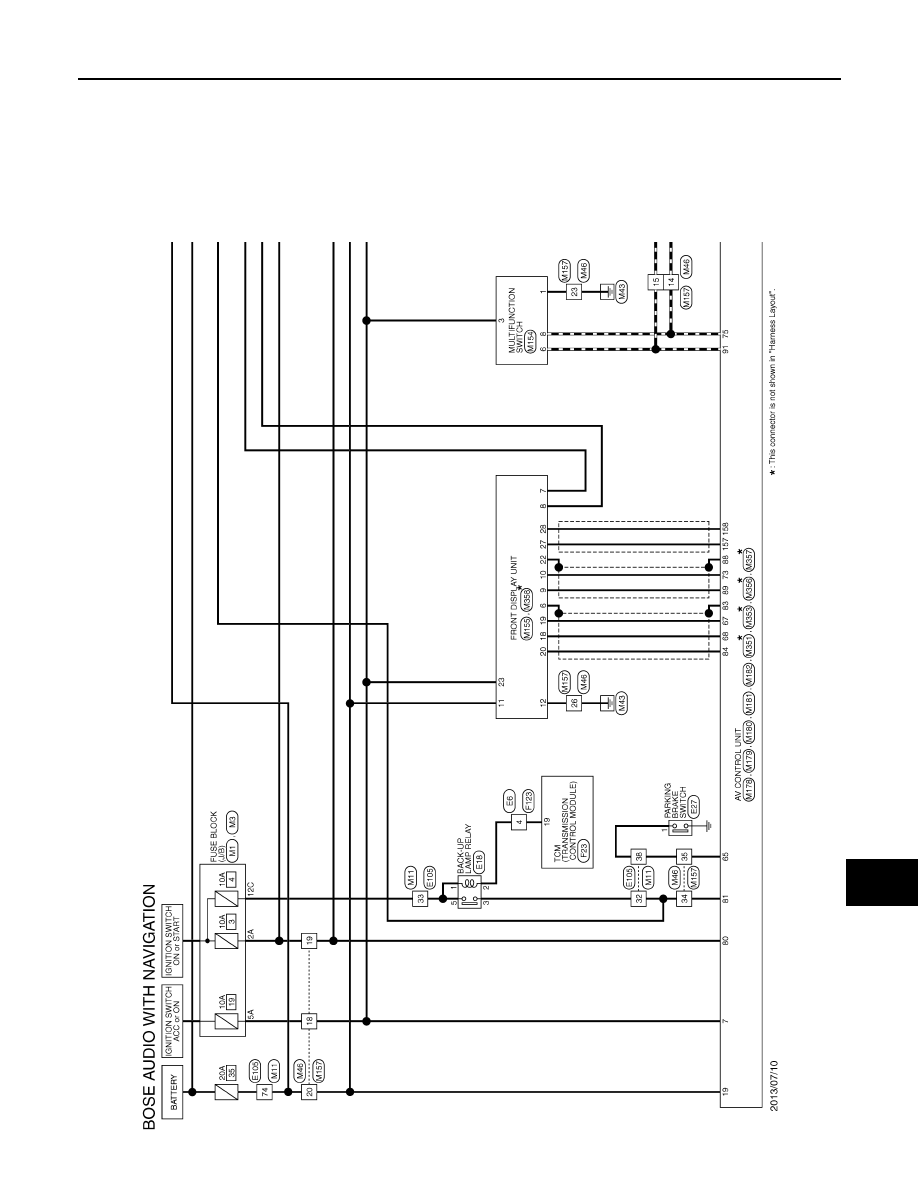

WIRING DIAGRAM

BOSE AUDIO WITH NAVIGATION

Wiring Diagram

INFOID:0000000009652287

NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

JRNWC6783GB

AV-500

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

BOSE AUDIO WITH NAVIGATION

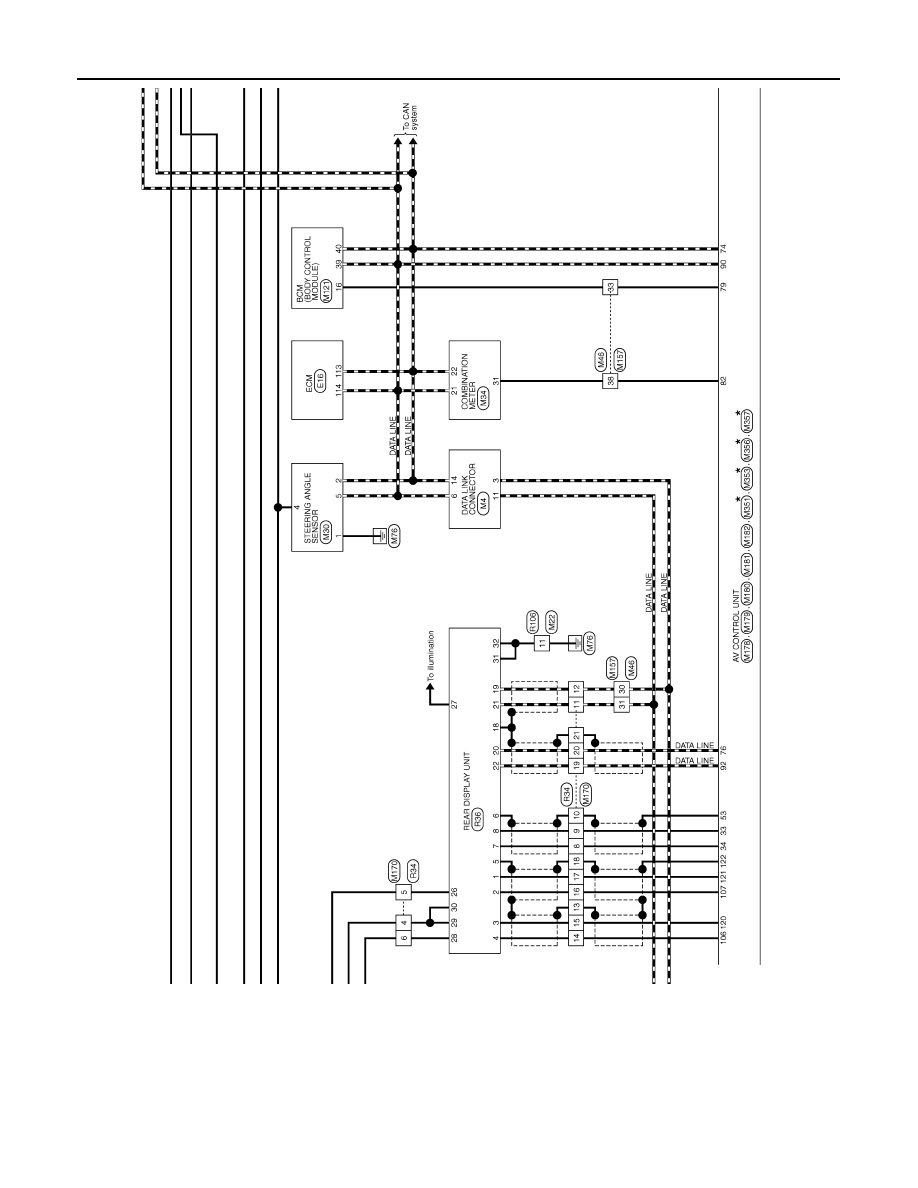

JRNWC6784GB

AV

BOSE AUDIO WITH NAVIGATION

AV-501

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

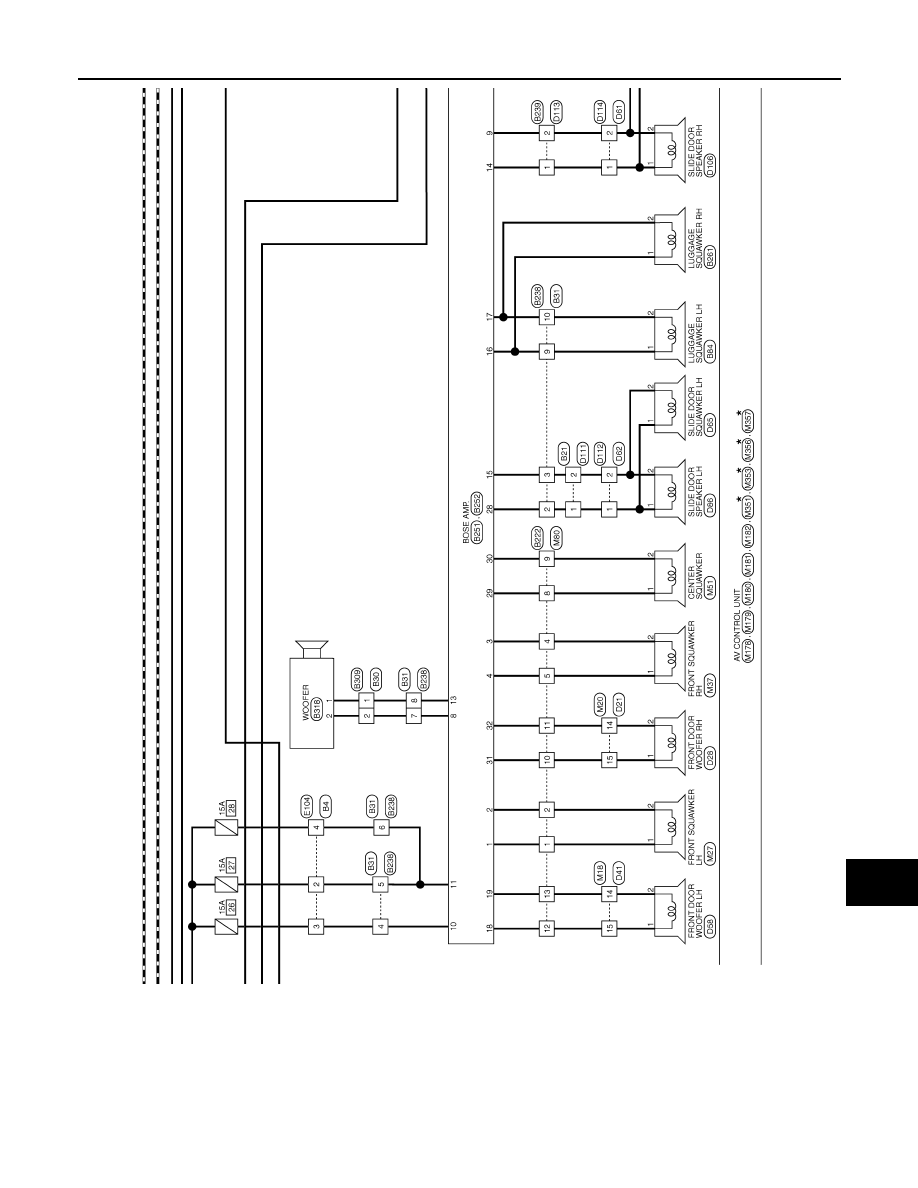

JRNWC6785GB

AV-502

< WIRING DIAGRAM >

[BOSE AUDIO WITH NAVIGATION]

BOSE AUDIO WITH NAVIGATION

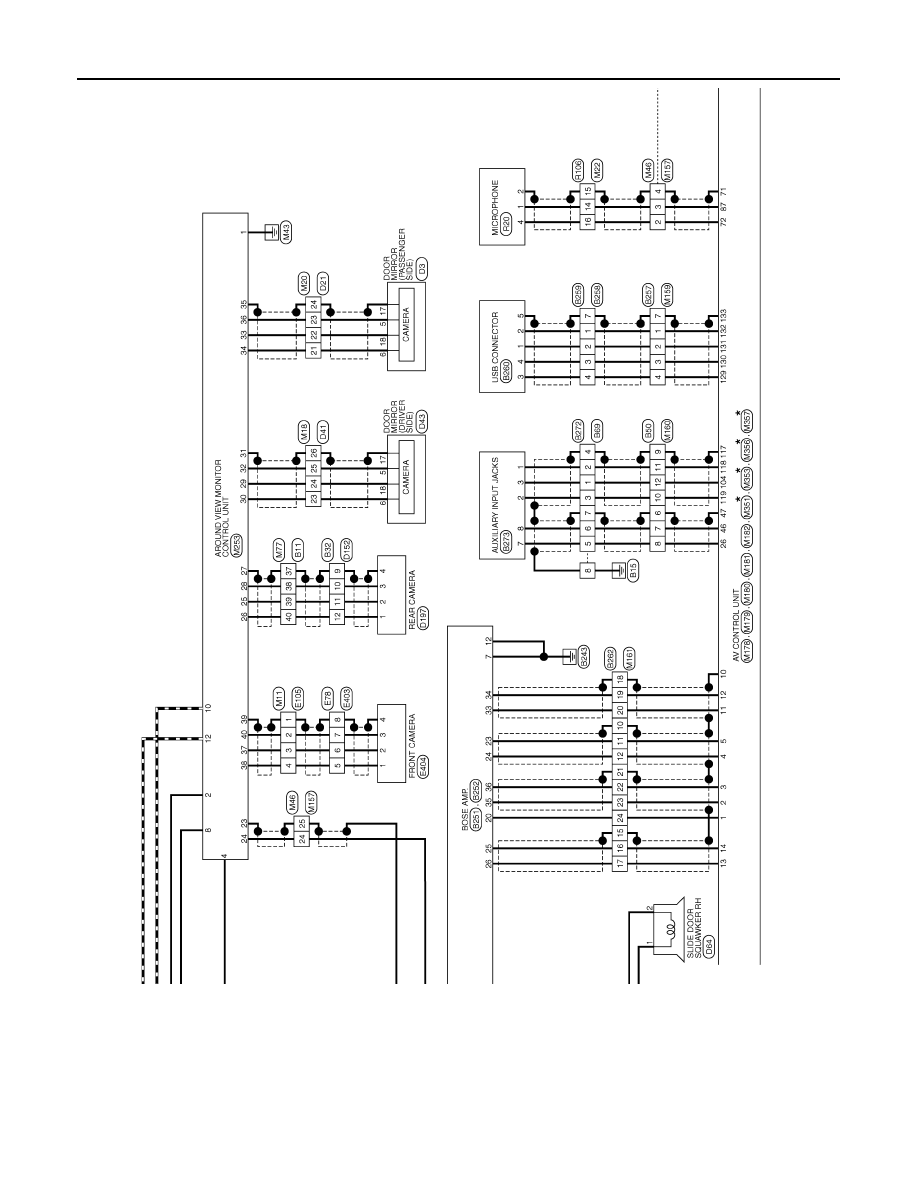

JRNWC6786GB
