Nissan Quest E52. Manual - part 1270
SYSTEM
WW-13
< SYSTEM DESCRIPTION >
C
D
E
F
G
H
I
J
K
M
A
B
WW
N
O
P
• BCM supplies power to the rear wiper motor according to the INT operating condition.
Rear wiper INT operating condition
- Ignition switch ON
- Rear wiper switch INT

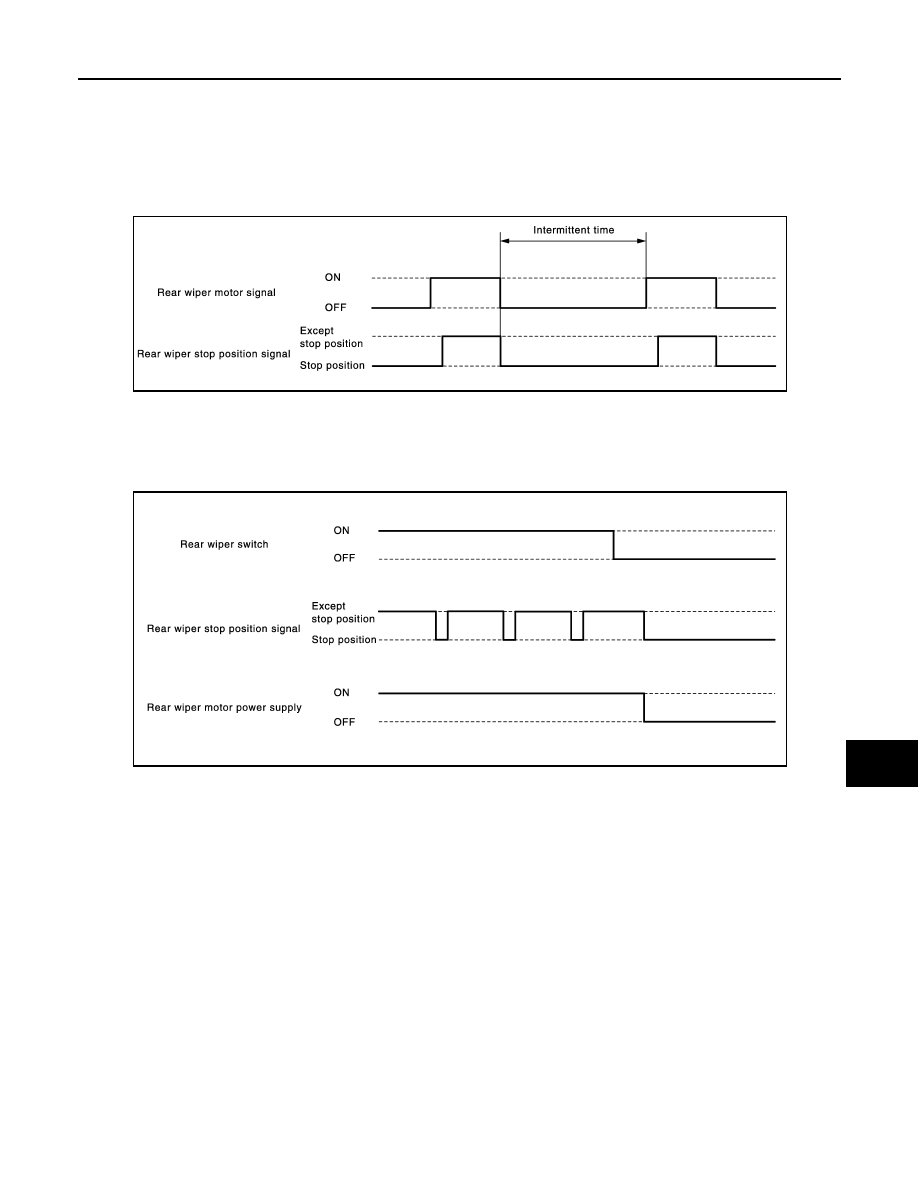

• BCM controls the rear wiper to operate once.
• BCM detects the rear wiper motor stopping position.
• BCM supplies power to the rear wiper motor after an intermittent from the stop of the rear wiper motor.
REAR WIPER AUTO STOP OPERATION
• BCM stops supplying power to the rear wiper motor when the rear wiper switch is turned OFF.
• BCM reads a rear wiper stop position signal from the rear wiper motor to detect a rear wiper motor position.
• When the rear wiper motor is at other than the stopping position, BCM continues to supply power to the rear
wiper motor until it returns to the stopping position.
NOTE:
BCM stops supplying power to the rear wiper motor when the ignition switch is turned OFF.
REAR WIPER OPERATION LINKED WITH WASHER
• BCM supplies power to the rear wiper motor according to the washer linked operating condition of rear
wiper. When the rear washer switch is turned OFF, BCM controls rear wiper to operate approximately 3
times.
Washer linked operating condition of rear wiper
- Ignition switch ON
- Rear washer switch ON (0.4 second or more)
• The washer pump is grounded through the combination switch with the rear washer switch ON.
JPLIA1258GB
JPLIA1259GB
