WT-48

< REMOVAL AND INSTALLATION >

TIRE PRESSURE SENSOR

TIRE PRESSURE SENSOR

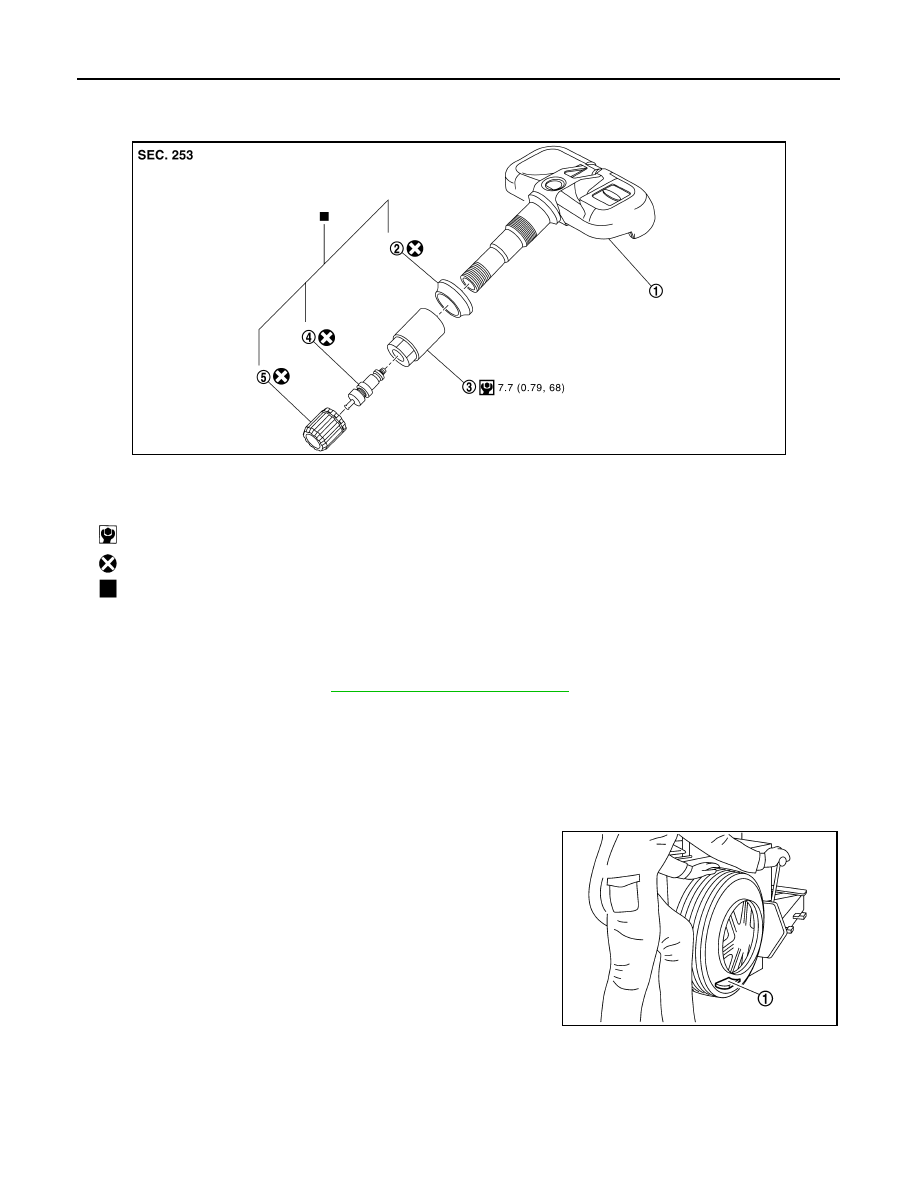

Exploded View

INFOID:0000000009653458

Removal and Installation

INFOID:0000000009653459

REMOVAL

1.

Remove tire assembly. Refer to

WT-46, "Removal and Installation"

.

2.

Remove valve cap, valve core and then deflate tire.
NOTE:
If the tire is reused, apply a matching mark to the position of the tire road wheel valve hole for the purpose
of wheel balance adjustment after installation.

3.

Remove valve nut retaining tire pressure sensor and allow tire pressure sensor to fall into tire.

4.

Use the tire changer and disengage the tire beads.

CAUTION:

• Verify that the tire pressure sensor (1) is at the bottom of

the tire while performing the above.

• Never damage the road wheel or tire pressure sensor.

5.

Apply bead cream or an equivalent to the tire beads.

6.

Set tire onto the tire changer turntable so that the tire pressure
sensor inside the tire is located close to the road wheel valve
hole.

JSEIA0698GB

1.

Tire pressure sensor

2.

Grommet seal

3.

Valve nut

4.

Valve core

5.

Valve cap

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

: Parts that are replaced as a set when the tire is replaced.

JPEIC0104ZZ

TIRE PRESSURE SENSOR

WT-49

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

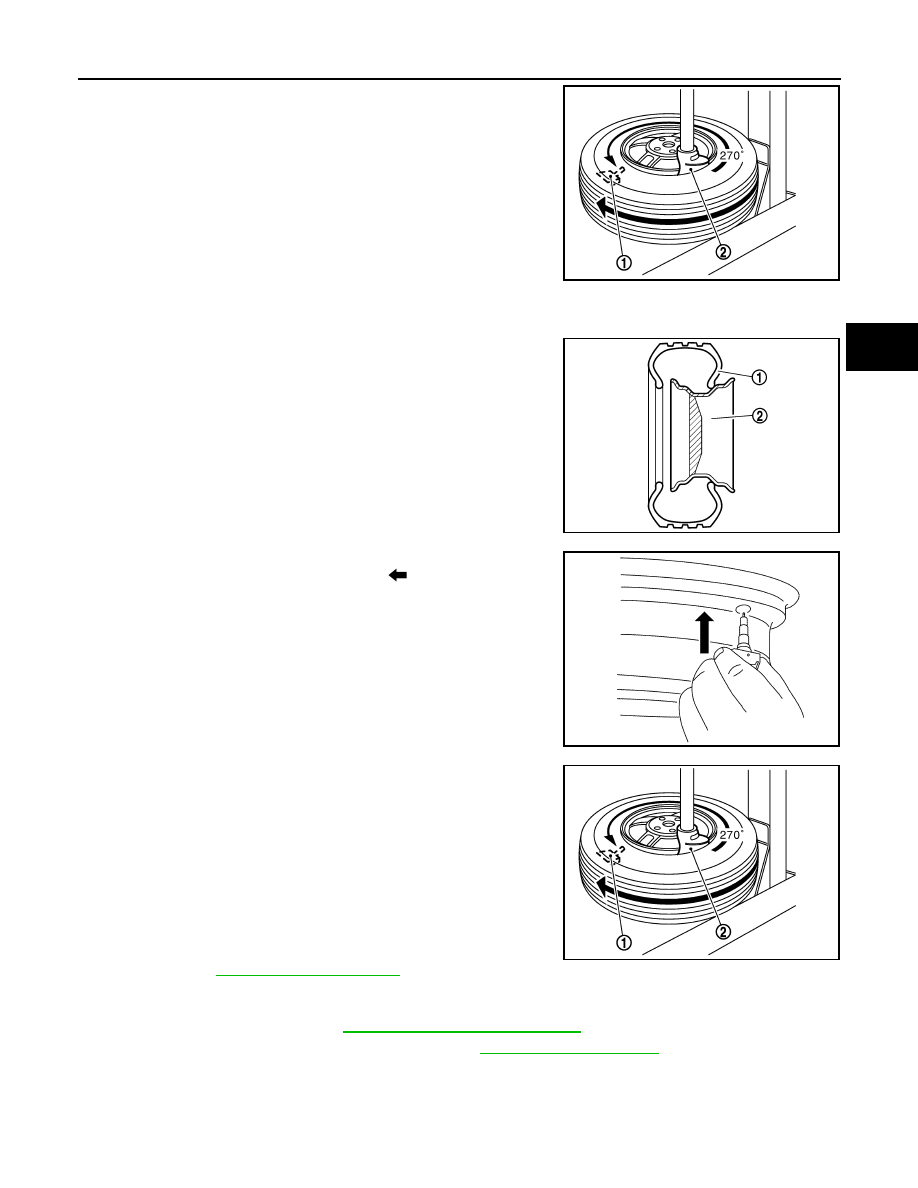

7.

Turn tire so that valve hole is at bottom and bounce so that tire
pressure sensor (1) is near valve hole. Carefully lift tire onto
turntable and position valve hole (and tire pressure sensor) 270
degree from mounting/dismounting head (2).

CAUTION:

Never damage the road wheel and tire pressure sensor.

8.

Remove tire pressure sensor from tire.

9.

Remove the grommet seal.

INSTALLATION

1.

Apply bead cream or an equivalent to the tire beads.

2.

Install the tire inside beads (1) onto the road wheel (2) in the
position shown in the figure.

3.

Install grommet seal to the tire pressure sensor.

CAUTION:

• Never reuse grommet seal.
• Insert grommet seal all the way to the base.

4.

Hold tire pressure sensor as shown in the figure, and press the
sensor in the direction shown by arrow (

) to bring it into abso-

lute contact with valve hole. After this, tighten valve nut to the
specified torque.

CAUTION:

• Never reuse valve core and valve cap.
• Check that grommet seal is free of foreign matter.
• Check that grommet seal contacts horizontally with road

wheel.

• Manually tighten valve nut all the way to the wheel. (Never

use a power tool to avoid impact.)

5.

Set the tire onto the turntable so that the tire changer arm (2) is
at a position approximately 270

°

 from the tire pressure sensor

(1).

CAUTION:

Be sure that the arm does not contact the tire pressure sen-
sor.

6.

Install the tire outer side beads onto the road wheel.

CAUTION:

When installing, check that the tire does not turn together
with the road wheel.

7.

Check the tire pressure for all wheels and adjust to the specified
value. Refer to

WT-51, "Tire Air Pressure"

.

NOTE:
Before adding air, align the tire with the position of the matching mark applied at the time of removal.

8.

Install tire to the vehicle. Refer to

WT-46, "Removal and Installation"

.

9.

Perform tire pressure sensor ID registration. Refer to

WT-23, "Work Procedure"

.

JPEIC0014GB

JPEIC0105ZZ

JSEIA0466GB

JPEIC0014GB

WT-50

< REMOVAL AND INSTALLATION >

TIRE PRESSURE RECEIVER

TIRE PRESSURE RECEIVER

Removal and Installation

INFOID:0000000009653460

REMOVAL

1.

Remove the remote keyless entry receiver. (The tire pressure receiver is incorporated into remote keyless
entry receiver.) Refer to

DLK-492, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

SERVICE DATA AND SPECIFICATIONS (SDS)

WT-51

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000009653461

ALUMINUM WHEEL

STEEL WHEEL

STEEL WHEEL (EMERGENCY)

Tire Air Pressure

INFOID:0000000009653462

Unit: kPa (kgf/cm

2

, psi)

Item

Limit

Runout

Axial runout

Less than 0.3 mm (0.012 in)

Radial runout

Allowable unbalance

Dynamic (At flange)

Less than 5 g (0.17 oz) (one side)

Static (At flange)

Less than 10 g (0.35 oz)

Item

Limit

Runout

Axial runout (Average)

Less than 0.8 mm (0.031 in)

Radial runout (Average)

Less than 0.5 mm (0.020 in)

Allowable unbalance

Dynamic (At flange)

Less than 5 g (0.17 oz) (one side)

Static (At flange)

Less than 10 g (0.35 oz)

Item

Limit

Runout

Axial runout (Average)

Less than 1.5 mm (0.059 in)

Radial runout (Average)

Item

Standard

Front

Rear

P225/65R16 99T

240 (2.4, 35)

P235/55R18 99T

240 (2.4, 35)

T135/80D16 101M

420 (4.2, 60)

T135/90D16 102M
