TM-58

< WIRING DIAGRAM >

[CVT: RE0F09B]

SHIFT LOCK SYSTEM

JRDWC1315GB

DIAGNOSIS AND REPAIR WORK FLOW

TM-59

< BASIC INSPECTION >

[CVT: RE0F09B]

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009650108

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using the question sheet. Refer to

TM-60, "Diagnostic Work Sheet"

>> GO TO 2.

CHECK SYMPTOM 1

Check the following items based on the information obtained from the customer.
• Fail-safe. Refer to

TM-45, "Fail-safe"

• CVT fluid inspection. Refer to

TM-149, "Inspection"

• Line pressure test. Refer to

TM-65, "Work Procedure"

• Stall test. Refer to

TM-64, "Work Procedure"

>> GO TO 3.

CHECK DTC

Check DTC.

Perform the following procedure if DTC is detected.

• Record DTC.
• Erase DTC.

Is any DTC detected?

YES

>> GO TO 4.

>> GO TO 5.

PERFORM DIAGNOSTIC PROCEDURE

Perform “Diagnostic Procedure” for the displayed DTC. Repair detected items.

>> GO TO 5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform “DTC CONFIRMATION PROCEDURE” for the displayed DTC.

Is DTC detected?

YES

>> GO TO 4.

>> GO TO 6.

CHECK SYMPTOM 2

Confirm the symptom described by the customer.
Is any malfunction present?

YES

>> GO TO 7.

>> INSPECTION END

ROAD TEST

Perform “ROAD TEST”. Refer to

TM-67, "Description"

>> GO TO 8.

CHECK SYMPTOM 3

Confirm the symptom described by the customer.
Is any malfunction present?

YES

>> GO TO 2.

TM-60

< BASIC INSPECTION >

[CVT: RE0F09B]

DIAGNOSIS AND REPAIR WORK FLOW

>> INSPECTION END

Diagnostic Work Sheet

INFOID:0000000009650109

DESCRIPTION

There are many operating conditions that may cause a malfunction
of the transmission parts. By understanding those conditions prop-
erly, a quick and exact diagnosis can be achieved.
In general, perception of a problem varies depending on individuals.
Ask the customer about his/her concerns carefully. It is important to
understand the phenomenon or status. To systemize all the informa-
tion for the diagnosis, prepare the question sheet referring to the
question points.
In some cases, multiple conditions that appear simultaneously may
cause a DTC to be detected.

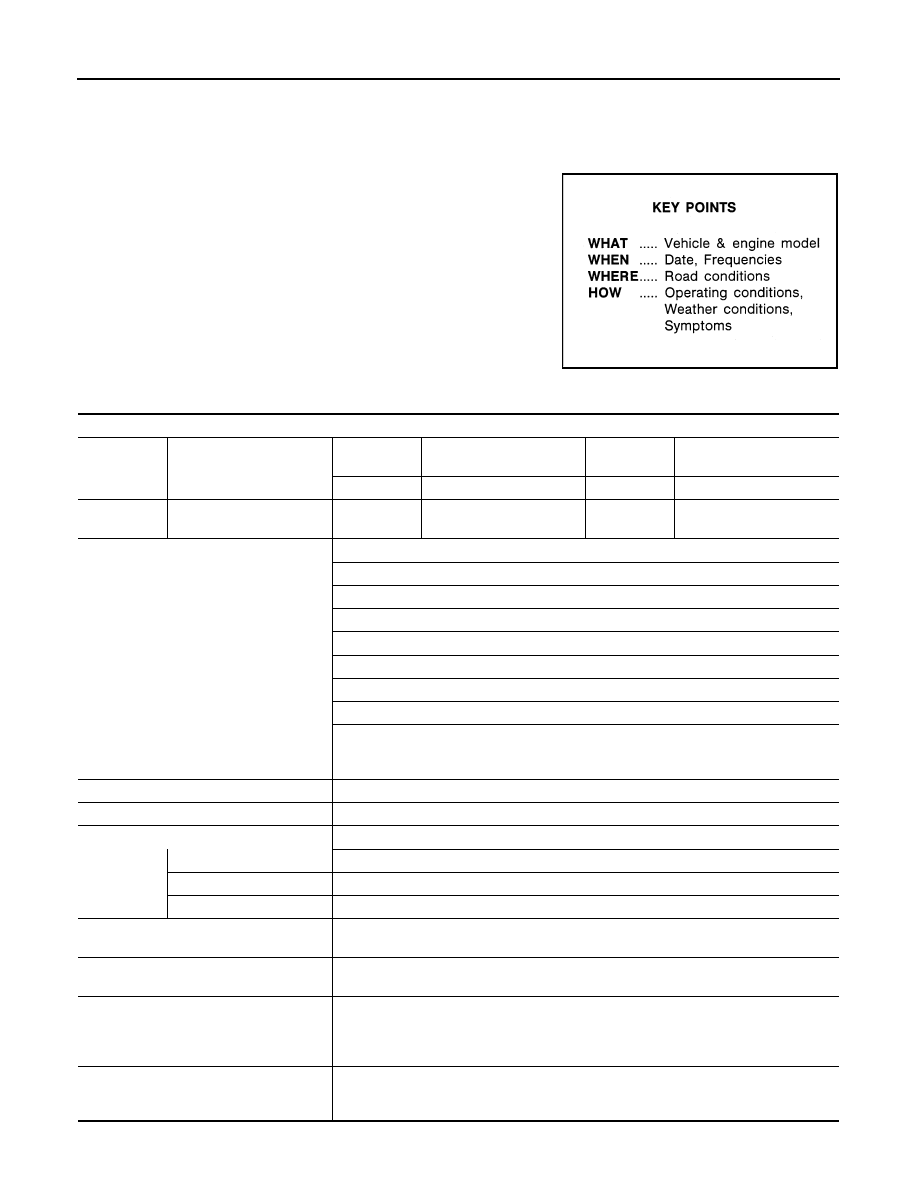

WORKSHEET SAMPLE

SEF907L

Question sheet

Customer's
name

MR/MS

Registration
number

Initial year
registration

Year

Month

day

Vehicle type

Chassis No.

Storage date

Year

Month

day

Engine

Mileage

km/MPH

Symptom

Vehicle does not drive. (

R position

D position

L position)

Upshifting does not occur.

Downshifting does not occur.

Lock-up malfunction

Shift point is too high.

Shift point is too low.

Shift shock (

⇒

Lock-up

R, D, and L position)

Slip (

⇒

Lock-up

R, D, and L position)

Noise

Vibration

When selector lever position is shifted, shift pattern does not change.

Other

First occurrence

Recently (as from month

of year

)

Frequency of occurrence

Always

Under certain conditions

Sometimes (

time(s)/day)

Climate conditions

Irrelevant

Weather

Clear

Cloud

Rain

Snow

Others (

)

Temperature

Hot

Warm

Cool

Cold

Temperature (Approx.

Relative humidity

High

Moderate

Low

Transaxle condition

In cold-start

During warm-up (approx.

After warm-up

Engine speed:

rpm

Road conditions

Urban area

Suburb area

Highway

Mountainous road (uphill or downhill)

Operating condition, etc.

Irrelevant

When engine starts

During idling

During driving

During acceleration

At constant speed driving

During deceleration

During cornering (RH curve or LH curve)

Other conditions

ADDITIONAL SERVICE WHEN REPLACING TCM

TM-61

< BASIC INSPECTION >

[CVT: RE0F09B]

ADDITIONAL SERVICE WHEN REPLACING TCM

Description

INFOID:0000000009650110

When replacing the TCM, perform the following work.

LOADING AND STORING OF CALIBRATION DATA

• The TCM acquires calibration data (individual characteristic value) of each solenoid that is stored in the

ROM assembly (in the control valve). This enables the TCM to perform accurate control. After the TCM is
replaced, check that the calibration data is correctly loaded and stored.

CAUTION:

When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then
replace TCM.
If the TCM is replaced in advance, perform “ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE
ASSEMBLY”. Refer to

TM-62, "Description"

Procedure

INFOID:0000000009650111

CAUTION:

Immediately after TCM is replaced or after control valve or transaxle assembly is replaced (after TCM
initialization is complete), self-diagnosis result of “P1701”, “P1709” may be displayed. In this case,
erase self-diagnosis result using CONSULT. After erasing self-diagnosis result, perform DTC P1701,
P1709 reproduction procedure and check that malfunction is not detected. Refer to

TM-114, "DTC

Logic"

(P1701),

TM-118, "DTC Logic"

(P1709).

LOAD CALIBRATION DATA

Shift the selector lever to the “P” position.

Turn ignition switch ON.

Check that “P” is displayed on shift position indicator on combination meter.
NOTE:
Displayed approximately 1 – 2 seconds after the selector lever is moved to the “P” position.

Does the shift position indicator display “P”?

YES

>> GO TO 3.

>> GO TO 2.

DETECT MALFUNCTIONING ITEM

Check the following items:
• Harness between the TCM and the ROM assembly inside the transaxle assembly is open or shorted.
• Disconnected, loose, bent, collapsed, or otherwise abnormal connector housing terminals
Is the inspection result normal?

YES

>> GO TO 1.

>> Repair or replace the malfunctioning parts.

STORE CALIBRATION DATA

Turn ignition switch OFF and wait for 5 seconds.

Turn ignition switch ON.

Does the shift position indicator display “P” at the same time when turning ON the ignition switch?

YES

>> WORK END

>> Check harness between battery and TCM harness connector terminal. Refer to

TM-114, "Diagno-

sis Procedure"
