SRS AIR BAG SYSTEM

SRC-37

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

JRHWC0971GB

SRC-38

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

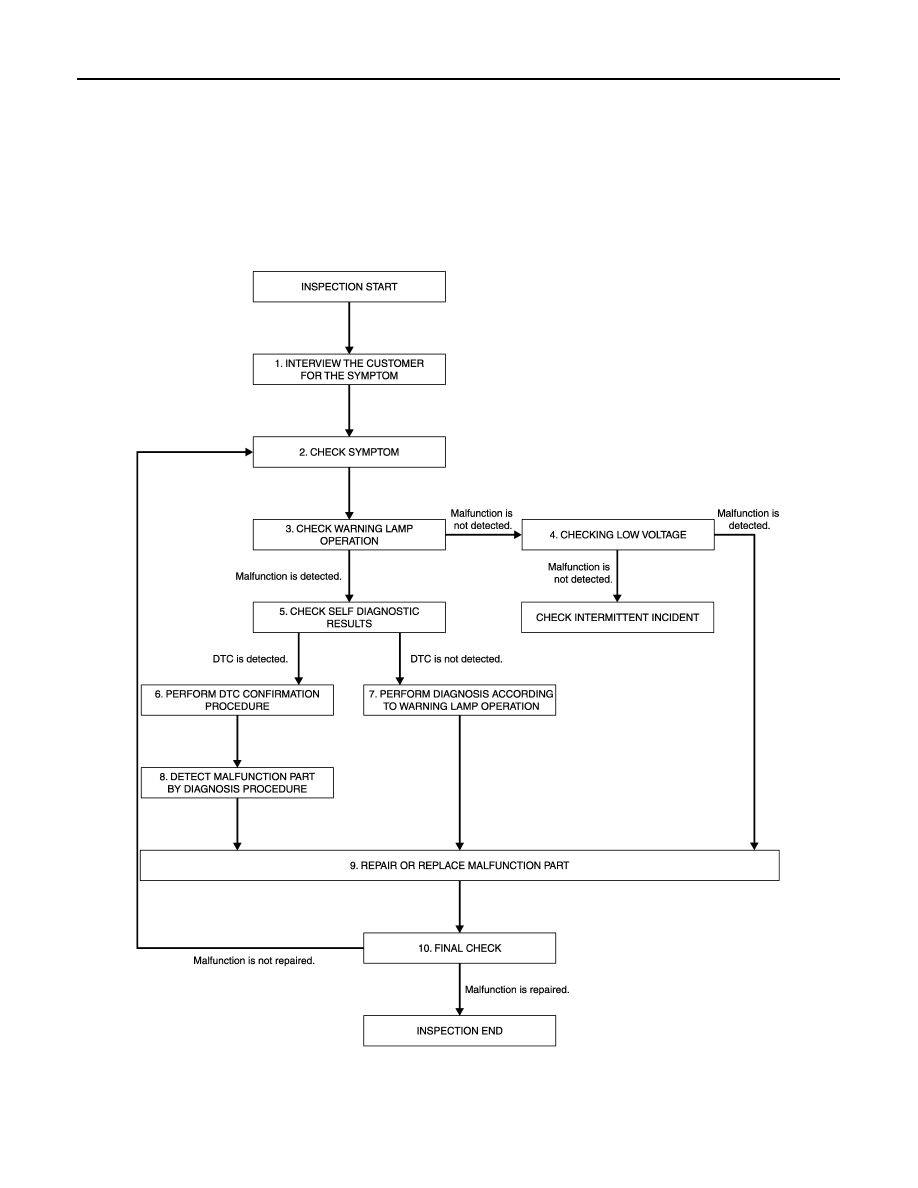

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009649850

OVERALL SEQUENCE

DETAILED FLOW

JMHIA1324GB

DIAGNOSIS AND REPAIR WORK FLOW

SRC-39

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

1.

INTERVIEW THE CUSTOMER FOR THE SYMPTOM

Interview the customer for the symptom (the condition and the environment when the incident/malfunction
occurs).

>> GO TO 2.

2.

CHECK SYMPTOM

Check the symptom from the customer information.

>> GO TO 3.

3.

CHECK WARNING LAMP OPERATION

Check air bag warning lamp operation in the user mode. Refer to

SRC-15, "On Board Diagnosis Function"

.

Are any malfunction detected?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

CHECK LOW VOLTAGE

Check low voltage with CONSULT. Refer to

SRC-19, "CONSULT Function"

.

Are any malfunction detected?

YES

>> GO TO 9.

NO

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

5.

CHECK SELF DIAGNOSTIC RESULTS

Check self diagnostic result with CONSULT or diagnosis mode.
If it is impossible to switch to diagnosis mode, follow the same procedure that DTC is not detected.
NOTE:
Perform the following procedure if DTC is detected.
• Record DTC (Print them out with CONSULT.)
• Erase self diagnostic result.
• Study the relationship between the malfunction that DTC or air bag warning lamp indicates and the symptom

that the customer describes.

• Check related service bulletins for information.
Is DTC detected?

YES

>> GO TO 6.

NO

>> GO TO 7.

6.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC CONFIRMATION PROCEDURE for the DTC.

>> GO TO 8.

7.

PERFORM DIAGNOSIS ACCORDING TO WARNING LAMP OPERATION

1.

Check air bag warning lamp operation in the user mode. Refer to

SRC-15, "On Board Diagnosis Func-

tion"

.

2.

Perform Diagnosis Procedure for the air bag warning lamp operation. Refer to

SRC-15, "On Board Diag-

nosis Function"

 (USER MODE).

>> GO TO 9.

8.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the DTC.

>> GO TO 9.

9.

REPAIR OR REPLACE THE MALFUNCTION PART

SRC-40

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

FINAL CHECK

Check self diagnostic result and air bag warning lamp operation in the user mode.
Is the malfunction repaired?

YES

>> INSPECTION END

NO

>> GO TO 2.
