Nissan Quest E52. Manual - part 1094





SEC-66

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2196 DONGLE UNIT

B2196 DONGLE UNIT

Description

INFOID:0000000009650724

BCM performs ID verification between BCM and dongle unit.
When verification result is OK, BCM permits cranking.

DTC Logic

INFOID:0000000009650725

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON.

2.

Turn ignition switch OFF.

3.

Turn ignition switch ON.

4.

Check DTC in “Self-diagnosis result” mode of “BCM” using CONSULT.

Is the DTC detected?

YES

>> Refer to

SEC-66, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009650726

1.

PERFORM INITIALIZATION

1.

Perform initialization of BCM and registration of all Intelligent Keys using CONSULT.

2.

Start the engine.

Dose the engine start?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK DONGLE UNIT CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and dongle unit connector.

3.

Check continuity between BCM harness connector and dongle unit harness connector.

4.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK DONGLE UNIT GROUND CIRCUIT

Check continuity between dongle unit harness connector and ground.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B2196

DONGLE NG

The ID verification results between BCM
and dongle unit is NG.

• Harness or connectors

(Dongle unit circuit is open or shorted.)

• Dongle unit

BCM

Dongle unit

Continuity

Connector

Terminal

Connector

Terminal

M121

24

M130

7

Existed

BCM

Ground

Continuity

Connector

Terminal

M121

24

Not existed

B2196 DONGLE UNIT

SEC-67

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> Replace dongle unit.

NO

>> Repair or replace harness.

Dongle unit

Ground

Continuity

Connector

Terminal

M130

1

Existed

SEC-68

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

B2198 NATS ANTENNA AMP.

B2198 NATS ANTENNA AMP.

DTC Logic

INFOID:0000000009650727

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Make the conditions that BCM enters in the low power consumption mode (BCM sleep condition).
Refer to

BCS-13, "POWER CONSUMPTION CONTROL SYSTEM : System Description"

.

2.

Turn ignition switch ON.

3.

Check DTC in “Self Diagnostic Result” mode of “BCM” using CONSULT.

Is DTC detected?

YES

>> Go to

SEC-68, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009650728

1.

CHECK FUSE

1.

Turn ignition switch OFF.

2.

Check that the following fuse in IPDM E/R is not blown.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after repairing the cause of blowing.

2.

CHECK NATS ANTENNA AMP. POWER SUPPLY

1.

Disconnect NATS antenna amp. connector.

2.

Check voltage between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK NATS ANTENNA AMP. POWER SUPPLY CIRCUIT

1.

Disconnect IPDM E/R connector.

2.

Check continuity between IPDM E/R harness connector and NATS antenna amp. connector.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B2198

NATS ANTENNA AMP

Inactive communication between NATS
antenna amp. and BCM is detected when
BCM enters in the low power consumption
mode (BCM sleep condition)

• Harness or connectors

(NATS antenna amp. circuit is open or
shorted.)

• NATS antenna amp.
• IPDM E/R
• BCM

Signal name

Fuse No.

Battery power supply

50 (15 A)

(+)

(–)

Voltage (V)

NATS antenna amp.

Connector

Terminal

M26

1

Ground

6 - 16

IPDM E/R

NATS antenna amp.

Continuity

Connector

Terminal

Connector

Terminal

F12

55

M26

1

Existed

B2198 NATS ANTENNA AMP.

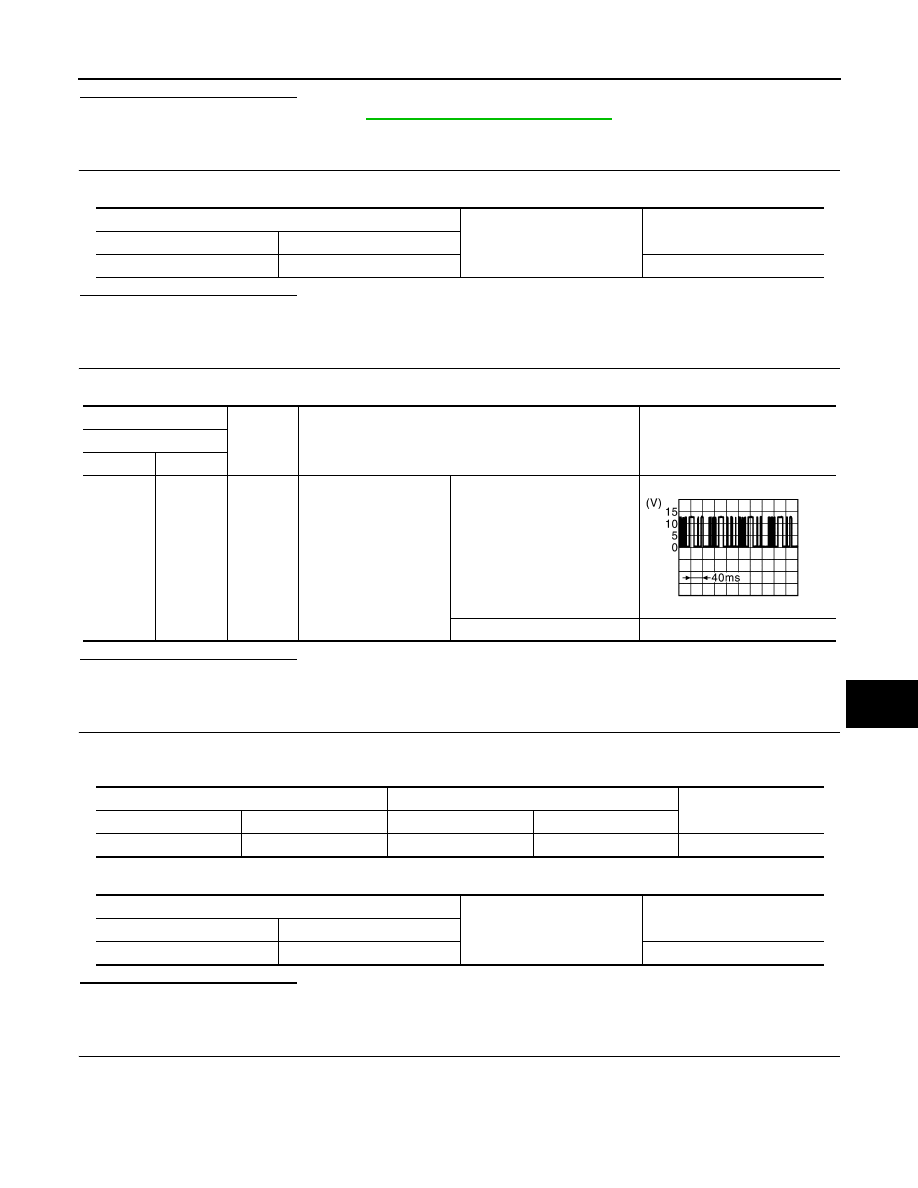

SEC-69

< DTC/CIRCUIT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-36, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

CHECK NATS ANTENNA AMP. GROUND CIRCUIT

Check continuity between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 1

Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

CHECK NATS ANTENNA AMP. OUTPUT SIGNAL CIRCUIT 1

1.

Disconnect BCM connector.

2.

Check continuity between NATS antenna amp. connector and BCM harness connector.

3.

Check continuity between BNATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace harness.

7.

CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 2

Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.

NATS antenna amp.

Ground

Continuity

Connector

Terminal

M26

4

Existed

(+)

(–)

Condition

Voltage (V)

NATS antenna amp.

Connector

Terminal

M26

2

Ground

Intelligent Key: Intelligent
Key battery is removed

Brake pedal: Depressed
NOTE:
Waveform varies each time
when brake pedal is depressed

Brake pedal: Released

9 - 16

JMKIA6232JP

NATS antenna amp.

BCM

Continuity

Connector

Terminal

Connector

Terminal

M26

2

M121

21

Existed

NATS antenna amp.

Ground

Continuity

Connector

Terminal

M26

2

Not existed
