Nissan Quest E52. Manual - part 1087





SEC-38

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (IPDM E/R)

ACTIVE TEST

Test item

ST/INHI RLY
[Off/ ST /INHI/UNKWN]

Displays the status of the starter relay and starter control relay judged by IPDM E/R.

DETENT SW
[Off/On]

Displays the status of the CVT shift selector (detention switch) judged by IPDM E/R.

S/L RLY -REQ
[Off/On]

NOTE:
The item is indicated, but not monitored.

S/L STATE
[LOCK/UNLK/UNKWN]

NOTE:
The item is indicated, but not monitored.

DTRL REQ
[Off/On]

Displays the status of the daytime running light request signal received from BCM via
CAN communication.
NOTE:
This item is monitored only on the vehicle with daytime running light system.

OIL P SW
[Open/Close]

Displays the status of the oil pressure switch judged by IPDM E/R.

HOOD SW
[Off/On]

NOTE:
The item is indicated, but not monitored.

HL WASHER REQ
[Off/On]

NOTE:
The item is indicated, but not monitored.

THFT HRN REQ
[Off/On]

Displays the status of the theft warning horn request signal received from BCM via
CAN communication.

HORN CHIRP
[Off/On]

Displays the status of the horn reminder signal received from BCM via CAN commu-
nication.

CRNRNG LMP REQ
[Off/On]

NOTE:
The item is indicated, but not monitored.

Monitor Item

[Unit]

MAIN SIG-

NALS

Description

Test item

Operation

Description

CORNERING LAMP

Off

NOTE:
The item is indicated, but cannot be tested.

LH

RH

HORN

On

Operates horn relay for 20 ms.

FRONT WIPER

Off

OFF

Lo

Operates the front wiper relay.

Hi

Operates the front wiper relay and front wiper high relay.

MOTOR FAN

1

OFF

2

Operates the cooling fan relay-1.

3

Operates the cooling fan relay-2.

4

Operates the cooling fan relay-2 and cooling fan relay-3.

HEAD LAMP WASHER

On

NOTE:
The item is indicated, but cannot be tested.

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay and the daytime running light relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 sec-
ond intervals.

Fog

Operates the front fog lamp relay.

ECM, IPDM E/R, BCM

SEC-39

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ECU DIAGNOSIS INFORMATION

ECM, IPDM E/R, BCM

List of ECU Reference

INFOID:0000000009650704

ECU

Reference

ECM

Reference Value

EC-79, "Reference Value"

Fail-safe

EC-92, "Fail-safe"

DTC Inspection Priority Chart

EC-94, "DTC Inspection Priority Chart"

DTC Index

EC-96, "DTC Index"

IPDM E/R

Reference Value

PCS-16, "Reference Value"

Fail-safe

PCS-23, "Fail-safe"

DTC Index

PCS-24, "DTC Index"

BCM

Reference Value

BCS-40, "Reference Value"

Fail-safe

BCS-62, "Fail-safe"

DTC Inspection Priority Chart

BCS-62, "DTC Inspection Priority Chart"

DTC Index

BCS-63, "DTC Index"

SEC-40

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

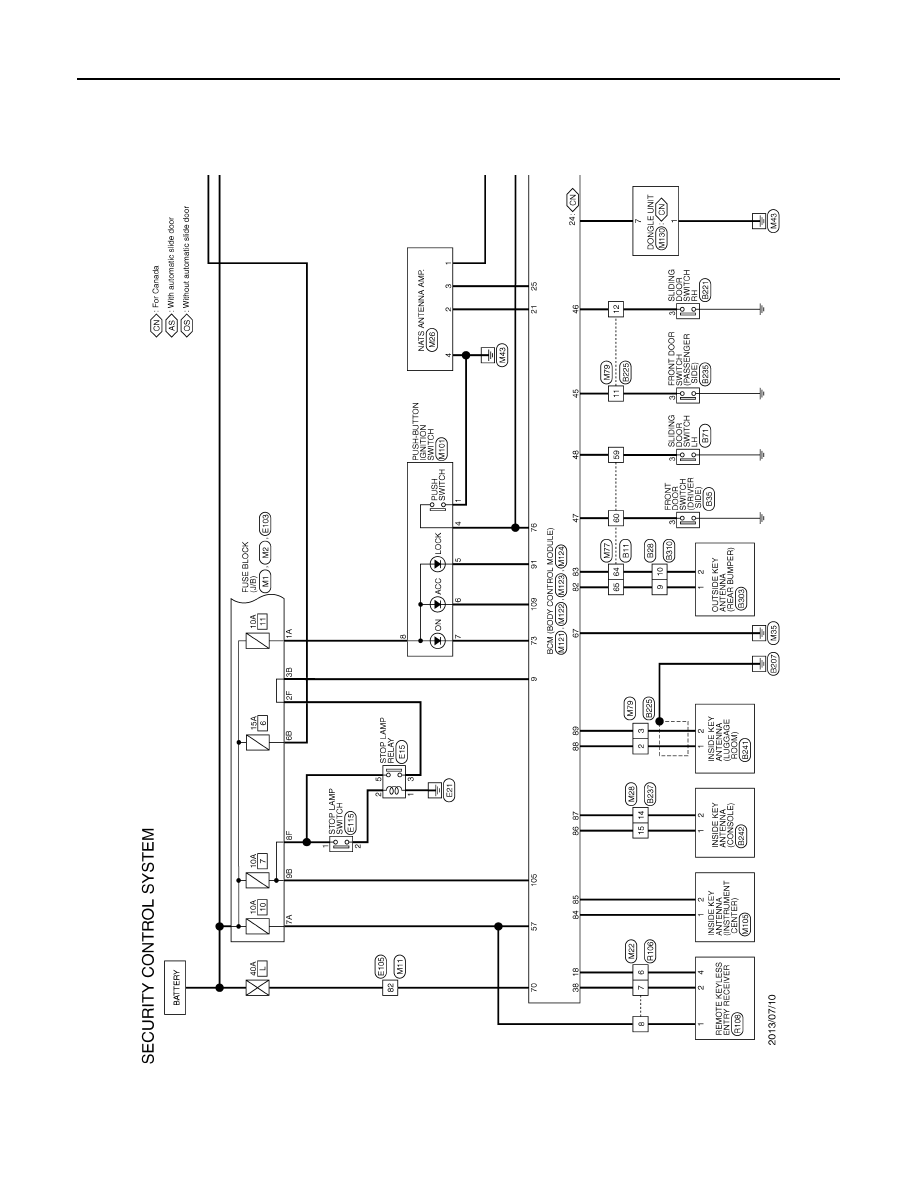

WIRING DIAGRAM

SECURITY CONTROL SYSTEM

Wiring Diagram

INFOID:0000000009650705

JRKWC6533GB

SECURITY CONTROL SYSTEM

SEC-41

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRKWC6534GB
