SEC-22

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

SYSTEM DESCRIPTION

• The vehicle security system has two alarm functions (theft warning alarm and panic alarm), and reduces the

possibility of a theft or mischief by activating horns and headlamps intermittently.

• The panic alarm does not start when the theft warning alarm is activating, and the panic alarm stops when

the theft warning alarm is activated.
The priority of the functions are as per the following.

THEFT WARNING ALARM

• The theft warning alarm function activates horn and headlamps intermittently when BCM detects that any

door is opened by unauthorized means, while the system is in the ARMED state.

• Security indicator lamp on combination meter always blinks when ignition switch is any position other than

ON. Security indicator lamp blinking warns that the vehicle is equipped with a vehicle security system.

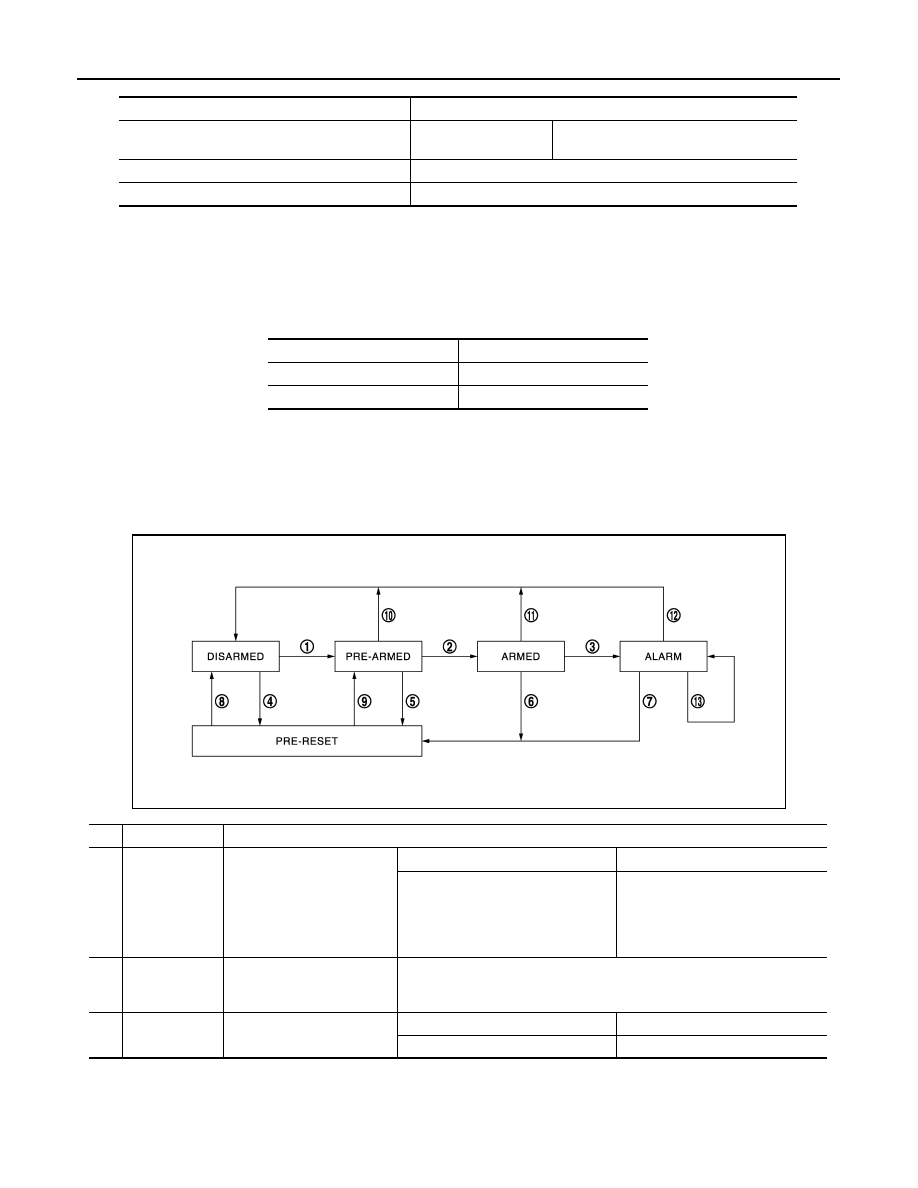

Operation Flow

Reception unit

Signal name

IPDM E/R

CAN communication

Theft warning horn request signal
High beam request signal

Combination meter

Security indicator lamp signal

Outside key antenna

Key ID request signal

Priority

Function

1

Theft warning alarm

2

Panic alarm

JMKIA5416GB

No.

System state

Switching condition

1

DISARMED to
PRE-ARMED

When all conditions of A and
one condition of B are satis-
fied.

A

B

• Ignition switch: OFF
• All doors: Closed

All doors are locked by:
• LOCK button of Intelligent Key
• Door request switch
• Door lock and unlock switch
• Door key cylinder LOCK switch

2

PRE-ARMED
to ARMED

When all of the following
conditions are satisfied for
30 seconds.

• Ignition switch: OFF
• All doors: Locked

3

ARMED to
ALARM

When condition A and condi-
tion B are satisfied.

A

B

Intelligent Key function: Not used

• Any door: Open

SYSTEM

SEC-23

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NOTE:

• To lock/unlock all doors by operating remote controller button of Intelligent Key or door request switch, Intelligent Key must be within

the detection area of outside key antenna. For details, refer to

DLK-40, "DOOR LOCK FUNCTION : System Description"

.

• To open back door by operating back door opener switch, Intelligent Key must be within the detection area of outside key antenna. For

details, refer to

DLK-42, "BACK DOOR OPEN FUNCTION : System Description"

.

DISARMED Phase

The vehicle security system is not set in the DISARMED phase. The vehicle security system stays in this
phase while any door is open, because it is assumed that the owner is inside or nearby the vehicle. Security
indicator lamp blinks every 2.4 seconds.
When the vehicle security system is reset, each phase switches to the DISARMED phase directly.

PRE-ARMED Phase

The PRE-ARMED phase is the transient state between the DISARMED phase and the ARMED phase. This
phase is maintained for 30 seconds, so that the owner can reset the setting due to a mis-operation. This phase
switches to the ARMED phase when vehicle conditions are not changed for 30 seconds. Security indicator
lamp illuminates while being in this phase.
To reset the PRE-ARMED phase, refer to the switching condition of No. 10 in the table above.

ARMED Phase

The vehicle security system is set, and BCM monitors all necessary inputs. If any door is opened without using
Intelligent Key function, vehicle security system switches to the ALARM phase. Security indicator lamp blinks
every 2.4 seconds.
To reset the ARMED phase, refer to the switching condition of No. 11 in the table above.

ALARM Phase

BCM transmits “Theft Warning Horn Request” signal and “High Beam Request” signal intermittently to IPDM
E/R via CAN communication. In this phase, horns and headlamps are activated intermittently for approxi-
mately 50 seconds to warn that the vehicle is accessed by unauthorized means. ON/OFF timing of horns and
headlamps are synchronized.
To cancel the ALARM operation, refer to the switching condition of No. 12 in the table above.

4

DISARMED to
PRE-RESET

No conditions.

5

PRE-ARMED
to PRE-RESET

6

ARMED to
PRE-RESET

7

ALARM to
PRE-RESET

8

PRE-RESET to
DISARMED

9

PRE-RESET to
PRE-ARMED

10

PRE-ARMED
to DISARMED

When one of the following
condition is satisfied.

• Ignition switch: ACC/ON
• UNLOCK button of Intelligent Key: ON
• BACK DOOR OPEN button of Intelligent Key: ON
• Door request switch: ON
• UNLOCK switch of door lock and unlock switch: ON
• Door key cylinder UNLOCK switch: ON
• Back door opener switch: ON
• Any door: Open

11

ARMED to
DISARMED

When one of the following
condition is satisfied.

• Ignition switch: ACC/ON
• UNLOCK button of Intelligent Key: ON
• BACK DOOR OPEN button of Intelligent Key: ON
• Door request switch: ON
• Door key cylinder UNLOCK switch: ON
• Back door opener switch: ON

12

ALARM to
DISARMED

13

RE-ALARM

When the following condition
is satisfied after the ALARM
operation is finished.

• Any door: Open

No.

System state

Switching condition

SEC-24

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

NOTE:
If a battery terminal is disconnected during the ALARM phase, theft warning alarm stops. But when the battery
terminal is reconnected, theft warning alarm is activated again.

REALARM Phase

When ALARM phase is maintained for 50 seconds without any cancel operation, the system status returns to
the ARMED phase. At this time, if BCM still detects unauthorized access to the vehicle, the system is switched
to the ALARM phase again. This REALARM operation is carried out a maximum of 2 times.

PRE-RESET Phase

The PRE-RESET phase is the transient state between each phase and DISARMED phase.
The PRE-RESET phase is not available for this models.

PANIC ALARM

• The panic alarm function activates horns and headlamps intermittently when the owner presses the PANIC

ALARM button of Intelligent Key outside the vehicle while the ignition switch is OFF.

• When BCM receives panic alarm signal from Intelligent Key, BCM transmits “Theft Warning Horn Request”

signal and “High Beam Request” signal intermittently to IPDM E/R via CAN communication. To prevent the
activation due to mis-operation of Intelligent Key by owner, the panic alarm function is activated when BCM
receives the signal for 0.4 - 0.6 seconds.

• Panic alarm operation is maintained for 25 seconds.
• Panic alarm operation is cancelled when BCM receives one of the following signals.
- LOCK button of Intelligent Key: ON
- UNLOCK button of Intelligent Key: ON
- BACK DOOR OPEN button of Intelligent Key: ON
- PANIC ALARM button of Intelligent Key: Long pressed
- Any door request switch: ON

SYSTEM

SEC-25

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

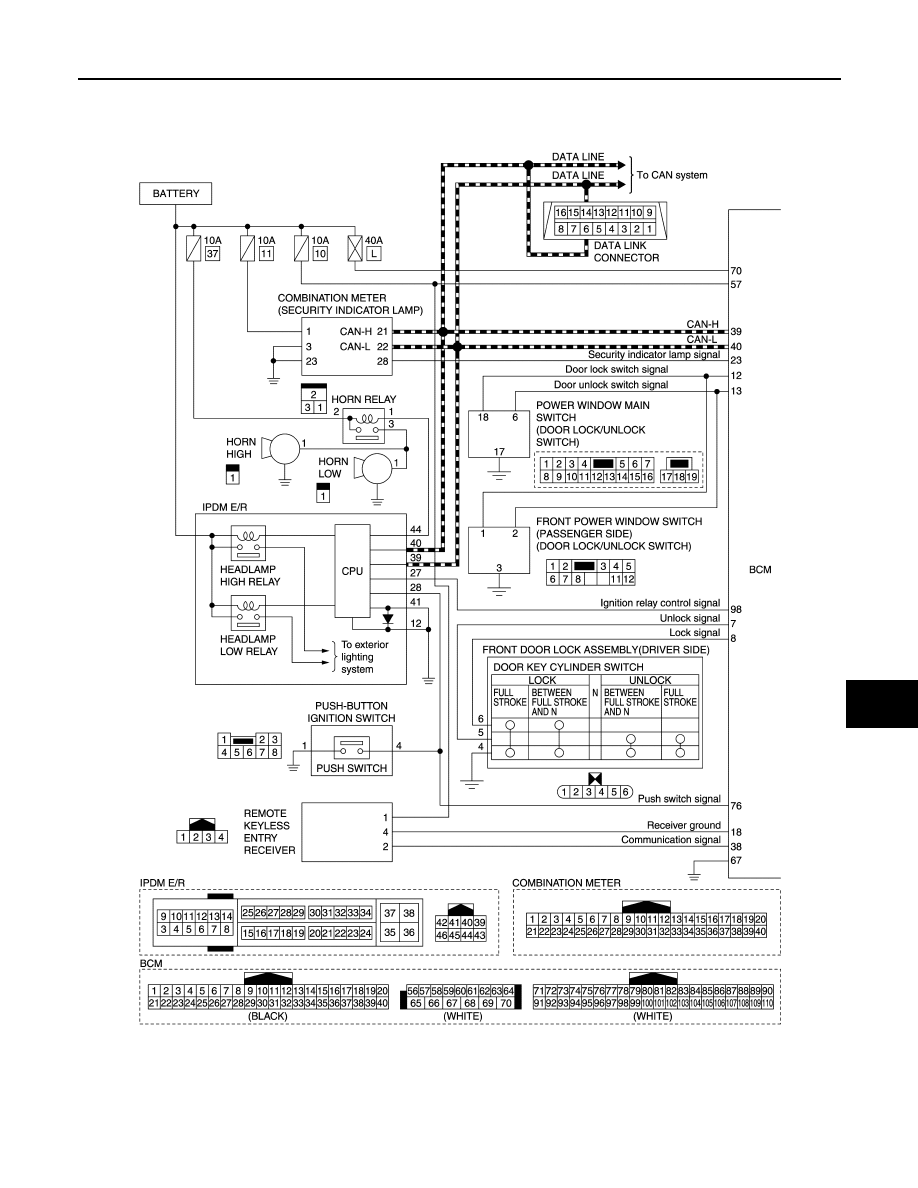

VEHICLE SECURITY SYSTEM : Circuit Diagram

INFOID:0000000009650698

MODELS WITHOUT AUTOMATIC SLIDE DOOR

JMKIA8242GB
