SEATBACK POWER FOLDING SYSTEM

SE-45

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

JRJWC2268GB

SE-46

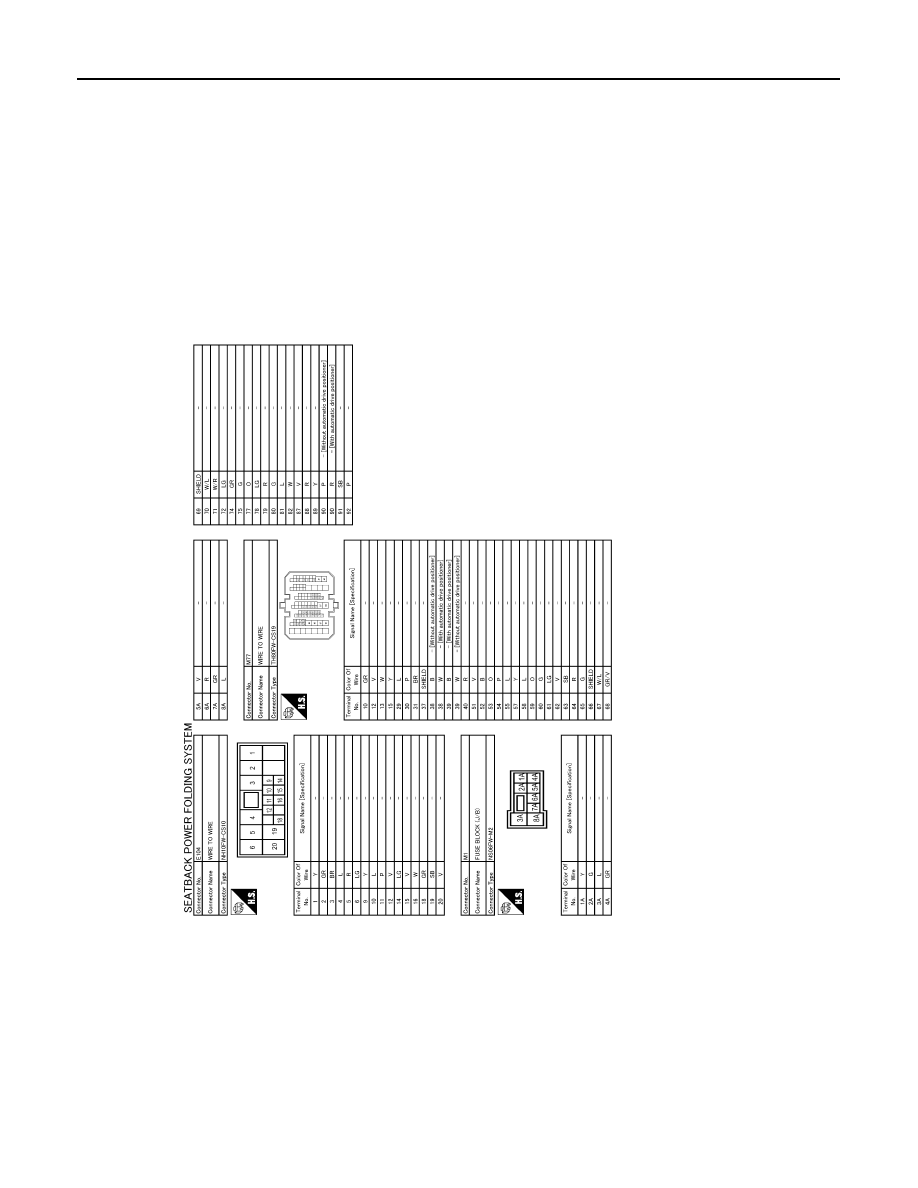

< WIRING DIAGRAM >

SEATBACK POWER FOLDING SYSTEM

JRJWC2269GB

DIAGNOSIS AND REPAIR WORK FLOW

SE-47

< BASIC INSPECTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009652947

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2.

2.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3.

3.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2 and then identify where to start per-
forming the diagnosis based on possible causes and symptoms.

>> GO TO 4.

4.

IDENTIFY THE MALFUNCTIONING PARTS WITH “DTC/CIRCUIT DIAGNOSIS”

Perform the diagnosis with “DTC/CIRCUIT DIAGNOSIS” of the applicable system.

>> GO TO 5.

5.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 6.

6.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 2.

Are the malfunctions corrected?

YES

>> INSPECTION END

NO

>> GO TO 3.

SE-48

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000009652948

1.

CHECK FUSE

Check that the following fuses are not fusing.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after repairing the affected circuit.

2.

CHECK POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect seatback power return control unit connector and seatback lock release actuator relay (LH
and RH) connector.

3.

Check voltage between seatback power return control unit harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK GROUND CIRCUIT

Check continuity between seatback power return control unit harness connector and ground.

Does continuity exist?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Signal name

Fuse No.

Battery power supply

9 (10 A)

33 (30 A)

(+)

(

−

)

Voltage  (V)

Seatback power return control unit

Connector

Terminal

B487

16

Ground

9 – 16

B488

17

Seatback power return control unit

Ground

Continuity

Connector

Terminal

B487

13

Existed

B488

32
