POWER SEAT CONTROL SYSTEM

SE-25

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PASSENGER SIDE

JRJWC2256GB

SE-26

< WIRING DIAGRAM >

POWER SEAT CONTROL SYSTEM

PASSENGER SIDE : Wiring Diagram

INFOID:0000000009652942

JCJWA1504GB

POWER SEAT CONTROL SYSTEM

SE-27

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

JRJWC2257GB

SE-28

< WIRING DIAGRAM >

POWER SEAT CONTROL SYSTEM

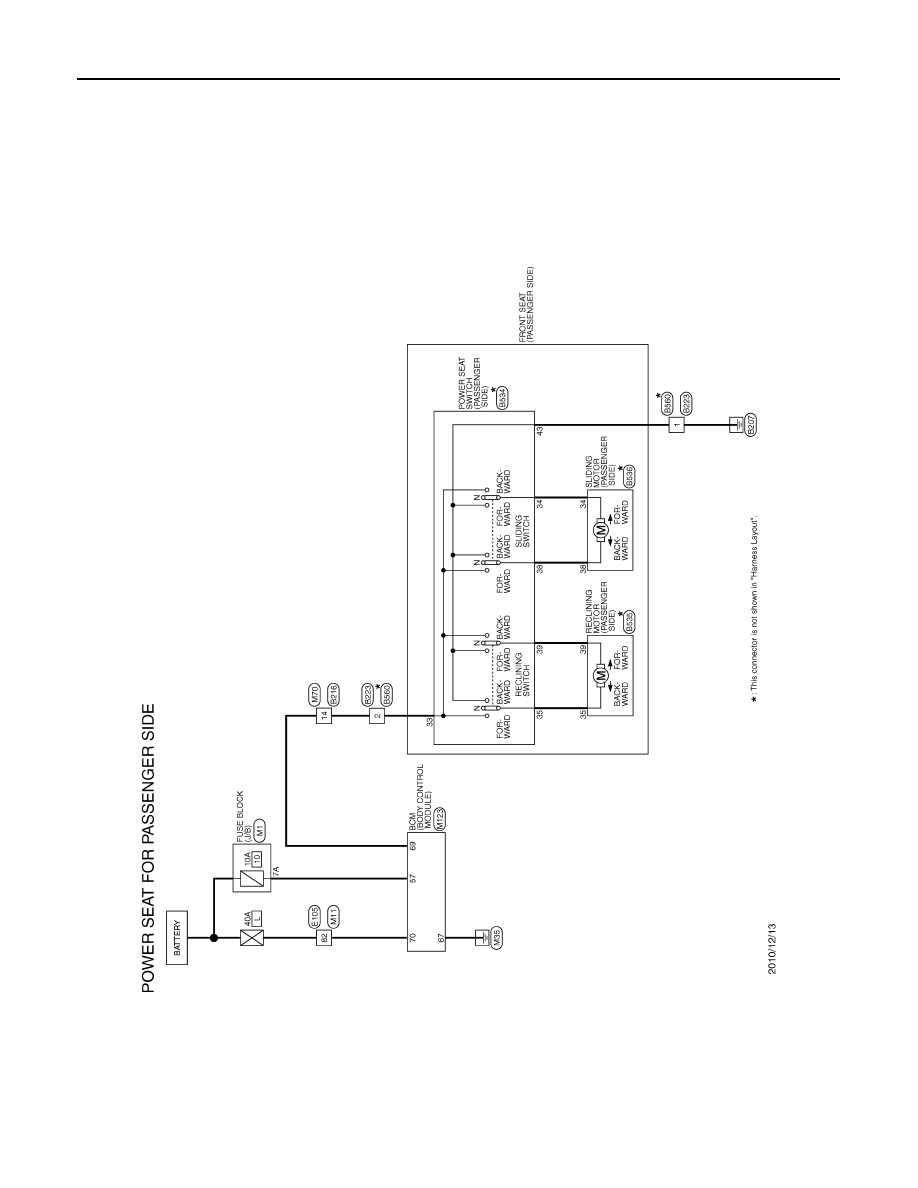

JRJWC2258GB
