COMPONENT PARTS

SE-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

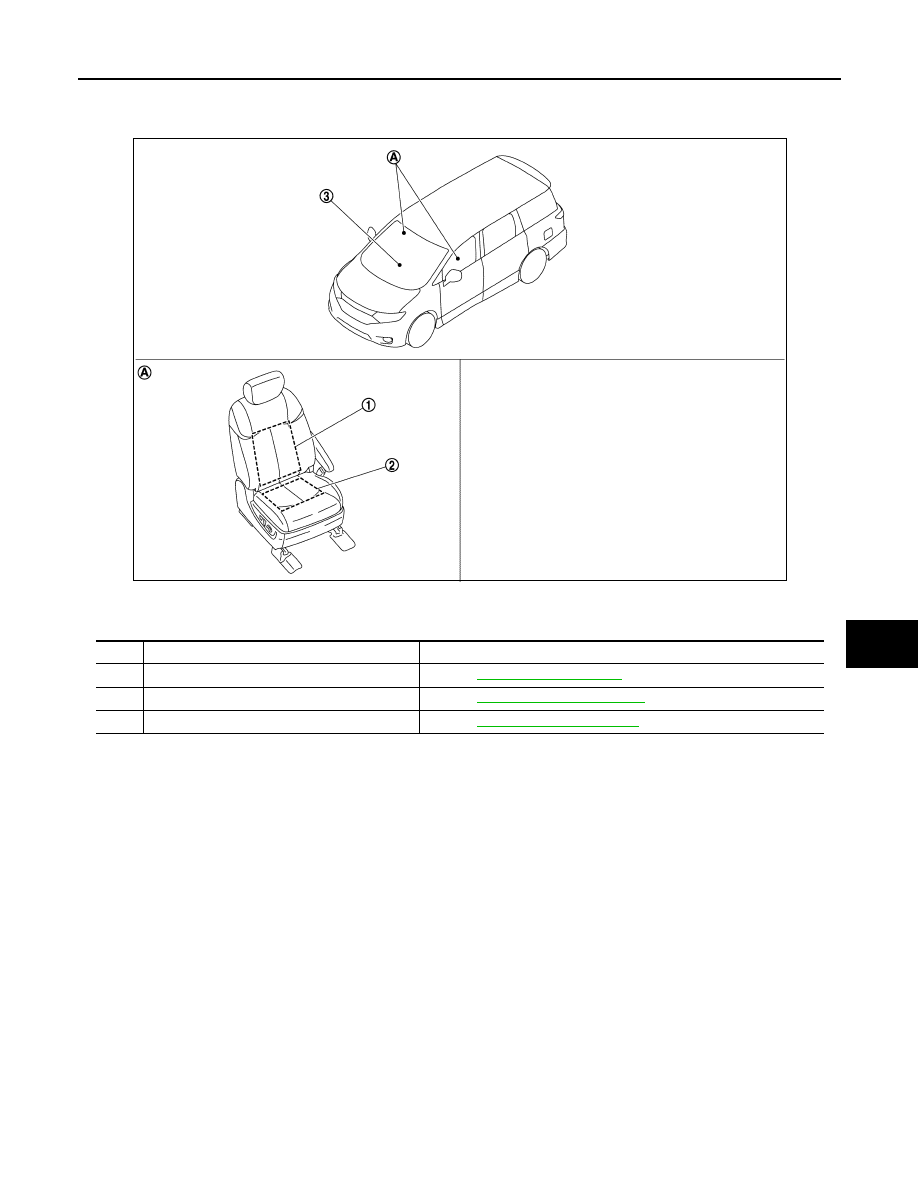

HEATED SEAT SYSTEM : Component Parts Location

INFOID:0000000009652915

SEATBACK POWER FOLDING/RETURN SYSTEM

A.

Front seat

No.

Item

Function

1.

Seat back heater

Refer to

SE-11, "Seatback Heater"

.

2.

Seat cushion heater

Refer to

SE-11, "Seat Cushion Heater"

.

3.

Heated seat switch

Refer to

SE-11, "Heated Seat Switch"

.

JMJIA6182ZZ

SE-10

< SYSTEM DESCRIPTION >

COMPONENT PARTS

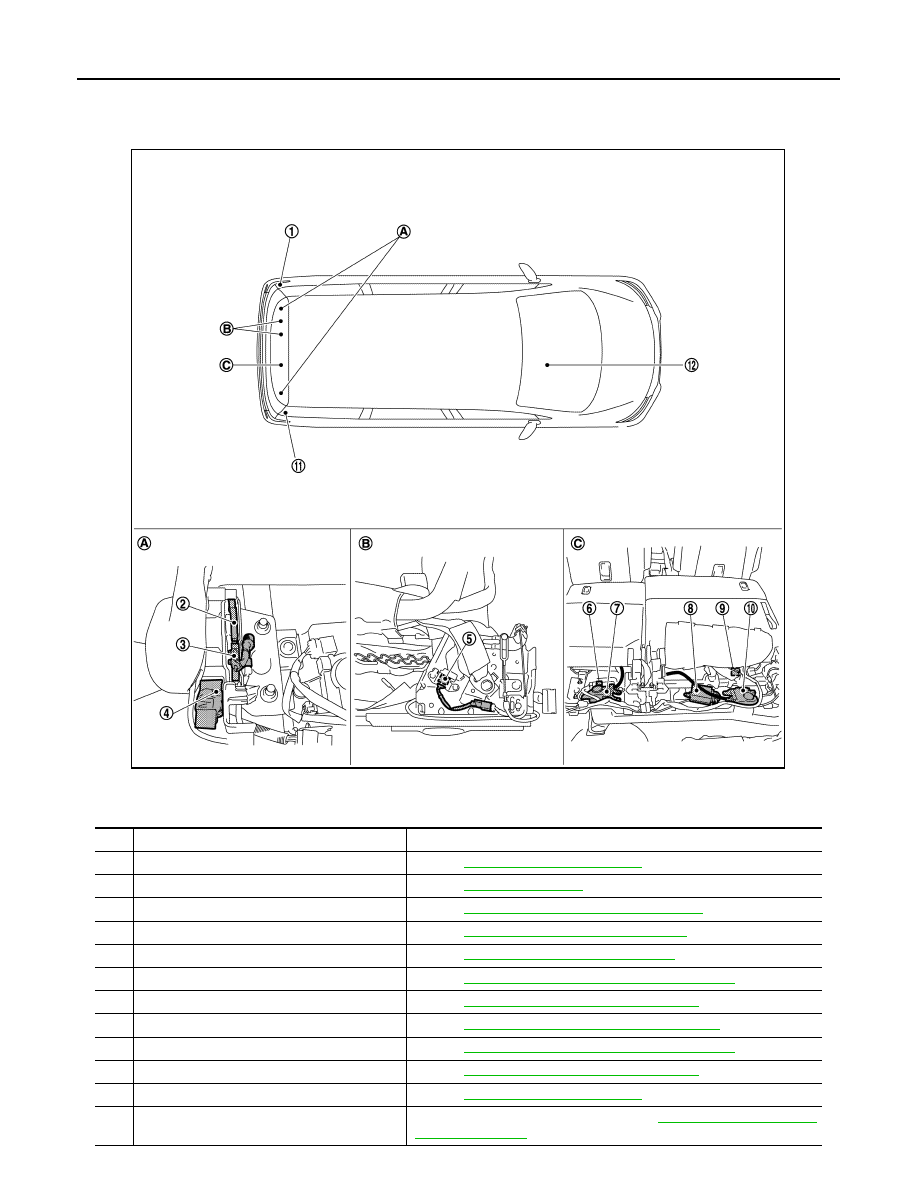

SEATBACK POWER FOLDING/RETURN SYSTEM : Component Parts Location

INFOID:0000000009652916

A.

Reclining device assembly (outside)

B.

Reclining device assembly (Inside)

C.

Under the third seat

No.

Item

Function

1.

Third seat fold switch (LH)

Refer to

SE-11, "Third Seat Fold Switch"

.

2.

Sector gear

Refer to

SE-11, "Sector Gear"

.

3.

Sector gear position limit switch

Refer to

SE-11, "Sector Gear Position Limit Switch"

.

4.

Power return motor assembly

Refer to

SE-11, "Power Return Motor Assembly"

.

5.

Seatback angle limit switch

Refer to

SE-11, "Seatback Angle Limit Switch"

.

6.

Seatback lock release actuator relay (LH)

Refer to

SE-11, "Seatback Lock Release Actuator Relay"

.

7.

Seatback lock release actuator (LH)

Refer to

SE-11, "Seatback Lock Release Actuator"

.

8.

Seatback power return control unit

Refer to

SE-12, "Seatback Power Return Control Unit"

.

9.

Seatback lock release actuator relay (RH)

Refer to

SE-11, "Seatback Lock Release Actuator Relay"

.

10.

Seatback lock release actuator (RH)

Refer to

SE-11, "Seatback Lock Release Actuator"

.

11.

Third seat fold switch (RH)

Refer to

SE-11, "Third Seat Fold Switch"

.

12.

Combination meter

Transmit the vehicle speed signal. Refer to

MWI-7, "METER SYSTEM :

Combination Meter"

.

JMJIA4697ZZ

COMPONENT PARTS

SE-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Reclining Motor

INFOID:0000000009652917

With the power supplied from power seat switch, operates the forward and backward movement of seatback.

Sliding Motor

INFOID:0000000009652918

With the power supplied from power seat switch, operates the forward and backward slide of seat.

Power Seat Switch

INFOID:0000000009652919

Built-in reclining switch and sliding switch, controls the power supplied to each motor.

Lumbar Support Switch

INFOID:0000000009652920

Controls the power supplied to lumbar support motor.

Lifting Motor

INFOID:0000000009652921

With the power supplied from power seat switch, operates the up and down movement of seat cushion.

Lumbar Support Motor

INFOID:0000000009652922

With the power supplied from lumbar support switch, operates the forward and backward movement of seat-
back support device.

Seatback Heater

INFOID:0000000009652923

Built-in seatback, the heater operates with the power supplied by heater seat switch.

Seat Cushion Heater

INFOID:0000000009652924

Built-in seat cushion, the heater operates with the power supplied by heater seat switch.

Heated Seat Switch

INFOID:0000000009652925

Supplies power supply to each heated seat and operates switching of HI/LO of heated seat and ON/OFF of
the system.

Third Seat Fold Switch

INFOID:0000000009652926

Supplies power supply to seatback lock release actuator relay and operates reclining and folding function of
third seat.

Sector Gear

INFOID:0000000009652927

Built-in reclining switch, sliding switch and lifting switch, controls the power supplied to each motor.

Sector Gear Position Limit Switch

INFOID:0000000009652928

With the power supplied from power seat switch, operates the forward and backward movement of seatback.

Power Return Motor Assembly

INFOID:0000000009652929

With the power supplied from power seat switch, operates the forward and backward slide of seat.

Seatback Angle Limit Switch

INFOID:0000000009652930

With the power supplied from power seat switch, operates the up and down movement of seat cushion.

Seatback Lock Release Actuator Relay

INFOID:0000000009652931

Supplies battery power supply to motor when receiving power supply from third seat fold down switch.

Seatback Lock Release Actuator

INFOID:0000000009652932

Releases lock when receiving battery power supply from seatback lock release actuator relay.

SE-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

Seatback Power Return Control Unit

INFOID:0000000009652933

Control the seatback power return system.
