SYSTEM

RF-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

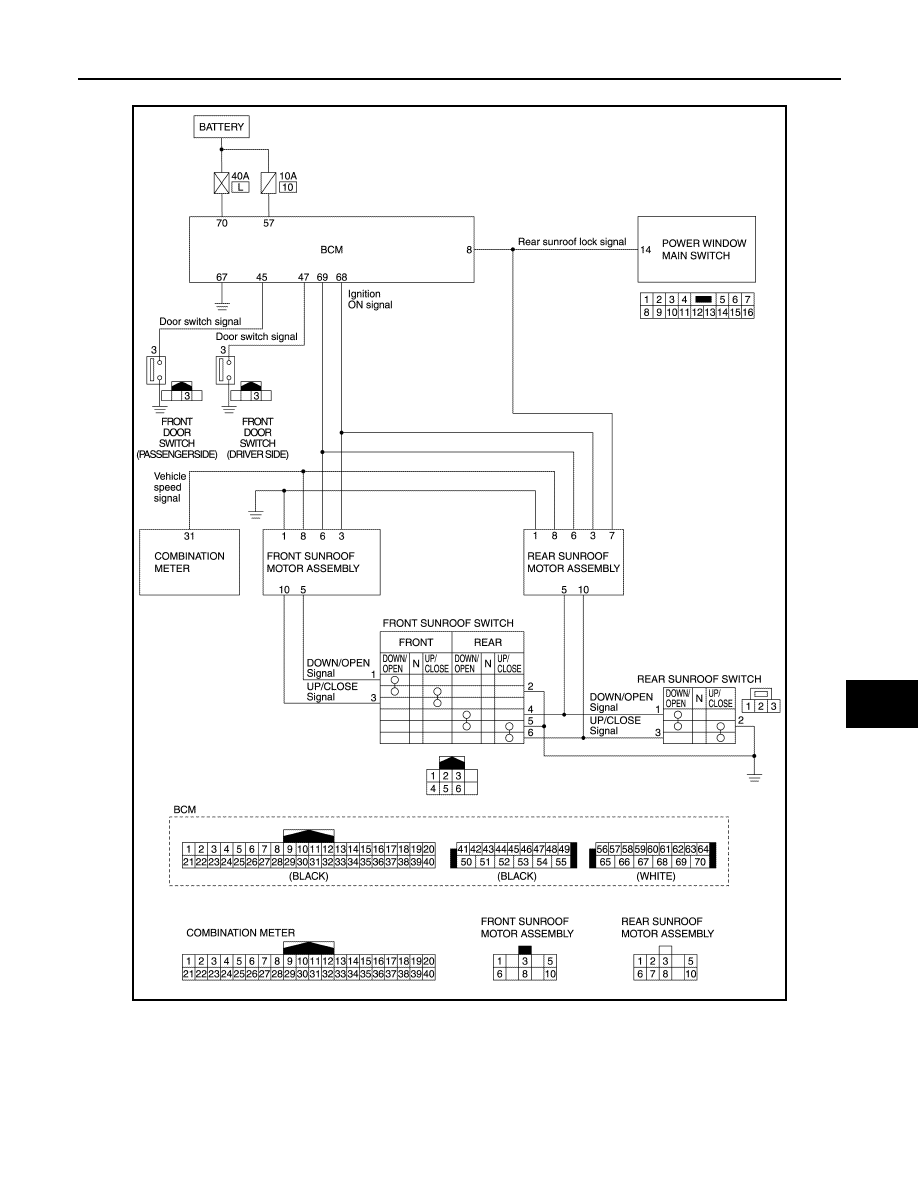

Circuit Diagram

INFOID:0000000009650346

JMKIA8123GB

RF-12

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000009650347

ECU

Reference

BCM

BCS-40, "Reference Value"

BCS-62, "Fail-safe"

BCS-62, "DTC Inspection Priority Chart"

BCS-63, "DTC Index"

FRONT SUNROOF MOTOR ASSEMBLY

RF-13

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

FRONT SUNROOF MOTOR ASSEMBLY

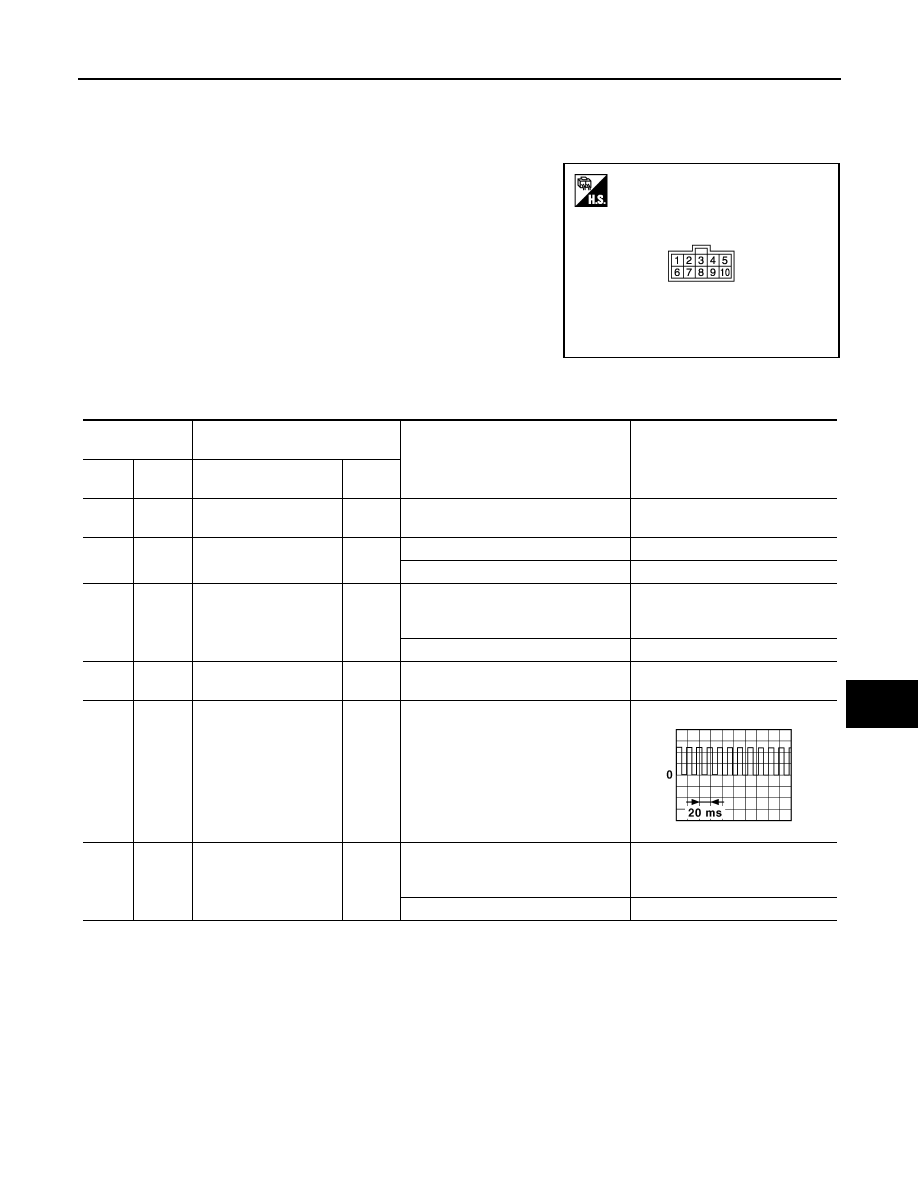

Reference Value

INFOID:0000000009650348

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA2225ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

+

Signal name

Input/

Output

1

(B)

Ground

Ground

3

(R)

Ground

Ignition ON signal

Input

Ignition switch ON

Battery voltage

Other than the above

0 V

5

(LG)

Ground

Front sunroof switch
(DOWN/OPEN signal)

Input

Sunroof switch in following position
• TILT  DOWN
• SLIDE OPEN

0 V

Other than the above

Battery voltage

6

(L)

Ground

Sunroof power supply

Input

Battery voltage

8

(Y)

Ground

Vehicle speed signal

Input

Speedometer operated [When vehicle
speed is approx.40 km/ h (25 MPH)]

10

(W)

Ground

Front sunroof switch
(UP/CLOSE signal)

Input

Sunroof switch in following position
• TILT  UP
• SLIDE CLOSE

0 V

Other than the above

Battery voltage

JSNIA0012GB

RF-14

< ECU DIAGNOSIS INFORMATION >

REAR SUNROOF MOTOR ASSEMBLY

REAR SUNROOF MOTOR ASSEMBLY

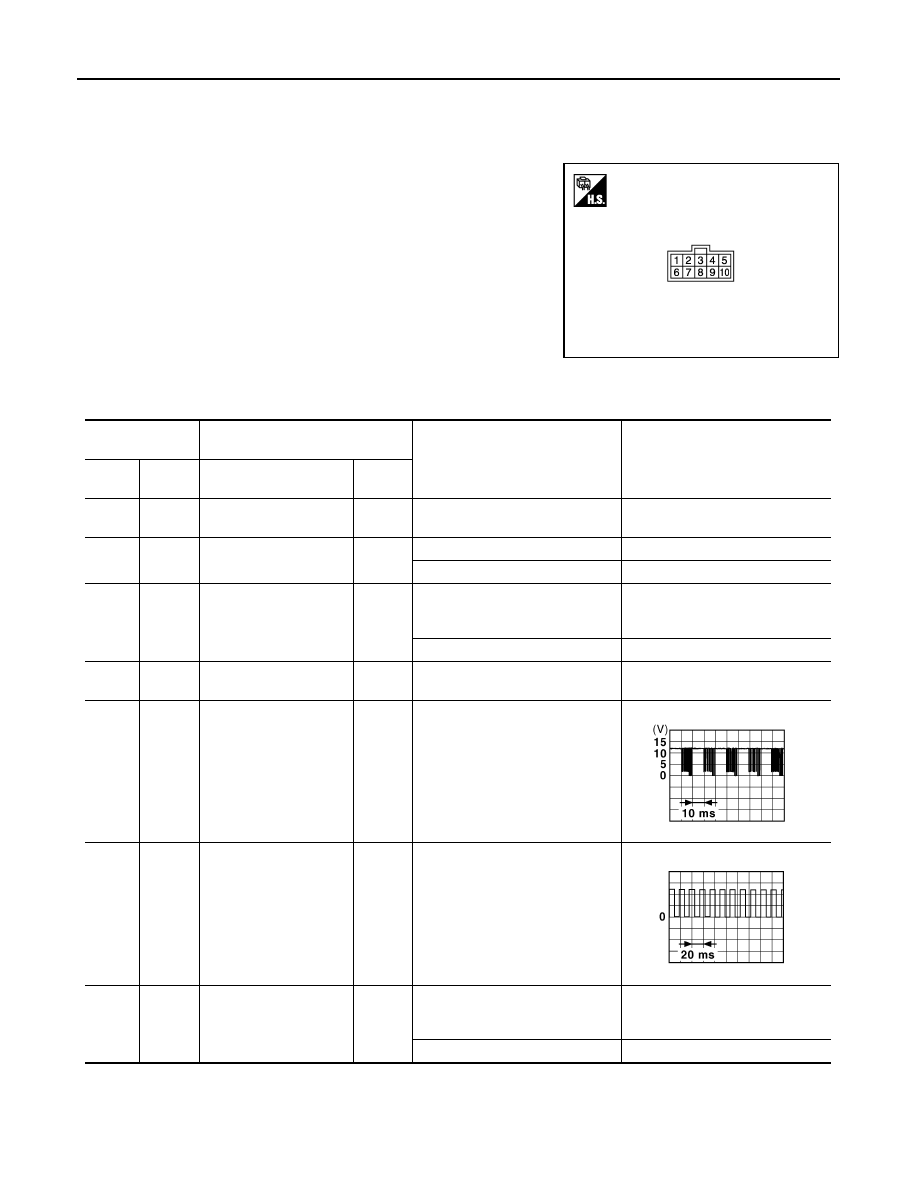

Reference Value

INFOID:0000000009650349

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA2225ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage

+

Signal name

Input/

Output

1

(B)

Ground

Ground

3

(R)

Ground

Ignition ON signal

Input

Ignition switch ON

Battery voltage

Other than the above

0 V

5

(P)

Ground

Rear sunroof switch
(DOWN/OPEN signal)

Input

Sunroof switch in following position
• TILT  DOWN
• SLIDE  OPEN

0 – 3  V

Other than the above

Battery voltage

6

(L)

Ground

Sunroof power supply

Input

Battery voltage

7

(W)

Ground

Rear sunroof lock signal

Input/

Output

• Ignition switch ON
• Within 45 second after ignition

switch is turned to OFF

8

(Y)

Ground

Vehicle speed signal

Input

Speedometer operated [When ve-
hicle speed is approx.40 km/ h (25
MPH)]

10

(G)

Ground

Rear sunroof switch
(UP/CLOSE signal)

Input

Sunroof switch in following position
• TILT  UP
• SLIDE CLOSE

0 – 3  V

Other than the above

Battery voltage

JPMIA0013GB

JSNIA0012GB
