Nissan Quest E52. Manual - part 1004

PWO-4

< WIRING DIAGRAM >

[POWER SOCKET]

POWER SOCKET

WIRING DIAGRAM

POWER SOCKET

Wiring Diagram

INFOID:0000000009651865

JRMWD3560GB

PWO

POWER SOCKET

PWO-5

< WIRING DIAGRAM >

[POWER SOCKET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JRMWE3310GB

PWO-6

< REMOVAL AND INSTALLATION >

[POWER SOCKET]

POWER SOCKET

REMOVAL AND INSTALLATION

POWER SOCKET

FRONT POWER SOCKET

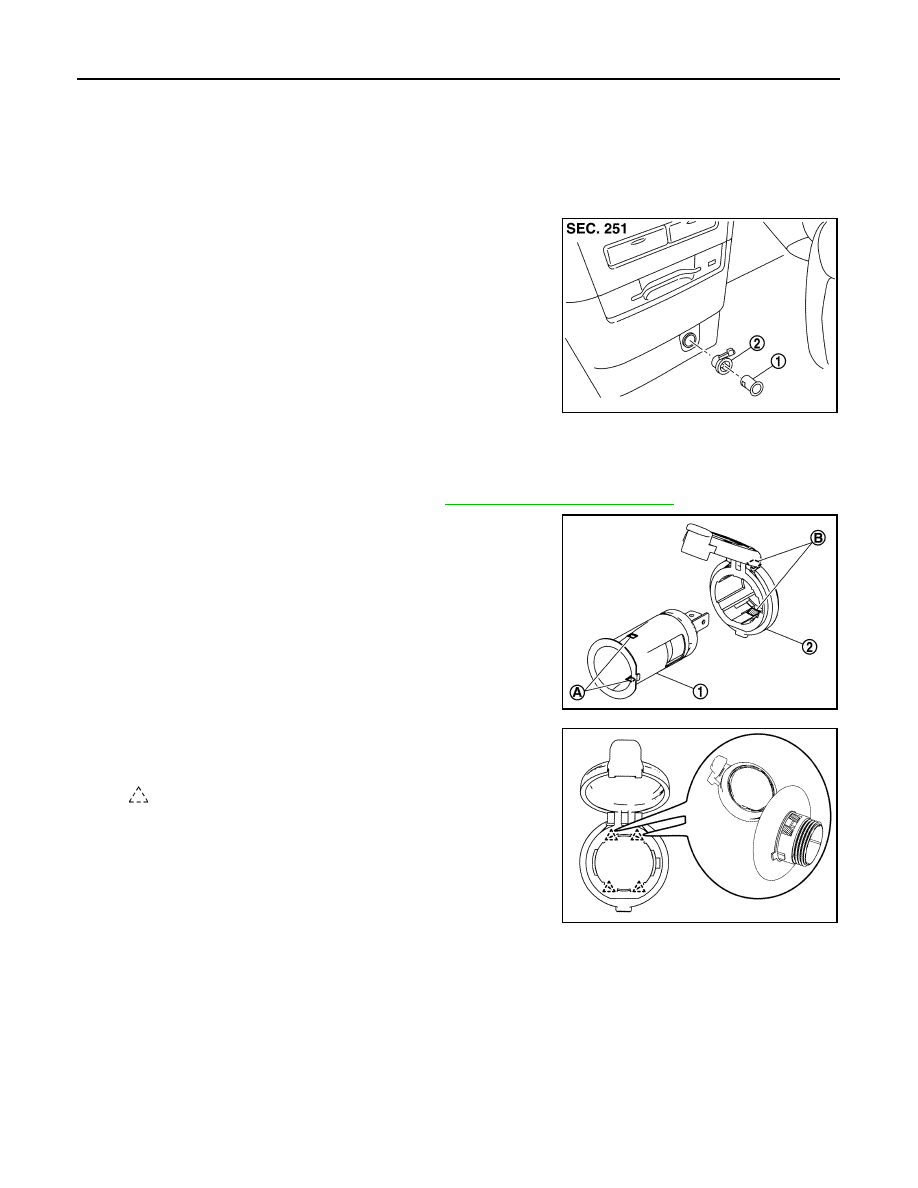

FRONT POWER SOCKET : Exploded View

INFOID:0000000009651866

FRONT POWER SOCKET : Removal and Installation

INFOID:0000000009651867

REMOVAL

1.

Remove instrument lower cover center. Refer to

IP-14, "Removal and Installation"

.

2.

Pull out inner socket (1) by pushing the pawl (B) of the ring (2)
from the inner socket hole (square) (A).

3.

Press the ring pawl from the back of the instrument lower cover
center to remove the ring.

INSTALLATION

Note the following, and install in the reverse order of removal.

1

: Inner socket

2

:  Ring

JSMIA0698ZZ

JSMIA0721ZZ

: Pawl

JPMIA1610ZZ

PWO

POWER SOCKET

PWO-7

< REMOVAL AND INSTALLATION >

[POWER SOCKET]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Align the cut outs of inner socket, ring and instrument lower cover
center.

LUGGAGE ROOM POWER SOCKET

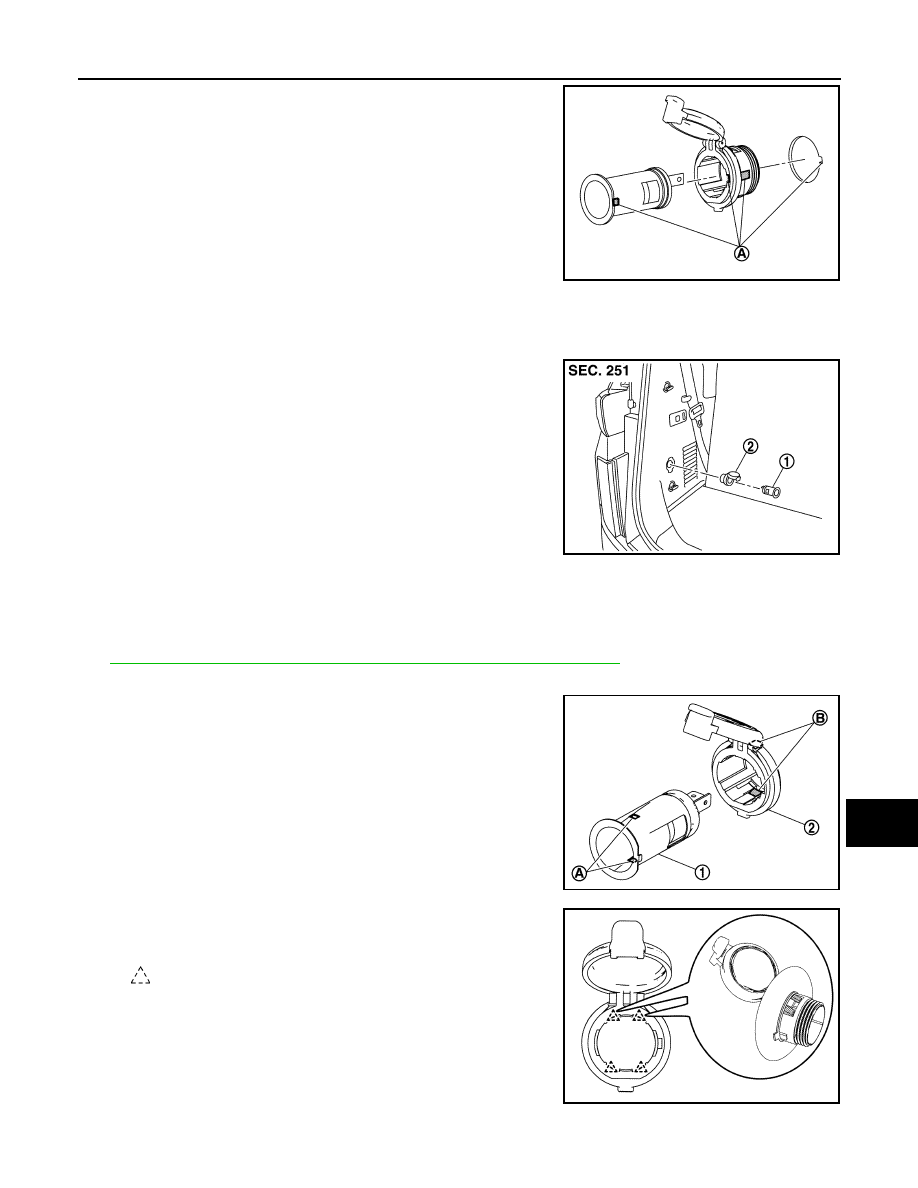

LUGGAGE ROOM POWER SOCKET : Exploded View

INFOID:0000000009651868

LUGGAGE ROOM POWER SOCKET : Removal and Installation

INFOID:0000000009651869

REMOVAL

1.

Remove clips on the rear side of the luggage side lower finisher (LH) to obtain space for work. Refer to

INT-43, "LUGGAGE SIDE LOWER FINISHER : Removal and Installation"

.

2.

Disconnect power socket connector.

3.

Pull out inner socket (1) by pushing the pawl (B) of the ring (2)
from the inner socket hole (square) (A).

4.

Press the ring pawl from the back of the luggage side lower fin-
isher (LH) to remove the ring.

INSTALLATION

A

: Cut out

JPMIA1614ZZ

1

: Inner socket

2

:  Ring

JSMIA0699ZZ

JSMIA0721ZZ

: Pawl

JPMIA1610ZZ
