Nissan Quest E52. Manual - part 34

AV

COMPONENT PARTS

AV-15

< SYSTEM DESCRIPTION >

[BASE AUDIO WITHOUT SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

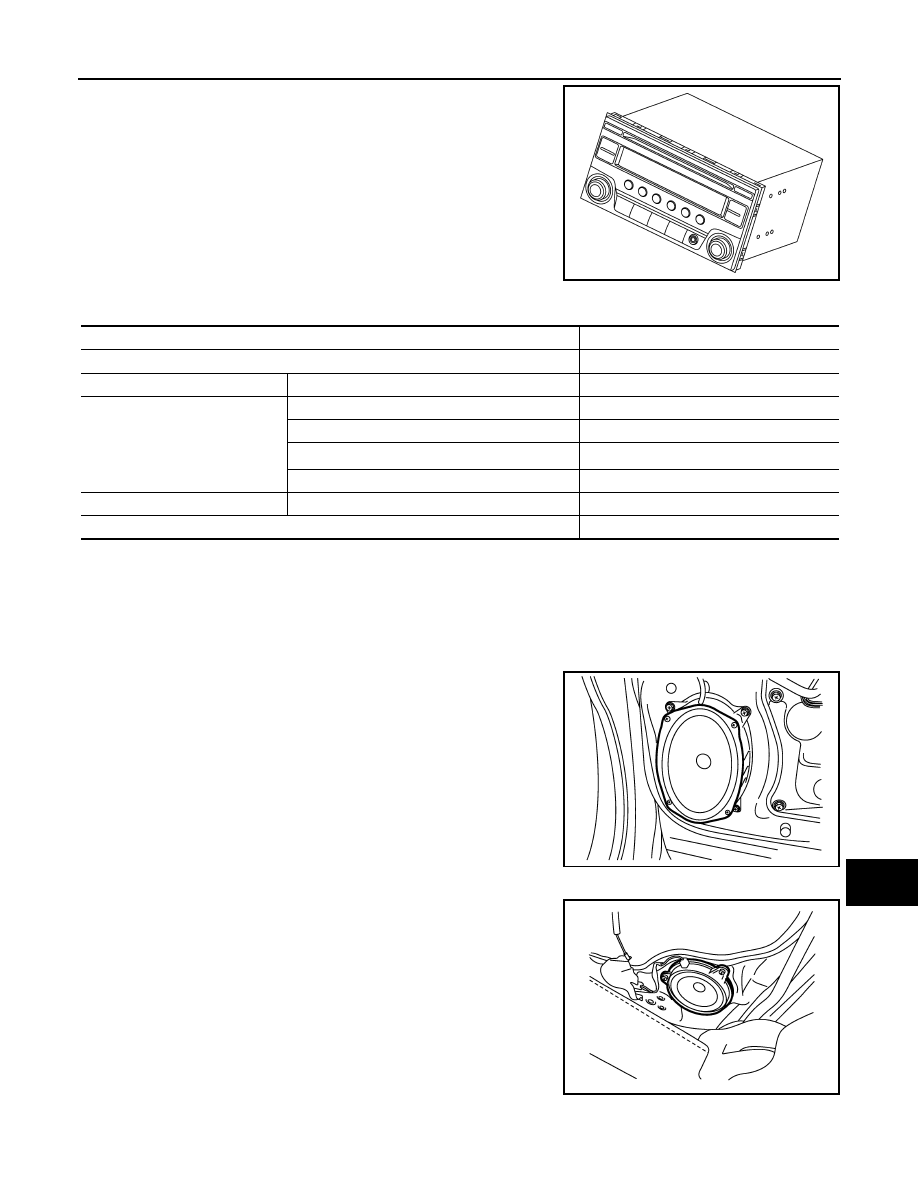

• AM/FM electronic tuner radio, CD player, and auxiliary input jack

are integrated into the audio unit.

• The audio unit supports CD-R/CD-RW and provides the playback

of MP3/WMA music files.

SPECIFICATION

*: If the reflectance of the surface of the media is low, the data may not be read.

Speaker

INFOID:0000000009651900

4 speakers system is adopted.

FRONT DOOR SPEAKER

•

φ

 15.0

×

 23.0 cm (6

×

 9 in) speaker is installed to the bottom of the front door.

• Sound signal is input from the audio unit to output low range

sounds.

SLIDE DOOR SPEAKER

•

φ

 16cm (6.5 in) speaker is located at the lower part of the back of

the slide door.

• Sound signal is input from the audio unit to output high, mid, and

low range sounds.

JSNIA5416ZZ

Manufacturer name

Clarion Co.,Ltd

Audio amplifier

45 W

×

 4

AM/FM electric tuner

FM diversity function

With

CD drive

CD changer

Without

Used disc

φ

 12 cm (4.7 in)

CD-R/CD-RW playback function

With

*

MP3 / WMA playback function

With

Auxiliary input

φ

 3.5 mm (0.1 in) stereo mini jack

With

Steering switch

Without

Rated input

: 20 W

Maximum
input

: 40 W

Impedance

: 2

Ω

JSNIA3401ZZ

Rated input

: 20 W

Maximum
input

: 40 W

Impedance

: 2

Ω

JSNIA3405ZZ

AV-16

< SYSTEM DESCRIPTION >

[BASE AUDIO WITHOUT SEPARATE DISPLAY]

COMPONENT PARTS

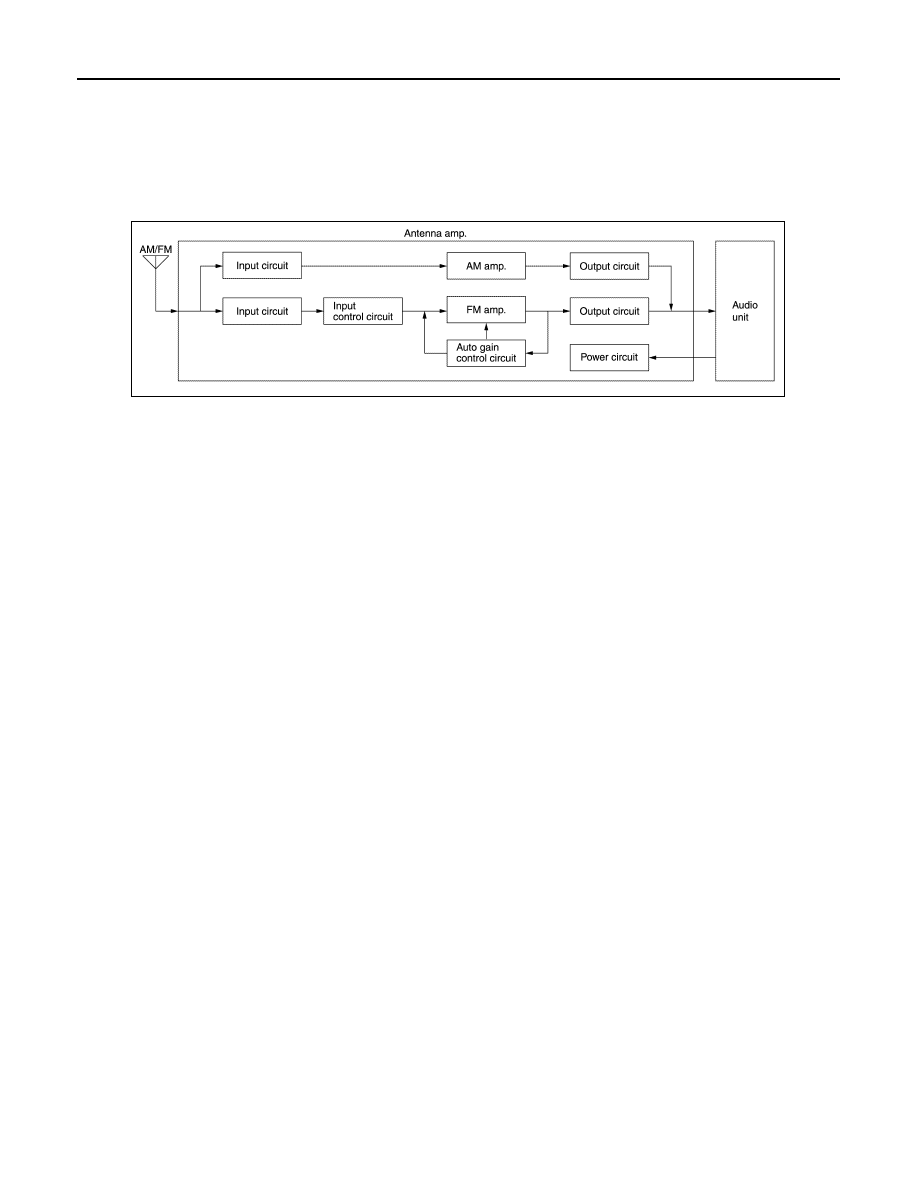

Antenna amp., Radio Antenna, and Antenna Feeder

INFOID:0000000009651901

RADIO ANTENNA

• AM/FM radio main antenna is located on the right rear side window glass and FM radio sub antenna on the

left rear side window glass.

• The AM/FM radio main antenna path has an antenna amp. to obtain sufficient reception power.

CAUTION:

Affixing any mirror-type window films or metallic items (e.g. commercial antenna) on the rear side win-
dow glass causes a reduction in the radio receiver sensitivity.

JSNIA4326GB

AV

COMPONENT PARTS

AV-17

< SYSTEM DESCRIPTION >

[BASE AUDIO WITHOUT SEPARATE DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

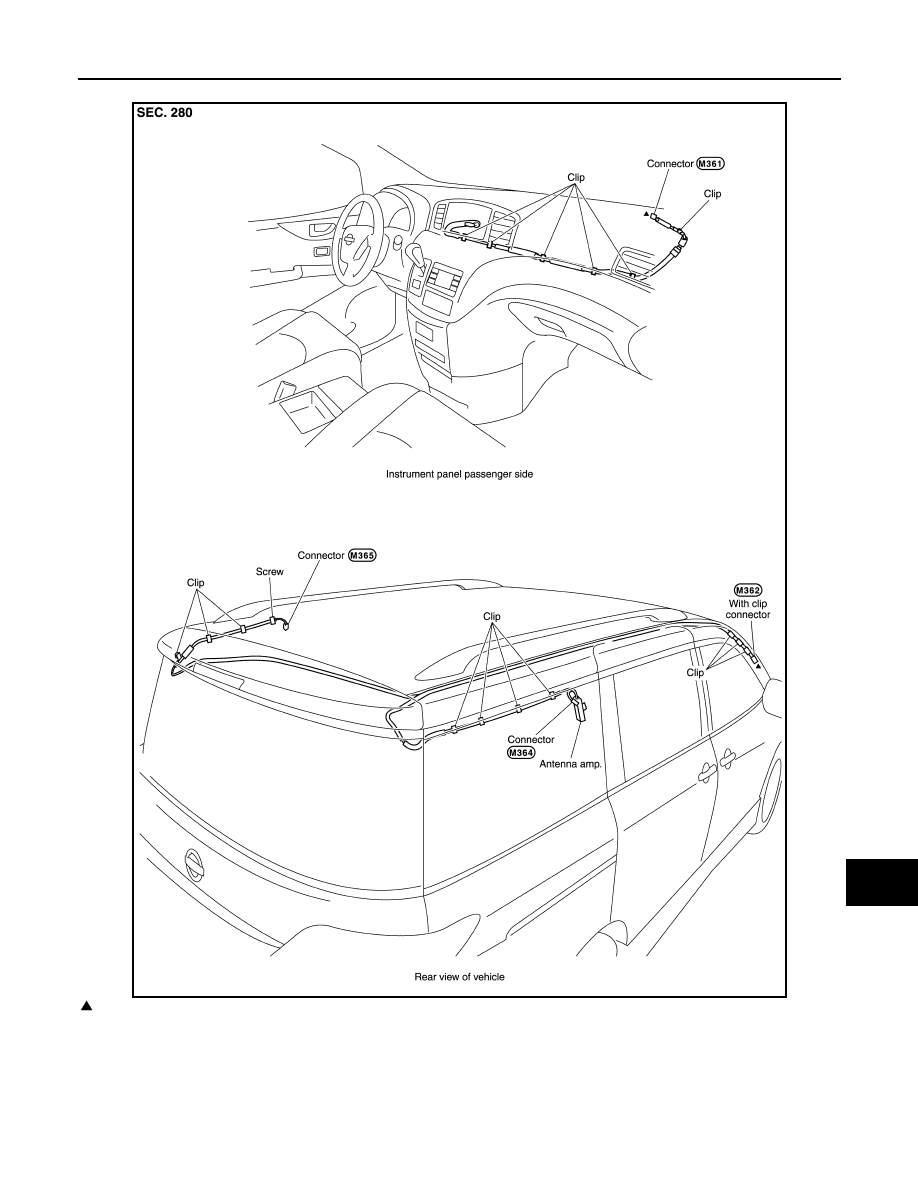

ANTENNA FEEDER LAYOUT

: Indicates that the part is connected at points with same symbol in actual vehicle.

JSNIA4220GB

AV-18

< SYSTEM DESCRIPTION >

[BASE AUDIO WITHOUT SEPARATE DISPLAY]

SYSTEM

SYSTEM

AUDIO SYSTEM

AUDIO SYSTEM : System Description

INFOID:0000000009651902

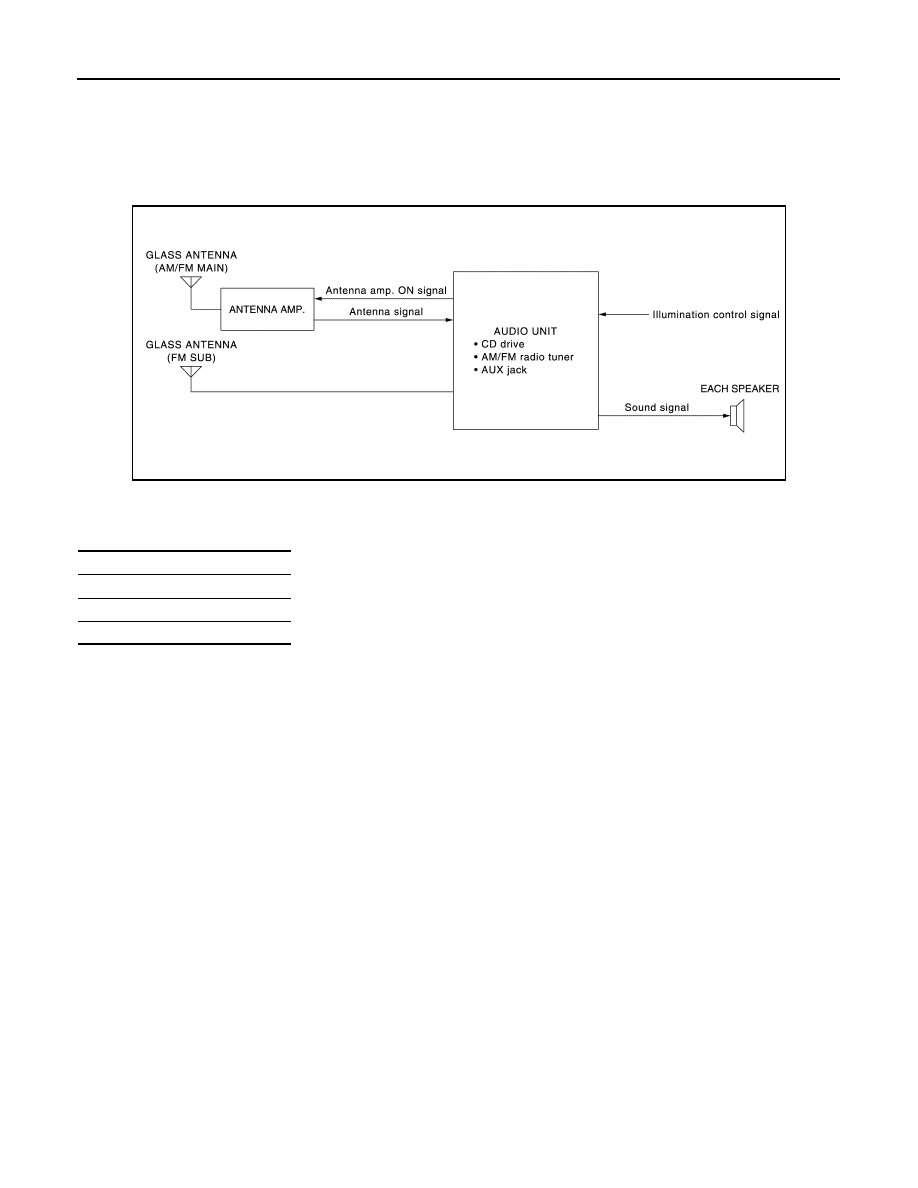

SYSTEM DIAGRAM

DESCRIPTION

The audio system is equipped with following functions.

×

: Applicable

AUDIO FUNCTION

The MP3/WMA playback function enables music to play for a long time: the user need not change the CD dur-
ing a long trip. The text display function is also adopted so that the title name and artist name of the ID3 tag/
WMA tag can be displayed.

Operating signal

Audio system operation can be performed with audio fascia switch.

AM/FM Radio Mode

• AM/FM radio tuner is built into audio unit.
• Radio signals are received by radio antenna, next they are amplified by antenna amp., and finally they are

input to audio unit.

• FM radio wave is received by FM sub antenna, and it is transmitted to the audio unit directly.
•  Audio unit outputs the sound signal to each speaker.

CD Mode

• CD function is built into audio unit.
• Audio unit outputs sound signal to each speaker when CD is inserted to audio unit.

AUX Input Function

• When the external device is connected to the AUX (auxiliary) input jack of the audio unit, the external device

inputs a sound signal to the audio unit.

• When AUX mode is selected, audio unit outputs sound signal to each speaker.

JSNIA4128GB

Functions

AM/FM radio

CD

AUX connection
