SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM

AUTOMATIC DRIVE POSITIONER SYSTEM : System Description

INFOID:0000000009649599

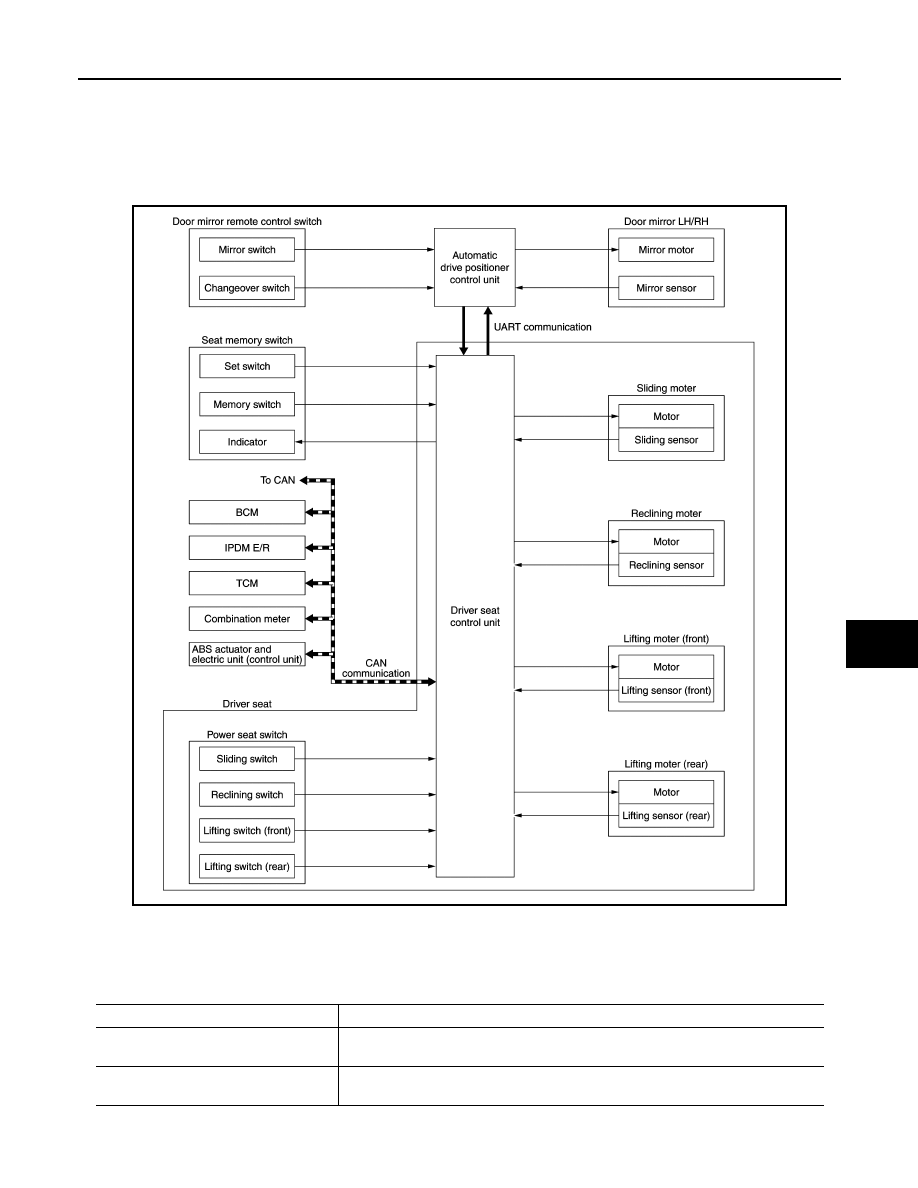

SYSTEM DIAGRAM

DESCRIPTION

The system automatically moves the driver seat and door mirror position by the driver seat control unit and the
automatic drive positioner control unit. The driver seat control unit corresponds with the automatic drive posi-
tioner control unit by UART communication.

JMJIA5854GB

Function Description

Manual function

The driving position (seat and door mirror position) can be adjusted by using the pow-
er seat switch or door mirror remote control switch.

Memory function

The seat and door mirror move to the stored driving position by pressing seat memory
switch (1 or 2).

ADP-10

< SYSTEM DESCRIPTION >

SYSTEM

Sleep Control

Driver seat control unit equips sleep control for reducing power consumption.
The system switches to sleep control when all of the following conditions are satisfied.
• Ignition switch is OFF.
• All devices of auto driving position system are not operating.
• 45 seconds timer of driver seat control unit is not operating.
• Set switch and memory switch (1 and 2) are OFF.

Wake-up Control

Sleep control releases when detecting status change in either of the following item.
• CAN communication
• Power seat switch
• Set switch and seat memory switch (1 and 2)

Entry/Exit assist function

Exit

On exit, the seat moves backward.

Entry

On entry, the seat returns from exiting position to the previous driving position.

Intelligent Key interlock function

Perform memory operation, exiting operation and entry operation by Intelligent Key
unlock operation or driver side door request switch unlock operation.

Function Description

SYSTEM

ADP-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

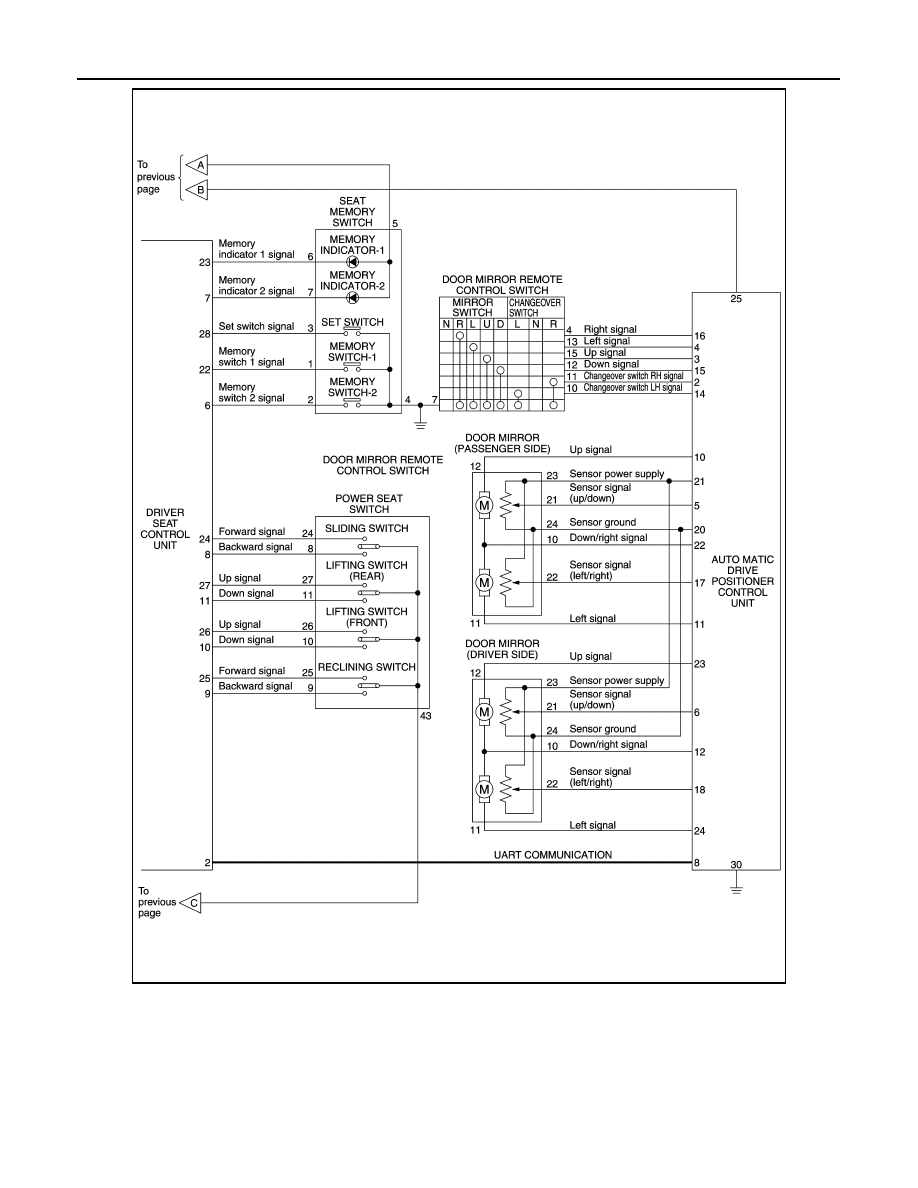

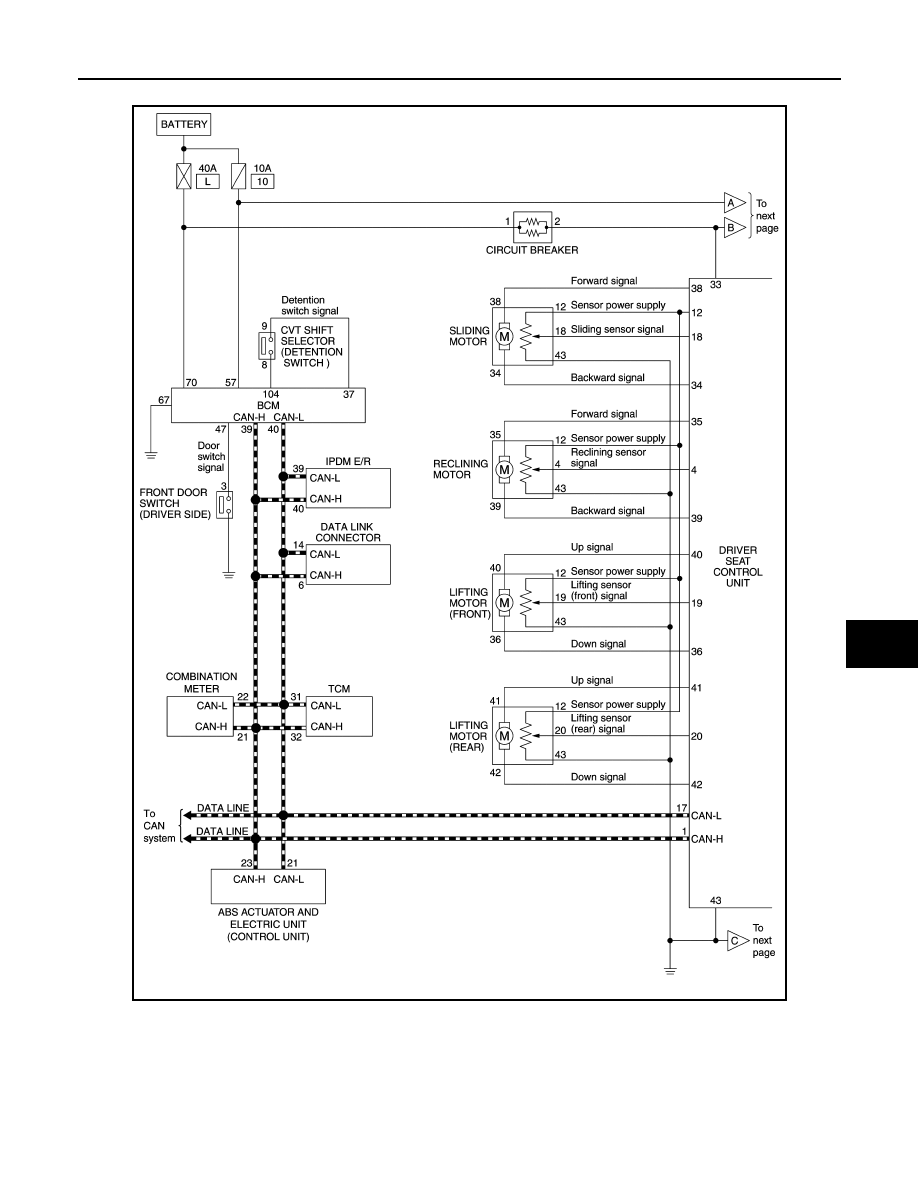

AUTOMATIC DRIVE POSITIONER SYSTEM : Schematic

INFOID:0000000009649600

JMJIA5995GB

ADP-12

< SYSTEM DESCRIPTION >

SYSTEM

JMJIA5996GB
