Nissan Cube. Manual - part 987





TM-204

< PRECAUTION >

[CVT: RE0F08B]

PRECAUTIONS

17

–5 (23)

196

105 (221)

21

0 (32)

201

110 (230)

27

5 (41)

206

115 (239)

32

10 (50)

210

120 (248)

39

15 (59)

214

125 (257)

47

20 (68)

218

130 (266)

55

25 (77)

221

135 (275)

64

30 (86)

224

140 (284)

73

35 (95)

227

145 (293)

83

40 (104)

229

150 (302)

93

45 (113)

231

155 (311)

104

50 (122)

233

160 (320)

114

55 (131)

235

165 (329)

124

60 (140)

236

170 (338)

134

65 (149)

238

175 (347)

143

70 (158)

239

180 (356)

152

75 (167)

241

190 (374)

161

80 (176)

243

200 (392)

169

85 (185)

ATFTEMP COUNT

Temperature

°

C (

°

F)

ATFTEMP COUNT

Temperature

°

C (

°

F)

PREPARATION

TM-205

< PREPARATION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PREPARATION

PREPARATION

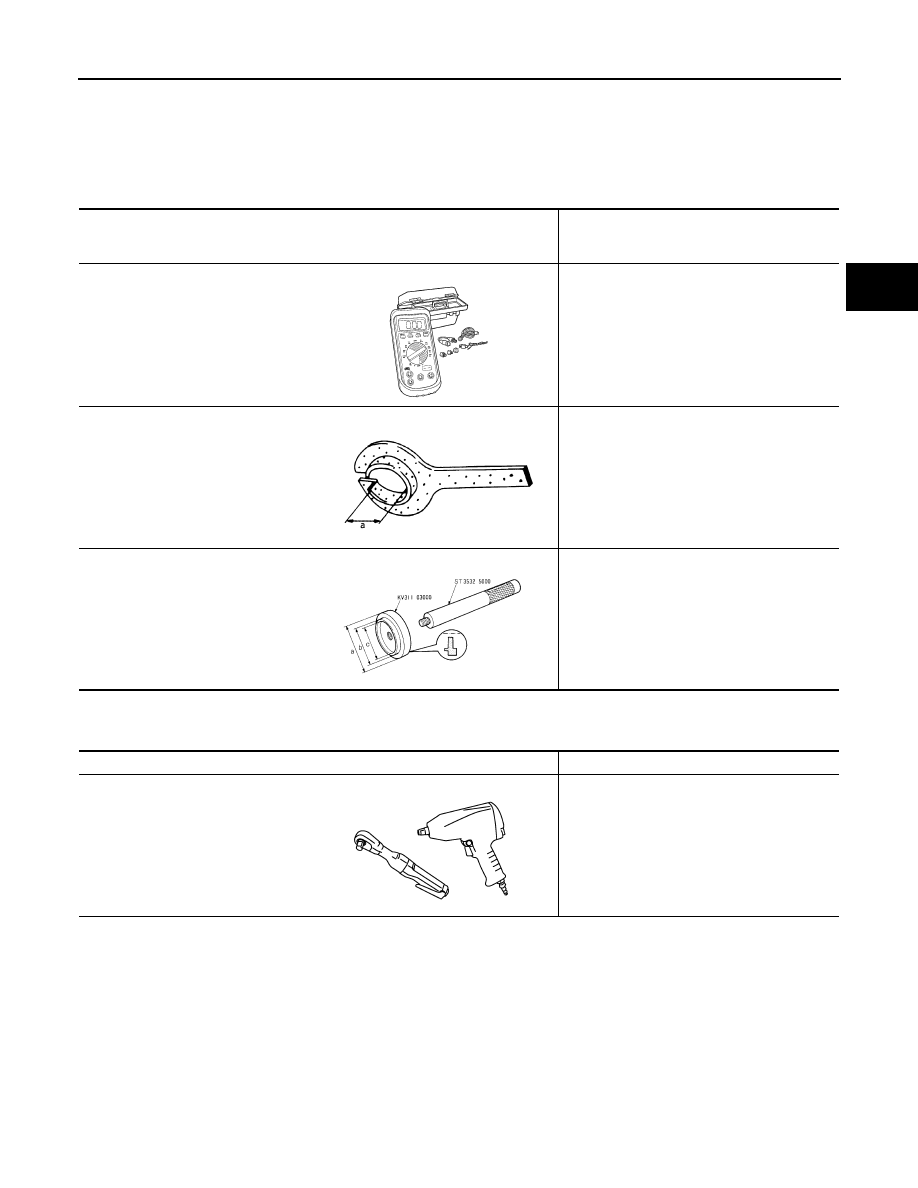

Special Service Tools

INFOID:0000000009949069

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009949070

Tool number
(Kent-Moore No.)
Tool name

Description


(OTC3492)
Oil pressure gauge set

Measuring line pressure

KV38107900
( — )
Protector
a: 32 mm (1.26 in) dia.

Installing drive shaft

ST35325000
( — )
KV31103000
( — )
Drift
a: 70 mm (2.75 in) dia.
b: 59 mm (2.32 in) dia.
c: 49 mm (1.92 in) dia.

Installing differential side oil seal

SCIA7531E

PDIA1183J

ZZA0501D

Tool name

Description

Power tool

Loosening nuts and bolts

PBIC0190E

TM-206

< PERIODIC MAINTENANCE >

[CVT: RE0F08B]

CVT FLUID

PERIODIC MAINTENANCE

CVT FLUID

Inspection

INFOID:0000000009949071

Level check

Check fluid level in HOT state [CVT fluid temperature is between 50 to 80

°

C (122 to 176

°

F)], according to the

following procedures.
1.

Visually check that CVT fluid leakage from transaxle assembly is not detected.

2.

After engine warms up, drive the vehicle in an urban area for approximately 10 minutes.
NOTE:
When ambient temperature is 20

°

C (68

°

F), driving vehicle for approximately 10 minutes in an urban area

ordinarily warms up CVT fluid temperature between 50 to 80

°

C (122 to 176

°

F).

3.

Park the vehicle on a level surface.

4.

Fully apply parking brake.

5.

Adjust engine speed at idle state.

6.

Shift selector lever through entire position from “P” to “D” while depressing brake pedal.

7.

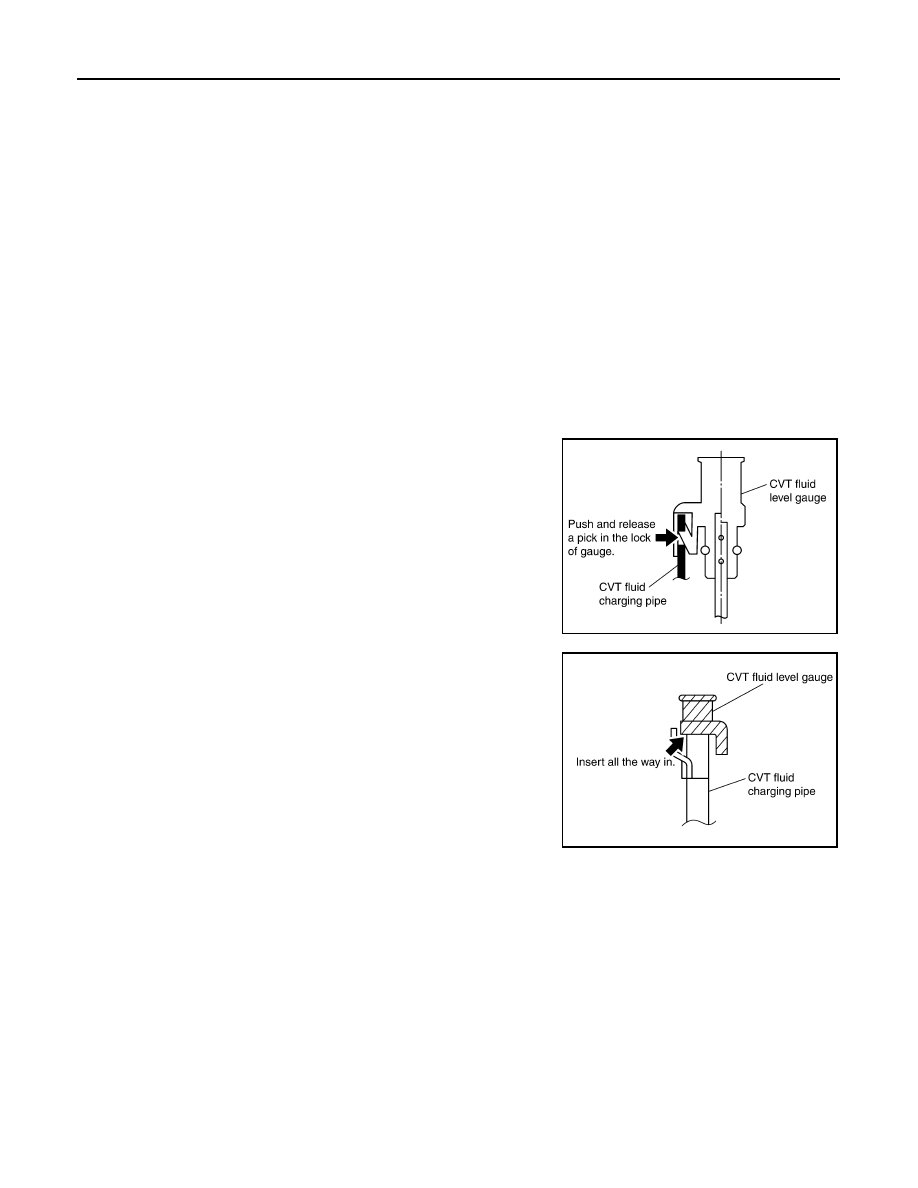

Press claw of CVT fluid level gauge lock to unlock.

8.

Remove CVT fluid level gauge from CVT fluid charging pipe.

9.

Wipe CVT fluid that is on CVT fluid level gauge.

CAUTION:

Always use shop paper when wiping off CVT fluid that is on
CVT fluid level gauge.

10. Rotate CVT fluid level gauge 180

°

 from installed state.

11. Inset CVT fluid level gauge until it contacts CVT fluid charging

pipe end.

12. Check that CVT fluid level is within the specified level of CVT fluid level gauge (MAX side).

CAUTION:

• After level check, when returning CVT fluid level gauge to the original state, insert CVT fluid level

gauge to CVT fluid charging pipe until it is locked.

• Always use shop paper when wiping off CVT fluid that is on CVT fluid level gauge.

CVT FLUID CONDITION

SCIA1933E

SCIA1931E

CVT FLUID

TM-207

< PERIODIC MAINTENANCE >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Check CVT fluid condition.
• If CVT fluid is very dark or smells burned, check operation of tran-

saxle assembly. Flush cooling system after repair of transaxle
assembly.

• If CVT fluid contains frictional material (clutches, brakes, etc.),

replace radiator and flush cooler line using cleaning solvent and
compressed air after repair of transaxle assembly. Refer to

TM-

231, "CVT FLUID COOLER HOSE : Exploded View"

.

Changing

INFOID:0000000009949072

1.

Remove drain plug from oil pan and then the CVT fluid.

2.

Remove drain plug gasket from drain plug.

3.

Install drain plug gasket to drain plug.

CAUTION:

Never reuse drain plug gasket.

4.

Install drain plug to oil pan.

5.

Fill CVT fluid from CVT fluid charging pipe to the specified level.

CAUTION:

• Always use the specified fluid. If use, misuse, or mixing of fluid other than the specified fluid

occurs, original performance cannot be obtained or it may cause serious malfunctions.

• CVT fluid is not reusable. Never reuse CVT fluid.
• Always use shop paper. Never use shop cloth.
• After replacement, always perform CVT fluid leakage check.
• Delete CVT fluid deterioration date with CONSULT after changing CVT fluid.

6.

After engine warms up, drive the vehicle in an urban area for approximately 10 minutes.
NOTE:
When ambient temperature is 20

°

C (68

°

F), it takes about 10 minutes for the CVT fluid to warm up to 50 to

80

°

C (122 to 176

°

F).

7.

Check CVT fluid level and condition. Refer to

TM-206, "Inspection"

.

8.

Repeat steps 1 to 6 if CVT fluid has been contaminated.

Fluid status

Conceivable cause

Required operation

Varnished (viscous
varnish state)

CVT fluid become
degraded due to
high temperatures

• Replace the CVT fluid.
• Check the transaxle assembly

and the vehicle for malfunctions
(wire harnesses, cooler pipes,
etc.)

Milky white or
cloudy

Water in the fluid

• Replace the CVT fluid.
• Check for places where water is

getting in.

Large amount of
metal powder mixed
in

Unusual wear of
sliding parts within
transaxle assembly

• Replace the CVT fluid.
• Check for improper operation of

the transaxle assembly.

ATA0022D

TM-225, "Exploded View"

CVT fluid and fluid capacity

MA-10, "Fluids and Lubricants"
