TM-88

< SYSTEM DESCRIPTION >

[CVT: RE0F08B]

LOCK-UP AND SELECT CONTROL SYSTEM

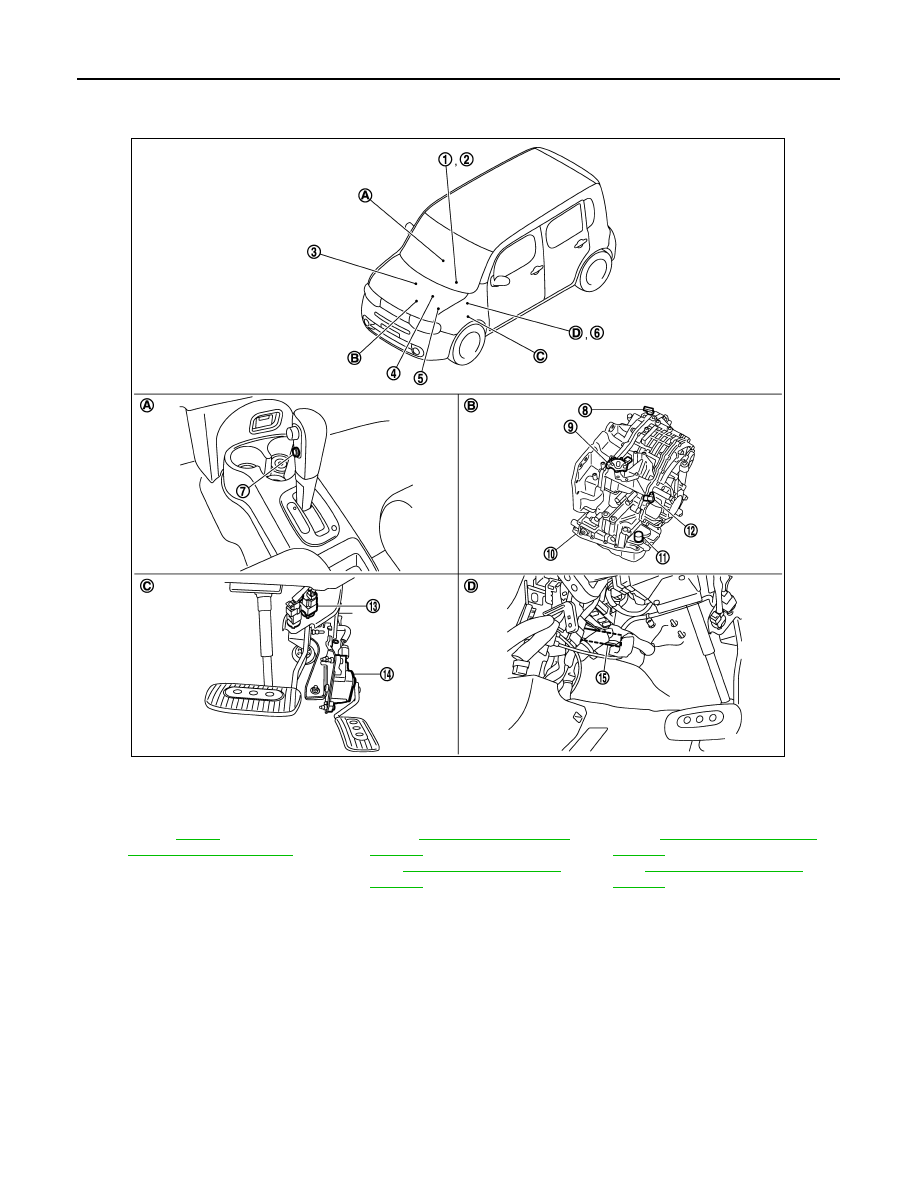

Component Parts Location

INFOID:0000000009948928

NOTE:

The following components are included in control valve assembly.

• CVT fluid temperature sensor

• Torque converter clutch solenoid valve

• Lock-up select solenoid valve

• Line pressure solenoid valve

1.

Shift position indicator
(On the combination meter)

2.

OD OFF indicator lamp
(On the combination meter)

3.

Crankshaft position sensor

4.

ECM
Refer to

EC-36,

"Component Parts Location"

5.

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

 (With intelligent Key sys-

tem),

PCS-36, "Component Parts

Location"

 (Without intelligent Key

system)

6.

BCM
Refer to

BCS-10, "Component Parts

Location"

 (With intelligent Key sys-

tem),

BCS-95, "Component Parts

Location"

 (Without intelligent Key

system)

7.

Overdrive control switch

8.

Secondary speed sensor

9.

Transmission range switch

10. Control valve assembly

*

11.

CVT unit connector

12. Primary speed sensor

13. Stop lamp switch

14. Accelerator pedal position sensor

15. TCM

A.

Center console

B.

Transaxle assembly

C.

Accelerator pedal, upper

D.

Brake pedal, left side

JSDIA1310GB

LOCK-UP AND SELECT CONTROL SYSTEM

TM-89

< SYSTEM DESCRIPTION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• Secondary pressure solenoid valve

• Secondary pressure sensor

• Step motor

• ROM  assembly

*: Control valve assembly is included in transaxle assembly.

Component Description

INFOID:0000000009948929

Name

Function

Transmission range switch

TM-109, "Description"

CVT fluid temperature sensor

TM-112, "Description"

Primary speed sensor

TM-116, "Description"

Secondary speed sensor

TM-119, "Description"

TCC solenoid valve

TM-123, "Description"

Lock-up select solenoid valve

TM-154, "Description"

Select switch valve

TM-82, "Component Description"

TCC control valve

Torque converter regulator valve

Select control valve

Manual valve

Forward clutch

TM-78, "Component Description"

Reverse brake

Torque converter

TCM

TM-82, "Component Description"

Accelerator pedal position sensor

TM-147, "Description"

TM-90

< SYSTEM DESCRIPTION >

[CVT: RE0F08B]

SHIFT CONTROL SYSTEM

SHIFT CONTROL SYSTEM

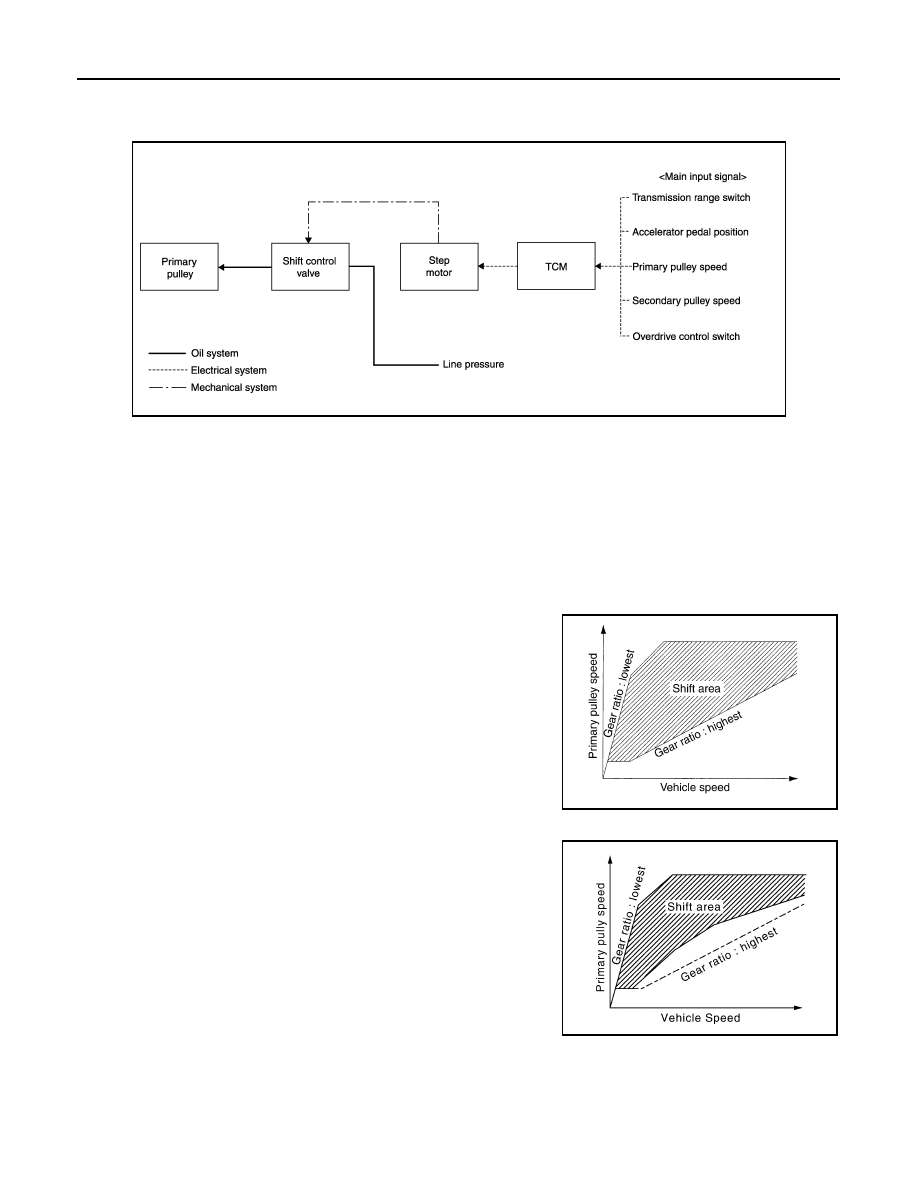

System Diagram

INFOID:0000000009948930

NOTE:
The gear ratio is set for each position separately.

System Description

INFOID:0000000009948931

In order to select the gear ratio that can obtain the driving force in accordance with driver's intention and the
vehicle condition, TCM monitors the driving conditions, such as the vehicle speed and the throttle position and
selects the optimum gear ratio, and determines the gear change steps to the gear ratio. Then TCM sends the
command to the step motor, controls the inflow/outflow of line pressure from the primary pulley to determine
the position of the moving-pulley and controls the gear ratio.

“D” POSITION

Shifting over all the ranges of gear ratios from the lowest to the high-
est.

OVERDRIVE OFF CONDITION

Use this position for the improved engine braking.

“L” POSITION

JSDIA1356GB

SCIA1953E

SCIA8229E

SHIFT CONTROL SYSTEM

TM-91

< SYSTEM DESCRIPTION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

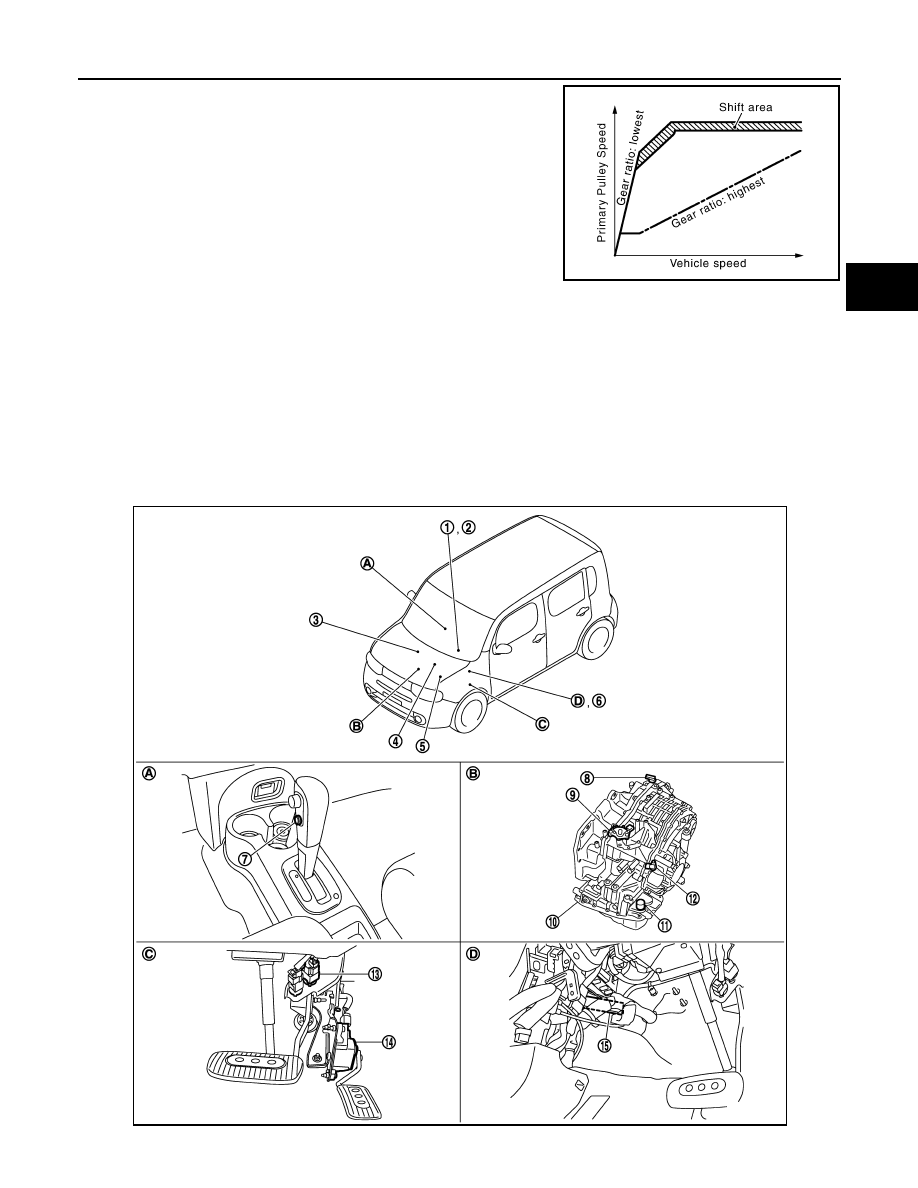

By limiting gear range to the lowest position, the strong driving force
and the engine brake can be secured.

DOWNHILL ENGINE BRAKE CONTROL (AUTO ENGINE BRAKE CONTROL)

When a downhill slope is detected with the accelerator pedal released, the engine brake will be strengthened
up by downshifting so as not to accelerate the vehicle more than necessary.

ACCELERATION CONTROL

According to vehicle speed and a change of accelerator pedal angle, driver's request for acceleration and driv-
ing scene are judged.   This function assists improvement in the acceleration feeling by making the engine
speed proportionate to the vehicle speed. And a shift map that can gain a larger driving force is available for
compatibility of mileage with driveability.

Component Parts Location

INFOID:0000000009948932

SCIA8240E

JSDIA1310GB
