MECHANICAL SYSTEM

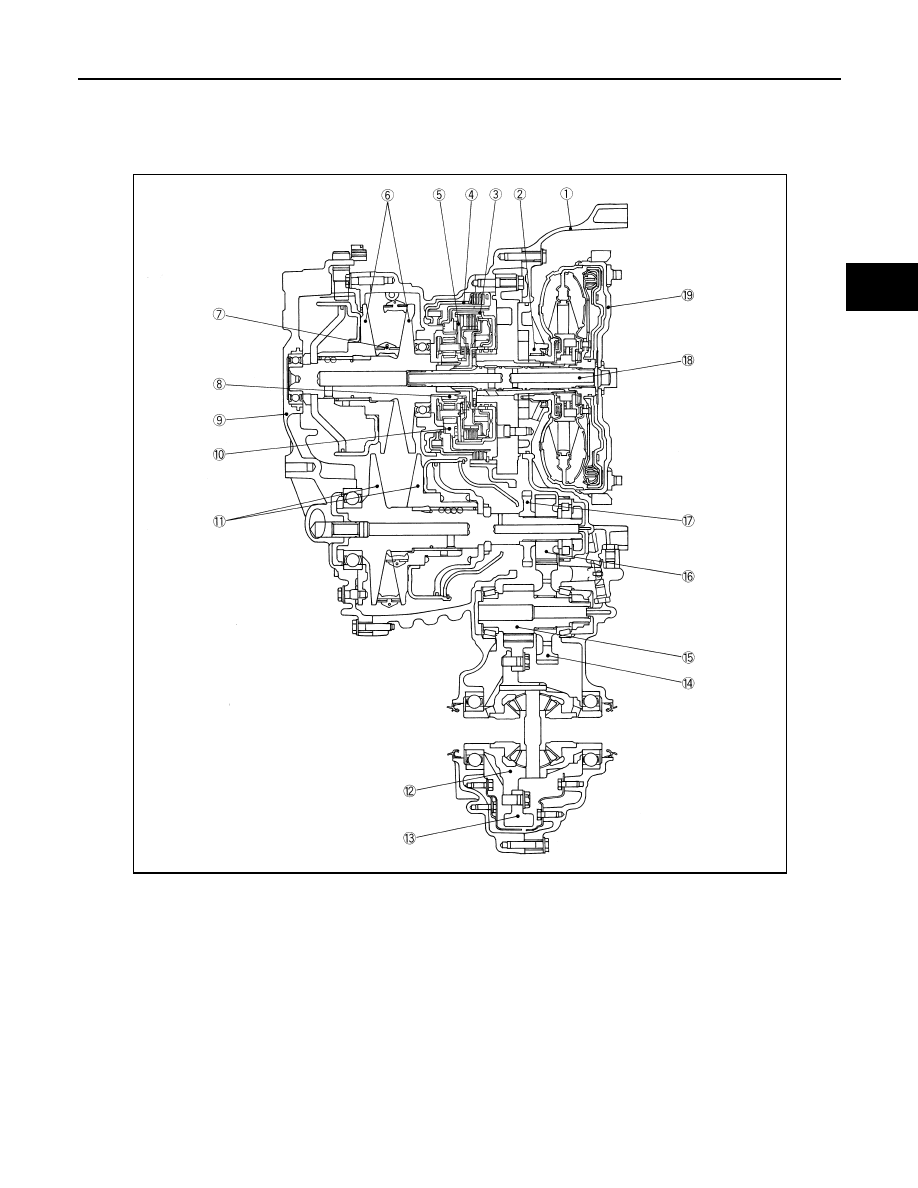

Cross-Sectional View

INFOID:0000000009948913

1.

Converter housing

2.

Oil pump

3.

Forward clutch

4.

Reverse brake

5.

Planetary carrier

6.

Primary pulley

7.

Steel belt

8.

Sun gear

9.

Side cover

10. Internal gear

11.

Secondary pulley

12. Differential case

13. Final gear

14. Idler gear

15. Reduction gear

16. Output gear

17. Parking gear

18. Input shaft

19. Torque converter

SCIA8333J

TM-74

< SYSTEM DESCRIPTION >

[CVT: RE0F08B]

MECHANICAL SYSTEM

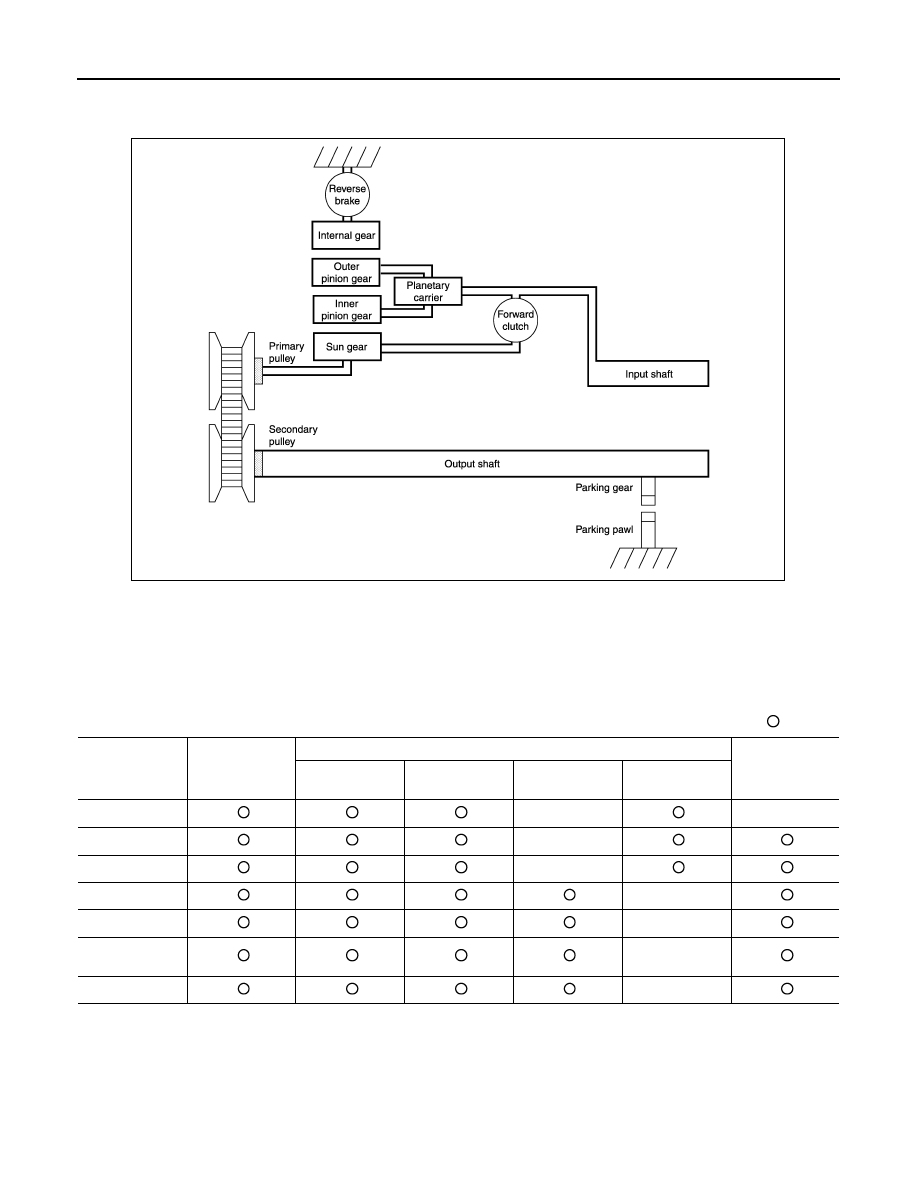

System Diagram

INFOID:0000000009948914

System Description

INFOID:0000000009948915

Driving force of engine is transmitted to wheels via torque converter, planetary gear, belt & pulley, differential
gear, and others. In addition, with mounting of parking mechanism, secondary pulley is mechanically fixed by
shifting the selector lever to “P” position.

Activation state according to each gear shifting

: Activation

Power transmission of each position

“P” position

• Driving force from input shaft is not transmitted to primary pulley because of idling caused by poor engage-

ment of forward clutch and reverse brake.

• Since the parking pole interlocked with the selector lever becomes into engagement with the parking gear

integral with the output shaft to mechanically fix the output shaft, torque from wheel is not transmitted to sec-
ondary pulley.

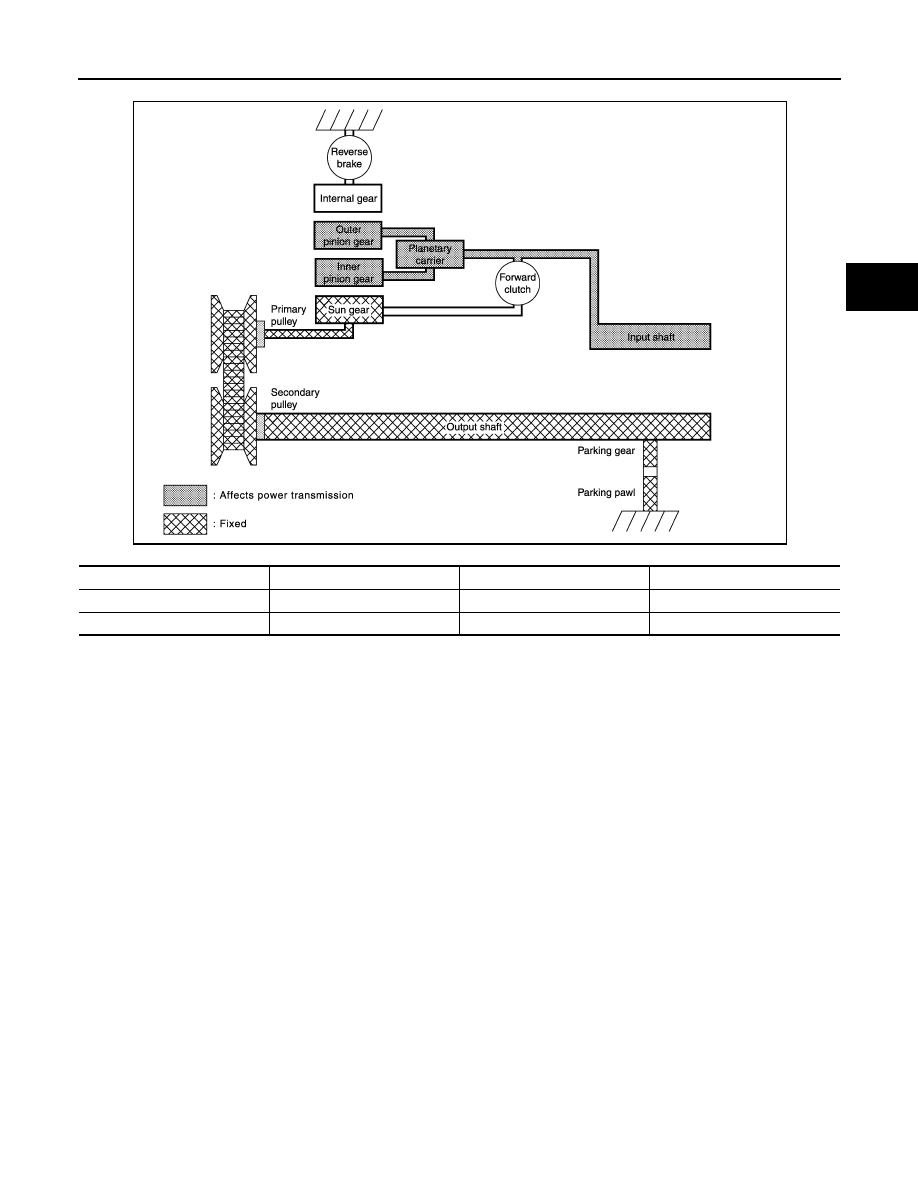

JSDIA1284GB

Selector lever

position

Secondary oil

pressure sensor

Solenoid valve

Step motor

Line pressure

Secondary pres-

sure

Lock-up

Lock-up

/select switching

P

R

N

D (Low)

D (High)

D

 (Lock-up)

L

MECHANICAL SYSTEM

TM-75

< SYSTEM DESCRIPTION >

[CVT: RE0F08B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Planet gear

“R” position

• Driving force from input shaft rotates sun gear in opposite direction of input shaft rotation because reverse

brake is engaged and internal gear is fixed.

• Therefore primary pulley rotates in opposite direction of input shaft rotation and driving force output is in

opposite direction rotation.

JSDIA1299GB

Description

Sun gear

Planetary carrier

Internal gear

Condition

Fixed

Input

—

Rotating direction

—

Idle

In the positive direction
