SYSTEM DESCRIPTION

STARTING SYSTEM

M/T

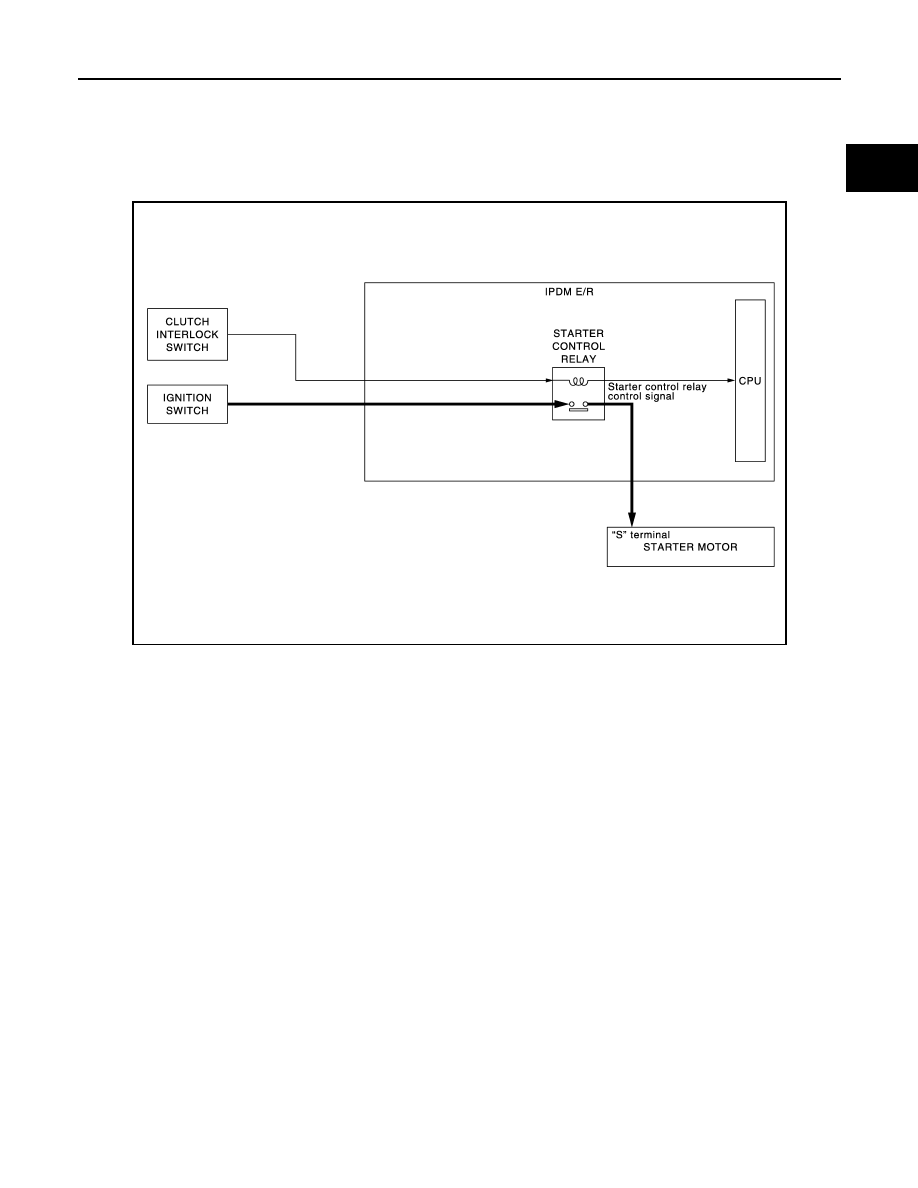

M/T : System Diagram

INFOID:0000000009945303

M/T : System Description

INFOID:0000000009945304

• When the clutch interlock switch is turned ON, power is supplied to starter control relay. And IPDM E/R

(CPU) detect clutch interlock switch condition by the inputted signal.

• When starter operating condition is satisfied, IPDM E/R turns starter control relay ON by starter control relay

control signal.

• When engine cranking condition is satisfied, then battery power is supplied to starter motor (“S” terminal)

through starter control relay.

JPBIA2937GB

STR-8

< SYSTEM DESCRIPTION >

STARTING SYSTEM

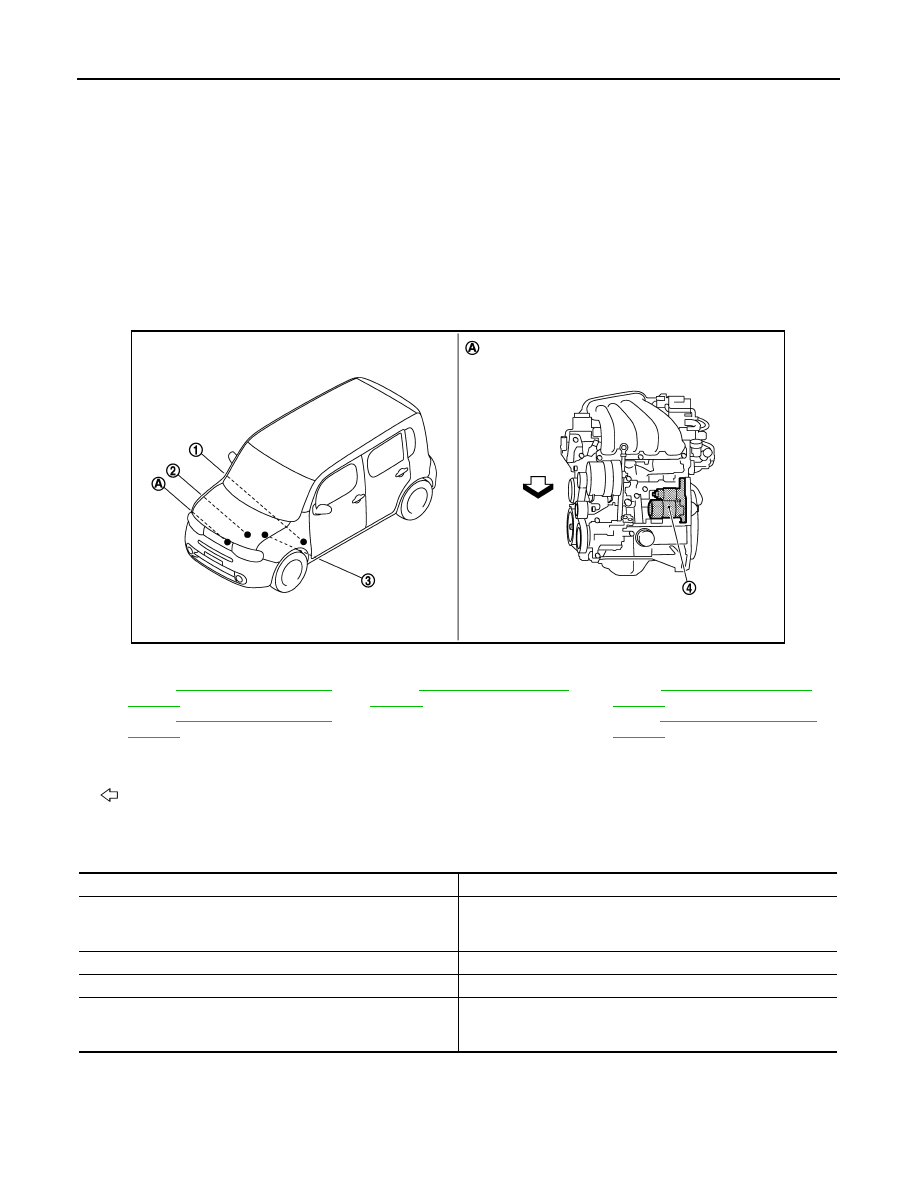

M/T : Component Parts Location

INFOID:0000000009945305

M/T : Component Description

INFOID:0000000009945306

CVT

1.

IPDM E/R
Refer to

PCS-36, "Component Parts

Location"

.

2.

Starter motor

3.

Clutch interlock switch

A.

Engine

B.

Clutch pedal

:Vehicle front

JSBIA0050ZZ

Component part

Description

Clutch interlock switch

The switch turns ON and electric power is supplied to the starter
control relay inside IPDM E/R when the clutch pedal is depressed.

IPDM E/R

CPU inside IPDM E/R controls the starter control relay.

Starter motor

The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the “S” ter-
minal is supplied with electric power.

STARTING SYSTEM

STR-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

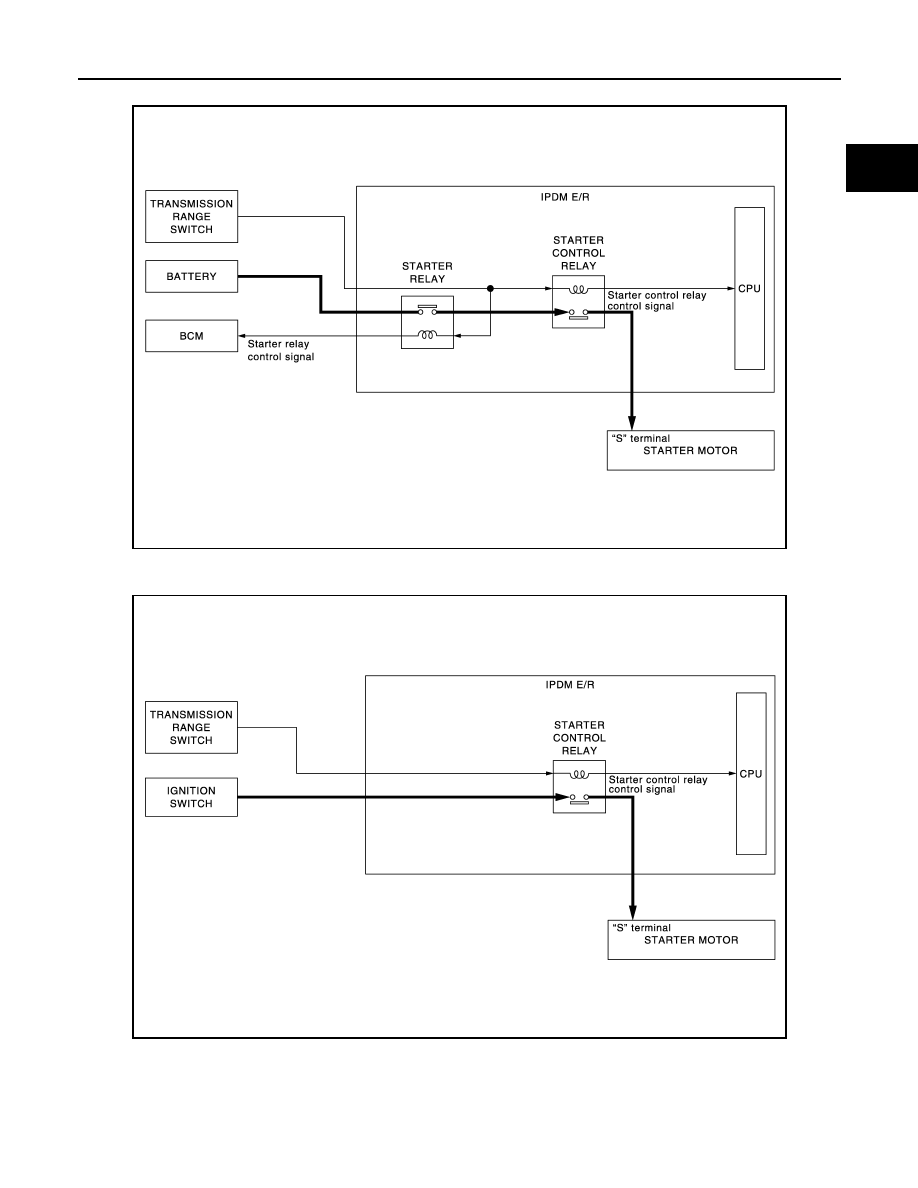

CVT : System Diagram (With Intelligent Key)

INFOID:0000000009945307

CVT : System Diagram (Without Intellgent Key)

INFOID:0000000009945308

CVT : System Description (With Intelligent Key)

INFOID:0000000009945309

• When selector lever is P or N, power is supplied to starter relay and starter control relay by Transmission

range switch. And BCM and IPDM E/R (CPU) detect selector lever P/N condition by the inputted signal.

JPBIA2939GB

JPBIA2938GB

STR-10

< SYSTEM DESCRIPTION >

STARTING SYSTEM

• When starter operating condition is satisfied, IPDM E/R turns starter control relay ON by starter control relay

control signal.

• When engine cranking condition is satisfied, BCM turns starter relay ON by starter relay control signal.
• Then battery power is supplied to starter motor (“S” terminal) through starter control relay and starter relay.

CVT : System Description (Without Intelligent Key)

INFOID:0000000009945310

• When selector lever is P or N, power is supplied to starter control relay by Transmission range switch. And

IPDM E/R (CPU) detect selector lever P/N condition by the inputted signal.

• When engine cranking condition is satisfied,then battery power is supplied to starter motor (“S” terminal)

through starter control relay.

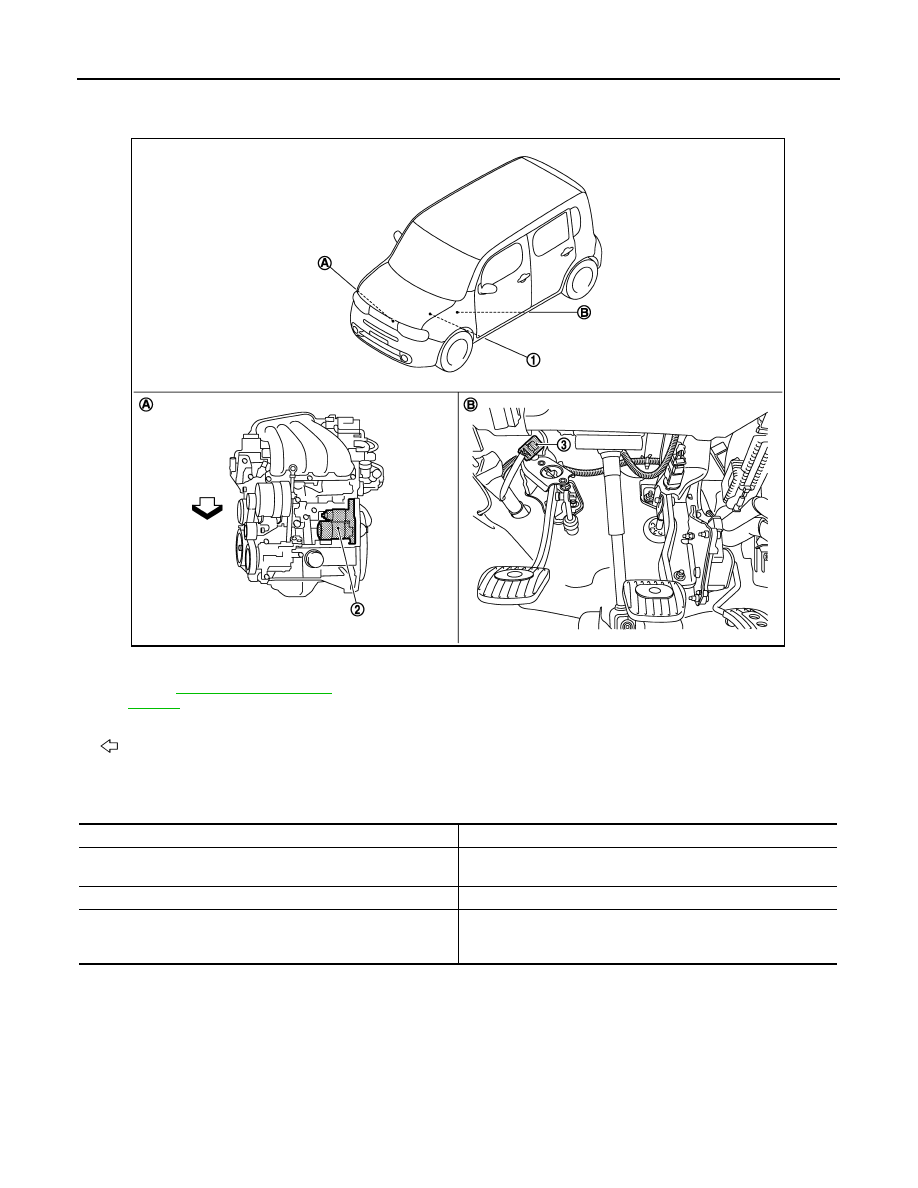

CVT : Component Parts Location

INFOID:0000000009945311

CVT : Component Description (With Intellgent Key)

INFOID:0000000009945312

1.

BCM
Refer to

BCS-10, "Component Parts

Location"

. (With Intelligent Key)

Refer to

BCS-95, "Component Parts

Location"

. (Without Intelligent Key)

2.

Transmission range switch
Refer to

TM-71, "Component Parts

Location"

.

3.

IPDM E/R
Refer to

PCS-5, "Component Parts

Location"

. (With Intelligent Key)

Refer to

PCS-36, "Component Parts

Location"

. (Without Intelligent Key)

4.

Starter motor

A.

Engine

:Vehicle front

JSBIA0048ZZ

Component part

Description

Transmission range switch

Transmission range switch supplies power to the starter relay and
starter control relay inside IPDM E/R when the selector lever is
shifted to the P or N position.

BCM

BCM controls the starter relay inside IPDM E/R.

IPDM E/R

CPU inside IPDM E/R controls the starter control relay.

Starter motor

The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the “S” ter-
minal is supplied with electric power.
