BCM (BODY CONTROL MODULE)

SEC-155

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

C1704: LOW PRESSURE FL

—

—

—

×

WT-26

C1705: LOW PRESSURE FR

—

—

—

×

C1706: LOW PRESSURE RR

—

—

—

×

C1707: LOW PRESSURE RL

—

—

—

×

C1708: [NO DATA] FL

—

—

—

×

WT-28

C1709: [NO DATA] FR

—

—

—

×

C1710: [NO DATA] RR

—

—

—

×

C1711: [NO DATA] RL

—

—

—

×

C1716: [PRESSDATA ERR] FL

—

—

—

×

WT-31

C1717: [PRESSDATA ERR] FR

—

—

—

×

C1718: [PRESSDATA ERR] RR

—

—

—

×

C1719: [PRESSDATA ERR] RL

—

—

—

×

C1729: VHCL SPEED SIG ERR

—

—

—

×

WT-33

CONSULT display

Fail-safe

Freeze Frame

Data

•Vehicle Speed

•Odo/Trip Meter

•Vehicle Condi-

tion

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference

page

SEC-156

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000010246081

VALUES ON THE DIAGNOSIS TOOL

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

Monitor Item

Condition

Value/Status

MOTOR FAN REQ

Engine idle speed

Changes depending on engine
coolant temperature, air conditioner
operation status, vehicle speed,
etc.

1/2/3/4

AC COMP REQ

Engine running

A/C switch OFF

Off

A/C switch ON
(Compressor is operating)

On

TAIL&CLR REQ

Lighting switch OFF

Off

Lighting switch 1ST, 2ND, HI or AUTO (Light is illuminated)

On

HL LO REQ

Lighting switch OFF

Off

Lighting switch 2ND, HI or AUTO (Light is illuminated)

On

HL HI REQ

Lighting switch OFF

Off

Lighting switch HI

On

FR FOG REQ

Lighting switch 2ND or
AUTO (Light is illuminated)

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

Stop

Front wiper switch INT

1LOW

Front wiper switch LO

Low

Front wiper switch HI

Hi

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally

Off

Front wiper stops at fail-safe opera-
tion

BLOCK

IGN RLY1 -REQ

Ignition switch OFF or ACC

Off

Ignition switch ON

On

IGN RLY

Ignition switch OFF or ACC

Off

Ignition switch ON

On

PUSH SW

Release the push-button ignition switch

Off

Press the push-button ignition switch

On

INTER/NP SW

Ignition switch ON

• Selector lever in any position oth-

er than P or N (CVT models)

• Release clutch pedal (M/T mod-

els)

Off

• Selector lever in P or N position

(CVT models)

• Depress clutch pedal (M/T mod-

els)

On

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

SEC-157

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ST RLY CONT

Ignition switch ON

Off

At engine cranking

On

IHBT RLY -REQ

Ignition switch ON

Off

At engine cranking

On

ST/INHI RLY

Ignition switch ON

Off

At engine cranking

INHI ON

→

 ST ON

The status of starter relay or starter control relay cannot be recognized by
the battery voltage malfunction, etc. when the starter relay is ON and the
starter control relay is OFF

UNKWN

DETENT SW

Ignition switch ON

• Pull the selector lever with selec-

tor lever in P position

• Selector lever in any position oth-

er than P

Off

Release the selector lever with selector lever in P position
NOTE:
Fixed On for M/T models

On

S/L RLY -REQ

NOTE:
The item is indicated, but not monitored.

Off

S/L STATE

NOTE:
The item is indicated, but not monitored.

UNLOCK

DTRL REQ

NOTE:
The item is indicated, but not monitored.

Off

OIL P SW

Ignition switch OFF, ACC or engine running

Open

Ignition switch ON

Close

HOOD SW

NOTE:
The item is indicated, but not monitored.

Off

THFT HRN REQ

Not operation

Off

• Panic alarm is activated
• Horn is activated with VEHICLE SECURITY (THEFT WARNING) SYS-

TEM

On

HORN CHIRP

Not operating

Off

Door locking with Intelligent Key (horn chirp mode)

On

Monitor Item

Condition

Value/Status

SEC-158

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

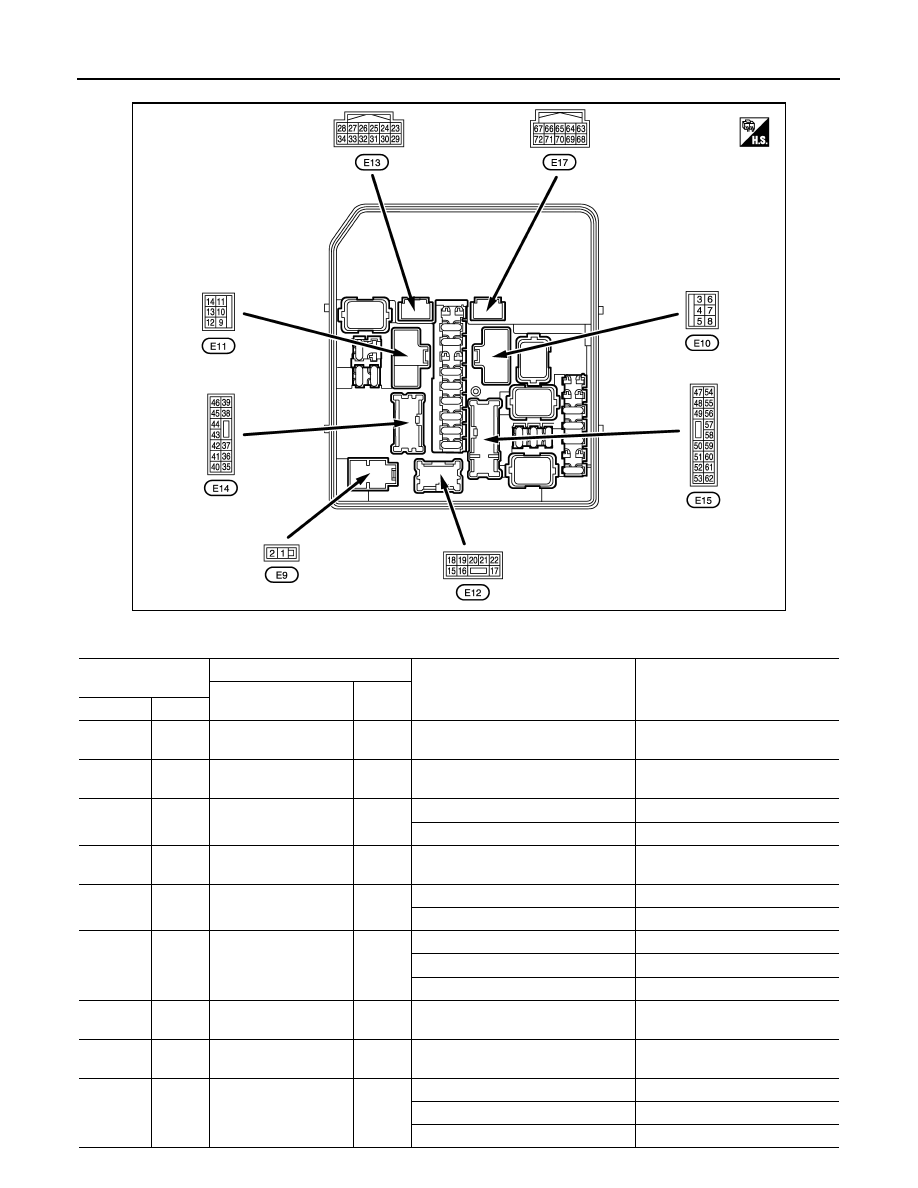

TERMINAL LAYOUT

PHYSICAL VALUES

JPMIA1423ZZ

Terminal NO.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

–

1

(R)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

2

(G)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

3

(BR)

Ground

Starter motor

Output

Ignition switch ON

0 V

At engine cranking

Battery voltage

4

(P)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

5

(LG)

Ground

Cooling fan relay-1
power supply

Output

Cooling fan OFF

0 V

Cooling fan operated

Battery voltage

7

(Y)

Ground

Cooling fan relay-2
power supply

Output

Cooling fan OFF

0 V

Cooling fan LO operated

9.0 V

Cooling fan HI operated

Battery voltage

8

(V)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

9

(B/W)

Ground

Ground

—

Ignition switch ON

0 V

10

(L)

Ground

Cooling fan motor
ground

Output

Cooling fan OFF

0 V

Cooling fan LO operated

5.0 V

Cooling fan HI operated

0 V
